Ford 1L2Z-78611D10-AA
Side Air Bag, Front Passenger Side

1999-2003 Ford 1L2Z78611D10AA

Customer Questions & Expert Answers (9)
Ford 1L2Z-78611D10-AA Side Air Bag, Front Passenger Side
  • Part Description
    Module - Air Bag; Seat Air Bag, Front Right
  • Base No.
    611D10
  • Position
    Front Passenger Side
  • Manufacturer
    Ford
  • Manufacturer's Notes
    This part is discontinued.
Make sure this part fits

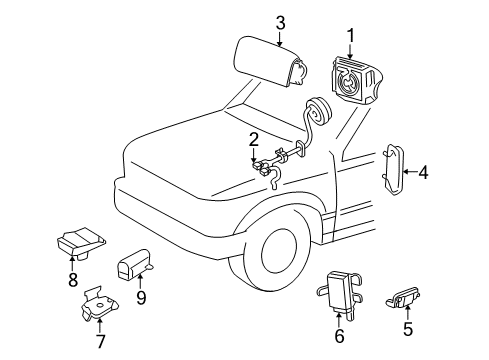

  • 1L2Z-78611D10-AA Side Air Bag, Front Passenger Side is Ref No. 4 in the diagram below

    2003 Ford Explorer Sport Side Air Bag, Front Passenger Side Diagram for 1L2Z-78611D10-AA
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 1L2Z-78611D10-AA

  • Vehicle Fitment

    Year Make Model Trim Engine
    1999-2001 Ford ExplorerEddie Bauer, Limited, Postal, Sport, XL, XL Fleet, XLS, XLT6 Cyl 4.0 L GAS, 8 Cyl 5.0 L GAS
    2001-2003 Ford Explorer SportBase, XLS, XLT6 Cyl 4.0 L GAS
    1999-2001 Mercury MountaineerBase6 Cyl 4.0 L GAS, 8 Cyl 5.0 L GAS
    Warning: California's Proposition 65

  • Customer Questions & Expert Answers

    Q:
    Is 1L2Z-78611D10-AA the part I need for my vehicle? Posted by FordPartsDeal Specialist
    A:
    Select Your Vehicle model to verify if part number 1L2Z-78611D10-AA fits your car.
    Posted by FordPartsDeal Specialist
    Q:
    How to arm or disarm the air bags for service and repair without removing the front seats on Ford Explorer Sport? Posted by Customer
    A:
    Service and repair operations on air bags can be performed by disconnecting the battery ground cable when the front seats are positioned in the highest possible tilt and forward position. The service personnel need to allow at least one minute of discharge time afterdisconnecting the battery ground cable to prevent accidental air bag deployment and personal injuries. Additionally the service personnel must ensure no operational auxiliary batteries or power supplies remain connected. Dealers must install the restraint system diagnostic tool 418-F088 (105-R0012) system beneath the seats in the side air bag floor connectors to service the side air bag system whereas the seats need removal when diagnosing or making repairs. Diagnostics of lumbar systems and climate control operate through installed seats when the technicians have their diagnostic equipment ready. Disconnect the air bag electrical connector which is found behind the finish panel of the steering column opening and connect the restraint system diagnostic tool to the vehicle harness side of the Clock Spring connector. Proceed with the disconnection of the passenger air bag system after which you should attach the diagnostic tool to this connector. The procedure demands vehicle operators to disconnect the passenger side air bag connector located beneath the front seat before linking their diagnostic tool to the same connector. They should follow this process for the driver side air bag connector positioned underneath the driver seat. Reconnect the battery ground wire as the last step.
    Posted by FordPartsDeal Specialist
    Q:
    What should be checked concerning the Restraints Control Module for the 2001 Ford Explorer? Posted by Customer
    A:
    The Restraints Control Module (RCM) should be connected.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Air Bag
    Q:
    Where should restraint system diagnostic tools be installed for the 2001 Ford Explorer Sport? Posted by Customer
    A:
    They must be installed under the seats in the side air bag floor connectors.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Air Bag
    Q:
    What happens if the air bag indicator is inoperative and an SRS fault is present for the 2000 Ford Explorer? Posted by Customer
    A:
    A chime will sound in a pattern of five sets of five beeps, indicating that the air bag indicator must be repaired before further diagnosis can proceed.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Air Bag
    Q:
    What is the final step after completing the diagnostic tool connections for the 2002 Ford Explorer Sport? Posted by Customer
    A:
    Reconnect the battery ground cable.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Air Bag
    Q:
    What is the next step after connecting the passenger airbag module for the 2003 Ford Explorer Sport? Posted by Customer
    A:
    Remove the diagnostic tool from the clockspring electrical connector at the base of the steering column and connect it.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Air Bag
    Q:
    What is crucial to do before it is returned to the customer for the 2000 Mercury Mountaineer? Posted by Customer
    A:
    The restraint system diagnostic tool must be removed from the vehicle prior to road use to prevent injury and ensure compliance with vehicle safety standards.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Air Bag
    Q:
    What areas of the should be inspected for damage for the 2001 Mercury Mountaineer? Posted by Customer
    A:
    The steering column, instrument panel knee bolsters and mounting points, instrument panel braces and brackets, instrument panel and its mounting points, seats and their mounting points, safety belts, safety belt buckles, safety belt retractors, and the SRS wiring, wiring harnesses, and connectors.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Air Bag
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM Ford Side Air Bag, Front Passenger Side 1L2Z-78611D10-AA Designed for Proper Fit and Performance

The Ford part 1L2Z-78611D10-AA Side Air Bag, Front Passenger Side as a genuine Ford Air Bag component delivers both authenticity and reliability. This item carries a warranty from the manufacturer which guarantees 12-month, 12,000-mile of use. The Ford 1L2Z-78611D10-AA Side Air Bag, Front Passenger Side is used with Ford Explorer, Explorer Sport vehicles and Mercury Mountaineer models. The original Ford part will bear the manufacturer part number: 1L2Z-78611D10-AA and where it is made at Ford. It has been specifically developed to fit the Front Passenger Side and has the code: 611D10.
This component is approximately 2.70 Pounds. The part 1L2Z78611D10AA is available in New condition while meeting the standards of the product rating. The Module - Air Bag; Seat Air Bag, Front Right belongs to the Direct Replacement category to guarantee it is suitable for its specific vehicle applications. This part 1L2Z-78611D10-AA can be vital. The inventory reference for this item is SKU: 1L2Z-78611D10-AA. The Ford manufacturer issues a factory warranty for this component which ensures dependable operation and peak performance. You can find delivery and returns information on our Shipping Policy and Return Policy pages.
Original equipment manufacturer parts are of the top standards and their performance is outstanding and top notch. This is explained by the fact that they follow the official manufacturing techniques of Ford, use of premium material and meets high standards of quality. Our site is worth visiting, in case you need high-quality and affordable OEM Ford components. We promise the optimal priced Ford parts on a wide range. You can relax that all OEM products you buy from us include a manufacturer warranty and will be covered by our simple and easy-to-use return policy, so you will not worry about buying a part.
