Ford AW7Z-19E616-A
Door Actuator

1996-2011 Ford AW7Z19E616A

Customer Questions & Expert Answers (27)

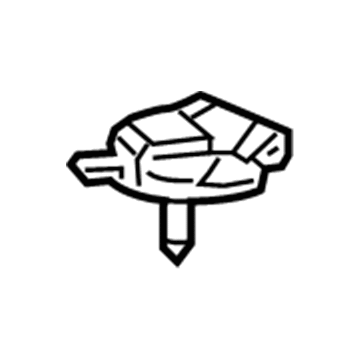

Ford AW7Z-19E616-A Door Actuator
Ford AW7Z-19E616-A Door Actuator
Ford AW7Z-19E616-A Door Actuator
  • Part Description
    Motor Assembly; HVAC Air Inlet Door Actuator; HVAC Heater Blend Door Actuator
  • Base No.
    19E616
  • Replaces
    1W7Z-19E616-AA, XW7Z-19E616-AA
  • Manufacturer
    Ford
Make sure this part fits
$50.95 MSRP: $80.91
You Save: $29.96 (38%)
Currently Unavailable

Due to manufacturer supply shortage, this item isn't currently available for ordering.

  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers

  • AW7Z-19E616-A Door Actuator is Ref No. 19 in the diagram below

    2006 Mercury Grand Marquis Door Actuator Diagram for AW7Z-19E616-A
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for AW7Z-19E616-A

  • Product Specifications

    BrandGenuine Ford
    Base No.19E616
    Manufacturer Part NumberAW7Z-19E616-A
    Part DescriptionMotor Assembly; HVAC Air Inlet Door Actuator; HVAC Heater Blend Door Actuator
    Other NamesActuator Assembly
    Item Dimensions8.5 x 7.7 x 7.9 inches
    Item Weight0.60 Pounds
    ConditionNew
    Fitment TypeDirect Replacement
    Replaces1W7Z-19E616-AA, XW7Z-19E616-AA
    ManufacturerFord
    SKUAW7Z-19E616-A
    WarrantyThis genuine Ford part is guaranteed by Ford's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California's Proposition 65

  • Vehicle Fitment

    Year Make Model Trim Engine
    1996-2011 Ford Crown VictoriaBase, LWB, LX, LX Sport, Police Interceptor, S, Special Edition8 Cyl 4.6 L CNG, 8 Cyl 4.6 L FLEX, 8 Cyl 4.6 L GAS
    1996-2011 Mercury Grand MarquisGS, GSL, Limited Edition, LS, LSE, Ultimate Edition8 Cyl 4.6 L FLEX, 8 Cyl 4.6 L GAS
    2003-2004 Mercury MarauderBase8 Cyl 4.6 L GAS

  • Customer Questions & Expert Answers

    Q:
    Can you verify if AW7Z-19E616-A is the right one for my car? Posted by FordPartsDeal Specialist
    A:
    Select Your Vehicle model to verify if part number AW7Z-19E616-A fits your car.
    Posted by FordPartsDeal Specialist
    Q:
    How to service the temperature blend door actuator on Mercury Grand Marquis? Posted by Customer
    A:
    The service procedure for the temperature blend door actuator begins with removing the instrument panel by executing standard protocols on the body and frame and interior moulding/trim and dashboard/instrument panel sections. Separate the connector from the device after which you should remove the four screws that maintain the temperature blend door actuator position. Follow the already performed extraction procedures to reinstall the new actuator.
    Posted by FordPartsDeal Specialist
    Q:
    How do you install the new actuator for the 2003 Ford Crown Victoria? Posted by Customer
    A:
    Reverse the removal procedure.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What is the next step after removing the connectors from the lighting module for the 2002 Ford Crown Victoria? Posted by Customer
    A:
    Take out the screws to remove the bracket.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What is the final step in removing the vacuum motor for the 2001 Ford Crown Victoria? Posted by Customer
    A:
    Disconnect the vacuum lines.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What should be done after removing the pin-type retainers for the 2005 Ford Crown Victoria? Posted by Customer
    A:
    Disconnect the vacuum connector.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What should be done after removing the instrument panel for the 2008 Ford Crown Victoria? Posted by Customer
    A:
    Disconnect the electrical connector from the temperature blend door actuator.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    How do you complete the installation process for the 2004 Ford Crown Victoria? Posted by Customer
    A:
    Reverse the removal procedure to complete the process.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What should be removed after disconnecting the battery ground cable for the 2004 Mercury Grand Marquis? Posted by Customer
    A:
    Remove the LH lower dash insulator panel and disconnect the lamp.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What do you do after disconnecting the vacuum line for the 2003 Ford Crown Victoria? Posted by Customer
    A:
    Remove the screws securing the panel door vacuum control motor and take it out.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What is the first step to service the temperature blend door actuator for the 2006 Ford Crown Victoria? Posted by Customer
    A:
    Remove the instrument panel.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    How do you install the vacuum control motor after removal for the 2009 Ford Crown Victoria? Posted by Customer
    A:
    Reverse the steps taken during removal.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What is the first step to service the temperature blend door actuator for the 2007 Ford Crown Victoria? Posted by Customer
    A:
    Remove the instrument panel.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What is the first step to service and repair the air door actuator/motor for the 2000 Ford Crown Victoria? Posted by Customer
    A:
    Disconnect the battery ground cable.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    How do you remove the lighting module for the 2003 Mercury Grand Marquis? Posted by Customer
    A:
    Unscrew it and disengage the clip.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What do you do after disconnecting the vacuum line for the 2003 Mercury Marauder? Posted by Customer
    A:
    Remove the screws securing the panel door vacuum control motor and take it out.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    How do you install the new actuator for the 2002 Mercury Grand Marquis? Posted by Customer
    A:
    Simply reverse the removal steps.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    How do you remove the floor/defrost door vacuum control motor for the 2009 Mercury Grand Marquis? Posted by Customer
    A:
    Take off the clip and the two nuts.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    How do you remove the fill panel for the 2005 Mercury Grand Marquis? Posted by Customer
    A:
    Take out the two pin-type retainers and then remove the screws.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What is the next step after removing the lighting module for the 2000 Mercury Grand Marquis? Posted by Customer
    A:
    After removing the connectors, take out the screws to remove the bracket, followed by the vacuum motor.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What should be done after removing the control arm clip and spring for the 2006 Mercury Grand Marquis? Posted by Customer
    A:
    Remove the nuts securing the air inlet door vacuum control motor.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What should be removed after disconnecting the battery for the 2001 Mercury Grand Marquis? Posted by Customer
    A:
    Remove the instrument panel, following the appropriate procedures for the dashboard and interior trim.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What is the final step regarding the vacuum connectors for the 2007 Mercury Grand Marquis? Posted by Customer
    A:
    Disconnect the vacuum connectors from the floor/defrost door vacuum control motor.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What is the next step after removing the trim panel for the 2008 Mercury Grand Marquis? Posted by Customer
    A:
    Take out the two data link connector screws and detach the vacuum line.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What should be done after removing the instrument panel for the 2004 Mercury Grand Marquis? Posted by Customer
    A:
    Disconnect the connector and remove the four screws securing the temperature blend door actuator.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What should be done after removing the instrument panel for the 2004 Mercury Marauder? Posted by Customer
    A:
    Disconnect the connector and remove the four screws securing the temperature blend door actuator.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What should you do after removing the instrument panel for the 2004 Mercury Marauder? Posted by Customer
    A:
    Reach through the door opening to remove the pin, then disconnect the vacuum line from the panel door vacuum control motor.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
