Diagram (1 of 1): Cooling - Radiator & Components

1998 Ford Windstar Radiator & Components Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
F78Z-8005-AA
Radiator Assembly
MSRP: $227.61 Your Price: $164.53
1
Add To Cart

4
F58Z-7D273-A
Connector - Oil Tube
Tank Connector

5

FOAZ-8115-A
Plug - Radiator Drain
Drain Valve
MSRP: $14.23 Your Price: $10.03
1
Add To Cart

6

E9SZ-8100-A
Cap Assembly - Radiator
Radiator Cap
MSRP: $7.09 Your Price: $4.47
1
Add To Cart

7
F58Z-8125-A
Insulator - Rubber
Insulator
Part Notes: Upper
MSRP: $18.72 Your Price: $13.20
1
Add To Cart
7
XF2Z-8124-BA
Insulator - Radiator
Insulator
- Part Notes: Lower

8

F58Z-8A080-A
Tank Assembly - Radiator
Reservoir

10
F68Z8260CA
Hose - Radiator
Upper Hose
- Part Notes: 3.8 Liter

11
F58Z8286A
Lower Hose - Radiator
Lower Hose
- Part Notes: 3.0 Liter

12
F58Z-8286-B
Hose - Radiator
Lower Hose
- Part Notes: 3.8 Liter

13
B7A-8287-AA
Clamp - Hose
Clamp
MSRP: $2.17 Your Price: $1.53
10
Add To Cart

F23Z-8290-B
Tube Assembly
Extension Pipe
- Part Notes: 3.0 Liter

F68Z-7R081-DC
Tube - Oil Cooler
- Part Notes: Includes 7D174 bypass valve assembly, upper and lower tubes from bypass valve to transaxle , 3.8L , with or without trailer tow
- Fit Note: 6 Cyl
- Callout Name: 7R081
MSRP: $100.02 Your Price: $72.30
View Details

F3DZ-7Z465-A
Clip
- Part Notes: Clip - push on type - 8.4mm x 14mm - retains 3/8" cooler line to fitting at transaxle, AX4S
- Require Quantity: 2
- Package Quantity: 1
- Callout Name: 7Z465
- Replaced By: -N807397-S441
MSRP: $36.46 Your Price: $26.79
View Details

-N805260-S
Bolt
- Part Notes: (AB-91-E) bolt (7A103 to 7005) M8 x 1.25 x 65 hex head (metric)
- Require Quantity: 9
- Package Quantity: 4
- Callout Name: 7A103
MSRP: $10.00 Your Price: $5.88
View Details

F1DZ-7Z101-A
Seal
- Part Notes: 14.0 I.D. x 1.78 thick (metric)
- Require Quantity: 3
- Package Quantity: 10
- Callout Name: 7Z101
MSRP: $2.74 Your Price: $1.77
View Details

E6DZ-7F337-A
Seal
- Part Notes: #E6SP 7F337-AA
- Callout Name: 7F337
Your Price: $13.78
View Details

F1DZ-7Z484-A
Seal
- Part Notes: Outer - small - 6.07 I.D. x 1.78 thick (metric)
- Require Quantity: 3
- Package Quantity: 10
- Callout Name: 7Z484
MSRP: $12.68 Your Price: $8.19
View Details

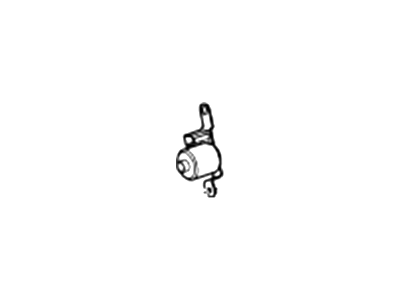

F7OZ-7G136-AA
Solenoid Assy
- Part Notes: #F7OP 7G136-AA - high impedance solenoid, FROM 9/8/97
- Callout Name: 7G136
MSRP: $154.73 Your Price: $106.30
View Details

E6DZ-7G303-A
Gasket - Cover
- Part Notes: GASKET (CHAIN COVER)
- Callout Name: 7G303
MSRP: $1.38 Your Price: $1.00
View Details

F2TZ-7E332-A
Spring - Control Valve Check
- Part Notes: #Orange paint
- Callout Name: 7E332
MSRP: $31.35 Your Price: $22.10
View Details

F5DZ-7G096-A
Washer
- Callout Name: 7G096
MSRP: $18.75 Your Price: $13.78
View Details

E6DZ-7G190-A
Plate - Mounting
- Part Notes: PLATE (FLUID LEVEL THERMOSTAT VALVE)
- Callout Name: 7G190

-N802927-S
Seal
- Part Notes: Seal (7G276 to 7G188) "O" ring 17.2 x 2.62 (metric)
- Callout Name: 7G276
MSRP: $8.50 Your Price: $4.99
View Details

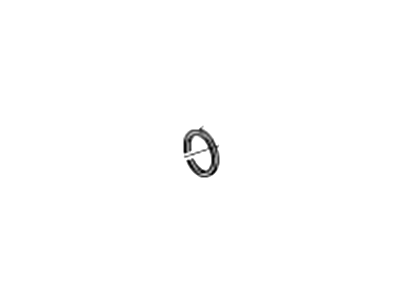

FODZ-7G287-A
Ring
- Callout Name: 7G287
MSRP: $18.75 Your Price: $13.78
View Details

E6DZ-1177-A
Seal
- Part Notes: Transaxle to halfshaft, AX4S
- Require Quantity: 2
- Package Quantity: 1
- Callout Name: 1177
- Replaced By: 2F1Z-1177-AB
MSRP: $18.83 Your Price: $13.05
View Details

-N605892-S1036
Bolt
- Callout Name: N605892-S1036
- Replaced By: -N605892-S437
MSRP: $4.25 Your Price: $2.50
View Details
