How to Remove and Replace the Rear Coil Springs on 2008 Ford Focus?

First detach the wheel along with the tire and then uninstall the stabilizer bar nut, bushings and links from both sides of the stabilizer bar. A suitable jack should be used to lift the rear lower arm until it reaches 32 mm (1.25 inches). The coil spring remains under high loading force during removal or installation thus resulting in dangers for serious bodily injuries. After removing the rearward lower arm outboard bolt the technician can lower the rear lower arm and remove the jack to extract the spring. Check the upper and lower spring seats for defects then substitute them if needed. Place the upper spring seat correctly before tightening the springs for installation so they sit at the upper and lower spring seats. Safety goggles protect as you push the spring into position within the upper spring mount and lower arm. The spring must rest against both spring stops and be detectable through the drain hole before you rotate it clockwise if neccessary. The rearward lower arm outboard bolt installation requires delay until a later operation. A suitable jack will allow you to lift the rear lower arm and enable you to install the rearward lower arm outboard bolt before tightening it until it becomes snug. Install the stabilizer links with their respective spacers before installing the nut and bushings along with a torque of 15 Nm (11 ft. lbs.). After installing the tire and wheel back onto the vehicle let it rest on the tires and wheels before completing bolt torquing on the outboard rearward lower arm bolt to 115 Nm (85 ft. lbs.).

OEM 2008 Ford Focus Coil Springs

Strut Spring

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Coil Springs found

View related parts

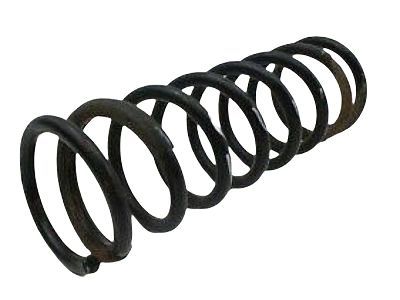

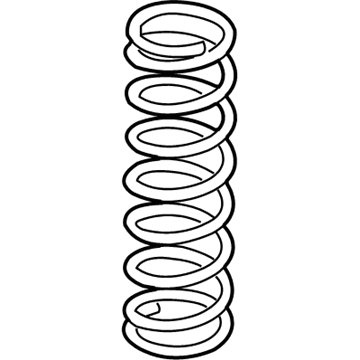

2008 Ford Focus Coil Spring, Green, Rear Part Number: 8S4Z-5B669-G
$11.00 MSRP: $15.22
You Save: $4.22 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring - Rear; Coil Spring, Rear; Coil Springs; Spring
- Position: Rear
- Base No.: 5560
- Item Weight: 4.60 Pounds
- Condition: New
- Fitment Type: Direct Replacement
- Require Quantity: 2
- SKU: 8S4Z-5B669-G
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2008 Ford Focus Submodels:
- S, SE, SEL, SES | 4 Cyl 2.0 L GAS
View related parts
2008 Ford Focus Coil Spring, Red, Rear Part Number: 8S4Z-5B669-F
$59.37 MSRP: $82.13
You Save: $22.76 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring - Rear; Coil Spring, Rear; Coil Springs; Spring
- Position: Rear
- Base No.: 5560
- Item Weight: 4.40 Pounds
- Condition: New
- Fitment Type: Direct Replacement
- Require Quantity: 2
- SKU: 8S4Z-5B669-F
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2008 Ford Focus Submodels:
- S, SE, SEL, SES | 4 Cyl 2.0 L GAS
View related parts
2008 Ford Focus Coil Spring, Front Part Number: 8S4Z-5310-B
$22.75 MSRP: $31.47
You Save: $8.72 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring - Front; Coil Spring, Front; Coil Springs
- Position: Front
- Base No.: 5310
- Item Weight: 4.50 Pounds
- Condition: New
- Fitment Type: Direct Replacement
- Require Quantity: 2
- SKU: 8S4Z-5310-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2008 Ford Focus Submodels:
- S, SE, SEL, SES | 4 Cyl 2.0 L GAS
View related parts
2008 Ford Focus Coil Spring, Yellow, Rear Part Number: 8S4Z-5B669-E
$39.21 MSRP: $54.24
You Save: $15.03 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring - Rear; Coil Spring, Rear; Coil Springs; Spring
- Position: Rear
- Base No.: 5560
- Item Weight: 4.50 Pounds
- Condition: New
- Fitment Type: Direct Replacement
- Require Quantity: 2
- SKU: 8S4Z-5B669-E
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2008 Ford Focus Submodels:
- S, SE, SEL, SES | 4 Cyl 2.0 L GAS
View related parts
2008 Ford Focus Coil Spring, Front Part Number: 8S4Z-5310-E
$115.88 MSRP: $178.33
You Save: $62.45 (36%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring - Front; Coil Spring, Front; Coil Springs
- Position: Front
- Base No.: 5310
- Item Weight: 4.20 Pounds
- Condition: New
- Fitment Type: Direct Replacement
- Require Quantity: 2
- SKU: 8S4Z-5310-E
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2008 Ford Focus Submodels:
- S, SE, SEL, SES | 4 Cyl 2.0 L GAS
View related parts
2008 Ford Focus Coil Spring, Front Part Number: 8S4Z-5310-G
Product Specifications
- Other Name: Spring - Front; Coil Spring, Front; Coil Springs; Spring
- Position: Front
- Base No.: 5310
- Item Weight: 4.40 Pounds
- Condition: New
- Fitment Type: Direct Replacement
- Require Quantity: 2
- SKU: 8S4Z-5310-G
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2008 Ford Focus Submodels:
- S, SE, SEL, SES | 4 Cyl 2.0 L GAS
View related parts
2008 Ford Focus Coil Spring, Blue, Rear Part Number: 8S4Z-5B669-H
Product Specifications
- Other Name: Spring - Rear; Coil Spring, Rear; Coil Springs; Spring
- Position: Rear
- Base No.: 5560
- Item Weight: 4.80 Pounds
- Condition: New
- Fitment Type: Direct Replacement
- Require Quantity: 2
- SKU: 8S4Z-5B669-H
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2008 Ford Focus Submodels:
- S, SE, SEL, SES | 4 Cyl 2.0 L GAS

2008 Ford Focus Coil Springs

If you're seeking quality and affordability, look no further than our extensive inventory of genuine 2008 Ford Focus Coil Springs available at FordPartsDeal.com. You can confidently purchase our OEM 2008 Ford Focus Coil Springs as they are supported by the manufacturer's warranty and our hassle-free return policy, alongside the benefit of our fast delivery service.

2008 Ford Focus Coil Springs Parts Q&A

Q: How to Remove and Replace the Rear Coil Springs on 2008 Ford Focus?
A: First detach the wheel along with the tire and then uninstall the stabilizer bar nut, bushings and links from both sides of the stabilizer bar. A suitable jack should be used to lift the rear lower arm until it reaches 32 mm (1.25 inches). The coil spring remains under high loading force during removal or installation thus resulting in dangers for serious bodily injuries. After removing the rearward lower arm outboard bolt the technician can lower the rear lower arm and remove the jack to extract the spring. Check the upper and lower spring seats for defects then substitute them if needed. Place the upper spring seat correctly before tightening the springs for installation so they sit at the upper and lower spring seats. Safety goggles protect as you push the spring into position within the upper spring mount and lower arm. The spring must rest against both spring stops and be detectable through the drain hole before you rotate it clockwise if neccessary. The rearward lower arm outboard bolt installation requires delay until a later operation. A suitable jack will allow you to lift the rear lower arm and enable you to install the rearward lower arm outboard bolt before tightening it until it becomes snug. Install the stabilizer links with their respective spacers before installing the nut and bushings along with a torque of 15 Nm (11 ft. lbs.). After installing the tire and wheel back onto the vehicle let it rest on the tires and wheels before completing bolt torquing on the outboard rearward lower arm bolt to 115 Nm (85 ft. lbs.).
