How to Service and Repair the Rear Axle Shaft and Differential of a 7.5-Inch Ring Gear on 2008 Ford Mustang?

The Ford 7.5-inch ring gear axle differential service requires first placing the vehicle on a hoist with neutral transmission while performing repair operations. Disassemble the differential housing cover and the rear brake disc from the system. Dismantle the rear wheel speed sensor before removing the axle shaft U-washer because damaging the rear brake anti-lock sensor can occur. Proceed to remove the differential pinion shaft after discarding its lock bolt and extracting the shaft. The axle shaft U-washer must come out gently while protecting the rubber O-ring inside the axle shaft grooves by applying pressure to the axle shaft before extraction. Extract the axle shaft in a way that protects both the oil seal and its undamaged condition. The installation process requires you to grease the axle shaft oil seal lip followed by axle shaft installation which should be performed without seal damage. To secure the U-washer on the axle shaft button end you should pull the shaft outward. A replacement differential pinion shaft lock bolt may not be available but the existing bolt can be treated with Threadlock(R) and sealer followed by installation into the differential pinion shaft position with correct alignment to the differential case lock bolt hole and use of a new lock bolt tightened to 30 Nm (22 lb-ft). End this procedure by reinstalling the complete set that includes the rear wheel speed sensor along with the brake disc and differential housing cover.

OEM 2008 Ford Mustang Axle Shaft

Car Axle Shaft

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Axle Shafts found

View related parts

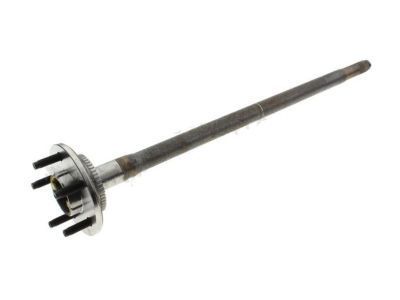

2008 Ford Mustang Axle Shafts, Rear Driver Side Part Number: 5R3Z-4234-B
Product Specifications
- Other Name: Shaft Assembly - Rear Axle; Drive Axle Shaft, Rear Left; Axle Shaft Assembly; Axle Shaft
- Position: Rear Driver Side
- Base No.: 4238
- Item Weight: 23.00 Pounds
- Item Dimensions: 36.7 x 8.2 x 8.2 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 5R3Z-4234-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2008 Ford Mustang Submodels:
- Base, Boss 302, Bullitt, GT, Shelby GT, Shelby GT500, Shelby GT500KR | 6 Cyl 3.7 L GAS, 6 Cyl 4.0 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.4 L GAS, 8 Cyl 5.8 L GAS
View related parts

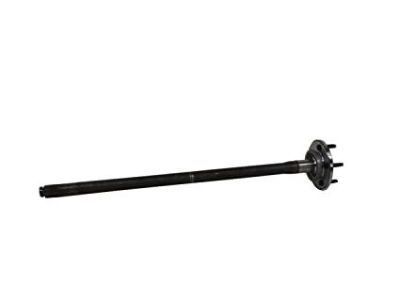

2008 Ford Mustang Axle Shafts, Rear Passenger Side Part Number: 5R3Z-4234-A
Product Specifications
- Other Name: Shaft Assembly - Rear Axle; Drive Axle Shaft, Rear Right; Axle Shaft Assembly; Axle Shaft
- Position: Rear Passenger Side
- Base No.: 4238
- Item Weight: 25.10 Pounds
- Item Dimensions: 41.2 x 8.3 x 8.4 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 5R3Z-4234-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2008 Ford Mustang Submodels:
- Base, Boss 302, Bullitt, GT, Shelby GT, Shelby GT500, Shelby GT500KR | 6 Cyl 3.7 L GAS, 6 Cyl 4.0 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.4 L GAS, 8 Cyl 5.8 L GAS
View related parts

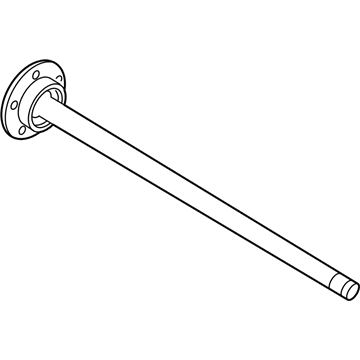

2008 Ford Mustang Axle Shafts, Rear Driver Side Part Number: 5R3Z-4234-AD
Product Specifications
- Other Name: Shaft Assembly - Rear Axle; Drive Axle Shaft, Rear Left; Axle Shaft Assembly; Axle Shaft
- Position: Rear Driver Side
- Base No.: 4238
- Item Weight: 22.60 Pounds
- Item Dimensions: 38.0 x 7.6 x 7.6 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 5R3Z-4234-AD
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2008 Ford Mustang Submodels:
- Base, GT, Shelby GT500 | 6 Cyl 4.0 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 5.4 L GAS
View related parts
2008 Ford Mustang Axle Shafts, Rear Passenger Side Part Number: 5R3Z-4234-AC
Product Specifications
- Other Name: Shaft Assembly - Rear Axle; Drive Axle Shaft, Rear Right; Axle Shaft Assembly; Axle Shaft
- Position: Rear Passenger Side
- Base No.: 4238
- Item Weight: 23.30 Pounds
- Item Dimensions: 37.6 x 7.6 x 7.4 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 5R3Z-4234-AC
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2008 Ford Mustang Submodels:
- Base, GT, Shelby GT500 | 6 Cyl 4.0 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 5.4 L GAS
View related parts
2008 Ford Mustang Axle Shafts, Rear Passenger Side Part Number: 5R3Z-4234-C
Product Specifications
- Other Name: Shaft Assembly - Rear Axle; Drive Axle Shaft, Rear Right; Axle Shaft Assembly; Axle Shaft
- Position: Rear Passenger Side
- Replaces: 5R3Z-4234-DA
- Base No.: 4238
- Item Weight: 23.50 Pounds
- Item Dimensions: 37.3 x 7.6 x 7.3 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 5R3Z-4234-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2008 Ford Mustang Submodels:
- Base, Bullitt, GT, Shelby GT, Shelby GT500, Shelby GT500KR | 6 Cyl 4.0 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 5.4 L GAS
View related parts
2008 Ford Mustang Axle Shafts, Rear Driver Side Part Number: 5R3Z-4234-D
Product Specifications
- Other Name: Shaft Assembly - Rear Axle; Drive Axle Shaft, Rear Left; Axle Shaft Assembly; Axle Shaft
- Position: Rear Driver Side
- Replaces: 5R3Z-4234-DB
- Base No.: 4238
- Item Weight: 23.40 Pounds
- Item Dimensions: 36.9 x 7.5 x 7.6 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 5R3Z-4234-D
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2008 Ford Mustang Submodels:
- Base, Bullitt, GT, Shelby GT, Shelby GT500, Shelby GT500KR | 6 Cyl 4.0 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 5.4 L GAS

2008 Ford Mustang Axle Shaft

If you're seeking quality and affordability, look no further than our extensive inventory of genuine 2008 Ford Mustang Axle Shaft available at FordPartsDeal.com. You can confidently purchase our OEM 2008 Ford Mustang Axle Shaft as they are supported by the manufacturer's warranty and our hassle-free return policy, alongside the benefit of our fast delivery service.

2008 Ford Mustang Axle Shaft Parts Q&A

Q: How to Service and Repair the Rear Axle Shaft and Differential of a 7.5-Inch Ring Gear on 2008 Ford Mustang?
A: The Ford 7.5-inch ring gear axle differential service requires first placing the vehicle on a hoist with neutral transmission while performing repair operations. Disassemble the differential housing cover and the rear brake disc from the system. Dismantle the rear wheel speed sensor before removing the axle shaft U-washer because damaging the rear brake anti-lock sensor can occur. Proceed to remove the differential pinion shaft after discarding its lock bolt and extracting the shaft. The axle shaft U-washer must come out gently while protecting the rubber O-ring inside the axle shaft grooves by applying pressure to the axle shaft before extraction. Extract the axle shaft in a way that protects both the oil seal and its undamaged condition. The installation process requires you to grease the axle shaft oil seal lip followed by axle shaft installation which should be performed without seal damage. To secure the U-washer on the axle shaft button end you should pull the shaft outward. A replacement differential pinion shaft lock bolt may not be available but the existing bolt can be treated with Threadlock(R) and sealer followed by installation into the differential pinion shaft position with correct alignment to the differential case lock bolt hole and use of a new lock bolt tightened to 30 Nm (22 lb-ft). End this procedure by reinstalling the complete set that includes the rear wheel speed sensor along with the brake disc and differential housing cover.
