How to Remove and Replace the Rear Coil Springs on 2009 Ford Flex?

Measure the distance between the wheel hub center point and fender lip when the vehicle stands on flat ground before you handle the rear coil spring installation process. Fitting the hex-holding mechanism will stop the stabilizer bar link studs from rotating during you remove and discard two upper nuts. Set the stabilizer bar aside from the lower arm and then use a correct jackstand to hold the lower arm in place. Lower the subframe bolt torque before removing the wheel knuckle bolt on the arm assembly. Discard both components. After lowering the jackstand you should remove the spring by placing the lower spring seat correctly inside the lower arm. Check for any damage on the spring seats and get new replacements when required. Install the rear suspension by first lifting it with a jackstand until the initial measurement between the hub center and fender lip matches the recorded measurement. Start by installing the spring before placing the jackstand beneath the lower arm. Then install a new lower arm-to-wheel knuckle bolt but keep it loose. The hex-holding feature should be used to stop the stabilizer bar link studs when placing the stabilizer bar links correctly. Install two new upper nuts at 55 Nm (41 lb-ft). The technician must raise the rear suspension until it reaches the specified curb height. Then, they should tighten the lower arm-to-wheel knuckle bolt to 265 Nm (196 lb-ft) and the lower arm-to-subframe bolt to 215 Nm (159 lb-ft). To complete the procedure reinstall the wheel alongside the tire.

OEM 2009 Ford Flex Coil Springs

Strut Spring

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Coil Springs found

View related parts

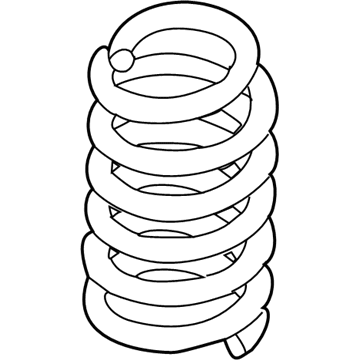

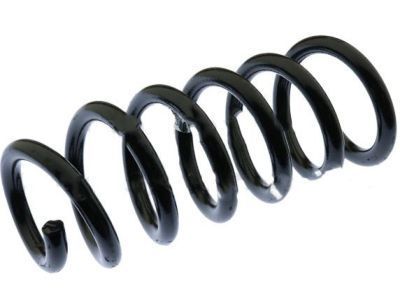

2009 Ford Flex Coil Spring, Rear Part Number: AA8Z-5560-D
$111.59 MSRP: $162.43
You Save: $50.84 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring - Rear; Coil Spring, Rear; Coil Springs; Spring
- Position: Rear
- Replaces: AA8Z-5560-B, 8A8Z-5560-E
- Base No.: 5560
- Item Weight: 11.70 Pounds
- Item Dimensions: 5.7 x 5.7 x 14.7 inches
- Condition: New
- Fitment Type: Direct Replacement
- Require Quantity: 2
- SKU: AA8Z-5560-D
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2009 Ford Flex Submodels:
- Limited, SE, SEL, Titanium | 6 Cyl 3.5 L GAS
View related parts
2009 Ford Flex Coil Spring, Rear Part Number: AA8Z-5560-E
$109.20 MSRP: $158.95
You Save: $49.75 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring - Rear; Coil Spring, Rear; Coil Springs; Spring
- Position: Rear
- Replaces: 8A8Z-5560-F, AA8Z-5560-C
- Base No.: 5560
- Item Weight: 11.40 Pounds
- Item Dimensions: 5.5 x 5.4 x 14.7 inches
- Condition: New
- Fitment Type: Direct Replacement
- Require Quantity: 2
- SKU: AA8Z-5560-E
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2009 Ford Flex Submodels:
- Limited, SE, SEL, Titanium | 6 Cyl 3.5 L GAS
View related parts
2009 Ford Flex Coil Spring, Front Part Number: 8A8Z-5310-A
$47.31 MSRP: $64.38
You Save: $17.07 (27%)
ADD TO CART
Product Specifications
- Other Name: Spring - Front; Coil Spring, Front; Coil Springs; Spring
- Position: Front
- Base No.: 5310
- Item Weight: 7.50 Pounds
- Item Dimensions: 7.1 x 6.9 x 15.6 inches
- Condition: New
- Fitment Type: Direct Replacement
- Require Quantity: 2
- SKU: 8A8Z-5310-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2009 Ford Flex Submodels:
- Limited, SE, SEL, Titanium | 6 Cyl 3.5 L GAS
View related parts
2009 Ford Flex Coil Spring, Rear Part Number: AA5Z-5560-H
Product Specifications
- Other Name: Spring - Rear; Coil Springs; Spring
- Position: Rear
- Replaces: 8A5Z-5560-F, AA5Z-5560-F
- Base No.: 5560
- Item Weight: 8.30 Pounds
- Item Dimensions: 5.4 x 5.6 x 13.8 inches
- Condition: New
- Fitment Type: Direct Replacement
- Require Quantity: 2
- SKU: AA5Z-5560-H
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2009 Ford Flex Submodels:
- Limited, SE, SEL | 6 Cyl 3.5 L GAS
View related parts
2009 Ford Flex Coil Spring, Front Part Number: 8A8Z-5310-B
Product Specifications
- Other Name: Spring - Front; Coil Spring, Front; Coil Springs; Spring
- Position: Front
- Base No.: 5310
- Item Weight: 8.00 Pounds
- Item Dimensions: 16.5 x 8.1 x 8.4 inches
- Condition: New
- Fitment Type: Direct Replacement
- Require Quantity: 2
- SKU: 8A8Z-5310-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2009 Ford Flex Submodels:
- Limited, SE, SEL, Titanium | 6 Cyl 3.5 L GAS
View related parts
2009 Ford Flex Coil Spring, Rear Part Number: AA5Z-5560-G
Product Specifications
- Other Name: Spring - Rear; Coil Springs; Spring
- Position: Rear
- Replaces: AA5Z-5560-E, 8A5Z-5560-E
- Base No.: 5560
- Item Weight: 8.40 Pounds
- Condition: New
- Fitment Type: Direct Replacement
- Require Quantity: 2
- SKU: AA5Z-5560-G
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2009 Ford Flex Submodels:
- Limited, SEL | 6 Cyl 3.5 L GAS

2009 Ford Flex Coil Springs

If you're seeking quality and affordability, look no further than our extensive inventory of genuine 2009 Ford Flex Coil Springs available at FordPartsDeal.com. You can confidently purchase our OEM 2009 Ford Flex Coil Springs as they are supported by the manufacturer's warranty and our hassle-free return policy, alongside the benefit of our fast delivery service.

2009 Ford Flex Coil Springs Parts Q&A

Q: How to Remove and Replace the Rear Coil Springs on 2009 Ford Flex?
A: Measure the distance between the wheel hub center point and fender lip when the vehicle stands on flat ground before you handle the rear coil spring installation process. Fitting the hex-holding mechanism will stop the stabilizer bar link studs from rotating during you remove and discard two upper nuts. Set the stabilizer bar aside from the lower arm and then use a correct jackstand to hold the lower arm in place. Lower the subframe bolt torque before removing the wheel knuckle bolt on the arm assembly. Discard both components. After lowering the jackstand you should remove the spring by placing the lower spring seat correctly inside the lower arm. Check for any damage on the spring seats and get new replacements when required. Install the rear suspension by first lifting it with a jackstand until the initial measurement between the hub center and fender lip matches the recorded measurement. Start by installing the spring before placing the jackstand beneath the lower arm. Then install a new lower arm-to-wheel knuckle bolt but keep it loose. The hex-holding feature should be used to stop the stabilizer bar link studs when placing the stabilizer bar links correctly. Install two new upper nuts at 55 Nm (41 lb-ft). The technician must raise the rear suspension until it reaches the specified curb height. Then, they should tighten the lower arm-to-wheel knuckle bolt to 265 Nm (196 lb-ft) and the lower arm-to-subframe bolt to 215 Nm (159 lb-ft). To complete the procedure reinstall the wheel alongside the tire.
