How to Service and Repair the Power Steering Hose for 4.0L and 4.6L Engines on 2009 Ford Mustang?

Start servicing or repairing the power steering line and hose on 4.0L and 4.6L engines by hoisting the vehicle at neutral position. Begin by removing the outlet pipe of the air cleaner then loosen the power steering pump pulley bolts that total three in number. First maneuver the tensioner while removing the accessory drive belt from the power steering pump pulley. After that remove the three bolts holding the power steering pump pulley which needs to be tightened to 25 Nm (18 lb-ft) during reassembly. When working on both engines start by removing the pressure line-to-A/C compressor stud nut then proceed to remove the power steering pump pulley for vehicles with a 4.6L engine. First remove the pressure line bracket-to-pump stud nut, then tighten it to 7 Nm (62 lb-in) before reinstalling it, then take out the pressure line bracket-to-steering gear bolt which needs 9 Nm (80 lb-in) of torque during reinstallation. The process requires removing the pressure line bracket-to-crossmember bolt which needs to be tightened to 9 Nm (80 lb-in) when reinstalling. Disconnect the pump from the pressure line while discarding the old Teflon(R) seal and installing a new one before tightening the fitting to 65 Nm (48 lb-ft). The insertion of power steering lines to steering gear must achieve complete seating before clamp plate installation. The clamp plate should remain free of all foreign matter while using the designated torque values to eliminate leakage or equipment breakdown. The installation of new O-ring seals becomes necessary every time operators disconnect the power steering lines from the steering gear. Remove the power steering line clamp plate bolt then rotate the unit while removing the pressure line keeping the old O-ring seal and tightening a replacement according to 23 Nm (17 lb-ft) torque specification. The Teflon(R) seal installer set helps install a new Teflon(R) seal to the pressure line fitting as a part of reversing the removal procedure and filling the power steering system.

OEM 2009 Ford Mustang Power Steering Hose

Power Steering Pressure Hose

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 Power Steering Hoses found

View related parts

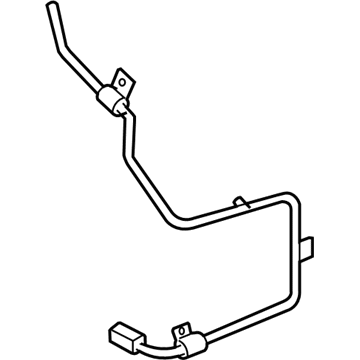

2009 Ford Mustang Power Steering Pressure Hose Part Number: 9R3Z-3A719-F
$143.40 MSRP: $216.36
You Save: $72.96 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose Assembly; Power Steering Hose; Pressure Hose; Pressure Line Assembly
- Replaces: 9R3Z-3A719-C
- Base No.: 3A719
- Item Weight: 1.80 Pounds
- Item Dimensions: 29.9 x 15.9 x 2.1 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 9R3Z-3A719-F
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2009 Ford Mustang Submodels:
- Bullitt, GT | 8 Cyl 4.6 L GAS
View related parts

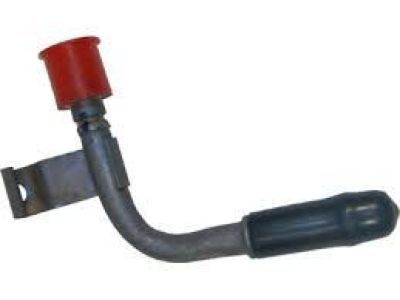

2009 Ford Mustang Reservoir Hose Part Number: 7R3Z-3691-A
$32.24 MSRP: $51.20
You Save: $18.96 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose Assembly - Reservoir To Pump; Power Steering Reservoir Hose; Power Steering Hose; Power Steering Suction Hose
- Base No.: 3691
- Item Weight: 0.40 Pounds
- Item Dimensions: 1.0 x 1.0 x 5.1 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 7R3Z-3691-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2009 Ford Mustang Submodels:
- Shelby GT500, Shelby GT500KR | 8 Cyl 5.4 L GAS
View related parts

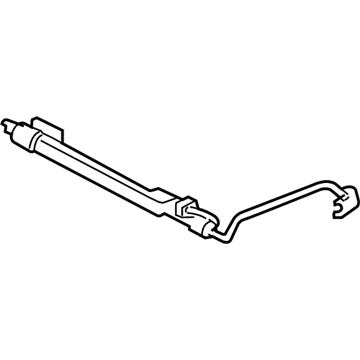

2009 Ford Mustang Power Steering Pressure Hose Part Number: 9R3Z-3A719-E
$119.46 MSRP: $192.73
You Save: $73.27 (39%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose Assembly; Power Steering Hose; Pressure Hose; Pressure Line Assembly
- Replaces: 6R3Z-3A719-A, 9R3Z-3A719-B, 4R3Z-3A719-AA
- Base No.: 3A719
- Item Weight: 1.40 Pounds
- Item Dimensions: 6.4 x 18.9 x 20.5 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 9R3Z-3A719-E
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2009 Ford Mustang Submodels:
- Base | 6 Cyl 4.0 L GAS
View related parts
2009 Ford Mustang Power Steering Pressure Hose, Front Part Number: 7R3Z-3A719-F
$73.50 MSRP: $123.40
You Save: $49.90 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose Assembly; Power Steering Line, Front; Power Steering Hose; Pressure Hose
- Position: Front
- Replaces: 7R3Z-3A719-D
- Base No.: 3A719A
- Item Weight: 0.90 Pounds
- Item Dimensions: 9.0 x 6.6 x 15.7 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 7R3Z-3A719-F
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2009 Ford Mustang Submodels:
- Shelby GT500, Shelby GT500KR | 8 Cyl 5.4 L GAS
View related parts
2009 Ford Mustang Power Steering Pressure Hose Part Number: 9R3Z-3A719-D
$253.45 MSRP: $406.00
You Save: $152.55 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose Assembly; Power Steering Hose; Front Hose
- Replaces: 7R3Z-3A719-E, 9R3Z-3A719-A
- Base No.: 3A719B
- Item Weight: 1.20 Pounds
- Item Dimensions: 24.7 x 15.3 x 3.1 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 9R3Z-3A719-D
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2009 Ford Mustang Submodels:
- Shelby GT500, Shelby GT500KR | 8 Cyl 5.4 L GAS
View related parts
2009 Ford Mustang Power Steering Return Hose Part Number: 7R3Z-3A713-A
Product Specifications
- Other Name: Tube Assembly; Power Steering Hose; Return Hose
- Base No.: 3A713
- Item Weight: 0.30 Pounds
- Item Dimensions: 25.2 x 15.0 x 3.2 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 7R3Z-3A713-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2009 Ford Mustang Submodels:
- Base, Bullitt, GT, Shelby GT, Shelby GT500, Shelby GT500KR | 6 Cyl 4.0 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 5.4 L GAS
View related parts
2009 Ford Mustang Reservoir Hose Part Number: 8R3Z-3691-A
Product Specifications
- Other Name: Hose Assembly - Reservoir To Pump; Power Steering Reservoir Hose; Power Steering Hose; Power Steering Suction Hose
- Replaces: 4R3Z-3691-AA
- Base No.: 3691
- Item Weight: 0.70 Pounds
- Item Dimensions: 24.7 x 15.0 x 3.2 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 8R3Z-3691-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2009 Ford Mustang Submodels:
- Base | 6 Cyl 4.0 L GAS
View related parts
2009 Ford Mustang Reservoir Hose Part Number: 7R3Z-3691-B
Product Specifications
- Other Name: Hose Assembly - Reservoir To Pump; Power Steering Reservoir Hose; Power Steering Hose; Power Steering Suction Hose
- Replaces: 4R3Z-3691-BA
- Base No.: 3691
- Item Weight: 0.60 Pounds
- Item Dimensions: 24.4 x 14.7 x 3.3 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 7R3Z-3691-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2009 Ford Mustang Submodels:
- Bullitt, GT, Shelby GT | 8 Cyl 4.6 L GAS
View related parts
2009 Ford Mustang Power Steering Return Hose Part Number: 6R3Z-3A713-A
Product Specifications
- Other Name: Hose Assembly; Power Steering Hose
- Base No.: 3A713
- Item Weight: 0.30 Pounds
- Item Dimensions: 24.2 x 14.9 x 3.3 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 6R3Z-3A713-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2009 Ford Mustang Submodels:
- Base | 6 Cyl 4.0 L GAS

2009 Ford Mustang Power Steering Hose

If you're seeking quality and affordability, look no further than our extensive inventory of genuine 2009 Ford Mustang Power Steering Hose available at FordPartsDeal.com. You can confidently purchase our OEM 2009 Ford Mustang Power Steering Hose as they are supported by the manufacturer's warranty and our hassle-free return policy, alongside the benefit of our fast delivery service.

2009 Ford Mustang Power Steering Hose Parts Q&A

Q: How to Service and Repair the Power Steering Hose for 4.0L and 4.6L Engines on 2009 Ford Mustang?
A: Start servicing or repairing the power steering line and hose on 4.0L and 4.6L engines by hoisting the vehicle at neutral position. Begin by removing the outlet pipe of the air cleaner then loosen the power steering pump pulley bolts that total three in number. First maneuver the tensioner while removing the accessory drive belt from the power steering pump pulley. After that remove the three bolts holding the power steering pump pulley which needs to be tightened to 25 Nm (18 lb-ft) during reassembly. When working on both engines start by removing the pressure line-to-A/C compressor stud nut then proceed to remove the power steering pump pulley for vehicles with a 4.6L engine. First remove the pressure line bracket-to-pump stud nut, then tighten it to 7 Nm (62 lb-in) before reinstalling it, then take out the pressure line bracket-to-steering gear bolt which needs 9 Nm (80 lb-in) of torque during reinstallation. The process requires removing the pressure line bracket-to-crossmember bolt which needs to be tightened to 9 Nm (80 lb-in) when reinstalling. Disconnect the pump from the pressure line while discarding the old Teflon(R) seal and installing a new one before tightening the fitting to 65 Nm (48 lb-ft). The insertion of power steering lines to steering gear must achieve complete seating before clamp plate installation. The clamp plate should remain free of all foreign matter while using the designated torque values to eliminate leakage or equipment breakdown. The installation of new O-ring seals becomes necessary every time operators disconnect the power steering lines from the steering gear. Remove the power steering line clamp plate bolt then rotate the unit while removing the pressure line keeping the old O-ring seal and tightening a replacement according to 23 Nm (17 lb-ft) torque specification. The Teflon(R) seal installer set helps install a new Teflon(R) seal to the pressure line fitting as a part of reversing the removal procedure and filling the power steering system.
