How to remove and replace the LH camshaft on Ford F-250 Super Duty?

The first step in LH camshaft replacement is positioning the crankshaft damper spoke at 12 o'clock and the timing mark indentation at 1 o'clock. Remove the LH valve cover. The engine suffers damage when bearing caps are not returned to their original positions thus proper recording of their locations becomes essential. Unfasten the specified sequence of 6 bolts while removing both the 3 bearing caps and the balance shaft. The technician loosens the LH camshaft sprocket bolt one complete turn only with hand tools to maintain bolt safety. Both camshafts must be serviced without crankshaft rotation while ensuring the exhaust lobe of cylinder No. 6 camshaft sits on the exhaust stroke. To prevent engine damage maintain the original positions of the 4 camshaft roller followers when removing them. After removing the roller followers using a Valve Spring Compressor you should keep the valve keepers from falling off. Turn the crankshaft clockwise until both the spoke on the crankshaft damper aligns with the 6 o'clock position and the timing mark sits at 7 o'clock. Fasten the Timing Chain Locking Tool square to the timing chain and engine block while it must stay secure until the assembly finishes. Begin by removing the two bolts from the front thrust camshaft bearing cap until it is free to remove. Subsequently eliminate the ten remaining bolts and camshaft bearing caps before cleaning all components for inspection. Engine oil lubrication should precede camshaft installation within the sprocket assembly toward the head where a new camshaft sprocket bolt is tightened while keeping it finger-tight. Check that the timing chain matches the camshaft sprocket scribed marks. The bearing caps need installation in their original positions after applying clean engine oil and the 12 bolts require initial torque to 8 Nm (71 lb-in) followed by another 45-degree turn. The next step involves turning the crankshaft counterclockwise by a half rotation before checking that the camshaft exhaust lobe of No. 6 cylinder is properly oriented. For installation of the 4 camshaft roller followers use the Valve Spring Compressor while applying oil lubrication to them. Perform two-step tightening of the camshaft sprocket bolt starting at 40 Nm (30 lb-ft) and proceeding to 90 degrees. Apply lubrication the balance shaft journals before rotating the crankshaft until it reaches the proper alignment of marks that indicate balance shaft timing. Position the balance shaft onto its journals. Place the 3 balance shaft bearing caps onto their original spots and secure all 6 bolts to 10 Nm (89 lb-in). The LH valve cover needs to be installed as the final step.

OEM Ford F-250 Super Duty Camshaft

Cam

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

26 Camshafts found

View related parts

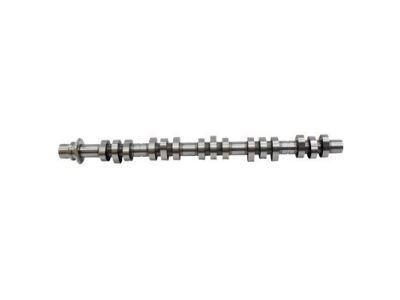

Ford F-250 Super Duty Camshaft
Part Number: 5L1Z-6250-BB
$333.42 MSRP: $489.60
You Save: $156.18 (32%)
ADD TO CART
Product Specifications
- Replaces: 5L1Z-6250-BA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2010 Ford F-250 Super Duty | Cabela's, FX4, King Ranch, Lariat, XL, XLT | 8 Cyl 5.4 L GAS
View related parts

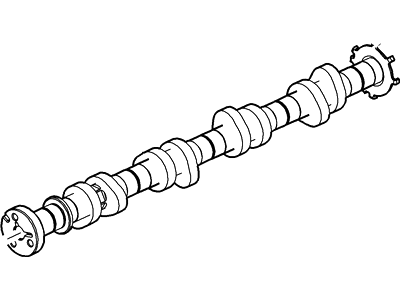

Ford F-250 Super Duty Camshaft
Part Number: 9L3Z-6250-D
$186.41 MSRP: $271.33
You Save: $84.92 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Replaces: 5R2Z-6250-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2008-2010 Ford F-250 Super Duty | Cabela's, FX4, King Ranch, Lariat, XL, XLT | 8 Cyl 5.4 L GAS
View related parts

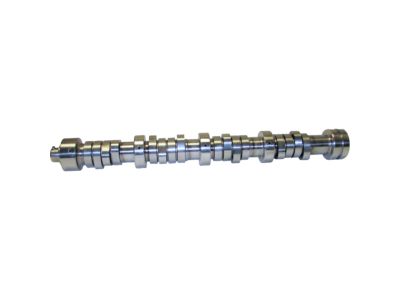

Ford F-250 Super Duty Camshaft
Part Number: 4C3Z-6250-AA
$1101.38 MSRP: $1553.97
You Save: $452.59 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaces: 3C3Z-6250-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2007 Ford F-250 Super Duty | Harley-Davidson Edition, King Ranch, Lariat, XL, XLT | 8 Cyl 6.0 L DIESEL
View related parts

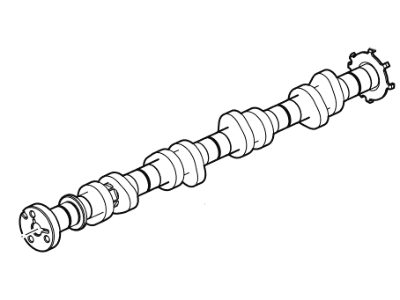

Ford F-250 Super Duty Camshaft, Driver Side
Part Number: 5C3Z-6250-AA
$213.49 MSRP: $313.50
You Save: $100.01 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Manufacturer Note: CAMSHAFT, ASY LH
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2010 Ford F-250 Super Duty | Cabela's, FX4, Harley-Davidson Edition, King Ranch, Lariat, XL, XLT | 10 Cyl 6.8 L GAS
View related parts
Ford F-250 Super Duty Camshaft
Part Number: BC3Z-6250-D
$248.45 MSRP: $364.83
You Save: $116.38 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Replaces: BC3Z-6250-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2011-2022 Ford F-250 Super Duty | King Ranch, Lariat, Limited, Platinum, XL, XLT | 8 Cyl 6.7 L DIESEL
View related parts
Ford F-250 Super Duty Camshaft
Part Number: 3L3Z-6250-HB
$686.81 MSRP: $1017.50
You Save: $330.69 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Replaces: 3L3Z-6250-HA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2006 Ford F-250 Super Duty | King Ranch, Lariat, XL, XLT | 8 Cyl 5.4 L GAS
View related parts
Ford F-250 Super Duty Camshaft, Driver Side
Part Number: HC3Z-6250-B
$564.80 MSRP: $896.50
You Save: $331.70 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017-2019 Ford F-250 Super Duty | King Ranch, Lariat, Platinum, XL, XLT | 8 Cyl 6.2 L FLEX
View related parts
Ford F-250 Super Duty Camshaft, Passenger Side
Part Number: YC2Z-6250-AA
$212.25 MSRP: $311.67
You Save: $99.42 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000-2004 Ford F-250 Super Duty | Harley-Davidson Edition, King Ranch, Lariat, XL, XLT | 10 Cyl 6.8 L GAS
View related parts
Ford F-250 Super Duty Camshaft
Part Number: PC3Z-6250-A
$273.42 MSRP: $401.50
You Save: $128.08 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Replaces: LC3Z-6250-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2020-2023 Ford F-250 Super Duty | King Ranch, Lariat, Platinum, XL, XLT | 8 Cyl 6.8 L GAS, 8 Cyl 7.3 L GAS
View related parts
Ford F-250 Super Duty Camshaft, Passenger Side
Part Number: HC3Z-6250-A
$605.14 MSRP: $896.50
You Save: $291.36 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017-2019 Ford F-250 Super Duty | King Ranch, Lariat, Platinum, XL, XLT | 8 Cyl 6.2 L FLEX
View related parts
Ford F-250 Super Duty Camshaft, Passenger Side
Part Number: BC3Z-6250-C
$793.24 MSRP: $1175.17
You Save: $381.93 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2011-2016 Ford F-250 Super Duty | King Ranch, Lariat, Platinum, XL, XLT | 8 Cyl 6.2 L FLEX
View related parts
Ford F-250 Super Duty Camshaft
Part Number: PC3Z-6250-B
$263.43 MSRP: $386.83
You Save: $123.40 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2023 Ford F-250 Super Duty | King Ranch, Lariat, Limited, Platinum, XL, XLT | 8 Cyl 6.7 L DIESEL
View related parts
Ford F-250 Super Duty Camshaft
Part Number: 6C2Z-6250-A
Product Specifications
- Replaces: F7TZ-6250-BA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1999-2004 Ford F-250 Super Duty | King Ranch, Lariat, XL, XLT | 8 Cyl 5.4 L GAS
View related parts
Ford F-250 Super Duty Camshaft
Part Number: 7R3Z-6250-B
Product Specifications
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1999 Ford F-250 Super Duty | Lariat, XL, XLT | 8 Cyl 5.4 L GAS
View related parts
Ford F-250 Super Duty Camshaft
Part Number: F81Z-6250-AA
Product Specifications
- Manufacturer Note: For use with electric fuel pump
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1999-2003 Ford F-250 Super Duty | Lariat, XL, XLT | 8 Cyl 7.3 L DIESEL
View related parts
Ford F-250 Super Duty Camshaft, Driver Side
Part Number: 4L3Z-6250-BA
Product Specifications
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1999 Ford F-250 Super Duty | Lariat, XL, XLT | 8 Cyl 5.4 L GAS
View related parts
Ford F-250 Super Duty Camshaft
Part Number: 6C2Z-6250-B
Product Specifications
- Replaces: F6AZ-6250-BA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1999-2004 Ford F-250 Super Duty | King Ranch, Lariat, XL, XLT | 8 Cyl 5.4 L GAS
View related parts
Ford F-250 Super Duty Camshaft, Driver Side
Part Number: F7UZ-6250-AA
Product Specifications
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1999 Ford F-250 Super Duty | Lariat, XL, XLT | 10 Cyl 6.8 L GAS
View related parts
Ford F-250 Super Duty Camshaft, Passenger Side
Part Number: F7UZ-6250-BC
Product Specifications
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1999 Ford F-250 Super Duty | Lariat, XL, XLT | 10 Cyl 6.8 L GAS
View related parts
Ford F-250 Super Duty Camshaft
Part Number: 3L3Z-6250-JB
$568.13 MSRP: $841.67
You Save: $273.54 (33%)
Product Specifications
- Replaces: 3L3Z-6250-JA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2006 Ford F-250 Super Duty | King Ranch, Lariat, XL, XLT | 8 Cyl 5.4 L GAS

| Page 1 of 2 |Next >

1-20 of 26 Results

Ford F-250 Super Duty Camshaft

Welcome to our website where you can discover high-quality, genuine Ford F-250 Super Duty Camshaft. We offer an extensive inventory of OEM Ford F-250 Super Duty Camshaft at affordable prices. We are committed to providing top-rated customer service along with prompt delivery.

Ford F-250 Super Duty Camshaft Parts Questions & Experts Answers

Camshaft, Driver Side
5C3Z-6250-AA
Q: How to remove and replace the LH camshaft on Ford F-250 Super Duty?
A: The first step in LH camshaft replacement is positioning the crankshaft damper spoke at 12 o'clock and the timing mark indentation at 1 o'clock. Remove the LH valve cover. The engine suffers damage when bearing caps are not returned to their original positions thus proper recording of their locations becomes essential. Unfasten the specified sequence of 6 bolts while removing both the 3 bearing caps and the balance shaft. The technician loosens the LH camshaft sprocket bolt one complete turn only with hand tools to maintain bolt safety. Both camshafts must be serviced without crankshaft rotation while ensuring the exhaust lobe of cylinder No. 6 camshaft sits on the exhaust stroke. To prevent engine damage maintain the original positions of the 4 camshaft roller followers when removing them. After removing the roller followers using a Valve Spring Compressor you should keep the valve keepers from falling off. Turn the crankshaft clockwise until both the spoke on the crankshaft damper aligns with the 6 o'clock position and the timing mark sits at 7 o'clock. Fasten the Timing Chain Locking Tool square to the timing chain and engine block while it must stay secure until the assembly finishes. Begin by removing the two bolts from the front thrust camshaft bearing cap until it is free to remove. Subsequently eliminate the ten remaining bolts and camshaft bearing caps before cleaning all components for inspection. Engine oil lubrication should precede camshaft installation within the sprocket assembly toward the head where a new camshaft sprocket bolt is tightened while keeping it finger-tight. Check that the timing chain matches the camshaft sprocket scribed marks. The bearing caps need installation in their original positions after applying clean engine oil and the 12 bolts require initial torque to 8 Nm (71 lb-in) followed by another 45-degree turn. The next step involves turning the crankshaft counterclockwise by a half rotation before checking that the camshaft exhaust lobe of No. 6 cylinder is properly oriented. For installation of the 4 camshaft roller followers use the Valve Spring Compressor while applying oil lubrication to them. Perform two-step tightening of the camshaft sprocket bolt starting at 40 Nm (30 lb-ft) and proceeding to 90 degrees. Apply lubrication the balance shaft journals before rotating the crankshaft until it reaches the proper alignment of marks that indicate balance shaft timing. Position the balance shaft onto its journals. Place the 3 balance shaft bearing caps onto their original spots and secure all 6 bolts to 10 Nm (89 lb-in). The LH valve cover needs to be installed as the final step.
