How to service and repair the rear bumper cover on Ford Five Hundred?

When repairing or servicing the rear bumper cover of Five Hundred and Montego models start the process by first detaching the rear lamps and then the six rear bumper cover screws while tightening all screws to 2 Nm (18 lb-in). After clearing the trim panel from the luggage compartment you must remove the three pin-type retainers and six rear bumper cover nuts which need tightening at 9 Nm (80 lb-in) torque. To disconnect the rear parking aid from Five Hundred and Montego models disconnect the electrical connector. To free the total components you need to gently stretch forward at the top front of the bumper cover until unfastening occurs and then remove the cover from its place. Check the bumper cover mounting reinforcements for damage and replace fully damaged items and examine the spacer block for damage during inspection. Reinstall the bumper cover through the opposite process of removal.

How to service and repair the front bumper cover on Ford Five Hundred?

The front bumper cover service and repair of Five Hundred and Montego requires technicians to first remove their scrivets and bolts but they need to tighten bolts to 7 Nm (62 lb-in) after installation. The next step consists of removing three lower retainers and six wheel house screws while installing them with 2 Nm (18 lb-in) torque. You need to remove the electrical connector from the fog lamps when the vehicle has this equipment. When removing the bumper cover it is necessary to first pull the rearward upper section outward to detach it from the fender. A thorough check of bumper cover mounting reinforcements should happen after removal. Replace these components in case any damage is detected. The completion process requires following the opposite steps used during removal to reinstall the components.

OEM Ford Five Hundred Bumper

Bumper Fascia

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Bumpers found

View related parts
Ford Five Hundred Impact Bar, Rear Part Number: 8G1Z-17906-B
$132.65 MSRP: $193.08
You Save: $60.43 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bumper Assembly - Rear; Bumper Impact Bar, Rear
- Position: Rear
- Replaces: 6G1Z-17906-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2007 Ford Five Hundred | Limited, SE, SEL | 6 Cyl 3.0 L GAS
View related parts
Ford Five Hundred Impact Bar, Front Part Number: 8G1Z-17757-A
Product Specifications
- Other Name: Bumper Assembly - Front; Bumper Impact Bar, Front
- Position: Front
- Replaces: 5G1Z-17757-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2007 Ford Five Hundred | Limited, SE, SEL | 6 Cyl 3.0 L GAS
View related parts
Ford Five Hundred Bumper Cover, Rear Part Number: 5G1Z-17K835-AAB
Product Specifications
- Other Name: Cover; Bumper Cover, Rear
- Position: Rear
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2007 Ford Five Hundred | Limited, SE, SEL | 6 Cyl 3.0 L GAS
View related parts

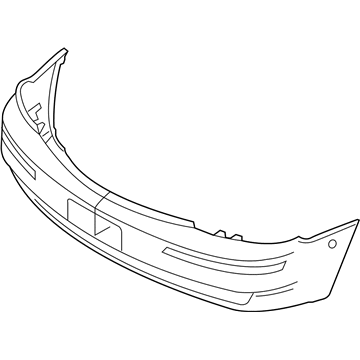

Ford Five Hundred Bumper Cover, Front Part Number: 5G1Z-17D957-BAB
Product Specifications
- Other Name: Bumper Assembly - Front; Bumper Cover, Front
- Position: Front
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2007 Ford Five Hundred | Limited, SEL | 6 Cyl 3.0 L GAS
View related parts
Ford Five Hundred Bumper Cover, Front Part Number: 5G1Z-17D957-AAC
Product Specifications
- Other Name: Bumper Assembly - Front; Bumper Cover, Front
- Position: Front
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2006 Ford Five Hundred | SE | 6 Cyl 3.0 L GAS
View related parts

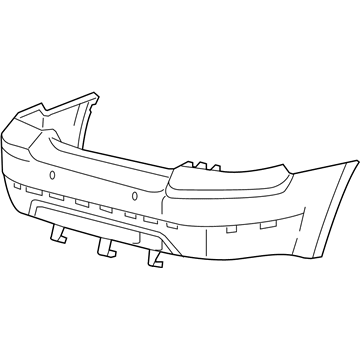

Ford Five Hundred Bumper Cover, Rear Part Number: 5G1Z-17K835-BAA
Product Specifications
- Other Name: Cover; Bumper Cover, Rear
- Position: Rear
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2007 Ford Five Hundred | Limited, SE, SEL | 6 Cyl 3.0 L GAS

Ford Five Hundred Bumper

OEM Bumper boasts unmatched quality. Each part goes through full quality checks. They adhere to Ford's official factory standards. These steps remove flaws and inconsistencies. So you can get Bumper with long life and a perfect fit. Come to our website and find genuine Ford Five Hundred parts. We keep a wide inventory of OEM Five Hundred parts at the highly affordable prices. It's easy to search, compare, and pick what you need. You'll love the clear info and simple checkout. We offer top-rated customer service, and we reply fast. We also ship promptly to ensure your order arrives on time.

In the Ford Five Hundred Bumper the company shows dedication to both performance and reliability through this vital part. Throughout low-speed collisions the Ford Five Hundred Bumper uses specific features to spread out impact energy thus shielding both the vehicle structure and key protection elements for passengers. The healthcare industry implemented advanced design changes through which basic metal bars transitioned into plastic-covered reinforcement bars delivering better effectiveness alongside retained attractiveness. A Ford Five Hundred Bumper functions with multiple Five Hundred models which makes it appealing to owners who want better efficiency and safety performance from their vehicle. The bumper model incorporates both safety regulations with modern design advancements that focus on safeguarding vehicle occupants. The Ford Five Hundred Bumper achieves exceptional strength with corrosion protecting properties through its aluminum and stainless steel construction. During its manufacturing years from 2004 to 2007 the Ford Five Hundred gained recognition as a spacious vehicle with high H-point seating and its bumper helped protect the structural form of the entire vehicle. The Ford model Bumper establishes itself in the automotive market because it integrates safety features with performance capabilities and reliability which makes this sedan an excellent option for those who need a full-size sedan that focuses on both safety and style.

Ford Five Hundred Bumper Parts and Q&A

Impact Bar, Rear
8G1Z-17906-B
Q: How to service and repair the rear bumper cover on Ford Five Hundred?
A:
When repairing or servicing the rear bumper cover of Five Hundred and Montego models start the process by first detaching the rear lamps and then the six rear bumper cover screws while tightening all screws to 2 Nm (18 lb-in). After clearing the trim panel from the luggage compartment you must remove the three pin-type retainers and six rear bumper cover nuts which need tightening at 9 Nm (80 lb-in) torque. To disconnect the rear parking aid from Five Hundred and Montego models disconnect the electrical connector. To free the total components you need to gently stretch forward at the top front of the bumper cover until unfastening occurs and then remove the cover from its place. Check the bumper cover mounting reinforcements for damage and replace fully damaged items and examine the spacer block for damage during inspection. Reinstall the bumper cover through the opposite process of removal.
Bumper Cover, Front
5G1Z-17D957-BAB
Q: How to service and repair the front bumper cover on Ford Five Hundred?
A:
The front bumper cover service and repair of Five Hundred and Montego requires technicians to first remove their scrivets and bolts but they need to tighten bolts to 7 Nm (62 lb-in) after installation. The next step consists of removing three lower retainers and six wheel house screws while installing them with 2 Nm (18 lb-in) torque. You need to remove the electrical connector from the fog lamps when the vehicle has this equipment. When removing the bumper cover it is necessary to first pull the rearward upper section outward to detach it from the fender. A thorough check of bumper cover mounting reinforcements should happen after removal. Replace these components in case any damage is detected. The completion process requires following the opposite steps used during removal to reinstall the components.
