How to Ensure Proper Maintenance of the Leaf Spring on a Ford Ranger?

The leaf spring repair process requires vehicles to be in NEUTRAL while located on a hoist. A quality jack should support the rear axle. You should install a new shock absorber bolt at the lower position while tightening it to 80 Nm (59 ft. lbs.). Start by discarding the four rear U-bolt nuts and also removing the U-bolts and spring plate before finally tightening U-bolts to 103 Nm (76 ft. lbs.). Proceed to lower the rear axle with caution before removing the rear spring spacer when present. Replace the discarded spring-to-frame bracket bolt with a new one and fasten it using a torque of 200 Nm (148 ft. lbs.). The spring will be removed after removing the spring shackle-to-spring bolt and nut pair and you should tighten it to 103 Nm (76 ft. lbs. upon installation. You can eliminates the spring shackle through axis of the bracket bolt followed by flag nut removal to remove the shackle and re-install it firmly at 115 Nm (85 ft. lbs.). Figuring out the complete process involves returning to the steps that were used for removal.

OEM Ford Ranger Leaf Spring

Leaf Helper Spring

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 Leaf Springs found

View related parts

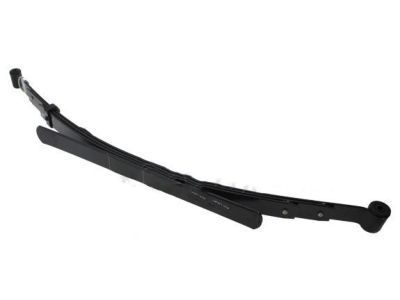

Ford Ranger Leaf Spring, Rear
Part Number: KB3Z-5560-D
$347.08 MSRP: $509.67
You Save: $162.59 (32%)
ADD TO CART
Product Specifications
- Other Name: Spring - Rear; Leaf Spring, Rear; Coil Springs; Spring
- Position: Rear
- Replaced by: KB3Z-5560-F
- Replaces: KB3Z-5560-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2019-2023 Ford Ranger | Lariat, XL, XLT | 4 Cyl 2.3 L GAS
View related parts

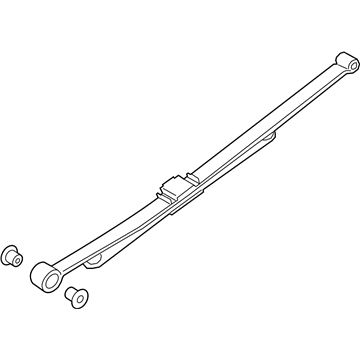

Ford Ranger Spring, Rear
