How to service the front door Window Regulator and Power Window Motor on Ford Ranger?

You need to begin repair of front door window motor and regulator by removing door trim panel and watershield followed by supporting the window glass. Detach the electrical connector when power window motor operation is permitted. The next step requires removal of top and bottom center door glass run retainer nuts before tightening them to 9 Nm (80 lb-in) for future installation. The rivets can be disassembled with a drift punch for steel center extraction and a drill bit with 6.35 mm (1/4 in) diameter for rivet removal. The power window regulator contains 4 rivets but the manual shows 3. Move on to the window regulator extraction after you take out its rivets. Before removing the window regulator motor, check that the window is fully elevated or use some object to stop the regulator arm from moving since an uncontrolled counterbalance spring release could lead to severe injuries. It is possible to remove the window glass motor after detaching its bolts while setting each bolt torque to 8 Nm (71 lb-in) upon reinstalling. Install the new rivets through a Heavy Duty Riveter while performing the exact opposite of removal steps.

OEM Ford Ranger Power Window Motor

Window Lift Motor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

15 Power Window Motors found

View related parts

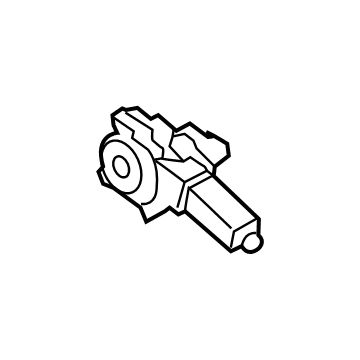

Ford Ranger Window Motor, Passenger Side
Part Number: H2MZ-99233V94-K
$73.86 MSRP: $124.00
You Save: $50.14 (41%)
ADD TO CART
Product Specifications
- Other Name: Motor Assembly - Window Operating; Power Window Motor; Motor
- Position: Passenger Side
- Replaces: F6TZ-3523394-AA, F37Z-1023394-A, F6TZ-35233V94-AARM, WLM-83-RM, F37Z-10233V94-ARM, F58Z-16233V94-ARM, F58Z-1623394-A, WLM-76-RM, WLM-63-RM, XF2Z-16233V94-AARM
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1993-1996 Ford Ranger | Splash, Sport, STX, XL, XL Sport, XLT | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
View related parts

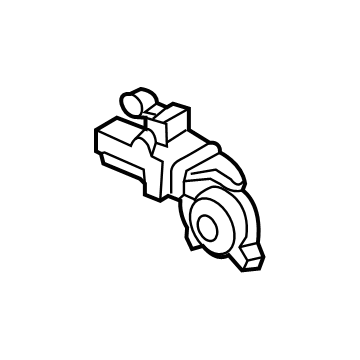

Ford Ranger Window Motor, Front Driver Side
Part Number: AB3Z-9923394-B
$86.53 MSRP: $125.95
You Save: $39.42 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly - Window Operating; Power Window Motor, Front Left
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2019-2023 Ford Ranger | Lariat, XL, XLT | 4 Cyl 2.3 L GAS
View related parts

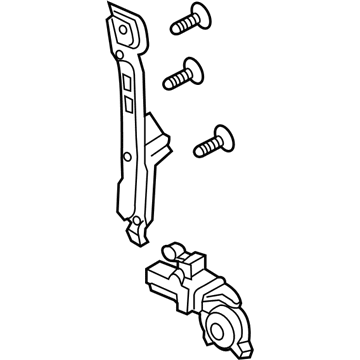

Ford Ranger Window Regulator, Rear Driver Side
Part Number: AB3Z-2627001-B
$119.65 MSRP: $174.17
You Save: $54.52 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Regulator Assembly - Window; Window Regulator, Rear Left
- Manufacturer Note: Includes Motor
- Position: Rear Driver Side
- Replaced by: AB3Z-2627001-F
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2019-2023 Ford Ranger | Lariat, XL, XLT | 4 Cyl 2.3 L GAS
View related parts
Ford Ranger Window Regulator, Rear Passenger Side
Part Number: AB3Z-2627000-F
$95.60 MSRP: $139.15
You Save: $43.55 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Regulator Assembly - Window; Window Regulator, Rear Right; Window Assembly
- Position: Rear Passenger Side
- Replaces: AB3Z-2627000-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2019-2023 Ford Ranger | Lariat, XL, XLT | 4 Cyl 2.3 L GAS
View related parts

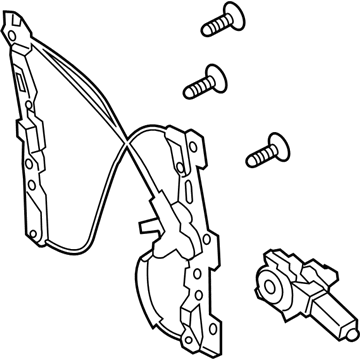

Ford Ranger Window Regulator, Front Driver Side
Part Number: AB3Z-2123201-E
$170.03 MSRP: $247.50
You Save: $77.47 (32%)
ADD TO CART
Product Specifications
- Other Name: Regulator Assembly; Window Regulator, Front Left; Power Window Motor and Regulator Assembly
- Manufacturer Note: Includes Motor
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2019-2023 Ford Ranger | Lariat, XL, XLT | 4 Cyl 2.3 L GAS
View related parts
Ford Ranger Window Motor, Driver Side
Part Number: 6CPZ-9923395-D
$193.51 MSRP: $281.67
You Save: $88.16 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly - Window Operating
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2019-2023 Ford Ranger | Lariat, XL, XLT | 4 Cyl 2.3 L GAS
View related parts
Ford Ranger Window Motor, Passenger Side
Part Number: 6CPZ-9923395-A
$100.51 MSRP: $159.60
You Save: $59.09 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly - Window Operating
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2019-2023 Ford Ranger | Lariat, XL, XLT | 4 Cyl 2.3 L GAS
View related parts
Ford Ranger Window Motor, Rear Passenger Side
Part Number: 6CPZ-9923394-G
$78.59 MSRP: $114.40
You Save: $35.81 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assembly - Window Operating; Power Window Motor, Rear Right
- Position: Rear Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2019-2023 Ford Ranger | Lariat, XL, XLT | 4 Cyl 2.3 L GAS
View related parts
Ford Ranger Window Regulator, Front Passenger Side
Part Number: AB3Z-2123200-C
$159.96 MSRP: $232.83
You Save: $72.87 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Regulator Assembly; Window Regulator, Front Right; Power Window Motor and Regulator Assembly
- Manufacturer Note: Includes Motor
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2019-2023 Ford Ranger | Lariat, XL, XLT | 4 Cyl 2.3 L GAS
View related parts
Ford Ranger Window Motor, Driver Side
Part Number: H2MZ-99233V94-J
Product Specifications
- Other Name: Motor Assembly - Window Operating; Power Window Motor; Motor
- Position: Driver Side
- Replaces: F37Z-1023395-A, F37Z-10233V95-ARM, WLM-75-RM, WLM-36-RM, XF2Z-16233V95-AARM
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1993-1996 Ford Ranger | Splash, Sport, STX, XL, XL Sport, XLT | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
View related parts
Ford Ranger Window Motor, Front Driver Side
Part Number: 8L5Z-7823395-A
Product Specifications
- Other Name: Motor Assembly - Window Operating; Power Window Motor, Front Left; Window Regulator; Motor; Power Window Motor
- Position: Front Driver Side
- Replaces: F57Z-1023395-AA, 3L5Z-1523395-BA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1996-2011 Ford Ranger | Edge, FX4, Splash, Sport, STX, Tremor, XL, XLT | 4 Cyl 2.3 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
View related parts
Ford Ranger Window Motor, Driver Side
Part Number: F1TZ-10233V95-ARM
Product Specifications
- Other Name: Motor Assembly - Window Operator; Power Window Motor; Motor
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1989-1992 Ford Ranger | Custom, GT, S, S Plus, Sport, STX, XLT | 4 Cyl 2.3 L GAS, 6 Cyl 2.9 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
View related parts
Ford Ranger Window Motor, Passenger Side
Part Number: F1TZ-10233V94-ARM
Product Specifications
- Other Name: Motor Assembly - Window Operator; Power Window Motor; Motor
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1989-1992 Ford Ranger | Custom, GT, S, S Plus, Sport, STX, XLT | 4 Cyl 2.3 L GAS, 6 Cyl 2.9 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
View related parts
Ford Ranger Window Motor, Driver Side
Part Number: E5TZ-10233V95-ARM
Product Specifications
- Other Name: Remanufactured Motor Assembly - Window Operating; Power Window Motor; Motor; Motor Assembly - Window Operating
- Position: Driver Side
- Replaces: E5TZ-1023395-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1984-1987 Ford Ranger | Base, Custom, S, STX, XL, XLS, XLT | 4 Cyl 2.0 L GAS, 4 Cyl 2.2 L DIESEL, 4 Cyl 2.3 L DIESEL, 4 Cyl 2.3 L GAS, 6 Cyl 2.8 L GAS, 6 Cyl 2.9 L GAS
View related parts
Ford Ranger Window Motor, Front Passenger Side
Part Number: 8L5Z-7823394-A
Product Specifications
- Other Name: Motor Assembly - Window Operating; Power Window Motor, Front Right; Window Regulator; Motor; Power Window Motor
- Position: Front Passenger Side
- Replaces: 3L5Z-1523394-BA, F57Z-1023394-AA, WLM-152
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1996-2011 Ford Ranger | Edge, FX4, Splash, Sport, STX, Tremor, XL, XLT | 4 Cyl 2.3 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS

Ford Ranger Power Window Motor

Welcome to our website where you can discover high-quality, genuine Ford Ranger Power Window Motor. We offer an extensive inventory of OEM Ford Ranger Power Window Motor at affordable prices. We are committed to providing top-rated customer service along with prompt delivery.

Ford Ranger Power Window Motor Parts Questions & Experts Answers

Window Motor, Front Driver Side
8L5Z-7823395-A
Q: How to service the front door Window Regulator and Power Window Motor on Ford Ranger?
A: You need to begin repair of front door window motor and regulator by removing door trim panel and watershield followed by supporting the window glass. Detach the electrical connector when power window motor operation is permitted. The next step requires removal of top and bottom center door glass run retainer nuts before tightening them to 9 Nm (80 lb-in) for future installation. The rivets can be disassembled with a drift punch for steel center extraction and a drill bit with 6.35 mm (1/4 in) diameter for rivet removal. The power window regulator contains 4 rivets but the manual shows 3. Move on to the window regulator extraction after you take out its rivets. Before removing the window regulator motor, check that the window is fully elevated or use some object to stop the regulator arm from moving since an uncontrolled counterbalance spring release could lead to severe injuries. It is possible to remove the window glass motor after detaching its bolts while setting each bolt torque to 8 Nm (71 lb-in) upon reinstalling. Install the new rivets through a Heavy Duty Riveter while performing the exact opposite of removal steps.
