How to service and repair the radiator for a 2.3L engine on Ford Ranger?

The first step for radiator servicing on 2.3L engines requires you to drain the cooling system liquid. The procedure for automatic transmission vehicles includes disconnecting transmission cooling tubes from the radiator by using a back up wrench yet leaving transmission oil cooler fittings in place. Begin your radiator service by disconnecting the degas bottle hose and the upper radiator hose from the radiator before removing the cooling fan together with the shroud and finally separating the lower radiator hose. Use a tool to unscrew the radiator bolts and eliminate the three pushpins together with their seal from the radiator's upper area. Position the radiator inside the engine compartment after placing the seal and pushpins at the top which will require 7 Nm (62 inch lbs) torque. Complete the radiator hose connection by installing the cooling fan with its shroud followed by lower radiator hose attachment. Install the coolant overflow hose into the channel which sits above the radiator before you attach it. Cautiously reestablish the transmission cooling tubes that feed into the radiator by torquing them to 27 Nm (20 ft. lbs). The completion of cooling system filling requires operating the engine to check for hose and connection leaks. It is essential to check and fill the transmission fluid of automatic transmission vehicles according to their levels. User safety requires caution due to standing close to the engine cooling fan blade during engine revving since this could result in injuries.

OEM Ford Ranger Radiator

Cooling Radiator

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

15 Radiators found

View related parts

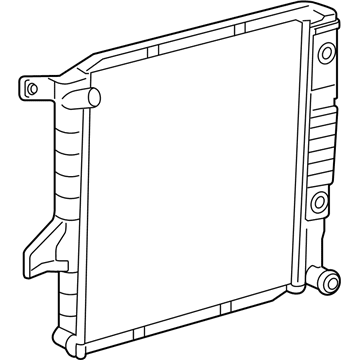

Ford Ranger Radiator Assembly Part Number: 6L5Z-8005-DA
$322.61 MSRP: $491.03
You Save: $168.42 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator
- Replaces: XL2Z-8005-LA, RAD-1, 1L5Z-8005-MA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998-2011 Ford Ranger | Edge, FX4, Splash, Sport, STX, Tremor, XL, XLT | 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
View related parts

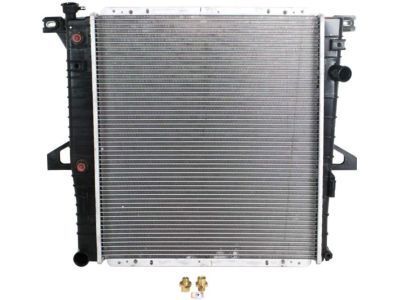

Ford Ranger Radiator Part Number: KB3Z-8005-A
$314.10 MSRP: $461.23
You Save: $147.13 (32%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Radiator Assembly
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2019-2023 Ford Ranger | Lariat, XL, XLT | 4 Cyl 2.3 L GAS
View related parts

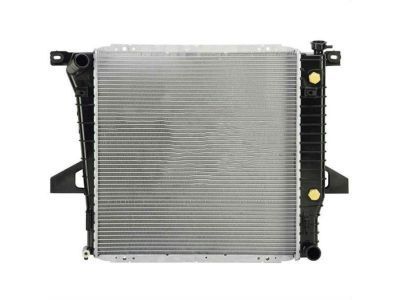

Ford Ranger Radiator Part Number: 6L5Z-8005-CA
$244.23 MSRP: $358.63
You Save: $114.40 (32%)
ADD TO CART
Product Specifications
- Other Name: Radiator Assembly
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2008 Ford Ranger | Sport, STX, XL, XLT | 6 Cyl 3.0 L GAS
View related parts

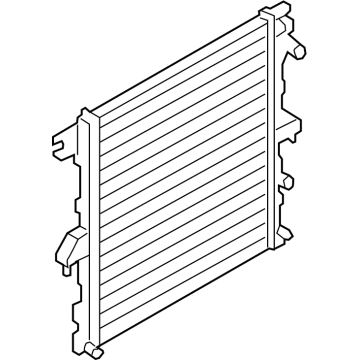

Ford Ranger Radiator Part Number: 6L5Z-8005-AA
$271.40 MSRP: $398.53
You Save: $127.13 (32%)
ADD TO CART
Product Specifications
- Other Name: Radiator Assembly
- Replaces: 4L5Z-8005-AA, 6L5Z-8005-BA, 4L5Z-8005-BA, RAD-24
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2011 Ford Ranger | Sport, STX, XL, XLT | 4 Cyl 2.3 L GAS
View related parts

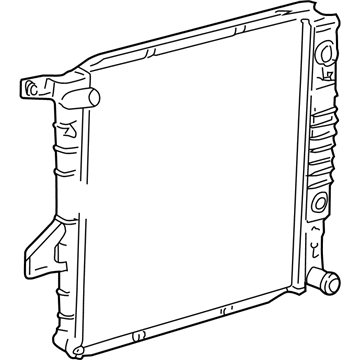

Ford Ranger Radiator Part Number: F87Z-8005-GA
Product Specifications
- Other Name: Radiator Assembly
- Manufacturer Note: #F87H 8005,GA , All Automatic
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998-2001 Ford Ranger | Splash, XL, XLT | 4 Cyl 2.5 L GAS
View related parts
Ford Ranger Radiator Assembly Part Number: FOTZ-8005-EA
Product Specifications
- Other Name: Radiator
- Manufacturer Note: Super cooling pkg., OHV
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1990-1994 Ford Ranger | Custom, S, S Plus, Splash, Sport, STX, XL, XLT | 6 Cyl 4.0 L GAS
View related parts
Ford Ranger Radiator Assembly Part Number: FOTZ-8005-AA
Product Specifications
- Other Name: Radiator
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1987-1997 Ford Ranger | Custom, S, S Plus, Splash, Sport, STX, XL, XL Sport, XLT | 4 Cyl 2.0 L GAS, 4 Cyl 2.3 L DIESEL, 4 Cyl 2.3 L GAS, 6 Cyl 2.9 L GAS
View related parts
Ford Ranger Radiator Part Number: F57Z-8005-CA
Product Specifications
- Other Name: Radiator Assembly
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1995-1997 Ford Ranger | Splash, Sport, STX, XL, XL Sport, XLT | 4 Cyl 2.3 L GAS
View related parts
Ford Ranger Radiator Part Number: F57Z-8005-BA
Product Specifications
- Other Name: Radiator Assembly
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1995-1997 Ford Ranger | Splash, Sport, STX, XL, XL Sport, XLT | 6 Cyl 3.0 L GAS
View related parts
Ford Ranger Radiator Part Number: 5L5Z-8005-A
Product Specifications
- Other Name: Radiator Assembly
- Replaces: XL2Z-8005-KA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2004-2011 Ford Ranger | Edge, FX4, Sport, STX, Tremor, XL, XLT | 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
View related parts
Ford Ranger Radiator Part Number: E7TZ-8005-D
Product Specifications
- Other Name: Radiator Assembly
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1990-1991, 1987-1988 Ford Ranger | Custom, GT, S, S Plus, Sport, STX, XLT | 6 Cyl 2.9 L GAS, 6 Cyl 4.0 L GAS
View related parts
Ford Ranger Radiator Part Number: 6L5Z-8005-DACP
Product Specifications
- Other Name: Radiator Assembly
- Manufacturer Note: (CP) Designates Crash Part - When Ordering Please Refer To Crash Part Truckload Program Guidelines
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2008 Ford Ranger | Sport, STX, XL, XLT | 6 Cyl 3.0 L GAS
View related parts
Ford Ranger Radiator Assembly Part Number: 1L5Z-8005-NA
Product Specifications
- Other Name: Radiator
- Manufacturer Note: #1L5H 8005-NA, A/T
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2003 Ford Ranger | Edge, XL, XLT | 6 Cyl 4.0 L GAS
View related parts
Ford Ranger Radiator Part Number: 1L5Z-8005-JA
Product Specifications
- Other Name: Radiator Assembly
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2003 Ford Ranger | Edge, XL, XLT | 6 Cyl 4.0 L GAS
View related parts
Ford Ranger Radiator Assembly Part Number: FOTZ-8005-CA
Product Specifications
- Other Name: Radiator
- Manufacturer Note: #F17H 8005-GA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1985-1994 Ford Ranger | Base, Custom, GT, S, Splash, Sport, STX, XL, XLS, XLT | 6 Cyl 2.8 L GAS, 6 Cyl 2.9 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS

Ford Ranger Radiator

OEM Radiator boasts unmatched quality. Each part goes through full quality checks. They adhere to Ford's official factory standards. These steps remove flaws and inconsistencies. So you can get Radiator with long life and a perfect fit. Come to our website and find genuine Ford Ranger parts. We keep a wide inventory of OEM Ranger parts at the highly affordable prices. It's easy to search, compare, and pick what you need. You'll love the clear info and simple checkout. We offer top-rated customer service, and we reply fast. We also ship promptly to ensure your order arrives on time.

Ford Ranger Radiator is an important component of the cooling system of the vehicle; it aids in dissipating heat from the engine antifreeze to the surroundings. Often consisting of fins and tubes located in the center profile, the radiator is installed in the car's front section to benefit from sheer air flow. Most radiators are made up of aluminum core, however, there are models that are made up of copper/brass. performance radiators are superior to stock ones, made of lightweight aluminum and having better designs for better cooling. It is important to identify the early signs of a problem with the radiator that can cause leakage, variation in temperature or have discolored coolant that may harm the engine. Another common method of improving the life of the Ford Ranger Radiator is by flushing the radiator and using the correct coolant type in the vehicle.

Ford Ranger Radiator Parts and Q&A

Radiator Assembly
6L5Z-8005-DA
Q: How to service and repair the radiator for a 2.3L engine on Ford Ranger?
A:
The first step for radiator servicing on 2.3L engines requires you to drain the cooling system liquid. The procedure for automatic transmission vehicles includes disconnecting transmission cooling tubes from the radiator by using a back up wrench yet leaving transmission oil cooler fittings in place. Begin your radiator service by disconnecting the degas bottle hose and the upper radiator hose from the radiator before removing the cooling fan together with the shroud and finally separating the lower radiator hose. Use a tool to unscrew the radiator bolts and eliminate the three pushpins together with their seal from the radiator's upper area. Position the radiator inside the engine compartment after placing the seal and pushpins at the top which will require 7 Nm (62 inch lbs) torque. Complete the radiator hose connection by installing the cooling fan with its shroud followed by lower radiator hose attachment. Install the coolant overflow hose into the channel which sits above the radiator before you attach it. Cautiously reestablish the transmission cooling tubes that feed into the radiator by torquing them to 27 Nm (20 ft. lbs). The completion of cooling system filling requires operating the engine to check for hose and connection leaks. It is essential to check and fill the transmission fluid of automatic transmission vehicles according to their levels. User safety requires caution due to standing close to the engine cooling fan blade during engine revving since this could result in injuries.
