How to service the right exhaust manifold on Lincoln LS?

Service of the right exhaust manifold requires the vehicle to be in neutral position while resting on a hoist. The first step involves accessing the catalytic converters while you should also remove the starter motor as well. Start by taking off screws from both the lower right splash shield and moving onto the removal of the two EGR tube flange nuts and heat shield stud bolt. You must take off the heat shield after removing its four bolts followed by the eight bolts with eight spacers and exhaust manifold before discarding both the gaskets. Begin with positioning the new exhaust manifold gasket together with the new EGR tube gasket and exhaust manifold before installing the eight spacers followed by the eight exhaust manifold bolts which should be tightened by hand. Secure the EGR tube nuts while tightening them to 20 Nm (15 ft. lbs.), then proceed with tightening the eight bolts to 25 Nm (18 ft. lbs.) in the ordered sequence. The installation process begins by installing and tightening the heat shield elements along with its four bolts to 3 Nm (27 inch lbs.) and thereafter tightening the heat shield stud bolt to 50 Nm (37 ft. lbs.). To complete the installation process you should replace the starter motor as well as reinstall both the lower right splash shield and its screws and the catalytic converters.

OEM Lincoln LS Exhaust Manifold

Engine Exhaust Manifold

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

12 Exhaust Manifolds found

View related parts

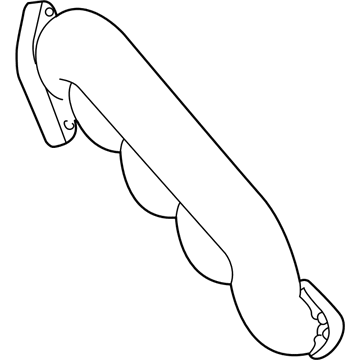

Lincoln LS Exhaust Manifold, Driver Side
Part Number: XW4Z-9431-CE
Product Specifications
- Other Name: Manifold Assembly - Exhaust; Manifold
- Manufacturer Note: Without Electronic Thermactor Air
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000-2003 Lincoln LS | Base, LSE | 6 Cyl 3.0 L GAS
View related parts

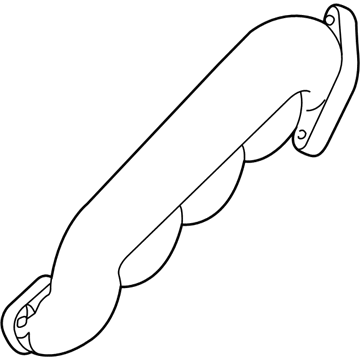

Lincoln LS Exhaust Manifold, Driver Side
Part Number: XW4Z-9431-BE
Product Specifications
- Other Name: Manifold Assembly - Exhaust; Manifold
- Manufacturer Note: Exhaust Thermactor Air Control
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000-2003 Lincoln LS | Base, LSE | 6 Cyl 3.0 L GAS
View related parts

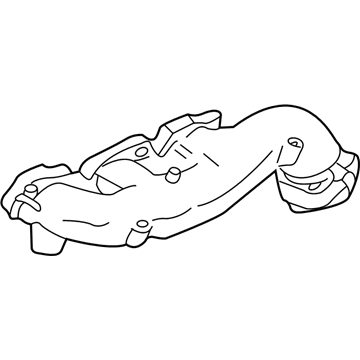

Lincoln LS Exhaust Manifold, Driver Side
Part Number: XW4Z-9431-BA
Product Specifications
- Other Name: Manifold Assembly - Exhaust; Manifold
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000-2002 Lincoln LS | Base, LSE | 8 Cyl 3.9 L GAS
View related parts

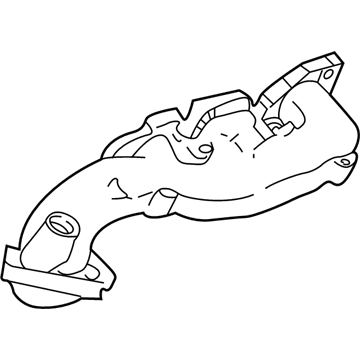

Lincoln LS Exhaust Manifold, Passenger Side
Part Number: XW4Z-9430-CE
Product Specifications
- Other Name: Manifold Assembly - Exhaust; Manifold
- Manufacturer Note: Without Electronic Thermactor Air
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000-2002 Lincoln LS | Base, LSE | 6 Cyl 3.0 L GAS
View related parts
Lincoln LS Exhaust Manifold, Passenger Side
Part Number: XW4Z-9430-BE
Product Specifications
- Other Name: Manifold Assembly - Exhaust; Manifold
- Manufacturer Note: Exhaust Thermactor Air Control
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000-2003 Lincoln LS | Base, LSE | 6 Cyl 3.0 L GAS
View related parts
Lincoln LS Exhaust Manifold, Passenger Side
Part Number: XW4Z-9430-AE
Product Specifications
- Other Name: Manifold Assembly - Exhaust; Manifold
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000-2002 Lincoln LS | Base, LSE | 8 Cyl 3.9 L GAS
View related parts
Lincoln LS Exhaust Manifold, Driver Side
Part Number: 5W4Z-9431-AA
Product Specifications
- Other Name: Manifold Assembly - Exhaust; Exhaust Manifold, Left; Manifold
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2006 Lincoln LS | Sport, Ultimate | 8 Cyl 3.9 L GAS
View related parts
Lincoln LS Exhaust Manifold, Passenger Side
Part Number: 5W4Z-9430-AA
Product Specifications
- Other Name: Manifold Assembly - Exhaust; Exhaust Manifold, Right; Manifold
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2006 Lincoln LS | Sport, Ultimate | 8 Cyl 3.9 L GAS
View related parts
Lincoln LS Exhaust Manifold, Driver Side
Part Number: 3W4Z-9431-AA
Product Specifications
- Other Name: Manifold Assembly - Exhaust; Manifold
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2005 Lincoln LS | Appearance, Base, LSE, Luxury, Premium | 6 Cyl 3.0 L GAS
View related parts
Lincoln LS Exhaust Manifold, Passenger Side
Part Number: 3W4Z-9430-AA
Product Specifications
- Other Name: Manifold Assembly - Exhaust; Manifold
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2005 Lincoln LS | Appearance, Base, LSE, Luxury, Premium | 6 Cyl 3.0 L GAS
View related parts
Lincoln LS Exhaust Manifold, Driver Side
Part Number: 2W9Z-9431-KA
Product Specifications
- Other Name: Manifold Assembly - Exhaust; Exhaust Manifold, Left; Manifold
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2004 Lincoln LS | Base, LSE | 8 Cyl 3.9 L GAS
View related parts
Lincoln LS Exhaust Manifold, Passenger Side
Part Number: 2W9Z-9430-JA
Product Specifications
- Other Name: Manifold Assembly - Exhaust; Exhaust Manifold, Right; Manifold
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2004 Lincoln LS | Base, LSE | 8 Cyl 3.9 L GAS

Lincoln LS Exhaust Manifold

Welcome to our website where you can discover high-quality, genuine Lincoln LS Exhaust Manifold. We offer an extensive inventory of OEM Lincoln LS Exhaust Manifold at affordable prices. We are committed to providing top-rated customer service along with prompt delivery.

Lincoln LS Exhaust Manifold Parts Questions & Experts Answers

Exhaust Manifold, Passenger Side
3W4Z-9430-AA
Q: How to service the right exhaust manifold on Lincoln LS?
A: Service of the right exhaust manifold requires the vehicle to be in neutral position while resting on a hoist. The first step involves accessing the Catalytic Converters while you should also remove the Starter motor as well. Start by taking off screws from both the lower right splash shield and moving onto the removal of the two EGR tube flange nuts and heat shield stud bolt. You must take off the heat shield after removing its four bolts followed by the eight bolts with eight spacers and exhaust manifold before discarding both the gaskets. Begin with positioning the new exhaust manifold gasket together with the new EGR tube gasket and exhaust manifold before installing the eight spacers followed by the eight exhaust manifold bolts which should be tightened by hand. Secure the EGR tube nuts while tightening them to 20 Nm (15 ft. lbs.), then proceed with tightening the eight bolts to 25 Nm (18 ft. lbs.) in the ordered sequence. The installation process begins by installing and tightening the heat shield elements along with its four bolts to 3 Nm (27 inch lbs.) and thereafter tightening the heat shield stud bolt to 50 Nm (37 ft. lbs.). To complete the installation process you should replace the starter motor as well as reinstall both the lower right splash shield and its screws and the catalytic converters.
