How to Service and Repair the Brake Proportioning Valve on a Four-Door Sedan Without ABS on Mercury Sable?

The servicing process of the brake load sensor proportioning valve for a four-door sedan without ABS must have at least ¾ tank of fuel and use a suitable lift with a curb height to position the wheels flat on the surface. You should not modify the upper nut on the valve operating rod before unstowing the set screw on the valve adjuster sleeve. Use 16.3 mm (0.65 inch) length of 3/8-inch OD x ¼-inch ID rubber vacuum hose which needs a lengthwise cut before you put it onto the valve operating rod. Perform this step only when the valve adjuster sleeve moves freely as it rests at the lower mounting bracket. Subsequently secure the set screw and lower the vehicle to the ground.

What Precautions Should Be Taken When Servicing and Repairing the Brake Proportioning Valve on Mercury Villager?

A proper service and repair of the brake proportioning/combination valve demands several safety measures regarding polyglycol ethers and polyglycols found in brake fluid that cause harm during exposure; always minimize eye contact and properly clean your hands afterward while also seeking medical care for eye-related injuries. Eyes that encounter the liquid should receive 15 minutes of water flush before seeking medical help for persistent irritation symptoms. Web information suggests that ingestion of the substance requires drinking water followed by vomiting induction and emergency medical help. Avoidance of painted and plastic damage necessitates immediate water-washing of brake fluid spills since this liquid weakens these materials. First remove the brake lines from the rear load sensor proportioning valve and then uninstall the eye bracket bolts before taking out the rear load sensor proportioning valve itself. The installation procedure begins with reversing all removal steps which requires proper adjustment of the rear load sensor proportioning valve along with brake system bleeding procedures.

OEM Mercury Brake Proportioning Valve

Proportioning Valve

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

10 Brake Proportioning Valves found

View related parts

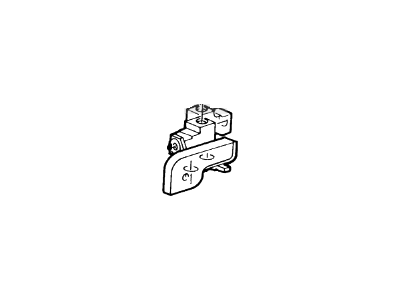

Mercury Pressure Metering Valve Part Number: F6DZ-2B547-AD
Product Specifications
- Other Name: Valve Assembly; Brake Proportioning Valve
Fits the following Mercury Models:
- Sable | 1996-2005 | G, GS, LS, LS Premium, Platinum Edition | 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS
View related parts

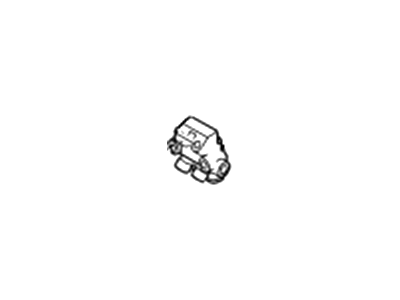

Mercury Pressure Metering Valve Part Number: F6XZ-2B547-AB
Product Specifications
- Other Name: Valve Assembly; Brake Proportioning Valve
- Manufacturer Note: Follow procedure in 1996 manual for 1993/95
- Replaces: XF5Z-2B547-AA
Fits the following Mercury Models:
- Villager | 1993-2002 | Base, Estate, GS, LS, Nautica, Sport | 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L GAS
View related parts

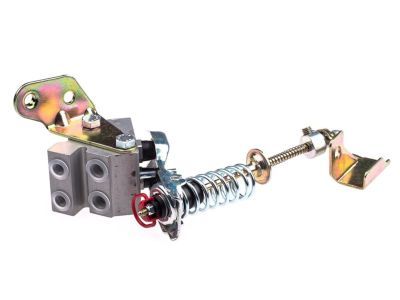

Mercury Pressure Metering Valve Part Number: F7CZ-2B091-CA
Product Specifications
- Other Name: Valve - Brake Pressure; Brake Proportioning Valve; Valve - Brake Pressure Reducing
- Manufacturer Note: w/front disc, rear drum, ABS
Fits the following Mercury Models:
- Tracer | 1997-1999 | GS, LS, Trio | 4 Cyl 2.0 L GAS
View related parts

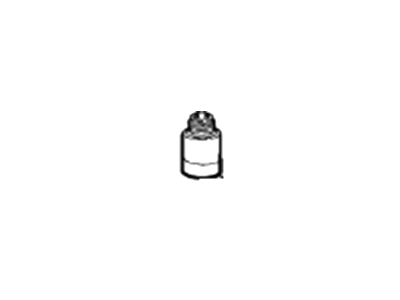

Mercury Pressure Metering Valve Part Number: F6AZ-2B091-AA
Product Specifications
- Other Name: Valve - Brake Pressure; Brake Proportioning Valve; Valve - Brake Pressure Reducing
- Manufacturer Note: 2234329 , w/ TC
Fits the following Mercury Models:
- Grand Marquis | 1997-2007 | GS, GSL, Limited Edition, LS, LSE, Ultimate Edition | 8 Cyl 4.6 L FLEX, 8 Cyl 4.6 L GAS
- Marauder | 2003-2004 | Base | 8 Cyl 4.6 L GAS
View related parts

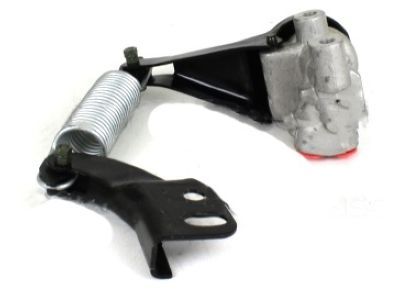

Mercury Pressure Metering Valve Part Number: F3CZ-2B091-A
Product Specifications
- Other Name: Valve - Brake Pressure; Brake Proportioning Valve; Valve - Brake Pressure Reducing
Fits the following Mercury Models:
- Tracer | 1994-1996 | Base, LTS, Trio | 4 Cyl 1.8 L GAS, 4 Cyl 1.9 L GAS
View related parts

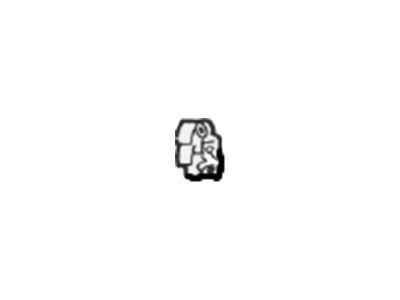

Mercury Pressure Metering Valve Part Number: F2AZ-2B091-B
Product Specifications
- Other Name: Valve - Brake Pressure; Brake Proportioning Valve; Valve - Brake Pressure Reducing
Fits the following Mercury Models:
- Grand Marquis | 1992-1994 | GS, LS | 8 Cyl 4.6 L GAS
View related parts

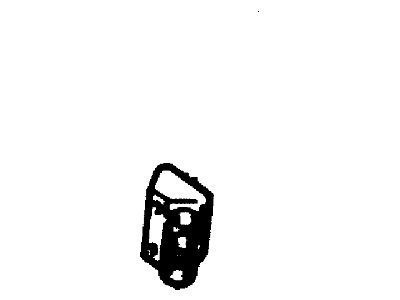

Mercury Pressure Metering Valve Part Number: EOAZ-2B257-A
Product Specifications
- Other Name: Valve Assembly - Brake Pressure; Brake Proportioning Valve; Valve Assembly - Brake Pressure Control
Fits the following Mercury Models:
- Colony Park | 1990-1991 | GS, LS | 8 Cyl 5.0 L GAS
- Grand Marquis | 1990-1991 | GS, LS | 8 Cyl 5.0 L GAS
View related parts

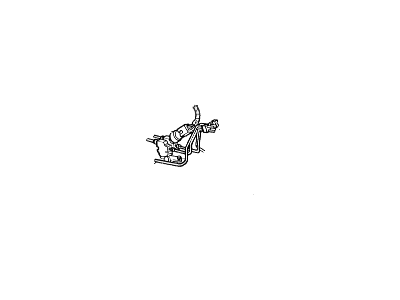

Mercury Pressure Metering Valve Part Number: 2F1Z-2B091-AA
Product Specifications
- Other Name: Valve - Brake Pressure; Brake Proportioning Valve; Valve - Brake Pressure Reducing
- Manufacturer Note: S/W, w/o ABS.
Fits the following Mercury Models:
- Sable | 2002-2005 | GS, LS, LS Premium, Platinum Edition | 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS
View related parts
Mercury Pressure Modulator Valve Part Number: YL8Z-2B091-BA
$46.95 MSRP: $73.27
You Save: $26.32 (36%)
Product Specifications
- Other Name: Valve - Brake Pressure Reducing; Brake Proportioning Valve
Fits the following Mercury Models:
- Mariner | 2005-2006 | Base, Convenience, Luxury, Premier | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS
View related parts
Mercury Pressure Metering Valve Part Number: F7CZ-2B091-BD
Product Specifications
- Other Name: Valve - Brake Pressure; Brake Proportioning Valve; Valve - Brake Pressure Reducing
Fits the following Mercury Models:
- Tracer | 1997-1999 | GS, LS, Trio | 4 Cyl 2.0 L GAS

Mercury Brake Proportioning Valve

If you own Mercury and want to keep it in top shape, choosing OEM Brake Proportioning Valve is a smart move. They are precisely engineered and follow strict factory standards. They are made in advanced facilities that use cutting edge technology. Each part goes through thorough testing to confirm strength and safety, so you can trust it. FordPartsDeal.com gives you genuine Mercury Brake Proportioning Valve at some of the affordable online prices without cutting quality. Every OEM Mercury part includes the manufacturer's warranty, easy returns, and super-fast delivery. So why wait? Shop now and get your vehicle back to peak condition.

Mercury Brake Proportioning Valve maintains a balanced braking force and prevents skids before they take over the control. Mercury was named after a fast Roman deity but established its reputation on smooth rides, spacious cabins, and an intelligent value ratio, and all showroom cars had that quiet assurance; Brake Proportioning Valve is a reminder that the brand had been combining comfort and a practical technology and high-responsiveness that would keep the wallets full but the steering wheels low. Mercury remained innovative over decades, producing the first graceful couples of 1939 all the way to the subsequent icons such as Cougar and Grand Marquis, continuously refining vibration, fining tuning suspension, and always renewing dashboards, with the ever-present Brake Proportioning Valve representing how the company had connected the smooth daily commuting with the safety benefits that are beneficial in the real-world traffic. The Brake Proportioning Valve detects the increased hydraulic pressure on the road, and the rear line force is lowered to allow the drums to hang back and the front discs to bite into action then this simple mechanical reasoning allows Mercury to come to rest in a straight line on the wet pavement, or gravel or during a panic stamp. The Brake Proportioning Valve, which is smaller than the proportioning valve, passes fluid through staggered chambers of various sizes to change the proportion of pressure in milliseconds, eliminating fade, avoiding lockups, and extending the life of the pads, making every Mercury driver feel confident with the pedal, provides superior handling, and reduced braking distances in both normal and emergency conditions.

Mercury Brake Proportioning Valve Parts and Q&A

Pressure Metering Valve
F6DZ-2B547-AD
Q: How to Service and Repair the Brake Proportioning Valve on a Four-Door Sedan Without ABS on Mercury Sable?
A:
The servicing process of the brake load sensor proportioning valve for a four-door sedan without ABS must have at least ¾ tank of fuel and use a suitable lift with a curb height to position the wheels flat on the surface. You should not modify the upper nut on the valve operating rod before unstowing the set screw on the valve adjuster sleeve. Use 16.3 mm (0.65 inch) length of 3/8-inch OD x ¼-inch ID rubber vacuum hose which needs a lengthwise cut before you put it onto the valve operating rod. Perform this step only when the valve adjuster sleeve moves freely as it rests at the lower mounting bracket. Subsequently secure the set screw and lower the vehicle to the ground.
Pressure Metering Valve
F6XZ-2B547-AB
Q: What Precautions Should Be Taken When Servicing and Repairing the Brake Proportioning Valve on Mercury Villager?
A:
A proper service and repair of the brake proportioning/combination valve demands several safety measures regarding polyglycol ethers and polyglycols found in brake fluid that cause harm during exposure; always minimize eye contact and properly clean your hands afterward while also seeking medical care for eye-related injuries. Eyes that encounter the liquid should receive 15 minutes of water flush before seeking medical help for persistent irritation symptoms. Web information suggests that ingestion of the substance requires drinking water followed by vomiting induction and emergency medical help. Avoidance of painted and plastic damage necessitates immediate water-washing of brake fluid spills since this liquid weakens these materials. First remove the brake lines from the rear load sensor proportioning valve and then uninstall the eye bracket bolts before taking out the rear load sensor proportioning valve itself. The installation procedure begins with reversing all removal steps which requires proper adjustment of the rear load sensor proportioning valve along with brake system bleeding procedures.
