How to Ensure Proper Functioning of the A/C Accumulator in a Mercury Grand Marquis?

The first step to service the HVAC accumulator requires executing the Refrigerant Discharging and Recovery Procedure. Use spring lock coupling general steps to disconnect the evaporator to compressor suction line from the suction accumulator/drier. Perform the suction accumulator/drier separation from the A/C evaporator core while using a back up wrench to protect both fitting and tube from harm. Preparation of the suction accumulator/drier consists of unscrewing the mounting bracket retaining screw which connects to the A/C evaporator core before extracting the assembly. The next step requires removal of the insulation cover from the suction accumulator/drier and separation of the A/C accumulator mounting bracket from it. The installation process should be done in reverse order by first servicing the suction accumulator/drier with PAG compressor oil YN-12-C F7AZ-19589-DA or equivalent that follows Ford specification WSH-M1C231-B. The O-ring seal demands application of the same PAG compressor oil during installation while using a back up wrench to protect the fitting torsion from damage.

How to Service the A/C Accumulator in the HVAC System on Mercury Grand Marquis?

The initial step for suction accumulator HVAC system service requires placing the vehicle at neutral in a hoist position. It is essential to disable the fire suppression system because this move protects employees from severe harm. Recovery of the refrigerant must be completed before you disconnect the suction accumulator outlet fitting and get rid of the O-ring seals. The next step requires removal of the suction accumulator inlet fitting along with the throwing away of its O-ring seals. First disconnect the A/C cycling switch electrical connector then remove and tighten to 15 Nm (11 lb-ft) the three suction accumulator bolts. Sever the suction accumulator from the system and activate the fire suppression system if present while observing all security notifications. The installation of the new suction accumulator starts by reverse following the removal instructions while adding new O-ring seals before lubricating the refrigerant system precisely with clean PAG oil. The refrigerant system requires evacuation and leak testing then charging as the last step.

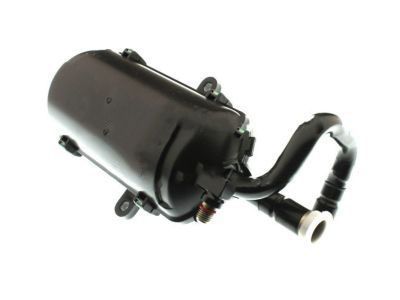

OEM Mercury Grand Marquis A/C Accumulator

Accumulator

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 A/C Accumulators found

View related parts
Mercury Grand Marquis Suction Hose Part Number: YW1Z-19C836-AA
$129.78 MSRP: $179.54
You Save: $49.76 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Accumulator Assembly - Air Intake; A/C Refrigerant Hose; Drier Element; A/C Receiver Drier; A/C Accumulator; Hose; Dehydrator; Drier; Accumulator Assembly - Air Conditioning; Accumulator
- Replaces: XW7Z-19C836-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1999-2002 Mercury Grand Marquis | GS, LS | 8 Cyl 4.6 L GAS
View related parts
Mercury Grand Marquis Dehydrator Part Number: 8W7Z-19C836-A
$77.02 MSRP: $126.73
You Save: $49.71 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Accumulator Assembly - Air Conditioning; A/C Accumulator; Drier Desiccant Element; A/C Receiver Drier; Drier; Accumulator
- Replaces: 6W7Z-19C836-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2011 Mercury Grand Marquis | GS, LS | 8 Cyl 4.6 L FLEX, 8 Cyl 4.6 L GAS
View related parts
Mercury Grand Marquis Suction Hose Part Number: F7AZ-19C836-AA
$118.31 MSRP: $163.67
You Save: $45.36 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Accumulator Assembly - Air Conditioning; A/C Refrigerant Hose; Drier Element; Receiver Drier; A/C Hose; Dehydrator; Drier; Accumulator
- Replaces: F6AZ-19C836-AB
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1994-1997 Mercury Grand Marquis | GS, LS | 8 Cyl 4.6 L GAS
View related parts
Mercury Grand Marquis Suction Hose Part Number: F8AZ-19C836-AA
Product Specifications
- Other Name: Accumulator Assembly - Air Intake; A/C Refrigerant Hose; Drier Element; A/C Receiver Drier; A/C Accumulator; Hose; Dehydrator; Drier; Accumulator Assembly - Air Conditioning; Accumulator
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998 Mercury Grand Marquis | GS, LS | 8 Cyl 4.6 L GAS
View related parts
Mercury Grand Marquis Suction Line Part Number: E1AZ19C836A
Product Specifications
- Other Name: Accumulator Assembly - Air Conditioning; A/C Refrigerant Liquid Hose; A/C Receiver Drier; A/C Accumulator; A/C Hose; Dehydrator
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1984-1991 Mercury Grand Marquis | Base, Colony Park, GS, LS | 8 Cyl 5.0 L GAS, 8 Cyl 5.8 L GAS
View related parts
Mercury Grand Marquis Suction Hose Part Number: F1VY-19C836-A
Product Specifications
- Other Name: Accumulator Assembly - Air Intake; A/C Refrigerant Hose; Drier Element; A/C Receiver Drier; A/C Accumulator; Hose; Dehydrator; Drier; Accumulator Assembly - Air Conditioning; Accumulator
- Manufacturer Note: Tank only , w/integral A/C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1992-1993 Mercury Grand Marquis | GS, LS | 8 Cyl 4.6 L GAS
View related parts
Mercury Grand Marquis Suction Line Part Number: E6VY-19C836-A
Product Specifications
- Other Name: Accumulator Assembly - Air Intake; A/C Refrigerant Liquid Hose; A/C Receiver Drier; A/C Accumulator; A/C Hose; Dehydrator; Accumulator Assembly - Air Conditioning; Accumulator
- Manufacturer Note: Tank only , #E6VH 19C808,AA , w/integral A/C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1990-1991 Mercury Grand Marquis | GS, LS | 8 Cyl 5.0 L GAS

Mercury Grand Marquis A/C Accumulator

OEM A/C Accumulator boasts unmatched quality. Each part goes through full quality checks. They adhere to Mercury's official factory standards. These steps remove flaws and inconsistencies. So you can get A/C Accumulator with long life and a perfect fit. Come to our website and find genuine Mercury Grand Marquis parts. We keep a wide inventory of OEM Grand Marquis parts at the highly affordable prices. It's easy to search, compare, and pick what you need. You'll love the clear info and simple checkout. We offer top-rated customer service, and we reply fast. We also ship promptly to ensure your order arrives on time.

The A/C Accumulator found in Mercury Grand Marquis automobiles plays an important role of preserving the efficiency and durability of the air conditioning system. Its main job is to clear dust and surplus moisture so as to help protect the subcomponents of the A/C system. This component is cylindrical in shape; it contains inlet and outlet connections that connect it to the condenser as well as the expansion valve. Although detailed information in the over view section does not differentiate the types or the style of the A/C Accumulator that may be fitted in different Grand Marquis models, it is clear that the mechanism is the same. Through elimination of contaminants and moisture, the A/C Receiver Drier enhances the proper working of the air conditioning system thus a comfortable driving experience.

Mercury Grand Marquis A/C Accumulator Parts and Q&A

Suction Hose
YW1Z-19C836-AA
Q: How to Ensure Proper Functioning of the A/C Accumulator in a Mercury Grand Marquis?
A:
The first step to service the HVAC accumulator requires executing the Refrigerant Discharging and Recovery Procedure. Use spring lock coupling general steps to disconnect the Evaporator to compressor suction line from the suction accumulator/drier. Perform the suction accumulator/drier separation from the A/C evaporator core while using a back up wrench to protect both fitting and tube from harm. Preparation of the suction accumulator/drier consists of unscrewing the mounting bracket retaining screw which connects to the A/C evaporator core before extracting the assembly. The next step requires removal of the insulation cover from the suction accumulator/drier and separation of the A/C accumulator mounting bracket from it. The installation process should be done in reverse order by first servicing the suction accumulator/drier with PAG compressor oil YN-12-C F7AZ-19589-DA or equivalent that follows Ford specification WSH-M1C231-B. The O-ring seal demands application of the same PAG compressor oil during installation while using a back up wrench to protect the fitting torsion from damage.
Dehydrator
8W7Z-19C836-A
Q: How to Service the A/C Accumulator in the HVAC System on Mercury Grand Marquis?
A:
The initial step for suction accumulator HVAC system service requires placing the vehicle at neutral in a hoist position. It is essential to disable the fire suppression system because this move protects employees from severe harm. Recovery of the refrigerant must be completed before you disconnect the suction accumulator outlet fitting and get rid of the O-ring seals. The next step requires removal of the suction accumulator inlet fitting along with the throwing away of its O-ring seals. First disconnect the A/C cycling switch electrical connector then remove and tighten to 15 Nm (11 lb-ft) the three suction accumulator bolts. Sever the suction accumulator from the system and activate the fire suppression system if present while observing all security notifications. The installation of the new suction accumulator starts by reverse following the removal instructions while adding new O-ring seals before lubricating the refrigerant system precisely with clean PAG oil. The refrigerant system requires evacuation and leak testing then charging as the last step.
