What precautions should be taken when servicing a side Airbag module on Mercury Grand Marquis?

Always wear safety glasses when performing side air bag module service due to potential deployment incidents that can harm you. Hold the air bag equipped side module by the seam that is facing in the opposite direction of your body and never place it at the seam where the cover tears. A proper hand wash with water will remove remaining sodium hydroxide from your skin. Probing the connectors of an air bag module must never be attempted because it may trigger deployment. Never repair any side air bag modules with damaged covers while keeping in mind that leads to complete non-repairability of front seat back trim covers existing on seats that contain side air bags. The system needs to be depowered before servicing any SRS components and the air bag warning lamp produces normal operation by lighting up when the RCM fuse is removed with ignition power on. A deployed side air bag requires replacement of the seatback pad in combination with the trim cover and side air bag module together with a possible need to replace the seatback frame. Installation requires putting the seat at the front and upward position followed by removing the seat back trim panel through bottom screw removal and disengaging the upper retaining hooks. Non-police vehicles should start by removing their J-clips followed by detachment of the foam pad from its seat backrest frame using outboard hog rings. The procedure requires new retaining nuts for a new side air bag installation but keeps all original nuts when performing the job again. Before installing the side air bag module you must disconnect its electrical connector from the deployment chute and check all mounting surfaces for any foreign objects as well as remove the module carefully from that chute. The side air bag module must be free from damage without any detritus and a new module should replace the unit if the air bag cover becomes compromised. The deployment chute needs a new side air bag module installation where the alignment pin must sit on top while the electrical connector belongs at the bottom and must align perfectly with the bracket. The installer should secure the two mounting nuts to 7 Nm (62 lb-in) before reattaching the foam pad by applying hog rings that should hook around the listing wire. Non-police vehicle owners must attach the J-clips alongside the visual check of police vehicle seat back trim panel retaining hooks for damage during seat panel reinstallation. The final step involves zipping the seat backrest material while turning back on electrical power to the system.

What checklist should be completed to ensure the proper functioning of the Airbag system after diagnosis or repair on Mercury Grand Marquis?

A thorough inspection must be performed following repair or diagnosis of the air bag system through the following steps: verify the three-way connector at the steering column base connection and ensure all air bag modules remain connected and properly attached and check all air bag Electronic Crash Sensor (ECS) modules as well as make sure the vehicle battery is securely connected.

OEM Mercury Grand Marquis Airbag

Air Bag Module

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

44 Airbags found

View related parts
Mercury Grand Marquis Passenger Air Bag Part Number: F3MY54044A74B
$24.27 MSRP: $33.57
You Save: $9.30 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1993-1994 Mercury Grand Marquis | GS, LS | 8 Cyl 4.6 L GAS
View related parts

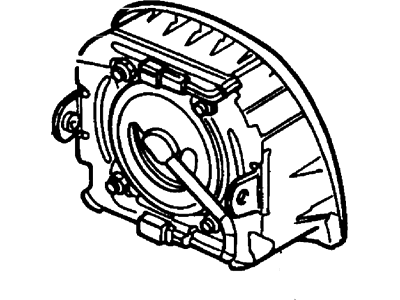

Mercury Grand Marquis Driver Air Bag, Prairie Tan Part Number: F8MZ-54043B13-DAD
$80.42 MSRP: $111.26
You Save: $30.84 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module Assembly - Ecu
- Manufacturer Note: (,Y*),Prairie Tan
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998 Mercury Grand Marquis | GS, LS | 8 Cyl 4.6 L GAS
View related parts
Mercury Grand Marquis Passenger Air Bag Part Number: 3W7Z-54044A74-AAB
$83.25 MSRP: $115.17
You Save: $31.92 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module; Instrument Panel Air Bag
- Manufacturer Note: (-H*) - Dark Parchment, BEFORE 11/17/03
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2004 Mercury Grand Marquis | GS, LS, LSE | 8 Cyl 4.6 L GAS
View related parts

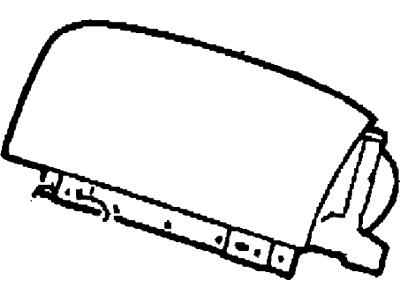

Mercury Grand Marquis Passenger Air Bag Part Number: 1W7Z-54044A74-AAA
$90.94 MSRP: $125.81
You Save: $34.87 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2002 Mercury Grand Marquis | GS, LS | 8 Cyl 4.6 L GAS
View related parts

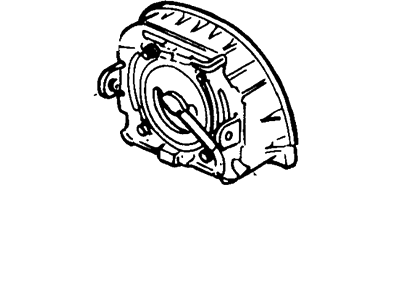

Mercury Grand Marquis Driver Air Bag, Charcoal Part Number: YW3Z-54043B13-AAA
$92.97 MSRP: $128.61
You Save: $35.64 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module Assembly - Ecu
- Manufacturer Note: (,W*),Deep Charcoal
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000-2002 Mercury Grand Marquis | GS, LS | 8 Cyl 4.6 L GAS
View related parts
Mercury Grand Marquis Passenger Air Bag, Midnight Black Part Number: 1W7Z-54044A74-AAD
$96.51 MSRP: $133.51
You Save: $37.00 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module
- Manufacturer Note: (,W*) , Midnight Black
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2002 Mercury Grand Marquis | GS, LS | 8 Cyl 4.6 L GAS
View related parts
Mercury Grand Marquis Passenger Air Bag, Slate Blue Part Number: 1W7Z-54044A74-AAB
$151.56 MSRP: $209.68
You Save: $58.12 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module
- Manufacturer Note: (,R*) , Deep Slate Blue
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2002 Mercury Grand Marquis | GS, LS | 8 Cyl 4.6 L GAS
View related parts

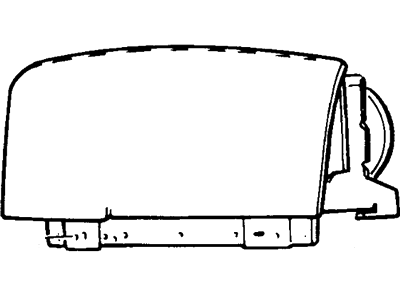

Mercury Grand Marquis Passenger Air Bag Part Number: F8AZ-54044A74-DAA
$211.75 MSRP: $292.94
You Save: $81.19 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module; Inflator Module
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998-2000 Mercury Grand Marquis | GS, LS | 8 Cyl 4.6 L GAS
View related parts
Mercury Grand Marquis Driver Air Bag, Slate Blue Part Number: F8MZ-54043B13-DAC
$228.35 MSRP: $315.90
You Save: $87.55 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module Assembly - Ecu
- Manufacturer Note: (,R*),Deep Slate Blue
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998-1999 Mercury Grand Marquis | GS, LS | 8 Cyl 4.6 L GAS
View related parts
Mercury Grand Marquis Passenger Air Bag, Prairie Tan Part Number: F8AZ-54044A74-DAC
$253.19 MSRP: $350.27
You Save: $97.08 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module
- Manufacturer Note: (-Y*) - Prairie Tan
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998 Mercury Grand Marquis | GS, LS | 8 Cyl 4.6 L GAS
View related parts
Mercury Grand Marquis Passenger Air Bag, Slate Blue Part Number: F8AZ-54044A74-DAB
$483.14 MSRP: $668.38
You Save: $185.24 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module
- Manufacturer Note: (,R*) , Deep Slate Blue
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998-2000 Mercury Grand Marquis | GS, LS | 8 Cyl 4.6 L GAS
View related parts
Mercury Grand Marquis Driver Air Bag, Driver Side Part Number: F5MY54043B13B
$15.57 MSRP: $21.54
You Save: $5.97 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module Assembly - Driver Air Bag; Module
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1995 Mercury Grand Marquis | GS, LS | 8 Cyl 4.6 L GAS
View related parts
Mercury Grand Marquis Driver Air Bag Part Number: F6MZ54043B13AAB
$28.64 MSRP: $39.62
You Save: $10.98 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1996-1997 Mercury Grand Marquis | GS, LS | 8 Cyl 4.6 L GAS
View related parts
Mercury Grand Marquis Inflator Module Part Number: F6AZ54044A74AVD
$47.74 MSRP: $66.05
You Save: $18.31 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1995-1996 Mercury Grand Marquis | GS, LS | 8 Cyl 4.6 L GAS
View related parts
Mercury Grand Marquis Passenger Air Bag Part Number: F5AZ54044A74B
$404.79 MSRP: $555.38
You Save: $150.59 (28%)
ADD TO CART
Product Specifications
- Other Name: Module
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1995 Mercury Grand Marquis | GS, LS | 8 Cyl 4.6 L GAS
View related parts
Mercury Grand Marquis Passenger Air Bag, Black Part Number: YW7Z-54044A74-AAB
Product Specifications
- Other Name: Module; Inflator Module
- Manufacturer Note: (,W*) , Midnight Black
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000 Mercury Grand Marquis | GS, LS | 8 Cyl 4.6 L GAS
View related parts
Mercury Grand Marquis Passenger Air Bag Part Number: XW7Z-54044A74-AAA
Product Specifications
- Other Name: Module; Inflator Module
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1999-2000 Mercury Grand Marquis | GS, LS | 8 Cyl 4.6 L GAS
View related parts
Mercury Grand Marquis Driver Air Bag Part Number: XW3Z-54043B13-AAA
Product Specifications
- Other Name: Module Assembly - Ecu
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1999-2000 Mercury Grand Marquis | GS, LS | 8 Cyl 4.6 L GAS
View related parts
Mercury Grand Marquis Driver Air Bag Part Number: FOMY-54043B13-A
Product Specifications
- Other Name: Module
- Manufacturer Note: Shadow Blue
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1990-1991 Mercury Grand Marquis | GS, LS | 8 Cyl 5.0 L GAS
View related parts
Mercury Grand Marquis Driver Air Bag Part Number: F8MZ-54043B13-DAB
Product Specifications
- Other Name: Module Assembly - Ecu
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998-2000 Mercury Grand Marquis | GS, LS | 8 Cyl 4.6 L GAS

| Page 1 of 3 |Next >

1-20 of 44 Results

Mercury Grand Marquis Airbag

OEM Airbag boasts unmatched quality. Each part goes through full quality checks. They adhere to Mercury's official factory standards. These steps remove flaws and inconsistencies. So you can get Airbag with long life and a perfect fit. Come to our website and find genuine Mercury Grand Marquis parts. We keep a wide inventory of OEM Grand Marquis parts at the highly affordable prices. It's easy to search, compare, and pick what you need. You'll love the clear info and simple checkout. We offer top-rated customer service, and we reply fast. We also ship promptly to ensure your order arrives on time.

Mercury Grand Marquis Airbag Parts and Q&A

Inflator Module, Camel
7W3Z-54043B13-AA
Q: What precautions should be taken when servicing a side Airbag module on Mercury Grand Marquis?
A:
Always wear safety glasses when performing side air bag module service due to potential deployment incidents that can harm you. Hold the air bag equipped side module by the seam that is facing in the opposite direction of your body and never place it at the seam where the cover tears. A proper hand wash with water will remove remaining sodium hydroxide from your skin. Probing the connectors of an air bag module must never be attempted because it may trigger deployment. Never repair any side air bag modules with damaged covers while keeping in mind that leads to complete non-repairability of front seat back trim covers existing on seats that contain side air bags. The system needs to be depowered before servicing any SRS components and the air bag warning lamp produces normal operation by lighting up when the RCM fuse is removed with ignition power on. A deployed side air bag requires replacement of the seatback pad in combination with the trim cover and side air bag module together with a possible need to replace the seatback frame. Installation requires putting the seat at the front and upward position followed by removing the seat back trim panel through bottom screw removal and disengaging the upper retaining hooks. Non-police vehicles should start by removing their J-clips followed by detachment of the foam pad from its seat backrest frame using outboard hog rings. The procedure requires new retaining nuts for a new side air bag installation but keeps all original nuts when performing the job again. Before installing the side air bag module you must disconnect its electrical connector from the deployment chute and check all mounting surfaces for any foreign objects as well as remove the module carefully from that chute. The side air bag module must be free from damage without any detritus and a new module should replace the unit if the air bag cover becomes compromised. The deployment chute needs a new side air bag module installation where the alignment pin must sit on top while the electrical connector belongs at the bottom and must align perfectly with the bracket. The installer should secure the two mounting nuts to 7 Nm (62 lb-in) before reattaching the foam pad by applying hog rings that should hook around the listing wire. Non-police vehicle owners must attach the J-clips alongside the visual check of police vehicle seat back trim panel retaining hooks for damage during seat panel reinstallation. The final step involves zipping the seat backrest material while turning back on electrical power to the system.
Passenger Air Bag
F8AZ-54044A74-DAA
Q: What checklist should be completed to ensure the proper functioning of the Airbag system after diagnosis or repair on Mercury Grand Marquis?
A:
A thorough inspection must be performed following repair or diagnosis of the air bag system through the following steps: verify the three-way connector at the Steering Column base connection and ensure all air bag modules remain connected and properly attached and check all air bag Electronic Crash Sensor (ECS) modules as well as make sure the vehicle battery is securely connected.
