Diagram (1 of 1): Transmission Components
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 1
$123.67 $84.961
- 2
$20.11 $14.186 - 2
$3.04 $1.7910
- 3
- 4
$61.17 $42.761
- 5
$33.50 $23.621
- 6
$49.64 $32.081
$86.67 $59.54
F2AZ-6397-A
Sleeve - Guide- Part Notes: Cylinder block rear to Transmission
- Fit Note: 10 Cyl 6.8L
- Require Quantity: 2
- Package Quantity: 2
- Callout Name: 6397
$4.99 $3.53
-N811360-S309
Bolt- Part Notes: (AB-175-NK) Bolt M10X1.5X60 hex flanged head - attaches 7005 to engine, 6.0L
- Require Quantity: 2
- Package Quantity: 4
- Callout Name: 7005
- Replaced By: -N811360-S439
$17.15 $10.08
$22.60 $13.28
-378941-S441
Nut - Hex.- Part Notes: Nut - 3/8 - 24 hex lock - attaches 7902 to 6375
- Callout Name: 7902
$3.25 $1.92
-N805260-S
Bolt- Part Notes: (AB-91-E) bolt, hex head - M8 x 1.25 x 65-Attaches (7A103 to 7005), 1C3P-A*,B*,C*,D*,E*,F*,N*,P*
- Require Quantity: 9
- Package Quantity: 4
- Callout Name: 7A103
$10.00 $5.88
$8.00 $5.64
XC3Z-7A228-AA
Tube - Oil Filler- Part Notes: #Light blue paint daub near top of tube, 7.3L/4R100
- Callout Name: 7A228
$69.00 $48.23
F7TZ-7B066-AA
Plate - Clutch Pressure- Part Notes: .710" thick, YC3P-D*,N*,P*;1C3P-A8,B*,C*,D*,N*,P*
- Callout Name: 7B066
1C3Z-7B164-BA
Plate Assy - Drive- Part Notes: Plate - friction, 1C3P-AC,BC,CC,DC,EB,FB,NC,PC
- Require Quantity: 3
- Package Quantity: 1
- Callout Name: 7B164
3C3Z-7B164-DA
Plate Assy - Drive- Part Notes: Friction
- Require Quantity: 4
- Package Quantity: 4
- Callout Name: 7B164
- Replaced By: 9C3Z-7B164-F
$15.42 $10.87
$32.63 $23.01
E9TZ-7C122-A
Ring- Part Notes: Retain 7F235 to 7D044 , 1C3P,A*,B*,C*,D*,E*,F*,N*,P*
Retains 7H359, 7B070, and 7A262 to 7F283 - Callout Name: 7C122

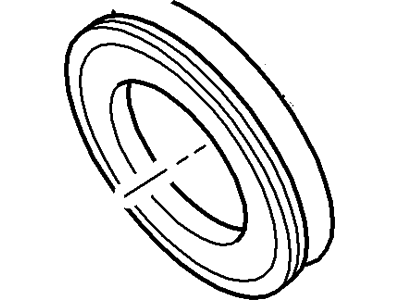

3C3Z-7D019-AB
Seal - Output Shaft Oil- Part Notes: 7005 (rear case) to 7060 (output shaft)
- Require Quantity: 2
- Package Quantity: 1
- Callout Name: 7D019
$26.36 $17.04
$7.85 $5.08
$33.50 $23.62
2C3Z-7D483-AA

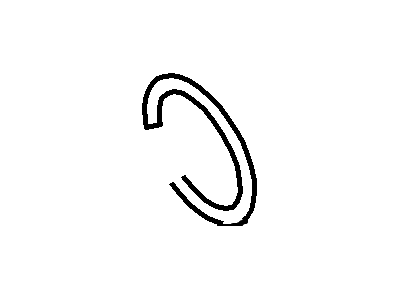

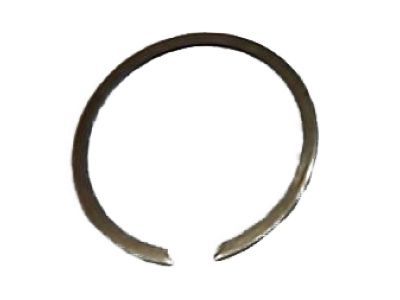

Snap Ring- Part Notes: 1.55-1.65mm thick, 1C3P-A*,B*,C*,D*,E*,F*,N*,P*, FROM 5/01/03
- Callout Name: 7D483
E9TZ-7D483-E
Ring- Part Notes: .079 thick - 9 3/8" O.D., 1C3P-A*,B*,C*,D*,E*,F*,N*,P*
- Callout Name: 7D483
E6DZ-7G178-A

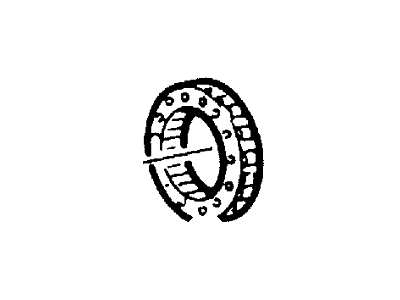

Bearing Assy - Ball- Part Notes: #12 Thrust, 1C3P-A*,B*,C*,D*,E*,F*,N*,P*
#5 Thrust
#5 Thrust, 1C3P-A*,B*,C*,D*,E*,F*,N*,P* - Callout Name: 7G178
$28.33 $19.98
F81Z-7G389-AA

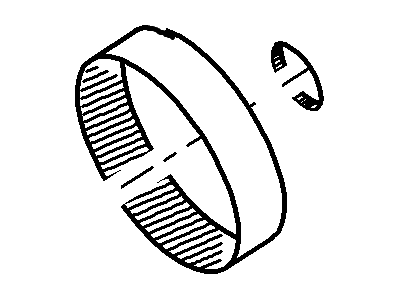

Race Assy - One-Way Clutch - Outer- Part Notes: Race , outer, 1C3P,A*,B*,C*,D*,E*,F*,N*,P*
- Callout Name: 7G389
E9TZ-7G402-A
Seal- Part Notes: Located on front pump support - 2 3/8" O.D. - 1/16" thick, 1C3P-A*,B*,C*,D*,E*,F*,N*,P*
- Require Quantity: 2
- Package Quantity: 2
- Callout Name: 7G402
$5.58 $3.61
$53.17 $37.16
$15.50 $9.11
-390685-S
Plug - Threaded- Part Notes: (090-010) Plug - pressure tap - 1/8"-27 x .65"
(090-010) Plug - pressure tap - 1/8"-27 x .65", 1C3P-A*,B*,C*,D*,E*,F*,N*,P* - Callout Name: 7005
$10.00 $5.88
-353078-S100
Ball - Check Valve- Part Notes: Ball - EPC blow off - .25" - steel, 1C3P-A*,B*,C*,D*,E*,F*,N*,P*
- Callout Name: 7005
$0.85 $0.51
-372552-S2
Nut - Spring- Part Notes: Nut, spring - 3/8" - attaches id tag to case
Nut, spring - 3/8" - attaches id tag to case, 1C3P-A*,B*,C*,D*,E*,F*,N*,P* - Callout Name: 7005
$2.13 $1.25
$25.67 $18.10
F81Z-7017-EA

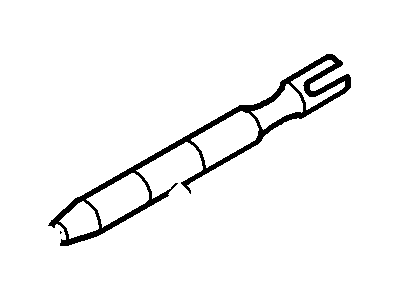

Shaft - Input- Part Notes: 1C3P-A*,N*,B*,C*,P*,D*,E*,F*
- Callout Name: 7017
- Replaced By: 6C3Z-7017-A
$94.33 $64.81
F81Z-7034-BA
Valve Assy - Vent- Part Notes: Vent - hose nipple style, YC3P-E*,F*,N*,P*,R*,S*;1C3P-A*,B*,C*,D*,E*,F*,N*,P*
- Callout Name: 7034
- Replaced By: 1C3Z-7034-AA
$47.00 $33.14
FOTZ-7153-A
Kit - Gasket- Part Notes: Note: Kit does not include 7D100 and 7C155 gaskets - must order gaskets separately
- Callout Name: 7153
$34.17 $24.09
$651.67 $444.31
$88.67 $60.91
-377437-S
Ring- Part Notes: (QQ-98H) Ring, retaing - 7" O.D. - .058" thick-(7B066 to 7D044), 1C3P-A*,B*,C*,D*,E*,F*,N*,P*
(QQ-98H) Ring, retaining - 7" O.D. - .058" thick-(7B066 to 7A360), 1C3P-A*,B*,C*,D*,E*,F*,N*,P*
(QQ-98H) Ring, retaining - 7" O.D. - .058" thick-(7B066 to 7F283) - Callout Name: 7B066
$13.00 $7.64
E9TZ-7B066-B
Plate - Clutch Pressure- Part Notes: 12.34-12.60mm thick, YC3P-N*,R*;1C3P-N*
- Callout Name: 7B066
F7TZ-7B067-AC
Hub - Clutch- Part Notes: Hub - reverse clutch, 1C3P-A*,B*,C*,D*,E*,F*,N*,P*
- Callout Name: 7B067
F4TZ-7B164-AA
Plate Assy - Drive- Part Notes: Plate , friction , 1C3P,A*,B*,C*,D*,E*,F*,N*,P*
- Require Quantity: 2
- Package Quantity: 1
- Callout Name: 7B164
3C3Z-7B442-DA
Driven Plate - Steel- Part Notes: Reverse clutch
- Require Quantity: 6
- Package Quantity: 6
- Callout Name: 7B442
$36.39 $25.65
5C3Z-7B442-CA
Driven Plate - Steel- Part Notes: Direct clutch
- Require Quantity: 4
- Package Quantity: 4
- Callout Name: 7B442
$11.54 $8.14
$43.00 $30.32
$8.84 $5.71
$11.80 $7.63
-391346-S
Plug - Threaded- Part Notes: (010-020) Plug - torque converter drain - 1/8"-27 piloted, YC3P-N*;1C3P-A*,B*,N*
- Callout Name: 7902
$2.60 $1.53
1C3Z-7000-DCRM
Automatic Transmission Assy- Part Notes: 1C3P-D*
- Callout Name: 7000
- Replaced By: 1C3Z-7V000-DRM
$4265.33 $3619.88
- $448.33 $305.32
- -391855-S100
Plug - Threaded- Part Notes: Plug - torque converter drain - 1/8"-27 piloted, YC3P-D*,E*,F*,P*;1C3P-C*,D*,E*,F*,P*
- Callout Name: 7902
$2.60 $1.53
-370443-S32
Clip- Part Notes: Clip - vent hose
- Require Quantity: 2
- Package Quantity: 4
- Callout Name: 7034
- Replaced By: -W715465-S439
$4.25 $2.50
F3AZ-7034-AA
Vent Assy- Part Notes: 3C3P-G*,K*;4C3P-KB;5C3P-NC
- Callout Name: 7034
- Replaced By: 6L3Z-7034-A
$14.05 $9.91
$16.30 $11.49
- $22.33 $15.75
5C3Z-7B164-BA
Plate Assy - Drive- Part Notes: Friction
- Require Quantity: 4
- Package Quantity: 4
- Callout Name: 7B164
$25.63 $18.07
3C3Z-7B164-CA
Plate Assy - Drive- Part Notes: Friction
- Require Quantity: 6
- Package Quantity: 1
- Callout Name: 7B164
F81Z-7B442-AA
Driven Plate - Steel- Part Notes: Coast clutch, 1C3P-A*,B*,C*,D*,E*,F*,N*,P*
- Require Quantity: 2
- Package Quantity: 1
- Callout Name: 7B442
3C3Z-7D019-BA
Seal- Part Notes: 7A360 (forward cylinder) to 7A130 (center support)
- Require Quantity: 2
- Package Quantity: 2
- Callout Name: 7D019
$7.36 $4.76
3C3Z-7D234-AA
Bearing- Part Notes: #10,12,15 thrust
- Require Quantity: 3
- Package Quantity: 1
- Callout Name: 7D234
$19.64 $12.69
E9TZ-7E005-A
Piston - Intermediate Clutch- Part Notes: 1C3P-A*,B*,C*,D*,E*,F*,N*,P*
- Callout Name: 7E005
$26.36 $17.04
$21.27 $13.75
- -W704802-S427
Bolt- Part Notes: Bolt M10X95.75 hex flanged piloted - attaches 7005 to engine, 6.0L
- Require Quantity: 7
- Package Quantity: 4
- Callout Name: 7005
- Replaced By: -W704802-S439
$15.50 $9.11
- 1C3Z-7000-BCRM
Automatic Transmission Assy- Part Notes: 1C3P-B*
- Callout Name: 7000
- Replaced By: 1C3Z-7V000-BRM
$4265.33 $3619.88
5C3Z-7A089-BA
Clutch Assy- Part Notes: Coast Clutch, 5C3P-K*; 5C3P-N*, FROM 1/12/2005
- Callout Name: 7A089
- Replaced By: 7C3Z-7A089-A
$121.33 $83.36
3C3Z-7A166-CA
Washer - Thrust- Part Notes: #13 and 14 thrust
- Require Quantity: 2
- Package Quantity: 1
- Callout Name: 7A166
$11.73 $7.58
$58.17 $40.66
F81Z-7A527-AA
Retainer- Part Notes: Snap ring - coast clutch spring retainer - 1.45-1.55mm
Snap ring - coast clutch spring retainer - 1.45-1.55mm, 1C3P-A*,B*,C*,D*,E*,F*,N*,P* - Callout Name: 7A527
$5.77 $4.07
$33.67 $23.74
C6AZ-7B066-A
Plate - Clutch Pressure- Part Notes: Front - 19/64" thick - 5 1/8" I.d. - 26 teeth, 1C3P-A*,B*,C*,D*,E*,F*,N*,P*
- Location: Front
- Callout Name: 7B066
$29.50 $20.80
- 3C3Z-7B164-AA
Plate Assy - Drive- Part Notes: Friction
- Require Quantity: 3
- Package Quantity: 3
- Callout Name: 7B164
- Replaced By: 9C3Z-7B164-C
$21.78 $15.36
E9TZ-7B442-D
Driven Plate - Steel- Part Notes: Direct clutch
Forward Clutch - Require Quantity: 4
- Package Quantity: 4
- Callout Name: 7B442
$13.50 $9.52- Part Notes: Direct clutch
$42.18 $27.26
$26.36 $17.04
$73.00 $51.03
E9TZ-7D234-A
Bearing- Part Notes: #9A & 9B Thrust
- Require Quantity: 2
- Package Quantity: 2
- Callout Name: 7D234
$22.55 $14.57
5C3Z-7D273-AA
Connector - Oil Tube- Require Quantity: 2
- Package Quantity: 1
- Callout Name: 7D273
- Replaced By: 9C3Z-7D273-A
$43.50 $30.67
E9TZ-7D483-F
Ring- Part Notes: .100 thick - 9 3/8" O.D., 1C3P-A*,B*,C*,D*,E*,F*,N*,P*
- Callout Name: 7D483
$8.29 $5.36
$24.17 $17.04
E9TZ-7G379-A
Washer- Part Notes: 1C3P-A*,B*,C*,D*,E*,F*,N*,P*
- Require Quantity: 9
- Package Quantity: 9
- Callout Name: 7G379
$4.85 $3.42
$11.80 $7.63
$5.65 $3.33
$3.25 $1.92
$15.27 $10.76
E9TZ-7A166-A
Washer - Thrust- Part Notes: #10B & 11 thrust, YC3P-P*,S*;1C3P-C*,D*,P*
- Require Quantity: 2
- Package Quantity: 1
- Callout Name: 7A166
$7.75 $4.56
$82.17 $56.45
$127.50 $87.59
YL1Z-7D273-BA
Connector - Oil Tube- Part Notes: Radiator fitting; For seal, refer to E5LY 8C242-A
- Fit Note: 10 Cyl 6.8L
- Require Quantity: 2
- Package Quantity: 1
- Callout Name: 7D273
$20.00 $14.10
$13.62 $8.80
E9TZ-7B442-E
Driven Plate - Steel- Part Notes: Reverse clutch , YC3P,N*,P*,R*,S*;1C3P,A*,B*,C*,D*,N*,P*
- Require Quantity: 5
- Package Quantity: 6
- Callout Name: 7B442
$13.00 $9.17
$75.83 $53.01
$17.22 $12.14
$18.83 $13.28
$64.92 $41.60
F7TZ-7D171-AA
Race - One-Way Clutch - Inner- Part Notes: 1C3P,A*,B*,C*,D*,E*,F*,N*,P*
- Callout Name: 7D171
$68.33 $47.77
F81Z-7A020-BA
Indicator Assy - Oil Level- Part Notes: #Light blue o-ring, 7.3L/4R100
- Callout Name: 7A020
$39.17 $27.61
- F81Z-7A548-AA
"O" Ring- Part Notes: Inner (small) 3.00" O.D. 'O' ring type seal, 1C3P-A*,B*,C*,D*,E*,F*,N*,P*
- Callout Name: 7A548
F2TZ-7B164-A
Plate Assy - Drive- Part Notes: Plate - friction, 1C3P-A*,B*,C*,D*,E*,F*,N*,P*
- Require Quantity: 4
- Package Quantity: 4
- Callout Name: 7B164
$23.83 $16.80
- $19.28 $13.59
- 5C3Z-7B442-BA
Driven Plate - Steel- Part Notes: Forward Clutch
- Callout Name: 7B442
- Replaced By: 5C3Z-7B442-BB
$20.79 $14.66
F1TZ-7D014-A
Washer - Thrust- Part Notes: #1 Thrust
Washer - #1 thrust, 1C3P-A*,B*,C*,D*,E*,F*,N*,P* - Callout Name: 7D014
$8.69 $5.62
- $13.88 $9.79
$94.17 $64.69
$14.17 $9.99
- C6AZ-7B066-B
Plate - Clutch Pressure- Part Notes: 11/32" thick - 5 1/8" I.D. - 26 teeth, YC3P-N*,P*,R*,S*;1L7P-A*,B*;1C3P-A*,B*,C*,D*,N*,P*
Rear - 11/32" thick - 5 1/8" I.D. - 26 teeth, 1C3P-A*,B*,C*,D*,E*,F*,N*,P* - Location: Rear
- Callout Name: 7B066
$69.50 $48.58
- E9TZ-7B066-C
Plate - Clutch Pressure- Part Notes: Plate - steel - Intermediate clutch - 3.13-3.23mm thick - 157.2-157.8mm I.D. - 26 teeth in a 30 tooth profile - 1 used as a pressure plate, 2 used as steel plates (7B442).
- Require Quantity: 3
- Package Quantity: 1
- Callout Name: 7B066

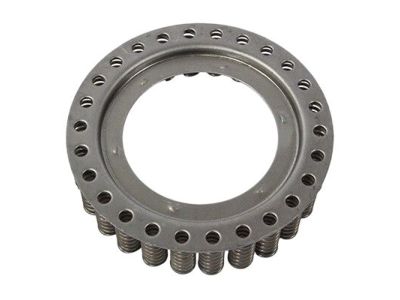

F81Z-7B070-AA
Spring - Clutch Return- Part Notes: Spring , coil spring assembly, 1C3P,A*,B*,C*,D*,E*,F*,N*,P*
- Callout Name: 7B070
- 3C3Z-7B442-AA
Driven Plate - Steel- Part Notes: Overdrive clutch
- Require Quantity: 3
- Package Quantity: 3
- Callout Name: 7B442
$32.67 $23.03
E9TZ-7F224-A
Seal- Part Notes: Outer-flair lip seal - 8 13/32" O.D. x 7 29/32" I.D., 1C3P-A*,B*,C*,D*,E*,F*,N*,P*
- Callout Name: 7F224
$25.40 $14.92
$57.33 $40.08
5C3Z-7B164-AA
Plate Assy - Drive- Part Notes: Friction
- Require Quantity: 3
- Package Quantity: 4
- Callout Name: 7B164
- Replaced By: 9C3Z-7B164-B
$50.83 $35.53
$13.10 $9.24
$39.50 $27.85
$78.33 $54.76
$19.91 $12.87
$38.67 $27.26
- -377444-S
Ring - Retaining- Part Notes: (QQ-98B) Ring, retaining - 7" O.D. - .094" thick-(7B066 to 7A360), 1C3P-A*,B*,C*,D*,E*,F*,N*,P*
(QQ-98B) Ring, retaining - 7" O.D. - .094" thick-(7B066 to 7F283) - Callout Name: 7B066
$22.60 $13.28
$5.78 $3.74
$7.08 $4.99
- $17.17 $12.10
- $19.33 $13.63
- 3C3Z-7B442-EA
Driven Plate - Steel- Part Notes: Coast Clutch
- Require Quantity: 3
- Package Quantity: 3
- Callout Name: 7B442
$18.50 $13.04
$11.08 $7.81
$15.50 $9.11
FOTZ-7A166-D
Washer - Thrust- Part Notes: #10B & 11 Thrust, YC3P-E*,F*,N*,R*;1C3P-A*,B*,E*,F*
- Require Quantity: 2
- Package Quantity: 2
- Callout Name: 7A166
$43.48 $28.09
$61.67 $43.11
