How to Service the A/C Accumulator in the HVAC System on Ford F-150?

The HVAC servicing of the suction accumulator begins with refrigerant recovery steps. First remove the powertrain control module (PCM) but proceed to take out the battery along with its tray by following the listed order for part extraction. New installation of a suction accumulator becomes necessary only when either a failed A/C compressor produces visible contamination or when the existing accumulator shows damage. The reconnection of any disconnected A/C fittings requires new O-ring seals alongside mineral oil-based lubrication of the seals. The installation process requires the opposite order of removal steps while using clean PAG Refrigerant Compressor Oil F7AZ-19D589-DA (Motorcraft YN-12-C) or equivalent WSH-M1C231-B specification oil with appropriate amounts for refrigerant system lubrication. Evacuation followed by leak tests and charging the refrigerant system completes the installation. The use of Refrigerant Compressor Oil (Mineral Oil) F73Z-19577-AA (Motorcraft YN-9-A) exists solely for sealing R-134a refrigerant system O-ring applications yet this product must never function as A/C compressor lubricant.

Is A/C Accumulator Replacement Necessary for HVAC System Repairs on Ford F-150?

The service of HVAC accumulators requires disconnecting the ground cable from the battery first. A discharging and recovery sequence for refrigerant must be executed after completion. You should disconnect the A/C cycling switch electrical connector and the manifold and tube fitting to remove the nut and disconnect the fitting. Unfasten the accumulator bracket clamping bolt before you disengage the suction accumulator/drier spring lock coupling from the A/C evaporator core. To continue the process remove the suction accumulator/drier followed by taking off the A/C cycling switch which sits at the top of the suction accumulator/drier. Service the replacement suction accumulator/drier with PAG Refrigerant Compressor Oil F7AZ-19589-DA (Motorcraft YN-12-C) or equivalent oil having WSH-M1C23 I-B Ford specification before installation by performing removal steps in reverse order.

OEM Ford F-150 A/C Accumulator

Accumulator

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 A/C Accumulators found

View related parts
Ford F-150 Drier Dessicant Bag Part Number: FC3Z-19C836-A
$46.26 MSRP: $73.45
You Save: $27.19 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Accumulator Assembly - Air Conditioning; A/C Receiver Drier; A/C Accumulator; Drier Desiccant Element; Dehydrator; Drier; Accumulator
- Manufacturer Note: Cartridge Type
- Replaces: BL3Z-19C836-B, BC3Z-19C836-B, 7L1Z-19C836-A, 8L1Z-19C836-A, BC3Z-19C836-A, YF-37291, YF-3498, YF-3654, YF-3655, YF-37238, BL3Z-19C836-A, YF-3458
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2009-2023 Ford F-150 | FX2, FX4, Harley-Davidson Edition, King Ranch, Lariat, Lariat Limited, Limited, Platinum, Police Responder, Raptor, Raptor R, SSV, STX, SVT Raptor, Tremor, XL, XLT | 6 Cyl 2.7 L GAS, 6 Cyl 3.0 L DIESEL, 6 Cyl 3.3 L FLEX, 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS, 6 Cyl 3.7 L CNG, 6 Cyl 3.7 L FLEX, 6 Cyl 3.7 L LPG, 8 Cyl 4.6 L GAS, 8 Cyl 5.0 L FLEX, 8 Cyl 5.2 L GAS, 8 Cyl 5.4 L FLEX, 8 Cyl 6.2 L GAS
View related parts
Ford F-150 Drier Part Number: 6L3Z-19C836-AB
$93.93 MSRP: $154.55
You Save: $60.62 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Accumulator Assembly - Air Conditioning; A/C Accumulator; Drier Desiccant Element; A/C Receiver Drier; Accumulator
- Replaces: 6L3Z-19C836-AA, YF-3199
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2004-2008 Ford F-150 | FX2, FX4, Harley-Davidson Edition, King Ranch, Lariat, Limited, STX, THE 60TH ANNIVERSARY EDITION, XL, XLT | 6 Cyl 4.2 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 5.4 L FLEX, 8 Cyl 5.4 L GAS
View related parts
Ford F-150 Dehydrator Part Number: XL3Z-19C836-BA
Product Specifications
- Other Name: Accumulator Assembly - Air Intake; A/C Receiver Drier; Drier Desiccant Element; A/C Accumulator; Drier; Accumulator Assembly - Air Conditioning; Accumulator
- Manufacturer Note: Tank only, 4.6 L & 5.4 L
- Replaces: F75Z-19C836-BB, F85Z-19C836-AB, XL1Z-19C836-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998-2004 Ford F-150 | Base, FX4, Harley-Davidson Edition, King Ranch, Lariat, Lightning, STX, XL, XLT | 6 Cyl 4.2 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 5.4 L BI-FUEL, 8 Cyl 5.4 L CNG, 8 Cyl 5.4 L GAS
View related parts

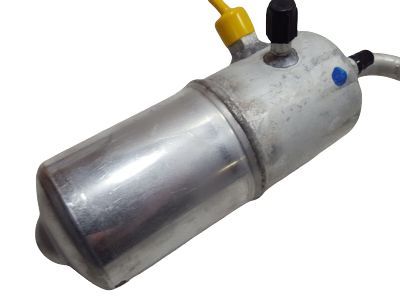

Ford F-150 Dehydrator Part Number: F75Z-19C836-AA
Product Specifications
- Other Name: Accumulator Assembly - Air Conditioning; Drier Desiccant Element; A/C Receiver Drier; A/C Accumulator; Drier; Accumulator
- Replaces: F75Z-19C836-BA, F65Z-19C836-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1997-1998 Ford F-150 | Base, Lariat, XL, XLT | 6 Cyl 4.2 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 5.4 L BI-FUEL, 8 Cyl 5.4 L CNG, 8 Cyl 5.4 L GAS
View related parts
Ford F-150 Dehydrator Part Number: JU2Z19C836A
Product Specifications
- Other Name: Accumulator Assembly - Air Intake; Drier Desiccant Element; A/C Receiver Drier; A/C Accumulator; Accumulator; Drier
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1999-2003 Ford F-150 | Base, XL, XLT | 6 Cyl 4.2 L GAS
View related parts
Ford F-150 Dehydrator Part Number: F6HZ-19C836-BA
Product Specifications
- Other Name: Accumulator Assembly - Air Intake; A/C Receiver Drier; A/C Accumulator; Accumulator
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1994-1996 Ford F-150 | Eddie Bauer, Lightning, Special, XL, XLT | 6 Cyl 4.9 L BI-FUEL, 6 Cyl 4.9 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.8 L GAS
View related parts

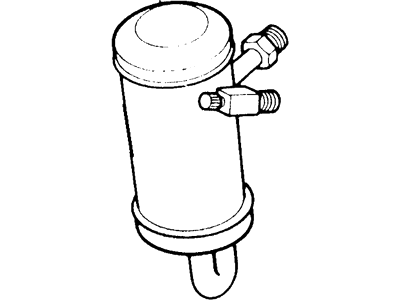

Ford F-150 Dehydrator Part Number: E7TZ-19C836-A
Product Specifications
- Other Name: Accumulator Assembly - Air Intake; Drier Desiccant Element; A/C Receiver Drier; A/C Accumulator; Drier; Accumulator; Accumulator Assembly - Air Conditioning
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1987-1993 Ford F-150 | Custom, Lightning, XL, XLT, XLT Lariat | 6 Cyl 4.9 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.8 L GAS
View related parts
Ford F-150 Dehydrator Part Number: E3TZ-19C836-B
Product Specifications
- Other Name: Accumulator Assembly - Air Intake; Drier Desiccant Element; A/C Receiver Drier; A/C Accumulator; Drier; Accumulator Assembly - Air Conditioning; Accumulator
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1984-1986 Ford F-150 | Base, XL, XLT Lariat | 6 Cyl 4.9 L GAS, 6 Cyl 4.9 L LPG, 8 Cyl 5.0 L GAS, 8 Cyl 5.8 L GAS, 8 Cyl 6.9 L DIESEL

Ford F-150 A/C Accumulator

OEM A/C Accumulator boasts unmatched quality. Each part goes through full quality checks. They adhere to Ford's official factory standards. These steps remove flaws and inconsistencies. So you can get A/C Accumulator with long life and a perfect fit. Come to our website and find genuine Ford F-150 parts. We keep a wide inventory of OEM F-150 parts at the highly affordable prices. It's easy to search, compare, and pick what you need. You'll love the clear info and simple checkout. We offer top-rated customer service, and we reply fast. We also ship promptly to ensure your order arrives on time.

The A/C Accumulator in Ford F-150 product is an essential part that provides a variety of functions for maximizing the performance of the air conditioning system in the automobiles. The main role is to remove dirt and other forms of deposit and moisture that poses danger to the subcomponents of the A/C system. The following is a cylindrical casting that includes openings, which are used to allow the refrigerant-in charge to pass through from the condenser to the expansion valve. Different types of A/C Accumulator have been used over time in F-150 Models of the Ford motor company with the aim of improving efficiency as well as durability. The basic function is however, the same, the adaptations that may occur include difference in the manner, in which they are made and constructed as well as the materials used to make them when new technologies and models of vehicles emerge. In general, the A/C Accumulator plays an important role in maintaining efficient and smooth functioning of the Ford F-150's AC system.

Ford F-150 A/C Accumulator Parts and Q&A

Drier
6L3Z-19C836-AB
Q: How to Service the A/C Accumulator in the HVAC System on Ford F-150?
A:
The HVAC servicing of the suction accumulator begins with refrigerant recovery steps. First remove the powertrain control module (PCM) but proceed to take out the battery along with its tray by following the listed order for part extraction. New installation of a suction accumulator becomes necessary only when either a failed A/C compressor produces visible contamination or when the existing accumulator shows damage. The reconnection of any disconnected A/C fittings requires new O-ring seals alongside mineral oil-based lubrication of the seals. The installation process requires the opposite order of removal steps while using clean PAG Refrigerant Compressor Oil F7AZ-19D589-DA (Motorcraft YN-12-C) or equivalent WSH-M1C231-B specification oil with appropriate amounts for refrigerant system lubrication. Evacuation followed by leak tests and charging the refrigerant system completes the installation. The use of Refrigerant Compressor Oil (Mineral Oil) F73Z-19577-AA (Motorcraft YN-9-A) exists solely for sealing R-134a refrigerant system O-ring applications yet this product must never function as A/C compressor lubricant.
Dehydrator
XL3Z-19C836-BA
Q: Is A/C Accumulator Replacement Necessary for HVAC System Repairs on Ford F-150?
A:
The service of HVAC accumulators requires disconnecting the ground cable from the battery first. A discharging and recovery sequence for refrigerant must be executed after completion. You should disconnect the A/C cycling switch electrical connector and the manifold and tube fitting to remove the nut and disconnect the fitting. Unfasten the accumulator bracket clamping bolt before you disengage the suction accumulator/drier spring lock coupling from the A/C Evaporator core. To continue the process remove the suction accumulator/drier followed by taking off the A/C cycling switch which sits at the top of the suction accumulator/drier. Service the replacement suction accumulator/drier with PAG Refrigerant Compressor Oil F7AZ-19589-DA (Motorcraft YN-12-C) or equivalent oil having WSH-M1C23 I-B Ford specification before installation by performing removal steps in reverse order.
