How to service the RH Temperature Blend Door Actuator on Ford Flex?

The service procedure for the RH Temperature Blend Door Actuator requires first releasing the two glove compartment bumpers for lowering the glove compartment. Earlier workers must open the glove compartment entry to reach the temperature blend door actuator while unfastening its jumper harness connector. Start by taking out the instrument panel wire harness pin-type retainer from the heater core and evaporator core housing support and after that take out the two screws which secure the RH temperature blend door actuator. The actuator has to be repositioned to reach and detach its electrical connector so the actuator can then be removed from its housing. The installation of the new actuator should follow all the removal steps in reverse order.

How to service the LH temperature blend door actuator on Ford Flex?

Service the LH temperature blend door actuator by reaching through under the instrument panel from its left-hand side. Start by disassembling the actuator through removal of its two installed screws. Begin by unconnecting the electrical connector which attaches to the actuator. The removal procedure for the actuator should be reversed to complete installation.

OEM Ford Flex Blend Door Actuator

Air Blend Door Actuator

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Blend Door Actuators found

View related parts

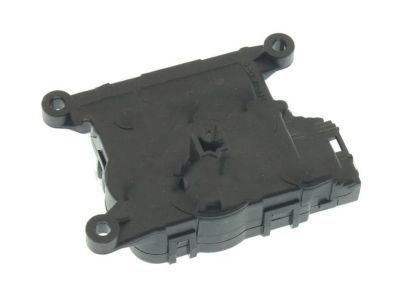

Ford Flex Door Actuator, Rear Part Number: AE9Z-19E616-A
$48.03 MSRP: $80.49
You Save: $32.46 (41%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Motor Assembly; HVAC Air Inlet Door Actuator, Rear; HVAC Heater Blend Door Actuator; HVAC Blend Door Actuator; Adjust Motor
- Position: Rear
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2010-2019 Ford Flex | Limited, SE, SEL, Titanium | 6 Cyl 3.5 L GAS
View related parts
Ford Flex Door Actuator, Driver Side Part Number: AA5Z-19E616-C
$28.03 MSRP: $44.51
You Save: $16.48 (38%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Motor Assembly; HVAC Air Inlet Door Actuator, Front Lower; Front; Air Adjustment Control Motor; Right; Left; Vacuum Motor; Adjust Motor; Motor
- Position: Driver Side
- Replaces: 8G1Z-19E616-B, 8G1Z-19E616-C, AA5Z-19E616-B, YH-1778
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2009-2019 Ford Flex | Limited, SE, SEL, Titanium | 6 Cyl 3.5 L GAS
View related parts
Ford Flex Door Actuator, Rear Part Number: 8A8Z-19E616-A
$21.50 MSRP: $29.26
You Save: $7.76 (27%)
ADD TO CART
Product Specifications
- Other Name: Motor Assembly; HVAC Air Inlet Door Actuator, Rear; HVAC Heater Blend Door Actuator; HVAC Blend Door Actuator; Motor
- Position: Rear
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2009 Ford Flex | Limited, SE, SEL | 6 Cyl 3.5 L GAS
View related parts
Ford Flex Door Actuator, Front Upper Part Number: AA5Z-19E616-A
$19.29 MSRP: $29.85
You Save: $10.56 (36%)
Product Specifications
- Other Name: Motor Assembly; HVAC Air Inlet Door Actuator, Front Upper; Defrost Mode Door Actuator; Heater Blend Door Actuator; Vacuum Motor; Adjust Motor; Motor
- Position: Front Upper
- Replaces: 7L1Z-19E616-G, 9L3Z-19E616-A, 5F2Z-19E616-AA, 4F2Z-19E616-FA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2009-2019 Ford Flex | Limited, SE, SEL, Titanium | 6 Cyl 3.5 L GAS

Ford Flex Blend Door Actuator

OEM Blend Door Actuator boasts unmatched quality. Each part goes through full quality checks. They adhere to Ford's official factory standards. These steps remove flaws and inconsistencies. So you can get Blend Door Actuator with long life and a perfect fit. Come to our website and find genuine Ford Flex parts. We keep a wide inventory of OEM Flex parts at the highly affordable prices. It's easy to search, compare, and pick what you need. You'll love the clear info and simple checkout. We offer top-rated customer service, and we reply fast. We also ship promptly to ensure your order arrives on time.

Ford Flex Blend Door Actuator Parts and Q&A

Door Actuator, Rear
8A8Z-19E616-A
Q: How to service the RH Temperature Blend Door Actuator on Ford Flex?
A:
The service procedure for the RH Temperature Blend Door Actuator requires first releasing the two glove compartment bumpers for lowering the glove compartment. Earlier workers must open the glove compartment entry to reach the temperature blend door actuator while unfastening its jumper harness connector. Start by taking out the instrument panel wire harness pin-type retainer from the Heater Core and evaporator core housing support and after that take out the two screws which secure the RH temperature blend door actuator. The actuator has to be repositioned to reach and detach its electrical connector so the actuator can then be removed from its housing. The installation of the new actuator should follow all the removal steps in reverse order.
Door Actuator, Driver Side
AA5Z-19E616-C
Q: How to service the LH temperature blend door actuator on Ford Flex?
A:
Service the LH temperature blend door actuator by reaching through under the instrument panel from its left-hand side. Start by disassembling the actuator through removal of its two installed screws. Begin by unconnecting the electrical connector which attaches to the actuator. The removal procedure for the actuator should be reversed to complete installation.
