Ford AA5Z-19E616-A
Door Actuator, Front Upper

2004-2019 Ford AA5Z19E616A

Customer Questions & Expert Answers (32)

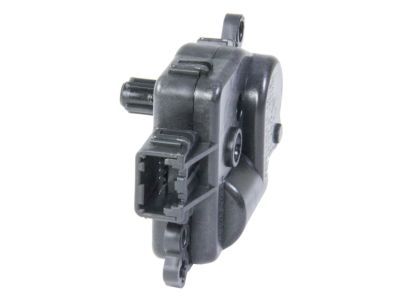

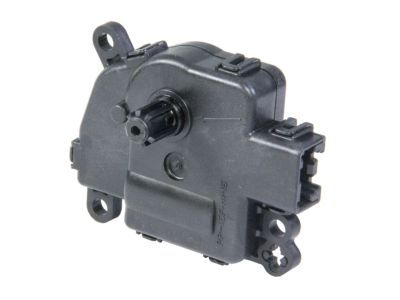

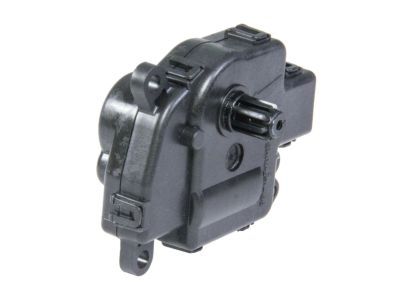

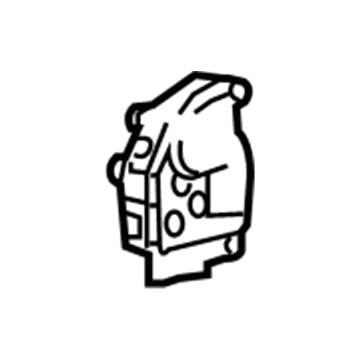

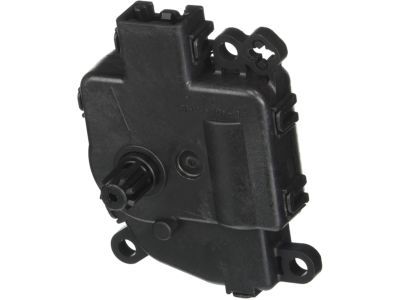

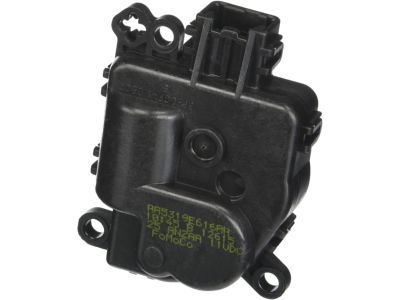

Ford AA5Z-19E616-A Door Actuator, Front Upper
Ford AA5Z-19E616-A Door Actuator, Front Upper
Ford AA5Z-19E616-A Door Actuator, Front Upper
Ford AA5Z-19E616-A Door Actuator, Front Upper
Ford AA5Z-19E616-A Door Actuator, Front Upper
Ford AA5Z-19E616-A Door Actuator, Front Upper
Ford AA5Z-19E616-A Door Actuator, Front Upper
Ford AA5Z-19E616-A Door Actuator, Front Upper
  • Part Description
    Motor Assembly; HVAC Air Inlet Door Actuator, Front Upper; Defrost Mode Door Actuator; Heater Blend Door Actuator
  • Base No.
    19E616A
  • Position
    Front Upper
  • Replaces
    7L1Z-19E616-G, 9L3Z-19E616-A, 5F2Z-19E616-AA, 4F2Z-19E616-FA
  • Manufacturer
    Ford
Make sure this part fits
$18.80 MSRP: $29.85
You Save: $11.05 (38%)
Ships in 1 Business Day
1
ADD TO CART
  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers

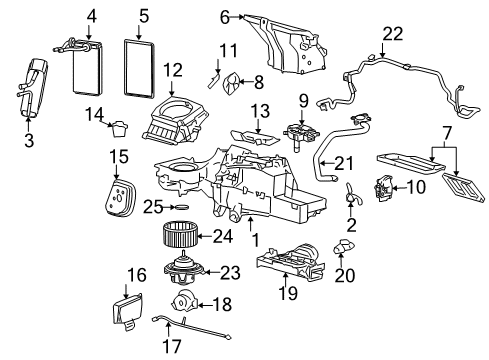

  • AA5Z-19E616-A Door Actuator, Front Upper is Ref No. 10 in the diagram below

    2004 Ford F-150 Door Actuator, Front Upper Diagram for AA5Z-19E616-A
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for AA5Z-19E616-A

  • Product Specifications

    BrandGenuine Ford
    Base No.19E616A
    Manufacturer Part NumberAA5Z-19E616-A
    Part DescriptionMotor Assembly; HVAC Air Inlet Door Actuator, Front Upper; Defrost Mode Door Actuator; Heater Blend Door Actuator
    Other NamesVacuum Motor; Adjust Motor; Motor
    Item Dimensions6.2 x 4.1 x 4.2 inches
    Item Weight0.60 Pounds
    PositionFront Upper
    ConditionNew
    Fitment TypeDirect Replacement
    Replaces7L1Z-19E616-G, 9L3Z-19E616-A, 5F2Z-19E616-AA, 4F2Z-19E616-FA
    ManufacturerFord
    SKUAA5Z-19E616-A
    WarrantyThis genuine Ford part is guaranteed by Ford's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California's Proposition 65

  • Vehicle Fitment

    Year Make Model Trim Engine
    2011-2019 Ford ExplorerBase, Limited, Platinum, Sport, XLT4 Cyl 2.0 L GAS, 4 Cyl 2.3 L GAS, 6 Cyl 3.5 L GAS
    2004-2009 Ford F-150FX2, FX4, Harley-Davidson Edition, King Ranch, Lariat, Limited, Platinum, STX, THE 60TH ANNIVERSARY EDITION, XL, XLT6 Cyl 4.2 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 5.4 L FLEX, 8 Cyl 5.4 L GAS
    2008-2010 Ford F-250 Super DutyCabela's, FX4, Harley-Davidson Edition, King Ranch, Lariat, XL, XLT10 Cyl 6.8 L GAS, 8 Cyl 5.4 L GAS, 8 Cyl 6.4 L DIESEL
    2008-2010 Ford F-350 Super DutyCabela's, FX4, Harley-Davidson Edition, King Ranch, Lariat, XL, XLT10 Cyl 6.8 L GAS, 8 Cyl 5.4 L GAS, 8 Cyl 6.4 L DIESEL
    2009-2019 Ford FlexLimited, SE, SEL, Titanium6 Cyl 3.5 L GAS
    2004-2007 Ford FreestarBase, Limited, S, SE, SEL, SES6 Cyl 3.9 L GAS, 6 Cyl 4.2 L GAS
    2013-2019 Ford Police Interceptor SedanBase6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS, 6 Cyl 3.7 L FLEX, 6 Cyl 3.7 L GAS
    2013-2019 Ford Police Interceptor UtilityBase6 Cyl 3.5 L GAS, 6 Cyl 3.7 L FLEX, 6 Cyl 3.7 L GAS
    2014-2018 Ford Special Service Police SedanBase4 Cyl 2.0 L GAS
    2008-2019 Ford TaurusLimited, SE, SEL, SHO4 Cyl 2.0 L GAS, 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS
    View More

  • Customer Questions & Expert Answers

    Q:
    Can you verify if AA5Z-19E616-A is the right one for my car? Posted by FordPartsDeal Specialist
    A:
    Select Your Vehicle model to verify if part number AA5Z-19E616-A fits your car.
    Posted by FordPartsDeal Specialist
    Q:
    How to service the RH Temperature Blend Door Actuator on Ford Flex? Posted by Customer
    A:
    The service procedure for the RH Temperature Blend Door Actuator requires first releasing the two glove compartment bumpers for lowering the glove compartment. Earlier workers must open the glove compartment entry to reach the temperature blend door actuator while unfastening its jumper harness connector. Start by taking out the instrument panel wire harness pin-type retainer from the heater core and evaporator core housing support and after that take out the two screws which secure the RH temperature blend door actuator. The actuator has to be repositioned to reach and detach its electrical connector so the actuator can then be removed from its housing. The installation of the new actuator should follow all the removal steps in reverse order.
    Posted by FordPartsDeal Specialist
    Q:
    How to service the right-hand temperature blend door actuator on Ford Taurus X? Posted by Customer
    A:
    The glove compartment servicing operation requires you to first disassemble the damper component before you lower the compartment. You need to reach the actuator inside the glove compartment while disconnecting the jumper harness electrical connection of the temperature blend door actuator. Begin by unwiring the instrument panel wire harness at the heater core and evaporator core housing support using its pin-type retainer then proceed to remove the pin-type retainer for the in-vehicle temperature sensor aspirator hose on the instrument panel support. First detach the two screws which keep the right-hand temperature blend door actuator in place before moving the actuator to disconnect the electrical connector. The new actuator installation requires readers to perform the opposite sequence of removel steps along with returning the original equipment.
    Posted by FordPartsDeal Specialist
    Q:
    How to service the right-hand temperature blend door actuator on Lincoln MKS? Posted by Customer
    A:
    You should start by taking out the two glove compartment bumpers and lowering the compartment for accessing the right-hand temperature blend door actuator. Use the glove compartment opening to reach the temperature blend door actuator and remove the jumper harness electrical connector from it. Detach the heater core and evaporator core housing support pin-type retainer of the instrument panel wire harness. The electro-mechanical system of the right-hand temperature blend door actuator requires you to remove two screws before you reposition the actuator to disconnect its electrical connector. To finish the installation process remove the right-hand temperature blend door actuator while following the reverse order of the removal sequence to install the new actuator.
    Posted by FordPartsDeal Specialist
    Q:
    How to service the LH temperature blend door actuator on Mercury Monterey? Posted by Customer
    A:
    The LH temperature blend door actuator requires service through the opening under the instrument panel on its left side. The necessary parts should be removed according to the order presented in both the illustration and table. After completing the installation step you should perform the removal procedure in reverse order.
    Posted by FordPartsDeal Specialist
    Q:
    What is the first step in servicing the actuator for the 2004 Mercury Monterey? Posted by Customer
    A:
    Begin by removing the necessary parts in the order specified in the accompanying illustration and table.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    How do you access the glove compartment for servicing for the 2004 Ford F-150? Posted by Customer
    A:
    While pushing the glove compartment door tab, position the glove compartment downward.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What is the first step to service and repair the air inlet door mode door actuator for the 2008 Ford F-250 Super Duty? Posted by Customer
    A:
    Remove the right-hand instrument panel end panel and lower the glove compartment.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What is the first step to service the Temperature Blend Door Actuator on the right-hand side for the 2009 Ford F-150? Posted by Customer
    A:
    Begin by removing the Audio Control Module (ACM).
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What should be done after the actuator is removed for the 2008 Ford F-350 Super Duty? Posted by Customer
    A:
    Installation is completed by reversing the steps taken during removal.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What is the next step after disconnecting the electrical connector for the 2008 Ford F-150? Posted by Customer
    A:
    Remove the three screws securing the air inlet mode door actuator.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    How do you access the RH outer register duct for the 2009 Ford F-350 Super Duty? Posted by Customer
    A:
    Remove the outer screw and then the inner screw, followed by the removal of the RH center instrument panel duct.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What is the first step in servicing the actuator for the 2009 Ford Flex? Posted by Customer
    A:
    Remove the two screws securing the actuator.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What is the next step after disconnecting the electrical connector for the 2007 Ford Freestar? Posted by Customer
    A:
    Remove the actuator itself.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What needs to be disconnected next for the 2005 Ford Freestar? Posted by Customer
    A:
    The electrical connector from the auxiliary mode door actuator.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    Do Electronic Manual Temperature Control (EMTC) have the LH temperature blend door actuator for the 2009 Ford F-150? Posted by Customer
    A:
    No, vehicles with EMTC do not have this actuator.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    How do you complete the installation of the actuator for the 2009 Ford Flex? Posted by Customer
    A:
    Reverse the steps taken during removal.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What is the next step after disconnecting the electrical connector for the 2006 Ford Freestar? Posted by Customer
    A:
    Remove the two screws securing the actuator and take out the actuator itself.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What needs to be done to secure the actuator for the 2009 Ford F-250 Super Duty? Posted by Customer
    A:
    Remove the two screws securing the actuator.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What should you do for installation for the 2004 Ford Freestar? Posted by Customer
    A:
    Reverse the removal procedure to complete the process.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What is the first step to service the air inlet door mode door actuator for the 2008 Ford Taurus X? Posted by Customer
    A:
    First, detach the damper and lower the glove compartment.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What is the next step after disconnecting the electrical connector for the 2006 Lincoln Mark LT? Posted by Customer
    A:
    Remove the three screws securing the air inlet mode door actuator.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What should you do after removing the screws for the 2005 Ford Freestar? Posted by Customer
    A:
    Disconnect the electrical connector from the actuator.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What needs to be removed to detach the temperature blend door actuator for the 2008 Lincoln Mark LT? Posted by Customer
    A:
    Remove the three screws securing the temperature blend door actuator.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    How do you complete the installation for the 2006 Lincoln Mark LT? Posted by Customer
    A:
    Reverse the steps taken during removal.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What should be done with the temperature blend door actuator jumper harness for the 2009 Ford Taurus X? Posted by Customer
    A:
    Disconnect the temperature blend door actuator jumper harness electrical connector.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What should be done after removing the LH quarter trim panel for the 2007 Mercury Monterey? Posted by Customer
    A:
    Disconnect the electrical connector from the auxiliary temperature blend door actuator.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What is the first step to service the RH temperature blend door actuator for the 2005 Mercury Monterey? Posted by Customer
    A:
    Disconnect the electrical connector from the actuator.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What is the first step to service the LH temperature blend door actuator for the 2008 Mercury Sable? Posted by Customer
    A:
    Remove the two screws securing the LH temperature blend door actuator.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What should you do after accessing the actuator for the 2005 Ford F-150? Posted by Customer
    A:
    Disconnect the electrical connector from the panel mode door actuator.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    What should you do after disconnecting the electrical connector for the 2006 Mercury Monterey? Posted by Customer
    A:
    Remove the three screws securing the actuator.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    Q:
    How do you access the right-hand outer register duct for the 2008 Ford F-250 Super Duty? Posted by Customer
    A:
    Remove the outer screw and then the inner screw, followed by the removal of the right-hand center instrument panel duct.
    Posted by FordPartsDeal Specialist
    See expert answers on similar Blend Door Actuator
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!
