What Are the Crucial Steps to Follow When Repairing the Front Rack and Pinion in the Power Steering System on Ford Mustang?

The repair of the power steering system requires complete prevention of foreign material entry because it leads to power steering component failure. The Clock Spring gets damaged if the intermediate shaft rotates when disconnected from the rack and pinion. The Clock Spring needs to be removed first before recentering it. Start the maintenance on the 5.4L engine vehicle by taking off four nuts and the strut tower cross brace followed by the air cleaner outlet pipe. The Engine Lifting Bracket should be installed while technicians remove the LH engine mount nut which needs a torque of 63 Nm (46 lb-ft) when reinstalling. The Engine Lifting Bracket in combination with the Engine Support Bar lets you access sufficient space for removing the power steering pressure line clamp plate bolt and rack and pinion mounting bolt from the LH engine side. All vehicles require tire and wheel removal and subsequent disposal of tie-rod end nuts before using a Tie-Rod End Remover to free the ends from the wheel knuckles while tightening the replacement nuts to 80 Nm (59 lb-ft) torque setting. Cut off the steering column coupling from the rack and pinion by unfastening the coupling-to-rack and pinion bolt while removing the old bolt then reinstall the new bolt with 25 Nm (18 lb-ft) torque. Install pressure and return lines to the rack and pinion only after making sure all lines have proper seating before applying the clamp plate free from unusual materials without exceeding specified torque values. It is mandatory to install brand-new O-ring seals whenever power steering lines require disconnecting. Detaching the power steering line clamp plate bolt lets you rotate the plate before cutting the pressure and return lines apart while you discard old O-rings and apply new ones with torque set at 23 Nm (17 lb-ft). Following disconnection of the power steering pressure line install the bolt that connects the bracket to the rack and pinion using 9 Nm (80 lb-in) force while also tightening the pressure line bracket-to-crossmember bolt with equivalent torque before placing the tubing aside. To complete the installation you must first reverse all steps of removal while tightening rack and pinion bolts to 115 Nm (85 lb-ft) and filling the power steering system and testing front toe before finishing.

OEM Ford Mustang Rack And Pinion

Steering Rack And Pinion

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

28 Rack And Pinions found

View related parts

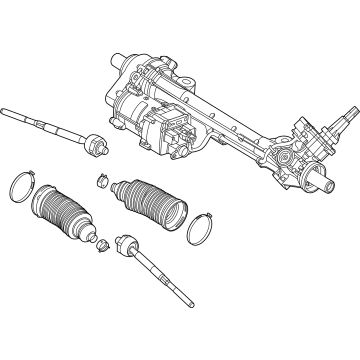

Ford Mustang Steering Gear Part Number: DR3Z-3504-CE
$982.34 MSRP: $1617.16
You Save: $634.82 (40%)
ADD TO CART
Product Specifications
- Other Name: Gear Assembly - Steering; Rack and Pinion Assembly; Steering Gearbox; Gear Assembly
- Replaces: STE-50, CR3Z-3504-CE, STE-78, BR3Z-3504-ME
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2011-2014 Ford Mustang | Base, Boss 302, GT, Shelby GT500 | 6 Cyl 3.7 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.4 L GAS, 8 Cyl 5.8 L GAS
View related parts
Ford Mustang Steering Gear Part Number: JR3Z3504G
$1390.29 MSRP: $2294.55
You Save: $904.26 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Kit - Steering Gear Repair; Rack and Pinion Assembly; Steering Gearbox; Gear Assembly
- Replaces: JR3Z-3504-D
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017-2019 Ford Mustang | 50th Anniversary Edition, Base, Bullitt, EcoBoost, EcoBoost Premium, GT, GT Premium, Shelby GT350, Shelby GT350R, Shelby Version, Sub C, V6 | 2.3L L4, 3.7L V6, 4 Cyl 2.3 L GAS, 5.0L V8, 5.2L V8, 6 Cyl 3.7 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.2 L GAS
View related parts
Ford Mustang Steering Gear, Front Part Number: LR3Z-3504-T
$2869.28 MSRP: $4623.64
You Save: $1754.36 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Kit - Steering Gear Repair; Rack and Pinion Assembly, Front; Gear Assembly
- Position: Front
- Replaces: STE-781, LR3Z-3504-Q
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2020-2023 Ford Mustang | Bullitt, EcoBoost, EcoBoost Premium, GT, GT Premium, Mach 1, Shelby GT350, Shelby GT350R, Shelby GT500 | 4 Cyl 2.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.2 L GAS
View related parts
Ford Mustang Steering Gear Part Number: GR3Z-3504-J
$1564.41 MSRP: $2514.76
You Save: $950.35 (38%)
ADD TO CART
Product Specifications
- Other Name: Kit - Steering Gear Repair; Rack and Pinion Assembly; Gear Assembly
- Replaces: GR3Z-3504-G, GR3Z-3504-C, GR3Z-3504-GE
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2016-2017 Ford Mustang | EcoBoost, EcoBoost Premium, GT, GT Premium, Shelby GT350, Shelby GT350R, V6 | 4 Cyl 2.3 L GAS, 6 Cyl 3.7 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.2 L GAS
View related parts
Ford Mustang Gear Assembly Part Number: PR3Z-3504-J
$1677.90 MSRP: $2698.18
You Save: $1020.28 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Kit - Steering Gear Repair
- Replaced by: SR3Z-3504-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2024 Ford Mustang | Dark Horse, Dark Horse Premium, EcoBoost, EcoBoost Premium, GT, GT Premium | 4 Cyl 2.3 L GAS, 8 Cyl 5.0 L GAS
View related parts
Ford Mustang Gear Assembly Part Number: PR3Z-3504-K
$1670.03 MSRP: $2685.45
You Save: $1015.42 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Kit - Steering Gear Repair
- Replaced by: RR3Z-3504-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2024 Ford Mustang | Dark Horse, Dark Horse Premium, EcoBoost, EcoBoost Premium, GT, GT Premium | 4 Cyl 2.3 L GAS, 8 Cyl 5.0 L GAS
View related parts
Ford Mustang Steering Gear Part Number: HR3Z-3504-Q
$1275.15 MSRP: $2047.27
You Save: $772.12 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Kit - Steering Gear Repair; Rack and Pinion Assembly
- Replaces: HR3Z-3504-C, HR3Z-3504-L, HR3Z-3504-F
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017 Ford Mustang | EcoBoost, EcoBoost Premium, GT, GT Premium, Shelby GT350, Shelby GT350R, V6 | 4 Cyl 2.3 L GAS, 6 Cyl 3.7 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.2 L GAS
View related parts
Ford Mustang Steering Gear Part Number: HR3Z-3504-P
$869.03 MSRP: $1390.91
You Save: $521.88 (38%)
ADD TO CART
Product Specifications
- Other Name: Kit - Steering Gear Repair; Rack and Pinion Assembly
- Replaces: STE-778, HR3Z-3504-G, HR3Z-3504-B, HR3Z-3504-M
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017 Ford Mustang | EcoBoost, EcoBoost Premium, GT, GT Premium, Shelby GT350, Shelby GT350R, V6 | 4 Cyl 2.3 L GAS, 6 Cyl 3.7 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.2 L GAS
View related parts
Ford Mustang Steering Gear Part Number: GR3Z-3504-L
$1467.90 MSRP: $2527.27
You Save: $1059.37 (42%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Kit - Steering Gear Repair; Gear Assembly
- Replaces: GR3Z-3504-HE, GR3Z-3504-D, GR3Z-3504-H
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2016-2017 Ford Mustang | EcoBoost, EcoBoost Premium, GT, GT Premium, Shelby GT350, Shelby GT350R, V6 | 4 Cyl 2.3 L GAS, 6 Cyl 3.7 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.2 L GAS
View related parts
Ford Mustang Steering Gear Part Number: GR3Z-3504-K
$1205.40 MSRP: $2072.73
You Save: $867.33 (42%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Kit - Steering Gear Repair; Rack and Pinion Assembly; Gear Assembly
- Replaces: GR3Z-3504-F, GR3Z-3504-A, STE-249, STE-777, STE-260, STE-144, FR3Z-3504-A, FR3Z-3504-GE, FR3Z-3504-D, GR3Z-3504-FE, GR3Z-3504-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2016 Ford Mustang | EcoBoost, EcoBoost Premium, GT, GT 50 Years Limited Edition, GT Premium, Shelby GT350, Shelby GT350R, V6 | 4 Cyl 2.3 L GAS, 6 Cyl 3.7 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.2 L GAS
View related parts
Ford Mustang Steering Gear Part Number: HR3Z-3504-N
$1275.15 MSRP: $1876.67
You Save: $601.52 (33%)
ADD TO CART
Product Specifications
- Other Name: Kit - Steering Gear Repair; Rack and Pinion Assembly; Gear Assembly
- Replaces: HR3Z-3504-K, HR3Z-3504-E, HR3Z-3504-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017-2019 Ford Mustang | Bullitt, EcoBoost, EcoBoost Premium, GT, GT Premium, Shelby GT350, Shelby GT350R, V6 | 4 Cyl 2.3 L GAS, 6 Cyl 3.7 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.2 L GAS
View related parts
Ford Mustang Steering Gear Part Number: 9R3Z-3504-CRM
$312.67 MSRP: $493.31
You Save: $180.64 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Remanufactured Gear Assembly - Steering; Rack and Pinion Assembly; Steering Gearbox; Gear Assembly; Gear Assembly - Steering
- Manufacturer Note: Remanufactured
- Replaces: 7R3Z-3504-B, 9R3Z-3504-C, STG-350, 6R3Z-3504-BA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2010 Ford Mustang | Base, GT | 6 Cyl 4.0 L GAS, 8 Cyl 4.6 L GAS
View related parts
Ford Mustang Steering Gear Part Number: 2R3Z-3504-CARM
$277.42 MSRP: $437.67
You Save: $160.25 (37%)
Product Specifications
- Other Name: Remanufactured Gear Assembly - Steering; Rack and Pinion Assembly; Steering Gearbox; Gear Assembly; Gear Assembly - Steering
- Replaces: XR3Z-3504-ACRM
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1999-2004 Ford Mustang | Base | 6 Cyl 3.8 L GAS, 6 Cyl 3.9 L GAS
View related parts
Ford Mustang Sector Shaft Part Number: E5DZ3575A
Product Specifications
- Other Name: Rack - Steering Gear; Steering Gearbox; Steering Rack; Rack Assembly; Rack
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1984-1994 Ford Mustang | Base, GT, L, LX, SVT Cobra, SVT Cobra R | 4 Cyl 2.3 L GAS, 6 Cyl 3.8 L GAS, 8 Cyl 5.0 L GAS
View related parts
Ford Mustang Sector Shaft Part Number: E5DZ3575B
Product Specifications
- Other Name: Steering Gear & Linkage; Steering Gearbox; Steering Rack; Rack Assembly; Rack; Rack - Steering Gear
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1984-1994 Ford Mustang | Base, GT, L, LX, SVO, SVT Cobra, SVT Cobra R | 4 Cyl 2.3 L GAS, 6 Cyl 3.8 L GAS, 8 Cyl 5.0 L GAS
View related parts
Ford Mustang Steering Gear Part Number: F4ZZ-3504-HCRM
Product Specifications
- Other Name: Remanufactured Gear Assembly - Steering; Steering Gearbox; Gear Assembly; Gear Assembly - Steering
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1994-1995 Ford Mustang | Base, GT, GTS, SVT Cobra | 6 Cyl 3.8 L GAS, 8 Cyl 5.0 L GAS
View related parts
Ford Mustang Gear Assembly Part Number: YR3Z-3504-AARM
Product Specifications
- Other Name: Gear Assembly - Steering; Rack and Pinion Assembly; Steering Gearbox
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001 Ford Mustang | SVT Cobra | 8 Cyl 4.6 L GAS
View related parts
Ford Mustang Gear Assembly Part Number: 2R3Z-3504-AARM
Product Specifications
- Other Name: Remanufactured Gear - Rack And Pinion Steering; Rack and Pinion Assembly; Steering Gearbox; Rack & Pinion; Gear - Rack And Pinion Steering
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2004 Ford Mustang | Mach 1, SVT Cobra, SVT Cobra 10th Anniversary | 8 Cyl 4.6 L GAS
View related parts
Ford Mustang Steering Gear Part Number: 9R3Z-3504-DRM
$312.67 MSRP: $493.31
You Save: $180.64 (37%)
Product Specifications
- Other Name: Remanufactured Gear Assembly - Steering; Rack and Pinion Assembly; Steering Gearbox; Gear Assembly; Gear Assembly - Steering
- Manufacturer Note: Remanufactured
- Replaces: 9R3Z-3504-D, STG-351, 7R3Z-3504-C, STG-250
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2010 Ford Mustang | Base, GT | 6 Cyl 4.0 L GAS, 8 Cyl 4.6 L GAS
View related parts
Ford Mustang Steering Gear Part Number: 9R3Z-3504-ARM
$395.51 MSRP: $626.00
You Save: $230.49 (37%)
Product Specifications
- Other Name: Remanufactured Gear Assembly - Steering; Rack and Pinion Assembly; Steering Gearbox; Gear Assembly; Gear Assembly - Steering
- Manufacturer Note: Remanufactured
- Replaces: STG-236, 7R3Z-3504-A, STG-347, 9R3Z-3504-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2010 Ford Mustang | Bullitt, Shelby GT, Shelby GT500, Shelby GT500KR | 8 Cyl 4.6 L GAS, 8 Cyl 5.4 L GAS

| Page 1 of 2 |Next >

1-20 of 28 Results

Ford Mustang Rack And Pinion

OEM Rack And Pinion boasts unmatched quality. Each part goes through full quality checks. They adhere to Ford's official factory standards. These steps remove flaws and inconsistencies. So you can get Rack And Pinion with long life and a perfect fit. Come to our website and find genuine Ford Mustang parts. We keep a wide inventory of OEM Mustang parts at the highly affordable prices. It's easy to search, compare, and pick what you need. You'll love the clear info and simple checkout. We offer top-rated customer service, and we reply fast. We also ship promptly to ensure your order arrives on time.

The Ford Mustang Rack And Pinion is a subassembly which acts on the steering wheel input that rotates and produces a lateral movement of the front wheels. To provide the required steering column movement an intermediate rack and pinion mechanism is used, with the pinion mating with the rack, positioned in a metal tube that is fixed to the car's chassis. As a result, this system enables proportional and efficient feedback control for steering applications, which improves the vehicles' controllability. In the many years past, Ford Mustang cars have had manual rack and pinions but now the common type is the hydraulic power rack and pinions. These power systems use pressurized fluid in order to supply assistance in moving the rack in the lateral plane, inside the tube. Nevertheless, such problems like leaks from the deteriorated seals or worn gears may develop and as a result call for replacement of rack and pinion assembly to enhance good steering. But the fact of the matter is that Ford Mustang Steering Rack does play an important part in enabling drivers to have smooth and clean control over the car's steering.

Ford Mustang Rack And Pinion Parts and Q&A

Steering Gear
9R3Z-3504-BRM
Q: What Are the Crucial Steps to Follow When Repairing the Front Rack and Pinion in the Power Steering System on Ford Mustang?
A:
The repair of the power steering system requires complete prevention of foreign material entry because it leads to power steering component failure. The Clock Spring gets damaged if the intermediate shaft rotates when disconnected from the rack and pinion. The Clock Spring needs to be removed first before recentering it. Start the maintenance on the 5.4L engine vehicle by taking off four nuts and the strut tower cross brace followed by the air cleaner outlet pipe. The Engine Lifting Bracket should be installed while technicians remove the LH engine mount nut which needs a torque of 63 Nm (46 lb-ft) when reinstalling. The Engine Lifting Bracket in combination with the Engine Support Bar lets you access sufficient space for removing the power steering pressure line clamp plate bolt and rack and pinion mounting bolt from the LH engine side. All vehicles require tire and wheel removal and subsequent disposal of tie-rod end nuts before using a Tie-Rod End Remover to free the ends from the wheel knuckles while tightening the replacement nuts to 80 Nm (59 lb-ft) torque setting. Cut off the steering column coupling from the rack and pinion by unfastening the coupling-to-rack and pinion bolt while removing the old bolt then reinstall the new bolt with 25 Nm (18 lb-ft) torque. Install pressure and return lines to the rack and pinion only after making sure all lines have proper seating before applying the clamp plate free from unusual materials without exceeding specified torque values. It is mandatory to install brand-new O-ring seals whenever power steering lines require disconnecting. Detaching the power steering line clamp plate bolt lets you rotate the plate before cutting the pressure and return lines apart while you discard old O-rings and apply new ones with torque set at 23 Nm (17 lb-ft). Following disconnection of the power steering pressure line install the bolt that connects the bracket to the rack and pinion using 9 Nm (80 lb-in) force while also tightening the pressure line bracket-to-crossmember bolt with equivalent torque before placing the tubing aside. To complete the installation you must first reverse all steps of removal while tightening rack and pinion bolts to 115 Nm (85 lb-ft) and filling the power steering system and testing front toe before finishing.
