OEM Ford Ranger Cruise Control Servo

Ford Ranger Cruise Control Servo Parts and Q&A

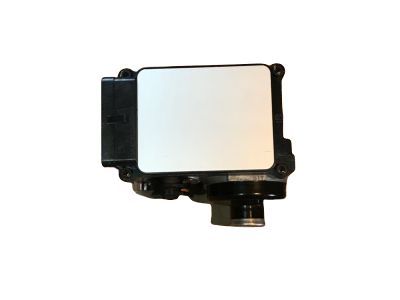

• Cruise Servo
  6L5Z-9C735-AA
  Q: How to Maintain and Fix a Cruise Control Servo and What Steps Are Involved for a Ford Ranger?

  A:

  Service and repair of cruise control servo requires battery disconnection as the first step. First disconnect the electrical connector from the speed control actuator before removing the speed control cable cap by pushing its locking arm while rotating the cap in a counterclockwise direction. The spring retainer should be depressed to move the core wire end out of the speed control actuator pulley so the speed control cable may be extracted. Starting with the removal of the servo requires first the speed control actuator bracket bolt before proceeding to separate the speed control actuator bracket and the actuator itself. Before reinstalling replace the rubber seal onto the speed control cable cap with full seating and proceed with the opposite steps of removal.
• Cruise Servo
  XL2Z-9C735-AA
  Q: How to service and repair the cruise control servo on Ford Ranger?

  A:

  You must start the repair process on the cruise control servo by turning off the battery ground cable connection while observing preventative measures against static electrical discharge damage to electronic modules. Begin by removing the speed control actuator cable through its counterclockwise turning motion after pushing the cap tab inside while disconnecting the speed control servo electrical connector. Start the spacing procedure by removing the speed control servo by taking out its bracket bolt. First install the speed control servo bracket bolt before placing the cable ball slug into the slot on the servo rotor. Squeeze the speed control actuator cable gently while monitoring its tautness toward the Throttle Body end so you can check the routing by following the white indicator mark. Put the cap into the servo body ducts before turning the cap clockwise to activate the servo locking mechanism. Reinstall the ground cable that powers the battery in conclusion. After battery connection and disconnection the vehicle will possibly demonstrate unusual drive behavior because it needs to relearn its adaptive strategy so you need to drive a minimum distance of 16 km (10 miles).
