How to service and repair the water pump on Ford Taurus?

Service and repair of the water pump starts with lifting and supporting the vehicle and draining the cooling system. To start work on the water pump you must take off the splash shield followed by disconnecting the heater water hose from the pump bottom then eliminating the radiator lower tube bolt. Drop the vehicle before you remove the air cleaner assembly and the battery together with its tray. You should begin by removing the water pump belt and the radiator upper front tube bolt and completing the upper radiator hose and engine vent hose separation as well as the transmission 10-pin connector removal. Detach the radiator bypass hose assembly before disassembling the thermostat housing and putting it to the side. A total of three bolts must be removed in order to separate the water pump unit. First detach the connector hose and then take out the water pump from its position. When installed the connector hose must be joined to the new water pump which should be positioned afterwards mounting bolts must be tightened through two stages beginning at 10 Nm (89 inch lbs.) and finishing with an additional 90°. You must install the thermostat housing on the water pump hose after which you should position the radiator bypass hose assembly before reconnecting the transmission 10-pin connector, upper radiator hose, and engine vent hose. The installation process begins with the radiator upper front cooling tube bolt followed by the water pump belt installation. Then attach the battery along with its tray followed by the air cleaner assembly. The maintenance process requires you to raise and support the vehicle while installing both the lower cooling tube bolt and connecting the heater water hose to the water pump base before reinstalling the splash shield. Before closing the vehicle complete the process of filling the engine cooling system.

OEM Ford Taurus Water Pump

H2O Pump

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

14 Water Pumps found

View related parts

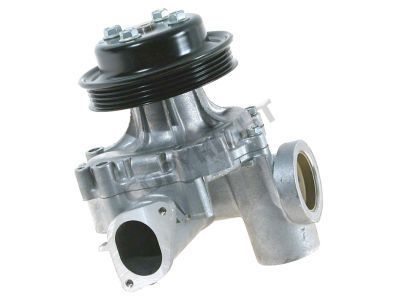

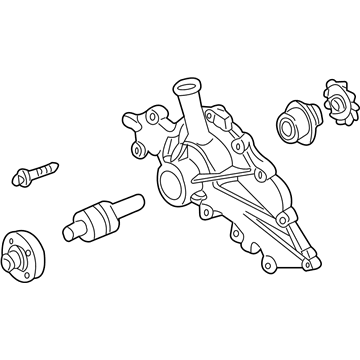

Ford Taurus Water Pump
Part Number: AA5Z-8501-D
$118.97 MSRP: $200.29
You Save: $81.32 (41%)
ADD TO CART
Product Specifications
- Other Name: Pump Assembly - Water; Engine Water Pump Assembly; Engine Water Pump; Water Pump Assembly
- Replaced by: AA5Z-8501-F
- Replaces: 7T4Z-8501-D, AA5Z-8501-A, 7T4Z-8501-C, PW-495, PW-489, PW-498
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2008-2012 Ford Taurus | Limited, SE, SEL, SHO | 6 Cyl 3.5 L GAS
View related parts
Ford Taurus Water Pump
Part Number: 5F1Z-8501-A
$63.32 MSRP: $104.18
You Save: $40.86 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly - Water; Engine Water Pump; Water Pump Assembly
- Replaces: 1F1Z-8501-AA, PW-404, XF1Z-8501-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1995-2007 Ford Taurus | G, GL, LX, SE, SE Comfort, SEL, SES, SHO, SVG | 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 8 Cyl 3.4 L GAS
View related parts
Ford Taurus Water Pump
Part Number: 4S4Z-8501-E
$51.39 MSRP: $84.56
You Save: $33.17 (40%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Pump Assembly - Water; Engine Water Pump; Water Pump Assembly
- Replaces: 6M8Z-8501-AC, PW-447, 1S7Z-8501-AK, 4S4Z-8501-AA, 4S4Z-8501-D, PW-465
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2014-2017 Ford Taurus | Limited, SE, SEL | 4 Cyl 2.0 L GAS
View related parts
Ford Taurus Water Pump
Part Number: 1S7Z-8501-K
$51.96 MSRP: $85.49
You Save: $33.53 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly - Water; Engine Water Pump; Water Pump Assembly
- Replaces: 1S7Z-8501-A, 1S7Z-8501-D, PW-501, PW-572
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2017 Ford Taurus | Limited, SE, SEL | 4 Cyl 2.0 L GAS
View related parts
Ford Taurus Water Pump
Part Number: F5DZ-8501-CL
$60.89 MSRP: $84.23
You Save: $23.34 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly - Water; Engine Water Pump; Water Pump Assembly
- Replaces: F7DZ-8501-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1996-2000 Ford Taurus | LX, SE, SE Comfort, SEL, SVG | 6 Cyl 3.0 L GAS
View related parts
Ford Taurus Water Pump
Part Number: F4PZ-8501-A
$10.42 MSRP: $14.42
You Save: $4.00 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly - Water; Engine Water Pump; Water Pump Assembly
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1986-1995 Ford Taurus | GL, L, LX, SE, SHO | 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS
View related parts
Ford Taurus Water Pump
Part Number: DG1Z-8501-D
$101.61 MSRP: $161.35
You Save: $59.74 (38%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Pump Assembly - Water; Engine Water Pump Assembly; Engine Water Pump; Water Pump Assembly
- Replaces: AT4Z-8501-B, AA5Z-8501-C, AT4Z-8501-CA, PW-566, DG1Z-8501-C, DG1Z-8501-B, DG1Z-8501-A, PW-518, PW-533, PW-531
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2011-2019 Ford Taurus | Limited, SE, SEL, SHO | 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS
View related parts
Ford Taurus Water Pump
Part Number: F4DZ-8501-A
$23.34 MSRP: $32.29
You Save: $8.95 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly - Water; Engine Water Pump; Water Pump Assembly
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1994-1995 Ford Taurus | GL, LX, SE | 6 Cyl 3.8 L GAS
View related parts
Ford Taurus Water Pump
Part Number: 5L8Z-8501-AA
Product Specifications
- Other Name: Pump Assembly - Water; Engine Water Pump; Water Pump Assembly
- Manufacturer Note: Water Pump Driven By Intake Camshaft
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2005 Ford Taurus | SE, SE Comfort, SEL, SES | 6 Cyl 3.0 L GAS
View related parts
Ford Taurus Water Pump
Part Number: F3DZ8501A
Product Specifications
- Other Name: Pump Assembly - Water; Engine Water Pump; Water Pump Assembly
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1993-1995 Ford Taurus | SHO | 6 Cyl 3.2 L GAS
View related parts
Ford Taurus Water Pump
Part Number: XS2Z-8501-EA
Product Specifications
- Other Name: Pump Assembly - Water; Engine Water Pump; Water Pump Assembly
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2003 Ford Taurus | SE, SE Comfort, SEL, SES | 6 Cyl 3.0 L GAS
View related parts
Ford Taurus Water Pump
Part Number: F6DZ8501B
Product Specifications
- Other Name: Pump Assembly - Water; Engine Water Pump
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1996-1999 Ford Taurus | SHO | 8 Cyl 3.4 L GAS
View related parts
Ford Taurus Water Pump
Part Number: E8DZ-8501-B
Product Specifications
- Other Name: Pump Assembly - Water; Engine Water Pump; Water Pump Assembly
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1989-1993 Ford Taurus | GL, L, LX | 6 Cyl 3.8 L GAS
View related parts
Ford Taurus Water Pump
Part Number: E8DZ-8501-A
Product Specifications
- Other Name: Pump Assembly - Water; Engine Water Pump; Neutral Safety Switch
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1988-1991 Ford Taurus | GL, L, LX | 6 Cyl 3.8 L GAS

Ford Taurus Water Pump

Welcome to our website where you can discover high-quality, genuine Ford Taurus Water Pump. We offer an extensive inventory of OEM Ford Taurus Water Pump at affordable prices. We are committed to providing top-rated customer service along with prompt delivery.

Ford Taurus Water Pump Parts Questions & Experts Answers

Water Pump
5F1Z-8501-A
Q: How to service and repair the water pump on Ford Taurus?
A: Service and repair of the water pump starts with lifting and supporting the vehicle and draining the cooling system. To start work on the water pump you must take off the splash shield followed by disconnecting the heater water hose from the pump bottom then eliminating the radiator lower tube bolt. Drop the vehicle before you remove the air cleaner assembly and the battery together with its tray. You should begin by removing the water pump belt and the radiator upper front tube bolt and completing the upper Radiator Hose and engine vent hose separation as well as the transmission 10-pin connector removal. Detach the radiator bypass hose assembly before disassembling the Thermostat Housing and putting it to the side. A total of three bolts must be removed in order to separate the water pump unit. First detach the connector hose and then take out the water pump from its position. When installed the connector hose must be joined to the new water pump which should be positioned afterwards mounting bolts must be tightened through two stages beginning at 10 Nm (89 inch lbs.) and finishing with an additional 90°. You must install the thermostat housing on the water pump hose after which you should position the radiator bypass hose assembly before reconnecting the transmission 10-pin connector, upper radiator hose, and engine vent hose. The installation process begins with the radiator upper front cooling tube bolt followed by the water pump belt installation. Then attach the battery along with its tray followed by the air cleaner assembly. The maintenance process requires you to raise and support the vehicle while installing both the lower cooling tube bolt and connecting the heater water hose to the water pump base before reinstalling the splash shield. Before closing the vehicle complete the process of filling the engine cooling system.
