How to Service and Repair the Rear Drive Shaft of a 4x2 on Mercury Mountaineer?

Begin servicing the 4x2 vehicle rear driveshaft by hoisting the vehicle with transmission in neutral mode. You should check that extension housing index marks sync with driveshaft index marks before making separation. After drive shaft removal apply an index on transmission output shaft which needs to match the mark on extension housing. The maintenance of drive system balance requires marking the driveshaft flange with the pinion flange. Obtain the four driveshaft flange bolts then replace them with new ones and tighten them to 112 Nm (83 ft. lbs.). When detaching the driveshaft flange yoke from the pinion flange pilot use a suitable tool instead of hammering to gently pry from the designated area. A proper installation of the driveshaft flange on the pinion flange requires adjustable bolt torque while using a star pattern sequencing method. Post-thread coating of original bolts with threadlock and sealer allows their reuse as long as the installation follows the reverse steps of removal.

How to Service and Repair the Drive Shaft on Mercury Grand Marquis?

Start driveshaft service procedures by preparing the vehicle for work through a neutral gear position on a hoist setup. Perform an index mark process for the rear axle pinion flange and driveshaft centering socket yoke and transmission extension housing and driveshaft tube. Install each of the four bolts tightly to 112 Nm (83 lb-ft) torque settings after attaching them. Take great care since the driveshaft centering socket yoke establishes a tight connection with the rear axle pinion flange pilot and you should not strike the driveshaft or its elements. A proper tool should only be used to pry away the yoke from the flange at its designated prying location. Lower the driveshaft's rear end until it passes through the back of the axle housing while using a transmission extension plug to stop fluid leak. The installation requires fresh bolts but you can use threadlock and sealer onto original bolts when new bolts are not available. The driveshaft centering socket yoke should be aligned perfectly onto the flange before applying a balanced cross-pattern bolt tightening sequence. The inspection of extension housing seal reveals damage which requires replacement while long-life grease should be applied to slip-yoke spline. Drivers must ensure the correct alignment of a new driveshaft by matching the factory yellow paint marks between the driveshaft tube and the pinion flange marks although these features may be hidden before continuing with driveshaft indexing. After inspecting the mating surfaces of the rear axle pinion flange together with the driveshaft centering socket yoke you should check for foreign matter and damage then replace damaged components to achieve a proper fit. The installation should follow the instructions for the removal process in reverse order.

OEM Mercury Drive Shaft

Axle Shaft

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

31 Drive Shafts found

View related parts

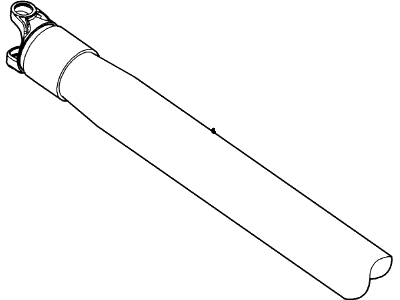

Mercury Axle Assembly, Front Driver Side Part Number: 5L8Z-3A427-C
$122.66 MSRP: $201.82
You Save: $79.16 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft - Front Axle; CV Axle Assembly, Front Left; CV Axle Assembly; GSP CV Axle; Axle Shaft
- Position: Front Driver Side
- Replaces: 5L8Z-3A427-DA, YL8Z-3A427-DA
Fits the following Mercury Models:
- Mariner | 2005-2008 | Base, Convenience, Luxury, Premier | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS
View related parts

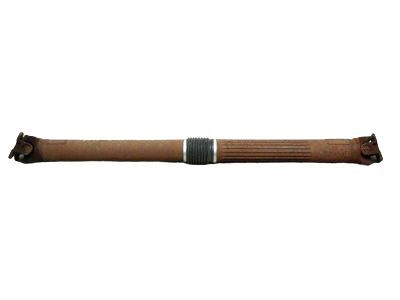

Mercury Drive Shaft, Rear Part Number: 7F9Z-4R602-A
$350.89 MSRP: $481.43
You Save: $130.54 (28%)
ADD TO CART
Product Specifications
- Other Name: Shaft Assembly - Drive; Drive Shaft, Rear; Driveshaft; Drive Shaft Assembly
- Position: Rear
- Replaces: 6F9Z-4R602-A, 5F9Z-4R602-AA
Fits the following Mercury Models:
- Montego | 2005-2007 | Luxury, Premier | 6 Cyl 3.0 L GAS
View related parts
Mercury Axle Assembly, Front Driver Side Part Number: 6L8Z-3A427-D
$172.64 MSRP: $234.93
You Save: $62.29 (27%)
ADD TO CART
Product Specifications
- Other Name: Shaft - Front Axle; Axle Shaft
- Position: Front Driver Side
- Replaces: 6L8Z-3A427-B, TX-472
Fits the following Mercury Models:
- Mariner | 2005-2008 | Base, Convenience, Hybrid, Premier | 4 Cyl 2.3 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS
View related parts
Mercury Drive Shaft Part Number: 5W7Z-4602-A
Product Specifications
- Other Name: Shaft Assembly - Drive; Driveshaft
- Replaces: 3W7Z-4602-DA
Fits the following Mercury Models:
- Grand Marquis | 2003-2011 | GS, GSL, Limited Edition, LS, LSE, Ultimate Edition | 8 Cyl 4.6 L FLEX, 8 Cyl 4.6 L GAS
View related parts
Mercury Drive Shaft Part Number: 6L2Z-4602-A
Product Specifications
- Other Name: Shaft Assembly - Drive; Driveshaft
- Replaces: 4L2Z-4602-A, 4C5Z-4602-BA
Fits the following Mercury Models:
- Mountaineer | 2002-2010 | Base, Convenience, Luxury, Premier | 6 Cyl 4.0 L FLEX, 6 Cyl 4.0 L GAS, 8 Cyl 4.6 L GAS
View related parts
Mercury Drive Shaft, Front Part Number: 6L2Z-4A376-B
Product Specifications
- Other Name: Shaft Assembly - Drive; Drive Shaft, Front; Driveshaft; Drive Shaft Assembly
- Position: Front
Fits the following Mercury Models:
- Mountaineer | 2006-2010 | Base, Convenience, Luxury, Premier | 6 Cyl 4.0 L GAS, 8 Cyl 4.6 L GAS
View related parts
Mercury Drive Shaft Part Number: 8L8Z-4R602-C
Product Specifications
- Other Name: Shaft Assembly - Drive; Driveshaft; Drive Shaft Assembly
Fits the following Mercury Models:
- Mariner | 2008-2009 | Base, Premier | 4 Cyl 2.3 L GAS, 4 Cyl 2.5 L GAS
View related parts
Mercury Drive Shaft Part Number: 6L2Z-4A376-A
Product Specifications
- Other Name: Shaft Assembly - Drive; Driveshaft
- Replaces: 6L2Z-4A376-AA
Fits the following Mercury Models:
- Mountaineer | 2006 | Convenience, Luxury, Premier | 6 Cyl 4.0 L GAS, 8 Cyl 4.6 L GAS
View related parts
Mercury Drive Shaft Part Number: 7L2Z-4602-B
Product Specifications
- Other Name: Shaft Assembly - Drive; Driveshaft
- Replaces: 1L2Z-4602-FA, 4L2Z-4602-BA
Fits the following Mercury Models:
- Mountaineer | 2002-2010 | Base, Convenience, Luxury, Premier | 6 Cyl 4.0 L FLEX, 6 Cyl 4.0 L GAS
View related parts
Mercury Drive Shaft Part Number: F2AZ4602E
Product Specifications
- Other Name: Shaft Assembly - Drive; Driveshaft
Fits the following Mercury Models:
- Grand Marquis | 1992-1994 | GS, LS | 8 Cyl 4.6 L GAS
View related parts
Mercury Drive Shaft, Rear Part Number: 2L8Z-4R602-AA
Product Specifications
- Other Name: Shaft Assembly - Drive; Drive Shaft, Rear; Driveshaft; Drive Shaft Assembly
- Position: Rear
Fits the following Mercury Models:
- Mariner | 2005-2006 | Base, Convenience, Luxury, Premier | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS
View related parts
Mercury Axle Assembly Part Number: XF5Z-3B437-AB
Product Specifications
- Other Name: Shaft; Axle Shaft
Fits the following Mercury Models:
- Villager | 1999-2001 | Base, Estate, Sport | 6 Cyl 3.3 L GAS
View related parts
Mercury Axle Assembly, Front Passenger Side Part Number: 6L8Z-3A428-C
Product Specifications
- Other Name: Shaft - Front Axle; CV Axle Assembly, Front Left, Front Right; Axle Shaft
- Position: Front Passenger Side
- Replaces: 6L8Z-3A428-B, TX-470, TX-316, YL8Z-3A428-AA, TX-539, TX-317, 6L8Z-3A428-A, 5L8Z-3A428-AB, YL8Z-3A428-BA
Fits the following Mercury Models:
- Mariner | 2005-2008 | Base, Convenience, Hybrid, Premier | 4 Cyl 2.3 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS
View related parts
Mercury Drive Shaft Part Number: 5W7Z-4602-B
Product Specifications
- Other Name: Shaft Assembly - Drive; Driveshaft
- Replaces: 3W7Z-4602-EA
Fits the following Mercury Models:
- Grand Marquis | 2003-2011 | GS, GSL, Limited Edition, LS, LSE, Ultimate Edition | 8 Cyl 4.6 L FLEX, 8 Cyl 4.6 L GAS
View related parts
Mercury Drive Shaft Part Number: 7L8Z-4R602-A
Product Specifications
- Other Name: Shaft Assembly - Drive; Driveshaft; Drive Shaft Assembly
Fits the following Mercury Models:
- Mariner | 2007 | Convenience, Luxury, Premier | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS
View related parts
Mercury Drive Shaft Assembly, Rear Part Number: 7L8Z-4R602-B
Product Specifications
- Other Name: Shaft Assembly - Drive; Drive Shaft, Rear; Drive Shaft Center Support; Driveshaft
- Position: Rear
- Replaces: 6L8Z-4R602-B
Fits the following Mercury Models:
- Mariner | 2005-2007 | Base, Convenience, Luxury, Premier | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS
View related parts
Mercury Drive Shaft Part Number: 7L8Z-4R602-C
Product Specifications
- Other Name: Shaft Assembly - Drive; Driveshaft; Drive Shaft Assembly
Fits the following Mercury Models:
- Mariner | 2007 | Convenience, Luxury, Premier | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS
View related parts
Mercury Drive Shaft Part Number: F2AZ4602F
Product Specifications
- Other Name: Shaft Assembly - Drive; Driveshaft
Fits the following Mercury Models:
- Grand Marquis | 1992-1994 | GS, LS | 8 Cyl 4.6 L GAS
View related parts
Mercury Drive Shaft Part Number: F67Z4602EA
Product Specifications
- Other Name: Shaft Assembly - Drive; Driveshaft
Fits the following Mercury Models:
- Mountaineer | 1997-2001 | Base | 8 Cyl 5.0 L GAS
View related parts
Mercury Drive Shaft, Rear Part Number: F8AZ4602BA
Product Specifications
- Other Name: Assembly - Driver Side Rear; Driveshaft; Drive Shaft Assembly; Shaft Assembly - Drive
- Position: Rear
Fits the following Mercury Models:
- Grand Marquis | 1998-2002 | GS, LS | 8 Cyl 4.6 L GAS

| Page 1 of 2 |Next >

1-20 of 31 Results

Mercury Drive Shaft

If you own Mercury and want to keep it in top shape, choosing OEM Drive Shaft is a smart move. They are precisely engineered and follow strict factory standards. They are made in advanced facilities that use cutting edge technology. Each part goes through thorough testing to confirm strength and safety, so you can trust it. FordPartsDeal.com gives you genuine Mercury Drive Shaft at some of the affordable online prices without cutting quality. Every OEM Mercury part includes the manufacturer's warranty, easy returns, and super-fast delivery. So why wait? Shop now and get your vehicle back to peak condition.

Drive Shaft is also driven directly to engine twist to the wheels converting power to clean motion. In 1939, Mercury launched its debut cars with a combination of soft ride, quiet interiors, aggressive angles and affordable prices without loss of pride. That formula stayed with Mercury through decades and as the years went by, Mercury kept pursuing a sweet spot between ride comfort and price, adding less glass, more trims, and clever changes to steering feel. Roomy interiors and low road noise were another aspect that Mercury was leaning on and were to make the daily trips feel relaxed because the family could talk without screaming and the drivers could be fresher after covering long distances on highways. Mercury ceased operations in 2011, but its focus on balance continues to lead owners who like the nameplate, and that shows that level-headed engineering and a sprinkle of style have power that defies any sales record. Design of Drive Shaft is important since the torque needs to pass through angles and length variations without shudders; therefore, all metallurgy, tube size and quality of weld are strictly maintained. Modern Drive Shaft assemblies are designed with universal joints and splined slip sections to accommodate the motion of the suspension, flex of the drive train and the different layout of the wheelbase and remain light to spin up quickly. A one-piece Drive Shaft can be applied with the rear drive setup, and two-piece or slip-in-tube models reduce longer distances and higher velocities, eliminating vibrations even when the rpm peaks during hard launches. All-wheel systems usually redistribute the load on more than a single Drive Shaft, improving grip with no gain in weight, and the additional connection prevents power-out when the road becomes slick.

Mercury Drive Shaft Parts and Q&A

Drive Shaft
6L2Z-4602-A
Q: How to Service and Repair the Rear Drive Shaft of a 4x2 on Mercury Mountaineer?
A:
Begin servicing the 4x2 vehicle rear driveshaft by hoisting the vehicle with transmission in neutral mode. You should check that extension housing index marks sync with driveshaft index marks before making separation. After drive shaft removal apply an index on transmission output shaft which needs to match the mark on extension housing. The maintenance of drive system balance requires marking the driveshaft flange with the pinion flange. Obtain the four driveshaft flange bolts then replace them with new ones and tighten them to 112 Nm (83 ft. lbs.). When detaching the driveshaft flange yoke from the pinion flange pilot use a suitable tool instead of hammering to gently pry from the designated area. A proper installation of the driveshaft flange on the pinion flange requires adjustable bolt torque while using a star pattern sequencing method. Post-thread coating of original bolts with threadlock and sealer allows their reuse as long as the installation follows the reverse steps of removal.
Drive Shaft
5W7Z-4602-A
Q: How to Service and Repair the Drive Shaft on Mercury Grand Marquis?
A:
Start driveshaft service procedures by preparing the vehicle for work through a neutral gear position on a hoist setup. Perform an index mark process for the rear axle pinion flange and driveshaft centering socket yoke and transmission extension housing and driveshaft tube. Install each of the four bolts tightly to 112 Nm (83 lb-ft) torque settings after attaching them. Take great care since the driveshaft centering socket yoke establishes a tight connection with the rear axle pinion flange pilot and you should not strike the driveshaft or its elements. A proper tool should only be used to pry away the yoke from the flange at its designated prying location. Lower the driveshaft's rear end until it passes through the back of the axle housing while using a transmission extension plug to stop fluid leak. The installation requires fresh bolts but you can use threadlock and sealer onto original bolts when new bolts are not available. The driveshaft centering socket yoke should be aligned perfectly onto the flange before applying a balanced cross-pattern bolt tightening sequence. The inspection of extension housing seal reveals damage which requires replacement while long-life grease should be applied to slip-yoke spline. Drivers must ensure the correct alignment of a new driveshaft by matching the factory yellow paint marks between the driveshaft tube and the pinion flange marks although these features may be hidden before continuing with driveshaft indexing. After inspecting the mating surfaces of the rear axle pinion flange together with the driveshaft centering socket yoke you should check for foreign matter and damage then replace damaged components to achieve a proper fit. The installation should follow the instructions for the removal process in reverse order.
