How to remove and install the Center Console Base on Mercury Grand Marquis?

The procedure to uninstall the floor console includes eliminating the floor console finish panel followed by dissolving the floor console storage bin while unplugging the power point electric connector. First detach the electrical connector from the transmission selector lever assembly followed by removing its 4 bolts to put aside the assembly. The bolts require tightening to 12 Nm (9 lb-ft) during reassembly. Follow by taking off the 2 floor console bolts which need installation torque set to 8 Nm (71 lb-in). To perform removal of the floor console it must be moved in a rearward direction. Install the assembly by carrying out the uninstall process in reverse order and tightly fastening all components.

How to service the Center Console Base on Mercury Grand Marquis?

For floor console service work start by taking off the floor console finish panel and console storage bin. Separate the electrical plugs from their connectors and unlock the connector locator from the transmission selector lever assembly. Unbolt the floor console using four bolts then you can disconnect its electrical connector. Push the transmission selector lever temporarily to one side to pull the floor console out from the vehicle. Turn all steps of removal backwards to reinstall the parts.

OEM Mercury Grand Marquis Center Console Base

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

17 Center Console Bases found

View related parts

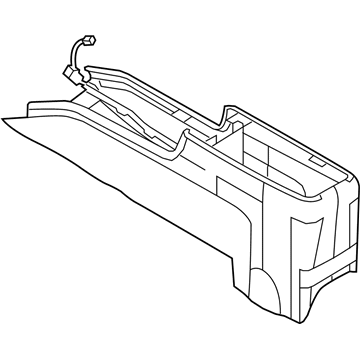

Mercury Grand Marquis Console, Camel, Center Part Number: 8W3Z-54045A36-AA
Product Specifications
- Other Name: Panel Assembly - Console; Center Console, Center
- Manufacturer Note: (-J*)
- Position: Center
- Replaces: 7W3Z-54045A36-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2011 Mercury Grand Marquis | GS, LS | 8 Cyl 4.6 L FLEX, 8 Cyl 4.6 L GAS
View related parts
Mercury Grand Marquis Console, Center Part Number: 6W3Z-54045A36-AC
Product Specifications
- Other Name: Panel Assembly - Console; Center Console, Center
- Manufacturer Note: (-L*) - Medium Light Stone Interior
- Position: Center
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006 Mercury Grand Marquis | GS, LS | 8 Cyl 4.6 L FLEX, 8 Cyl 4.6 L GAS
View related parts
Mercury Grand Marquis Console, Black/Charcoal, Center Part Number: 4W3Z-54045A36-AAD
Product Specifications
- Other Name: Panel Assembly - Console; Center Console, Center
- Position: Center
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2004 Mercury Grand Marquis | GS, LS, LSE | 8 Cyl 4.6 L GAS
View related parts
Mercury Grand Marquis Console, Center Part Number: 4W3Z-54045A36-AAB
Product Specifications
- Other Name: Panel Assembly - Console; Center Console, Center
- Position: Center
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2004 Mercury Grand Marquis | GS, LS, LSE | 8 Cyl 4.6 L GAS
View related parts
Mercury Grand Marquis Console, Black/Charcoal, Center Part Number: 6W3Z-54045A36-AB
Product Specifications
- Other Name: Panel Assembly - Console; Center Console, Center
- Manufacturer Note: (-N*) - Charcoal Black Interior
- Position: Center
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006 Mercury Grand Marquis | GS, LS | 8 Cyl 4.6 L FLEX, 8 Cyl 4.6 L GAS
View related parts
Mercury Grand Marquis Console, Camel, Center Part Number: 6W3Z-54045A36-AA
Product Specifications
- Other Name: Panel Assembly - Console; Center Console, Center
- Manufacturer Note: (-J*) - Light Camel Interior
- Position: Center
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006 Mercury Grand Marquis | GS, LS | 8 Cyl 4.6 L FLEX, 8 Cyl 4.6 L GAS
View related parts

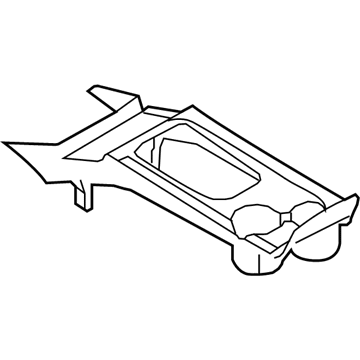

Mercury Grand Marquis Cover Panel Part Number: 6W3Z-5404567-AC
Product Specifications
- Other Name: Panel - Console; Console Panel
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2011 Mercury Grand Marquis | GS, LS | 8 Cyl 4.6 L FLEX, 8 Cyl 4.6 L GAS
View related parts
Mercury Grand Marquis Cover Panel, Black/Charcoal Part Number: 6W3Z-5404567-AB
Product Specifications
- Other Name: Panel - Console; Console Panel
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2011 Mercury Grand Marquis | GS, LS | 8 Cyl 4.6 L FLEX, 8 Cyl 4.6 L GAS
View related parts
Mercury Grand Marquis Cover Panel, Camel Part Number: 6W3Z-5404567-AA
Product Specifications
- Other Name: Panel - Console; Console Panel
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2011 Mercury Grand Marquis | GS, LS | 8 Cyl 4.6 L FLEX, 8 Cyl 4.6 L GAS
View related parts
Mercury Grand Marquis Console, Center Part Number: 5W3Z-54045A36-AAC
Product Specifications
- Other Name: Panel Assembly - Console; Center Console, Center
- Manufacturer Note: (-C*)-Medium Dark Flint, 5 passenger
- Position: Center
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005 Mercury Grand Marquis | GS, GSL, Limited Edition, LS, Ultimate Edition | 8 Cyl 4.6 L GAS
View related parts
Mercury Grand Marquis Console, Black/Charcoal, Center Part Number: 5W3Z-54045A36-AAB
Product Specifications
- Other Name: Panel Assembly - Console; Center Console, Center
- Manufacturer Note: (-W*)-Midnight Black, 5 passenger
- Position: Center
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005 Mercury Grand Marquis | GS, GSL, Limited Edition, LS, Ultimate Edition | 8 Cyl 4.6 L GAS
View related parts
Mercury Grand Marquis Console, Center Part Number: 5W3Z-54045A36-AAA
Product Specifications
- Other Name: Panel Assembly - Console; Center Console, Center
- Manufacturer Note: (-H*)-Medium Dark Parchment, 5 passanger
- Position: Center
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005 Mercury Grand Marquis | GS, GSL, Limited Edition, LS, Ultimate Edition | 8 Cyl 4.6 L GAS
View related parts
Mercury Grand Marquis Console Part Number: 1W3Z54045A36AAB
Product Specifications
- Other Name: Panel Assembly, Console; Panel Assembly - Console
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2004 Mercury Grand Marquis | GS, LS, LSE | 8 Cyl 4.6 L GAS
View related parts
Mercury Grand Marquis Cover Panel, Black/Charcoal Part Number: 1W3Z-5404567-AAE
Product Specifications
- Other Name: Panel - Console; Console Panel
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2004-2005 Mercury Grand Marquis | GS, GSL, Limited Edition, LS, Ultimate Edition | 8 Cyl 4.6 L GAS
View related parts
Mercury Grand Marquis Cover Panel Part Number: 1W3Z-5404567-AAD
Product Specifications
- Other Name: Panel - Console; Console Panel
- Manufacturer Note: (-C*)-Light Flint, 5 passenger
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2005 Mercury Grand Marquis | GS, GSL, Limited Edition, LS, LSE, Ultimate Edition | 8 Cyl 4.6 L GAS
View related parts
Mercury Grand Marquis Console, Center Part Number: 7W3Z-54045A36-AC
Product Specifications
- Other Name: Panel Assembly - Console; Center Console, Center
- Position: Center
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2011 Mercury Grand Marquis | GS, LS | 8 Cyl 4.6 L FLEX, 8 Cyl 4.6 L GAS
View related parts
Mercury Grand Marquis Console, Black/Charcoal, Center Part Number: 7W3Z-54045A36-AB
Product Specifications
- Other Name: Panel Assembly - Console; Center Console, Center
- Manufacturer Note: (-N*)
- Position: Center
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2011 Mercury Grand Marquis | GS, LS | 8 Cyl 4.6 L FLEX, 8 Cyl 4.6 L GAS

Mercury Grand Marquis Center Console Base

OEM Center Console Base boasts unmatched quality. Each part goes through full quality checks. They adhere to Mercury's official factory standards. These steps remove flaws and inconsistencies. So you can get Center Console Base with long life and a perfect fit. Come to our website and find genuine Mercury Grand Marquis parts. We keep a wide inventory of OEM Grand Marquis parts at the highly affordable prices. It's easy to search, compare, and pick what you need. You'll love the clear info and simple checkout. We offer top-rated customer service, and we reply fast. We also ship promptly to ensure your order arrives on time.

The Mercury Grand Marquis Center Console Base functions as an essential feature to enhance vehicle organization and functionality thus becoming an outstanding Mercury model attribute. The reliable Center Console Base from Mercury gives drivers a specific storage area for their phones keys and money and cigarettes so they can maintain an organized and safe driving environment. The Center Console Base can adapt to different Grand Marquis models between 1975 and 2011 through design improvements which make it customizable according to driver needs. The adaptability of this product helps improve efficiency and makes the Mercury Grand Marquis safer to drive by keeping essential items easily accessible and reducing driver distractions. As an integration element the Center Console Base creates a user-friendly environment which displays Mercury brand luxury and comfort throughout the vehicle's interior. The automotive market appreciates the exceptional combination of solid design and practical arrangement in the Center Console Base which attracts beginning and returning the brand Grand Marquis owners. The Center Console Base stands as an essential feature that shows the automaker Grand Marquis developers dedicate themselves to creating reliable and satisfying automobiles which has solidified its status as a beloved classic in the automotive industry.

Mercury Grand Marquis Center Console Base Parts and Q&A

Console, Black/Charcoal, Center
7W3Z-54045A36-AB
Q: How to remove and install the Center Console Base on Mercury Grand Marquis?
A:
The procedure to uninstall the floor console includes eliminating the floor console finish panel followed by dissolving the floor console storage bin while unplugging the power point electric connector. First detach the electrical connector from the transmission selector lever assembly followed by removing its 4 bolts to put aside the assembly. The bolts require tightening to 12 Nm (9 lb-ft) during reassembly. Follow by taking off the 2 floor console bolts which need installation torque set to 8 Nm (71 lb-in). To perform removal of the floor console it must be moved in a rearward direction. Install the assembly by carrying out the uninstall process in reverse order and tightly fastening all components.
Cover Panel
1W3Z-5404567-AAD
Q: How to service the Center Console Base on Mercury Grand Marquis?
A:
For floor console service work start by taking off the floor console finish panel and console storage bin. Separate the electrical plugs from their connectors and unlock the connector locator from the transmission selector lever assembly. Unbolt the floor console using four bolts then you can disconnect its electrical connector. Push the transmission selector lever temporarily to one side to pull the floor console out from the vehicle. Turn all steps of removal backwards to reinstall the parts.
