How to service and repair the axle shaft assembly on Mercury Mariner?

You should start axle shaft assembly servicing by first placing the vehicle in neutral mode while hoisting it into place. First, remove the tire and wheel from the vehicle before you discard the wheel hub nut. Begin service by taking out the bolt which secures a speed sensor part and set the sensor unit to the side. Lower down the ball joint bolt and nut before throwing them into waste disposal. Maintain the ball joint stud away from contacting the CV joint boot when you disconnect the lower arm from the front wheel knuckle. The front hub remover should be used to disconnect the axle shaft from its position on the wheel hub. The axle shaft remover and slide hammer should be used to pull the left axle shaft out from the differential area. A brass drift will help strike the right axle shaft at the designated location to extract it. The left axle shaft installation requires alignment of its splines with differential side gear splines followed by pushing it into position until the bearing retainer circlip snaps into place. The installation procedure involves inserting the right axle shaft into the intermediate shaft splines then feeding it until the circlip creates a firm connection between the shafts while applying specified grease on the splines. Position the front wheel hub into the axle shaft installer before inserting the axle shaft followed by fitting in the lower arm to the front wheel knuckle. Fasten the new lower ball joint bolt with its nut by applying 63 Nm (46 lb-ft) torque. Fasten the ABS wheel speed sensor by torquing its bolt to 9 Nm (80 lb-in). Statements show it is vital to avoid nut tightening on the front wheel hub when the vehicle rests on the ground since this action damages wheel bearings; users should first place new front wheel hub nuts before applying brakes to stop axle shaft rotation during tightening to 300 Nm (222 lb-ft). The last step involves installation of front tires and wheels followed by checking and filling the transaxle fluid when needed.

OEM Mercury Mariner Axle Shaft

Car Axle Shaft

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

30 Axle Shafts found

View related parts

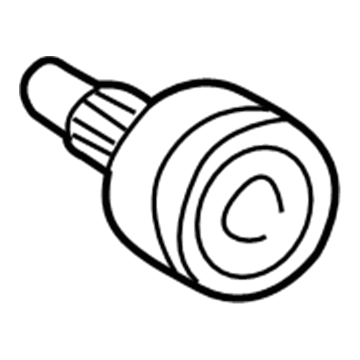

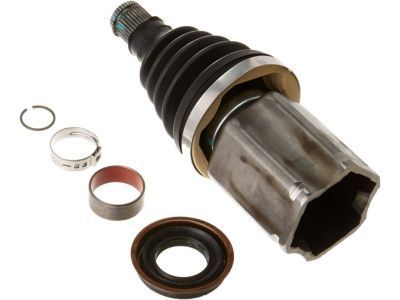

Mercury Mariner Inner Joint Assembly Part Number: AL8Z-3B414-B
$51.49 MSRP: $84.73
You Save: $33.24 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint And Stub Shaft Assembly; CV Joint
- Replaces: AL8Z-3B414-A, TX-585
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2008-2011 Mercury Mariner | Base, Premier | 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS
View related parts
Mercury Mariner Intermediate Shaft, Front Driver Side Part Number: 6L8Z-3A329-D
$372.28 MSRP: $546.67
You Save: $174.39 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft; CV Intermediate Shaft, Front; CV Intermediate Shaft; Axle Shaft; CV Joint; Outer Joint Assembly; Intermed Shaft
- Position: Front Driver Side
- Replaces: 6L8Z-3A329-A, YL8Z-3A329-EA, YL8Z-3A329-CA, 5L8Z-3A329-D
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2008 Mercury Mariner | Base, Luxury, Premier | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS
View related parts
Mercury Mariner Axle Assembly, Front Driver Side Part Number: 5L8Z-3A427-C
$122.66 MSRP: $201.82
You Save: $79.16 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft - Front Axle; CV Axle Assembly, Front Left; CV Axle Assembly; GSP CV Axle; Axle Shaft
- Position: Front Driver Side
- Replaces: 5L8Z-3A427-DA, YL8Z-3A427-DA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2008 Mercury Mariner | Base, Convenience, Luxury, Premier | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS
View related parts
Mercury Mariner Axle Shafts, Rear Passenger Side Part Number: 8L8Z-4K138-A
$258.64 MSRP: $357.80
You Save: $99.16 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft Assembly; CV Axle Assembly, Rear Right; GSP CV Axle; Axle Shaft; Axle Assembly; CV Axle Assembly
- Manufacturer Note: Includes ABS Tone Ring Not Serviced Separately
- Position: Rear Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2011 Mercury Mariner | Base, Convenience, Hybrid, Luxury, Premier | 4 Cyl 2.3 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.3 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS
View related parts
Mercury Mariner Intermediate Shaft, Front Part Number: 6L8Z-3A329-E
$110.57 MSRP: $152.93
You Save: $42.36 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft; CV Intermediate Shaft, Front; Intermed Shaft
- Position: Front
- Replaces: 6L8Z-3A329-C, 5L8Z-3A329-FA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2008 Mercury Mariner | Base, Convenience, Hybrid, Premier | 4 Cyl 2.3 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS
View related parts
Mercury Mariner Axle Assembly, Front Driver Side Part Number: 6L8Z-3A427-D
$172.64 MSRP: $234.93
You Save: $62.29 (27%)
ADD TO CART
Product Specifications
- Other Name: Shaft - Front Axle; Axle Shaft
- Position: Front Driver Side
- Replaces: 6L8Z-3A427-B, TX-472
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2008 Mercury Mariner | Base, Convenience, Hybrid, Premier | 4 Cyl 2.3 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS
View related parts
Mercury Mariner Intermediate Shaft, Front Part Number: AM6Z-3A329-A
$303.39 MSRP: $445.50
You Save: $142.11 (32%)
Product Specifications
- Other Name: Shaft; CV Intermediate Shaft, Front; Axle Shaft; Inner Shaft; CV Intermediate Shaft
- Position: Front
- Replaces: 5M6Z-3A329-A, 5M6Z-3A329-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2008-2011 Mercury Mariner | Hybrid | 4 Cyl 2.3 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Mercury Mariner Axle Assembly, Front Driver Side Part Number: 6L8Z-3A427-C
Product Specifications
- Other Name: Shaft - Front Axle; CV Axle Assembly, Front Left; GSP CV Axle; Axle Shaft; CV Axle Assembly
- Position: Front Driver Side
- Replaces: 6L8Z-3A427-A, 5L8Z-3A427-BB, YL8Z-3A427-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2011 Mercury Mariner | Base, Convenience, Hybrid, Premier | 4 Cyl 2.3 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.3 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS
View related parts
Mercury Mariner Intermediate Shaft Part Number: 6M6Z-3A329-B
Product Specifications
- Other Name: Shaft; CV Intermediate Shaft; Axle Shaft; Inner Shaft
- Replaces: 6M6Z-3A329-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2008-2011 Mercury Mariner | Hybrid | 4 Cyl 2.3 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Mercury Mariner Intermediate Shaft, Front Part Number: 9L8Z-3A329-D
Product Specifications
- Other Name: Shaft; CV Intermediate Shaft, Front; Intermed Shaft
- Position: Front
- Replaces: 9L8Z-3A329-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2009-2011 Mercury Mariner | Base, Premier | 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS
View related parts
Mercury Mariner Axle Shaft Assembly, Rear Passenger Side Part Number: 5L8Z-4234-BC
Product Specifications
- Other Name: Shaft Assembly - Rear Axle; CV Axle Assembly, Rear Right; Axle Shaft; Axle Assembly
- Position: Rear Passenger Side
- Replaces: 5L8Z-4234-BB
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2007 Mercury Mariner | Base, Convenience, Hybrid, Luxury, Premier | 4 Cyl 2.3 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS
View related parts
Mercury Mariner Axle Shafts, Rear Driver Side Part Number: 5L8Z-4234-BD
Product Specifications
- Other Name: Shaft Assembly - Rear Axle; CV Axle Assembly, Rear Left; GSP CV Axle; Axle Shaft; Axle Shaft Assembly; Axle Assembly; CV Axle Assembly
- Position: Rear Driver Side
- Replaces: 5L8Z-4234-BA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2007 Mercury Mariner | Base, Convenience, Hybrid, Luxury, Premier | 4 Cyl 2.3 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS
View related parts
Mercury Mariner Intermediate Shaft, Front Part Number: 6L8Z-3A329-B
Product Specifications
- Other Name: Shaft; CV Intermediate Shaft, Front; Intermed Shaft; CV Intermediate Shaft
- Position: Front
- Replaces: 5L8Z-3A329-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2008 Mercury Mariner | Base, Convenience, Hybrid, Premier | 4 Cyl 2.3 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS
View related parts
Mercury Mariner Axle Assembly, Front Driver Side Part Number: YL8Z-3A427-FE
Product Specifications
- Other Name: Shaft - Front Axle; CV Axle Assembly, Front Left; CV Axle Assembly; GSP CV Axle; Axle Shaft
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2007 Mercury Mariner | Luxury, Premier | 6 Cyl 3.0 L GAS
View related parts
Mercury Mariner Outer CV Joint, Driver Side Part Number: YL8Z-3B413-AA
Product Specifications
- Other Name: Joint And Stub Shaft; CV Joint; Outer Joint Assembly; Joint And Stub Shaft Assembly
- Manufacturer Note: Outer
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2007 Mercury Mariner | Luxury, Premier | 6 Cyl 3.0 L GAS
View related parts
Mercury Mariner Outer CV Joint, Driver Side Part Number: YL8Z-3B413-BA
Product Specifications
- Other Name: Joint And Stub Shaft; CV Joint; Joint And Stub Shaft Assembly
- Manufacturer Note: Outer
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2007 Mercury Mariner | Luxury, Premier | 6 Cyl 3.0 L GAS
View related parts
Mercury Mariner Outer CV Joint, Passenger Side Part Number: YL8Z-3B413-CA
Product Specifications
- Other Name: Joint And Stub Shaft; CV Joint; Outer Joint Assembly; Joint And Stub Shaft Assembly
- Manufacturer Note: Outer
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2007 Mercury Mariner | Luxury, Premier | 6 Cyl 3.0 L GAS
View related parts
Mercury Mariner Outer CV Joint Part Number: YL8Z-3B413-DA
Product Specifications
- Other Name: Joint And Stub Shaft; CV Joint; Inner Joint Assembly; Joint And Stub Shaft Assembly
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2007 Mercury Mariner | Luxury, Premier | 6 Cyl 3.0 L GAS
View related parts
Mercury Mariner Inner CV Joint, Driver Side Part Number: YL8Z-3B414-AA
Product Specifications
- Other Name: Joint And Stub Shaft; CV Joint; Inner Joint Assembly; Joint And Stub Shaft Assembly
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2007 Mercury Mariner | Luxury, Premier | 6 Cyl 3.0 L GAS
View related parts
Mercury Mariner Inner CV Joint, Passenger Side Part Number: YL8Z-3B414-CA
Product Specifications
- Other Name: Joint And Stub Shaft; CV Joint; Inner Joint Assembly; Outer Joint Assembly; Joint And Stub Shaft Assembly
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2007 Mercury Mariner | Luxury, Premier | 6 Cyl 3.0 L GAS

| Page 1 of 2 |Next >

1-20 of 30 Results

Mercury Mariner Axle Shaft

OEM Axle Shaft boasts unmatched quality. Each part goes through full quality checks. They adhere to Mercury's official factory standards. These steps remove flaws and inconsistencies. So you can get Axle Shaft with long life and a perfect fit. Come to our website and find genuine Mercury Mariner parts. We keep a wide inventory of OEM Mariner parts at the highly affordable prices. It's easy to search, compare, and pick what you need. You'll love the clear info and simple checkout. We offer top-rated customer service, and we reply fast. We also ship promptly to ensure your order arrives on time.

The Axle Shaft of Mercury Mariner vehicles is a critical drive component that transmits power and torque from the vehicle's differential towards the driving wheels enabling independent rotation for improved tractions. There are many types of steel shafts for the car; the solid axles for the trucks and previous RWD vehicles and half-shafts for the cars which are utilized with the independent suspension systems. Differentials and axle shafts are located in solid axles and half-shafts connect the transaxle to the wheels. The axle shafts decrease their durability due to rubbing against different obstructions, and some of the problems may include noise and vibration; the seals being worn cause leakage of the lubricants and contamination of the brake. In general, the Axle Shaft has major functions such as to bear the load of the vehicle, convey the torque and enable the wheels of Mercury Mariner to stay in the correct position.

Mercury Mariner Axle Shaft Parts and Q&A

Axle Assembly, Front Driver Side
9L8Z-3A427-D
Q: How to service and repair the axle shaft assembly on Mercury Mariner?
A:
You should start axle shaft assembly servicing by first placing the vehicle in neutral mode while hoisting it into place. First, remove the tire and wheel from the vehicle before you discard the wheel hub nut. Begin service by taking out the bolt which secures a speed sensor part and set the sensor unit to the side. Lower down the ball joint bolt and nut before throwing them into waste disposal. Maintain the ball joint stud away from contacting the CV joint boot when you disconnect the lower arm from the front wheel knuckle. The front hub remover should be used to disconnect the axle shaft from its position on the wheel hub. The axle shaft remover and slide hammer should be used to pull the left axle shaft out from the differential area. A brass drift will help strike the right axle shaft at the designated location to extract it. The left axle shaft installation requires alignment of its splines with differential side gear splines followed by pushing it into position until the bearing retainer circlip snaps into place. The installation procedure involves inserting the right axle shaft into the intermediate shaft splines then feeding it until the circlip creates a firm connection between the shafts while applying specified grease on the splines. Position the front wheel hub into the axle shaft installer before inserting the axle shaft followed by fitting in the lower arm to the front wheel knuckle. Fasten the new lower ball joint bolt with its nut by applying 63 Nm (46 lb-ft) torque. Fasten the ABS wheel speed sensor by torquing its bolt to 9 Nm (80 lb-in). Statements show it is vital to avoid nut tightening on the front wheel hub when the vehicle rests on the ground since this action damages wheel bearings; users should first place new front wheel hub nuts before applying brakes to stop axle shaft rotation during tightening to 300 Nm (222 lb-ft). The last step involves installation of front tires and wheels followed by checking and filling the transaxle fluid when needed.
