How to service and repair the battery cables on Mercury Mariner?

Service or repair of battery cables requires starting with battery disconnection. Begin by taking off the air cleaner assembly followed by removing the generator B+ terminal nut and return it to 8 Nm (71 lb-in) torque when reinstalling. Set the generator B+ terminal cable to the side while detaching the generator harness retainer. You must first remove the starter solenoid terminal cover and the starter motor positive cable nut yet when returning them you need to torque these parts to 12 Nm (9 lb-ft). The starter solenoid wire needs removal before tightening with 5 Nm (44 lb-in) torque. Remove the battery ground cable bolt after positioning its terminals aside. The bolt requires tightening to 25 Nm (18 lb-ft) before reinstalling. To start the procedure disconnect the pin-type retainers from the left rear of the engine, the middle of the intake runners and the front of the engine while setting aside the battery ground cable. The engine installation requires removal of clip retainers from their position on the right front engine sector. When reinstalling the body ground terminal bolt from the left fenderwell maintain a torque of 9 Nm (80 lb-in). First expose the battery junction box (BJB) cover then take out its terminal nut until tightness reaches 8 Nm (71 lb-in). The process begins with positioning the BJB terminal to the side then unfastening the BJB electrical connector before using retainer tools to detach battery cables from the battery tray leading to battery cable removal. After following the removal steps install the battery by conducting the process in reverse order.

OEM Mercury Mariner Battery Cable

Car Battery Cable

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

14 Battery Cables found

View related parts

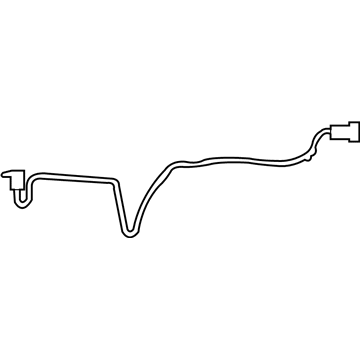

Mercury Mariner Wiring Harness Part Number: 9M6Z-14300-AA
Product Specifications
- Other Name: Wire - Battery - Electric Vehicle; Wire Harness; Cable - Battery - Electric Vehicle
- Manufacturer Note: Transaxle Control Module (TCM) To Battery Pack
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2009 Mercury Mariner | Hybrid | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts

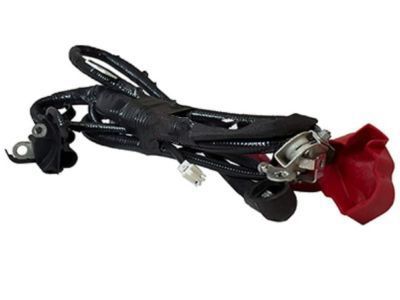

Mercury Mariner Battery Cable Part Number: 5L8Z-14300-CA
Product Specifications
- Other Name: Cable Assembly; Battery Cables; Ground Strap; Negative Cable
- Manufacturer Note: Complete Assy - Includes Positive And Negative Cables, Starter Motor And Relay Cables
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2007 Mercury Mariner | Hybrid, Luxury, Premier | 4 Cyl 2.3 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.0 L GAS
View related parts

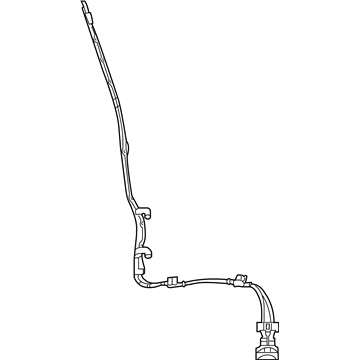

Mercury Mariner Positive Cable Part Number: AL8Z-14300-BA
$48.11 MSRP: $75.09
You Save: $26.98 (36%)
Product Specifications
- Other Name: Cable Assembly; Battery Cables
- Manufacturer Note: Complete Assy - Includes Positive And Negative Cables, Starter Motor And Relay Cables
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2010-2011 Mercury Mariner | Base, Premier | 6 Cyl 3.0 L FLEX
View related parts

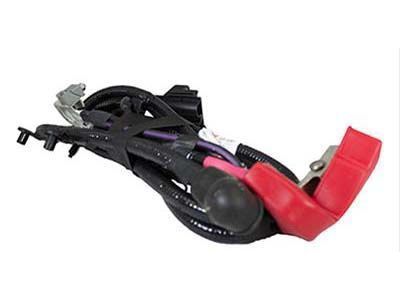

Mercury Mariner Positive Cable Part Number: 9L8Z-14300-AA
$80.04 MSRP: $127.09
You Save: $47.05 (38%)
Product Specifications
- Other Name: Cable Assembly; Battery Cables
- Manufacturer Note: Complete Assy - Includes Positive And Negative Cables, Starter Motor And Relay Cables
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2009-2011 Mercury Mariner | Base, Premier | 4 Cyl 2.5 L GAS
View related parts

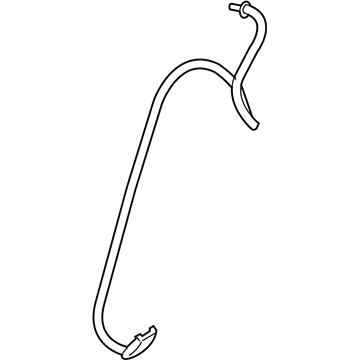

Mercury Mariner Positive Cable Part Number: 9L8Z-14300-BA
Product Specifications
- Other Name: Cable Assembly; Battery Cables
- Manufacturer Note: Complete Assy - Includes Positive And Negative Cables, Starter Motor And Relay Cables
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2009 Mercury Mariner | Base, Premier | 6 Cyl 3.0 L GAS
View related parts

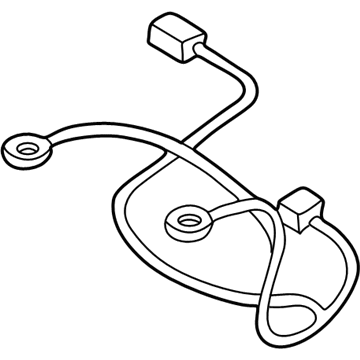

Mercury Mariner Wiring Harness Part Number: 9M6Z-14300-BA
Product Specifications
- Other Name: Jumper - Dc/Dc Converter To High Voltage Battery; Wire Harness; Cable - Battery - Electric Vehicle
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2009-2011 Mercury Mariner | Hybrid | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts

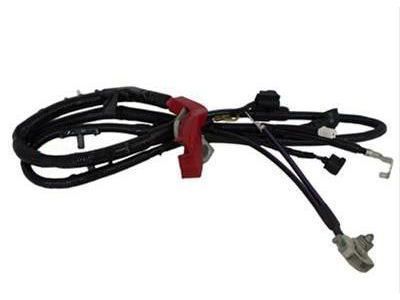

Mercury Mariner Wiring Harness Part Number: 6M6Z-14300-AA
Product Specifications
- Other Name: Wire - Battery - Electric Vehicle; Wire Harness; Cable - Battery - Electric Vehicle
- Manufacturer Note: Transaxle Control Module (TCM) To Battery Pack
- Replaces: 5M6Z-14300-AB, 5M6Z-14300-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2008 Mercury Mariner | Hybrid | 4 Cyl 2.3 L FULL HYBRID EV-GAS (FHEV)
View related parts
Mercury Mariner Wiring Harness Part Number: 6M6Z-14300-A
Product Specifications
- Other Name: Cable - Battery To Starter Motor; Wire Harness
- Replaces: 5M6Z-14300-AC
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2008 Mercury Mariner | Hybrid | 4 Cyl 2.3 L FULL HYBRID EV-GAS (FHEV)
View related parts
Mercury Mariner Battery Cable Part Number: 5M6Z-14301-AA
Product Specifications
- Other Name: Cable Assembly; Battery Cables; Ground Strap; Negative Cable
- Manufacturer Note: Negative Battery Cable
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2007 Mercury Mariner | Hybrid | 4 Cyl 2.3 L FULL HYBRID EV-GAS (FHEV)
View related parts
Mercury Mariner Battery Cable Part Number: 5L8Z-14300-AA
Product Specifications
- Other Name: Cable Assembly; Battery Cables
- Manufacturer Note: Complete Assy - Includes Positive And Negative Cables, Starter Motor And Relay Cables
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2007 Mercury Mariner | Base, Convenience | 4 Cyl 2.3 L GAS
View related parts
Mercury Mariner Positive Cable Part Number: 9L8Z-14300-CA
Product Specifications
- Other Name: Cable Assembly; Battery Cables
- Manufacturer Note: Complete Assy - Includes Positive And Negative Cables, Starter Motor And Relay Cables
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2009-2011 Mercury Mariner | Base, Premier | 4 Cyl 2.5 L GAS
View related parts
Mercury Mariner Negative Cable Part Number: 8M6Z-14301-AA
Product Specifications
- Other Name: Cable Assembly; Battery Cable; Battery Cables; Ground Strap
- Manufacturer Note: Negative Battery Cable
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2008-2011 Mercury Mariner | Hybrid | 4 Cyl 2.3 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Mercury Mariner Positive Cable Part Number: 8L8Z-14300-BB
Product Specifications
- Other Name: Cable Assembly; Battery Cables
- Manufacturer Note: Complete Assy - Includes Positive And Negative Cables, Starter Motor And Relay Cables
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2008 Mercury Mariner | Base, Premier | 6 Cyl 3.0 L GAS
View related parts
Mercury Mariner Positive Cable Part Number: 8L8Z-14300-AA
Product Specifications
- Other Name: Cable Assembly; Battery Cables
- Manufacturer Note: Complete Assy - Includes Positive And Negative Cables, Starter Motor And Relay Cables
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2008 Mercury Mariner | Base | 4 Cyl 2.3 L GAS

Mercury Mariner Battery Cable

OEM Battery Cable boasts unmatched quality. Each part goes through full quality checks. They adhere to Mercury's official factory standards. These steps remove flaws and inconsistencies. So you can get Battery Cable with long life and a perfect fit. Come to our website and find genuine Mercury Mariner parts. We keep a wide inventory of OEM Mariner parts at the highly affordable prices. It's easy to search, compare, and pick what you need. You'll love the clear info and simple checkout. We offer top-rated customer service, and we reply fast. We also ship promptly to ensure your order arrives on time.

Mercury Mariner Battery Cable Parts and Q&A

Battery Cable
5L8Z-14300-CA
Q: How to service and repair the battery cables on Mercury Mariner?
A:
Service or repair of battery cables requires starting with battery disconnection. Begin by taking off the air cleaner assembly followed by removing the generator B+ terminal nut and return it to 8 Nm (71 lb-in) torque when reinstalling. Set the generator B+ terminal cable to the side while detaching the generator harness retainer. You must first remove the starter solenoid terminal cover and the starter motor positive cable nut yet when returning them you need to torque these parts to 12 Nm (9 lb-ft). The starter solenoid wire needs removal before tightening with 5 Nm (44 lb-in) torque. Remove the battery ground cable bolt after positioning its terminals aside. The bolt requires tightening to 25 Nm (18 lb-ft) before reinstalling. To start the procedure disconnect the pin-type retainers from the left rear of the engine, the middle of the intake runners and the front of the engine while setting aside the battery ground cable. The engine installation requires removal of clip retainers from their position on the right front engine sector. When reinstalling the body ground terminal bolt from the left fenderwell maintain a torque of 9 Nm (80 lb-in). First expose the battery junction box (BJB) cover then take out its terminal nut until tightness reaches 8 Nm (71 lb-in). The process begins with positioning the BJB terminal to the side then unfastening the BJB electrical connector before using retainer tools to detach battery cables from the battery tray leading to battery cable removal. After following the removal steps install the battery by conducting the process in reverse order.
