How to service and repair the lower intake manifold on Mercury Sable?

Both valve covers and upper intake manifold must be removed first before working on the lower intake manifold. Disconnection of fuel supply line should be the initial step. You should first disconnect the fuel pulse damper as well as its electrical connector and vacuum tube. Extract the fuel injection supply manifold with fuel injectors by unfastening the four bolts after disconnecting the wiring harness of the engine control sensor from the fuel injectors. The service process begins with heater hose removal and then disconnecting both the Engine Coolant Temperature (ECT) sensor and the Coolant Temperature Sender (CTS). Finally proceed with removing the upper radiator hose from the thermostat housing. Start by removing both the Camshaft Position (CMP) sensor followed by the lower intake manifold through bolt removal. Remove the intake manifold gaskets as well as end seals. All sealing surfaces require cleaning before installation of the four cylinder block-to-cylinder head seams with a drop of Silicone Gasket and Sealant F7AZ-19554-EA or an equivalent material that meets Ford specification WSE-M4G323-A4 standards. The installation requires you to position the intake manifold and apply initial torque of 15 Nm followed by full torque of 32 Nm to the bolts while performing two stages of bolt tightening. The Camshaft Position (CMP) sensor reinstall process must be followed before installing the upper radiator hose with its clamp and attaching the heater hose and ECT sensor and CTS components. A fuel injection assembly can be installed by securing the four bolts and then reconnecting the wiring harness of the engine control sensors to the fuel injectors. The complete assembly receives a fuel pulse damper and vacuum tube connection and an electrical connector. The last step involves installing both valve covers followed by the upper intake manifold and reconnection of the fuel line and engine cooling system bleeding and filling.

OEM Mercury Sable Intake Manifold

Engine Intake Manifold

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

17 Intake Manifolds found

View related parts
Mercury Sable Intake Manifold, Upper
Part Number: 6F1Z-9424-BA
$234.95 MSRP: $345.00
You Save: $110.05 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly - Inlet
- Position: Upper
- Replaces: 4F1Z-9424-CA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2004-2005 Mercury Sable | GS | 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS
View related parts
Mercury Sable Intake Manifold
Part Number: YF1Z-9424-BB
$148.23 MSRP: $183.33
You Save: $35.10 (20%)
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly - Inlet
- Replaces: YF1Z-9424-BA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000-2003 Mercury Sable | LS, LS Premium | 6 Cyl 3.0 L GAS
View related parts
Mercury Sable Intake Manifold
Part Number: F8DZ9424AB
$125.05 MSRP: $170.17
You Save: $45.12 (27%)
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly - Inlet
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998-1999 Mercury Sable | GS, LS, LS Premium | 6 Cyl 3.0 L GAS
View related parts
Mercury Sable Intake Manifold
Part Number: 1F1Z-9424-AB
$144.27 MSRP: $210.00
You Save: $65.73 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly - Inlet
- Replaces: 1F1Z-9424-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2003 Mercury Sable | GS, LS | 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS
View related parts
Mercury Sable Intake Manifold
Part Number: F7DZ9424AA
$40.55 MSRP: $56.09
You Save: $15.54 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly Inlet; Manifold Assembly - Inlet
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1997 Mercury Sable | GS, LS | 6 Cyl 3.0 L GAS
View related parts
Mercury Sable Intake Manifold
Part Number: F58Z9424A
$54.55 MSRP: $75.47
You Save: $20.92 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly Inlet; Manifold; Manifold Assembly - Inlet
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1992-1995 Mercury Sable | GS, LS | 6 Cyl 3.8 L GAS
View related parts
Mercury Sable Intake Manifold, Lower
Part Number: 3F1Z-9424-AC
Product Specifications
- Other Name: Manifold Assembly - Inlet; Engine Intake Manifold, Lower
- Position: Lower
- Replaces: 3F1Z-9424-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2004-2005 Mercury Sable | LS, LS Premium, Platinum Edition | 6 Cyl 3.0 L GAS
View related parts
Mercury Sable Intake Manifold, Upper
Part Number: 7T4Z-9424-D
$130.53 MSRP: $190.00
You Save: $59.47 (32%)
Product Specifications
- Other Name: Manifold Assembly - Inlet; Engine Intake Manifold, Upper; Intake Plenum
- Position: Upper
- Replaces: 7T4Z-9424-DA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2008-2009 Mercury Sable | Base, Premier | 6 Cyl 3.5 L GAS
View related parts
Mercury Sable Intake Manifold, Lower
Part Number: 7T4Z-9424-C
Product Specifications
- Other Name: Manifold Assembly - Inlet; Engine Intake Manifold, Lower
- Position: Lower
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2008-2009 Mercury Sable | Base, Premier | 6 Cyl 3.5 L GAS
View related parts
Mercury Sable Intake Manifold
Part Number: DF1Z-9424-ARM
Product Specifications
- Other Name: Remanufactured Manifold Assembly - Inlet
- Replaces: 3F1Z-9424-CF, 3F1Z-9424-CA, 3F1Z-9A474-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2004-2005 Mercury Sable | LS, LS Premium, Platinum Edition | 6 Cyl 3.0 L GAS
View related parts
Mercury Sable Intake Manifold, Lower
Part Number: YF1Z-9424-GC
Product Specifications
- Other Name: Manifold Assembly - Inlet
- Manufacturer Note: Lower , 2V
- Position: Lower
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000 Mercury Sable | GS, LS | 6 Cyl 3.0 L GAS
View related parts
Mercury Sable Intake Manifold, Upper
Part Number: YF1Z-9424-EF
Product Specifications
- Other Name: Manifold Assembly - Inlet
- Manufacturer Note: Upper, 2V
- Position: Upper
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000 Mercury Sable | GS, LS | 6 Cyl 3.0 L GAS
View related parts
Mercury Sable Intake Manifold, Upper
Part Number: YF1Z-9424-DE
Product Specifications
- Other Name: Manifold Assembly - Inlet
- Manufacturer Note: Upper, 4V
- Position: Upper
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000 Mercury Sable | LS, LS Premium | 6 Cyl 3.0 L GAS
View related parts

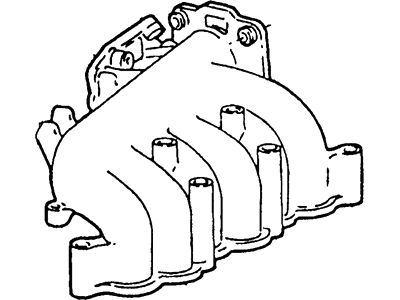

Mercury Sable Intake Manifold
Part Number: F6DZ9424JC
Product Specifications
- Other Name: Manifold Assembly Inlet; Manifold Assembly - Inlet
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1996-1997 Mercury Sable | G, GS, LS | 6 Cyl 3.0 L GAS
View related parts
Mercury Sable Intake Manifold, Lower
Part Number: 4F1Z-9424-BB
Product Specifications
- Other Name: Manifold Assembly - Inlet
- Position: Lower
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2004-2005 Mercury Sable | GS | 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS
View related parts
Mercury Sable Intake Manifold, Lower
Part Number: 1F1Z-9424-BB
Product Specifications
- Other Name: Manifold Assembly - Inlet
- Manufacturer Note: 12V
- Position: Lower
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2003 Mercury Sable | GS, LS | 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS
View related parts
Mercury Sable Intake Manifold, Upper
Part Number: 1F1Z-9424-BC
Product Specifications
- Other Name: Manifold Assembly - Inlet
- Manufacturer Note: Upper, 4V
- Position: Upper
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2003 Mercury Sable | LS, LS Premium | 6 Cyl 3.0 L GAS

Mercury Sable Intake Manifold

Welcome to our website where you can discover high-quality, genuine Mercury Sable Intake Manifold. We offer an extensive inventory of OEM Mercury Sable Intake Manifold at affordable prices. We are committed to providing top-rated customer service along with prompt delivery.

Mercury Sable Intake Manifold Parts Questions & Experts Answers

Intake Manifold, Lower
YF1Z-9424-GC
Q: How to service and repair the lower intake manifold on Mercury Sable?
A: Both valve covers and upper intake manifold must be removed first before working on the lower intake manifold. Disconnection of fuel supply line should be the initial step. You should first disconnect the fuel pulse damper as well as its electrical connector and vacuum tube. Extract the fuel injection supply manifold with Fuel Injectors by unfastening the four bolts after disconnecting the wiring harness of the engine control sensor from the fuel injectors. The service process begins with heater hose removal and then disconnecting both the Engine Coolant Temperature (ECT) sensor and the Coolant Temperature Sender (CTS). Finally proceed with removing the upper Radiator Hose from the Thermostat Housing. Start by removing both the Camshaft Position (CMP) sensor followed by the lower intake manifold through bolt removal. Remove the intake manifold gaskets as well as end seals. All sealing surfaces require cleaning before installation of the four cylinder block-to-cylinder head seams with a drop of Silicone Gasket and Sealant F7AZ-19554-EA or an equivalent material that meets Ford specification WSE-M4G323-A4 standards. The installation requires you to position the intake manifold and apply initial torque of 15 Nm followed by full torque of 32 Nm to the bolts while performing two stages of bolt tightening. The Camshaft Position (CMP) sensor reinstall process must be followed before installing the upper radiator hose with its clamp and attaching the heater hose and ECT sensor and CTS components. A fuel injection assembly can be installed by securing the four bolts and then reconnecting the wiring harness of the engine control sensors to the fuel injectors. The complete assembly receives a fuel pulse damper and vacuum tube connection and an electrical connector. The last step involves installing both valve covers followed by the upper intake manifold and reconnection of the fuel line and engine cooling system bleeding and filling.
