How to service the front passenger side seat cushion on 2009 Ford Taurus X?

Question

Accepted Answer

The servicing procedure for the front passenger side seat cushion requires starting with removal of the front seat and its backrest and seat track. Start by disconnecting the Occupant Classification Sensor system pressure sensor electrical connector before removing its pin-type retainers to take out the OCS bladder, hose, pressure sensor along with the seat cushion frame. First disconnect the OCS Module (OCSM) electrical connector and if the OCS system service kit has an electrical connector remove it as well. During power seat maintenance users should detach the tie strap which holds the unused pressure sensor electrical connector. A 5 mm (3/16 in) drill should be used to uninstall the two rivets holding the OCSM in place on the seat cushion frame bracket. Meticulously disassemble wire harness straps and connector ties to feed the hose followed by pressure sensor, wire harness and electrical connector as well as OCSM through seat cushion frame supports. The installation process calls for heated seat module disconnect followed by its removal. The removal of manual recline seats requires removal of the two big roll pins which secures the manual recliner. Power recline customers should disconnect the power recliner motor electrical connector before driving out the two large roll pins to access the power recliner motor assembly. After removing the seat wire harness along with its hog rings the technician should disconnect the cushion trim cover. A new heater mat needs installation during the reassembly process when you change the cushion foam pad. Put the cushion trim cover on top of the cushion foam pad and install the hog rings. When installing manual recline seats you should embed the manual recliner into the cushion frame using both of its large roll pins. The power recliner needs to be placed on the cushion frame where you should install three bolts which should be tightened to 10 Nm (89 lb-in) before inserting the two large roll pins into the frame. You must first lock the heated seat module onto the bracket using the electrical connector before installing the rivet to secure the slot and connecting the heated seat module connector. Conduct a system reset of the OCS only after the front passenger seat repair work is finished correctly with all components installed. Check for exterior objects inside the OCS assembly along with the seat cushion frame while making sure the OCS system components follow proper routing paths. Position the OCS system to the seat cushion frame before feeding the OCSM and electrical connector as well as wire harness and pressure sensor and hose through the front opening of the frame support assembly before installing and connecting the electrical components. Check the pressure sensor installation and its retention before installing the seat track and front seat backrest and seat. The Supplemental Restraint System (SRS) requires a new power supply but testing is delayed at this stage. The procedure to reset the OCS system starts after verifying that the OCSM receives a power supply with 8-18 volts while observing 6°C (42°F)-36°C (97°F) temperatures and no objects are on the passenger seat. Begin the OCS system reset procedure at least eight seconds after the ignition switch ON is toggled. A second reset attempt can proceed only after inspecting both seat-related wiring harness and pressure sensor connector as well as OCS system wiring and hoses for signs of damage. The SRS proof out procedure requires the ignition key move from ON to OFF then waits ten seconds before moving it back to ON while checking the air bag warning indicator. Detect and fix any faults through diagnosis and use a scan tool for clearing ongoing Diagnostic Trouble Codes from both the Restraints Control Module and OCSM. The installation of a new OCS system service kit requires you to finish the traceability card and send it back to Ford Motor Company with all inoperative OCS system components.

OEM 2009 Ford Taurus X Seat Cushion

12 Seat Cushions found

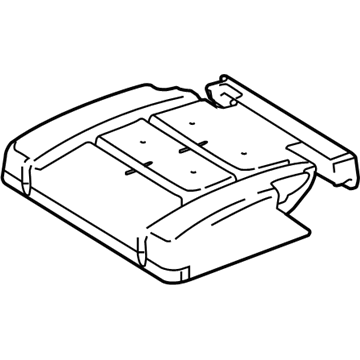

2009 Ford Taurus X Seat Cushion Pad, Rear Center Passenger Side Part Number: 5F9Z-7463840-AA

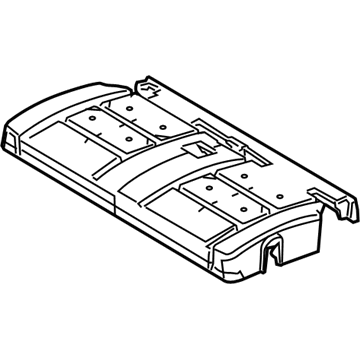

2009 Ford Taurus X Seat Cushion Pad, Rear Center Driver Side Part Number: 5F9Z-7463841-BA

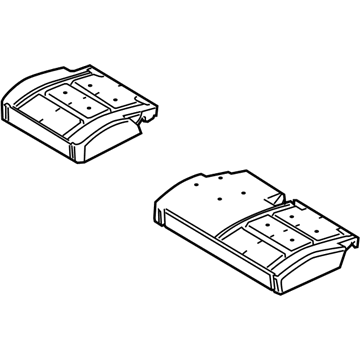

2009 Ford Taurus X Seat Back Pad, Front Passenger Side Part Number: 5F9Z-7464810-DA

2009 Ford Taurus X Seat Cushion Pad, Front Driver Side Part Number: 5F9Z-74632A23-AA

2009 Ford Taurus X Seat Cushion Pad, Front Passenger Side Part Number: 8A4Z-74632A22-B

2009 Ford Taurus X Seat Cushion Pad, Rear Driver Side Part Number: 6F9Z-7463841-B

2009 Ford Taurus X Seat Cushion Pad, Rear Part Number: 6F9Z-7463841-A

2009 Ford Taurus X Seat Back Pad, Front Driver Side Part Number: 5F9Z-7464811-AA

2009 Ford Taurus X Seat Back Pad, Front Passenger Side Part Number: 5F9Z-7464810-BA

2009 Ford Taurus X Seat Cushion Pad, Rear Center Driver Side Part Number: 5F9Z-7463841-AA

2009 Ford Taurus X Seat Cushion Pad, Rear Center Passenger Side Part Number: 5F9Z-7463840-EA

2009 Ford Taurus X Seat Cushion Pad, Rear Passenger Side Part Number: 5F9Z-7463840-DA
