OEM Ford E-150 ABS Reluctor Ring

Ford E-150 ABS Reluctor Ring Parts and Q&A

• Indicator
  F4UZ-2C182-A
  Q: How Does the Process for Accessing the Rear ABS Reluctor Ring Differ with Traction Control and Stability Assist on Ford E-150?

  A:

  To access the rear ABS reluctor ring, technicians must detach the ring gear because it affixes to the ring gear. Rear ABS reluctor rings operate within the rear wheel hubs of traction control and stability assist vehicles, so they require service as monolithic assemblies.

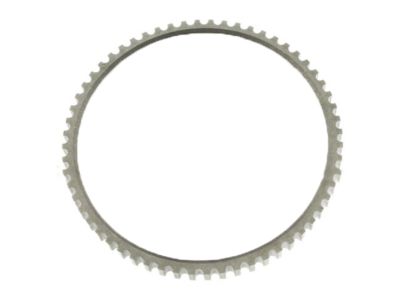

• ABS Ring, Front
  F4UZ-2C182-CA
  Q: How to Service the Front ABS Reluctor Ring on Ford E-150?

  A:

  The first step for servicing the front ABS reluctor ring begins with taking off the front Brake Disc. Anyone servicing the ABS reluctor ring needs to discard it after first removal because reusing this component can generate false readings for the Anti-lock Brake System module that leads to inaccurate ABS operations. You need to work with a 2- or 3-Jaw Puller coupled with a suitable step plate from the Step Plate Adapter Set to remove and throw away the existing front ABS reluctor ring. The installation process requires the new reluctor ring to be pressed straight against the front wheel to prevent errors reaching the ABS module. Reinstall the brake disc after using an appropriate size cylinder and press to install the new reluctor ring.
