OEM Ford E-250 Intake Manifold
Engine Intake Manifold- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
14 Intake Manifolds found

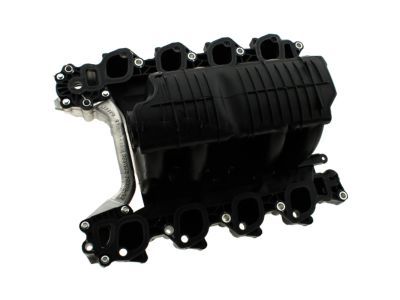

Ford E-250 Intake Manifold Part Number: 2L1Z-9424-AA
$324.61 MSRP: $476.67You Save: $152.06 (32%)

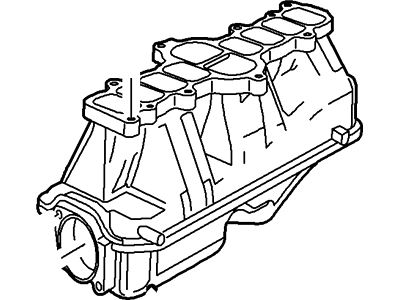

Ford E-250 Intake Manifold, Upper Part Number: 1L3Z-9424-AA
$56.20 MSRP: $86.33You Save: $30.13 (35%)

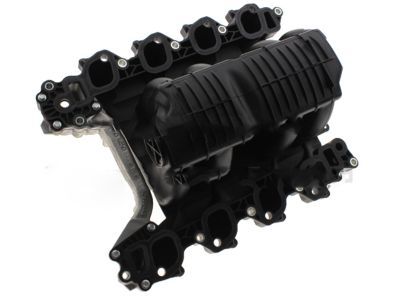

Ford E-250 Intake Manifold Part Number: AC2Z-9424-A
$317.80 MSRP: $466.67You Save: $148.87 (32%)

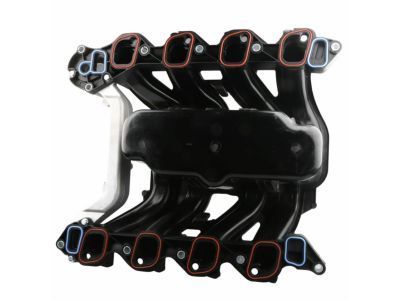

Ford E-250 Intake Manifold Part Number: 9L3Z-9424-E
$419.95 MSRP: $616.67You Save: $196.72 (32%)
Ford E-250 Intake Manifold Part Number: 7L3Z-9424-F
Ford E-250 Intake Manifold Part Number: 5L1Z-9424-A
Ford E-250 Intake Manifold Part Number: 4C2Z-9424-CA

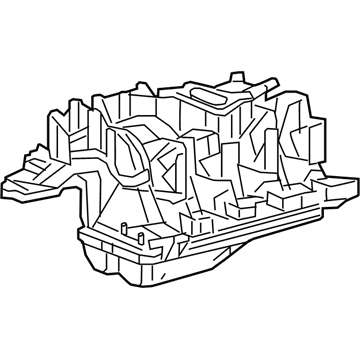

Ford E-250 Intake Manifold, Lower Part Number: 5L3Z-9424-BB
Ford E-250 Intake Manifold, Lower Part Number: 4L3Z-9424-AA
Ford E-250 Intake Manifold Part Number: 9L3Z-9424-D
Ford E-250 Intake Manifold Part Number: 9C2Z-9424-AA
Ford E-250 Intake Manifold, Upper Part Number: 3L3Z-9424-DA
Ford E-250 Intake Manifold, Lower Part Number: 2L1Z-9424-BC
Ford E-250 Intake Manifold, Upper Part Number: 1L3Z-9424-BA
Ford E-250 Intake Manifold
OEM Intake Manifold boasts unmatched quality. Each part goes through full quality checks. They adhere to Ford's official factory standards. These steps remove flaws and inconsistencies. So you can get Intake Manifold with long life and a perfect fit. Come to our website and find genuine Ford E-250 parts. We keep a wide inventory of OEM E-250 parts at the highly affordable prices. It's easy to search, compare, and pick what you need. You'll love the clear info and simple checkout. We offer top-rated customer service, and we reply fast. We also ship promptly to ensure your order arrives on time.
Intake Manifold is as important unit well recognized for its durability and mechanical advantages enabling efficient and secure performance of the vehicle's engine. As the Intake Manifold is meant to introduce the air or the air/fuel mixture to every cylinder head intake port, it plays a crucial role in shaping the measures of the vehicle's power and performance. Its contemporary designs incorporate composites of plastic, invariably lighter and better heat sinks than the Cast iron or aluminum previous models. This innovation optimises the airflow into the Ford E-250's combustion chamber so as to optimise fuel combustion and thus optimise knock out of the engine. The Ford E-250 can synchronize various models of the E-series' so the Intake Manifold can benefit multiple consumers. Notably, there is also an option for installing variable-length intake manifolds (VLIM) in some Ford E-250 that regulates the airflow as well as pressure depending on the load in the engine, hence improving on the performance. In the case of the Intake Manifold, the work is much more precise thereby enabling proper sealing and connection with the other sensing devices, which is crucial. Thus, in the field of Food Intake Manifold a product that is mainly focused to enhance efficiency safety in the automobile market is the Intake Manifold and consumer satisfaction can clearly denote that the Ford vehicles are having high quality with new innovation. All in all, the Intake Manifold is a proof of Ford's commitment in offering customers excellent products that perform well and functions effectively.
Ford E-250 Intake Manifold Parts and Q&A
- Q: How to remove the intake manifold on Ford E-250?A:The first step to remove the intake manifold requires both relief of fuel system pressure and battery ground cable detachment. The maintenance process starts with eliminating the air cleaner and air cleaner outlet tube before proceeding to remove the engine cover. Transfer the cooling system fluids then take off the generator unit. Before disconnecting the coolant hose you must pull out the red clip and then disconnect the fuel hose spring lock coupling while compressing and sliding the hose clamp. Disconnect the electronic Throttle Body (TB) and Throttle Position (TP) sensor electrical connectors only when the red clip is out. Perform a clean disconnect of Positive Crankcase Ventilation hose as well as the PCV coolant hoses and the engine vacuum harness and Brake Booster and evaporative emission hose together. To replace the throttle body with adapter as an assembly remove four securing bolts while disposing the throttle body adapter gasket. The next steps involve disconnecting the heater hose combined with vacuum connector and electrical connectors from the FRP sensor and all 10 Fuel Injector and Ignition Coil connections. Disassemble the transmission indicator retaining nut and tube, proceed to remove the bracket nut for the transmission fluid indicator tube before placing the tube successfully aside. Move all three stud bolts from each harness assembly and place the RH fuel charge wiring harness on one side before moving on to position the LH fuel charge wiring harness aside. You must unscrew all screws before you separate the 10 coils from the system and disconnect the pushpin retainer from the intake manifold bracket and then take out the bolts and Thermostat housing and thermostat while discarding the O-ring seal. Last in order is the removal of bolts and the intake manifold along with its gaskets. Use a plastic scraping tool to clean the aluminum retainer plate without making scratches and treat the intake manifold mating surface using silicone gasket remover while following the instructions on the packaging.
- Q: How to install the intake manifold on a 5.4L engine on Ford E-250?A:First clean all sealing surfaces of the 5.4L engine using a plastic scraper tool to prevent leaks from developing because of scratches. Install the intake manifold gaskets and the intake manifold before starting to run the nine bolts without full torque. The installation of the Thermostat demands placement of a new O-ring before attaching the thermostat housing while its bolts need loose installation but require a systematic tightening process starting with 2 Nm (18 inch lbs.) then reaching 25 Nm (18 ft. lbs.). Follow this sequence with the intake manifold bolts. The next step involves mounting the eight Ignition Coils followed by their bolt installation then connecting the eight fuel injector electrical connectors and eight ignition coil electrical connectors lastly. Start by setting the Throttle Body assembly and adapter component before placing the new gasket and attaching the adapter to the body. Follow these two steps when attaching the exhaust manifold-to-EGR valve tube: Begin by hand-tightening then progress to tightening the fittings to 50 Nm (37 ft. lbs.). Install the differential pressure EGR sensor hoses on the EGR valve tube while also connecting Brake Booster and main engine vacuum harnesses, the IAC electrical connector, the EGR vacuum hose and EGR vacuum regulator solenoid connections. Connect the fuel pressure sensor vacuum hose along with its electrical connector and after that mount the evaporative emission Canister Purge Valve with its bracket and attach all its purge valve hoses and IAC fresh air hose. Install all fittings for auxiliary heater hoses while also hooking up fuel hose spring lock couplings if they apply. The next sequence of installation includes the differential pressure feedback EGR system bracket followed by the Accelerator Cable routing bracket and the generator upper support bracket, the transmission fluid filler tube bracket and bolt. Connect the EGR sensor through electrical connector attachment followed by hose installation and connect the TP sensor through installation of its electrical connector and routing strap. After connecting the coolant hoses with the upper radiator hose you must install all throttle controls that include the accelerator cable with speed control actuator cable and the throttle return spring together with the accelerator cable snow shield. The air cleaner outlet pipe installation requires tightening the clamp before connecting the two hoses to it, which also includes installation of MAF sensor and ACL placement followed by bolt fixation and clamp tightening. To finish the task you should place the interior engine cover in place while connecting the battery ground cable and filling and bleeding the engine cooling system.
