How to service and repair the timing chain on Ford F-150?

Begin repair or servicing of the timing chain by taking out the timing cover and camshaft synchronizer drive gear bolt. The crankshaft rotation until timing marks match the keyways allows for retaining pin insertion that keeps the timing chain tensioner compressed. The service starts by taking away the camshaft sprocket together with the crankshaft sprocket and timing chain assembly before removing the three-bolt timing chain tensioner. Place the timing chain tensioner before screwing in its bolts during installation. Set the key at 12 o'clock position while the number one piston remains at Top Dead Center (TDC). The tensioner pad retracting mechanism can be retracted through compression followed by the insertion of a retention pin as a necessary step. During installation position the camshaft sprocket timing mark at its bottom before adding the timing chain/belt with camshaft sprocket and crankshaft sprocket components that should line up their timing marks and keyways. To install the camshaft synchronizer drive gear place it correctly and bolt it before removing the retaining pin to complete the installation with the timing cover.

OEM Ford F-150 Timing Chain

Engine Timing Chain

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Timing Chains found

View related parts

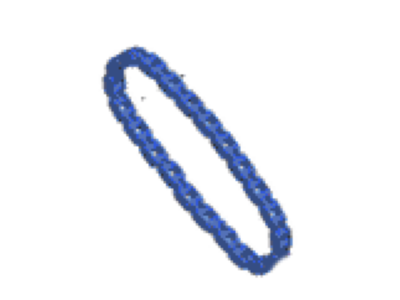

Ford F-150 Timing Chain Part Number: 5W7Z-6268-AA
$59.52 MSRP: $73.62
You Save: $14.10 (20%)
ADD TO CART
Product Specifications
- Other Name: Chain - Timing; Engine Timing Chain
- Replaces: F5LY-6268-A, F3LY-6268-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1997-2010 Ford F-150 | Base, FX2, King Ranch, Lariat, STX, THE 60TH ANNIVERSARY EDITION, XL, XLT | 8 Cyl 4.6 L GAS
View related parts
Ford F-150 Timing Chain Part Number: AL3Z-6268-A
$35.61 MSRP: $51.83
You Save: $16.22 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Belt - Timing; Engine Timing Chain
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2011-2014 Ford F-150 | FX2, FX4, Harley-Davidson Edition, Lariat, Lariat Limited, Platinum, SVT Raptor, XLT | 8 Cyl 6.2 L GAS
View related parts
Ford F-150 Timing Chain Part Number: 5L3Z-6268-A
$39.33 MSRP: $56.27
You Save: $16.94 (31%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Belt - Timing
- Manufacturer Note: CHAIN, ASY TIMING
- Replaces: F6TZ-6268-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1997-2010 Ford F-150 | Base, FX2, FX4, Harley-Davidson Edition, King Ranch, Lariat, Lightning, Limited, Platinum, SVT Raptor, THE 60TH ANNIVERSARY EDITION, XL, XLT | 8 Cyl 5.4 L BI-FUEL, 8 Cyl 5.4 L CNG, 8 Cyl 5.4 L FLEX, 8 Cyl 5.4 L GAS
View related parts
Ford F-150 Timing Belt Part Number: 4S7Z-6268-A
$7.59 MSRP: $10.77
You Save: $3.18 (30%)
ADD TO CART
Product Specifications
- Other Name: Belt/Chain - Timing; Timing Belt Kit; Timing Chain
- Manufacturer Note: Secondary
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2018-2021 Ford F-150 | King Ranch, Lariat, Platinum, XL, XLT | 6 Cyl 3.0 L DIESEL
View related parts
Ford F-150 Timing Chain Part Number: ML3Z-6268-C
$61.09 MSRP: $88.92
You Save: $27.83 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Belt - Timing
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2021-2023 Ford F-150 | King Ranch, Lariat, Platinum, SSV, Tremor, XL, XLT | 8 Cyl 5.0 L FLEX
View related parts
Ford F-150 Timing Chain Part Number: ML3Z-6268-A
$57.41 MSRP: $88.18
You Save: $30.77 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Belt/Chain - Timing
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2021-2023 Ford F-150 | King Ranch, Lariat, Platinum, SSV, Tremor, XL, XLT | 8 Cyl 5.0 L FLEX
View related parts
Ford F-150 Timing Chain Part Number: E7TZ-6268-A
Product Specifications
- Other Name: Belt - Timing
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1994-1996 Ford F-150 | Eddie Bauer, Lightning, Special, XL, XLT | 8 Cyl 5.0 L GAS, 8 Cyl 5.8 L GAS

Ford F-150 Timing Chain

OEM Timing Chain boasts unmatched quality. Each part goes through full quality checks. They adhere to Ford's official factory standards. These steps remove flaws and inconsistencies. So you can get Timing Chain with long life and a perfect fit. Come to our website and find genuine Ford F-150 parts. We keep a wide inventory of OEM F-150 parts at the highly affordable prices. It's easy to search, compare, and pick what you need. You'll love the clear info and simple checkout. We offer top-rated customer service, and we reply fast. We also ship promptly to ensure your order arrives on time.

Timing Chain is utilized in Ford F-150 vehicles for the purpose of maintaining the proper relation between the crankshaft and camshaft so that correct valve timing is maintained for maximum power output of the engine. This is a metallic belt located at the front side of the engine and has to be lubricated for proper operation, it is widely used especially in engines with higher displacements as compared to the rubber timing belts, which have to be replaced frequently. For the years, there have been different designs of Timing Chains used on the Ford F-150 Models, with the wearing of metal chains since 1990's. Despite the fact these chains are built for the long run, they can have problems originating with lubrication or the tensioner together with the chain guides. Another sign of a bad Timing Chain system in Ford F-150 cars is that it produces a rattling sound from the front of the engine.

Ford F-150 Timing Chain Parts and Q&A

Timing Chain
5W7Z-6268-AA
Q: How to service and repair the timing chain on Ford F-150?
A:
Begin repair or servicing of the timing chain by taking out the Timing Cover and camshaft synchronizer drive gear bolt. The Crankshaft rotation until timing marks match the keyways allows for retaining pin insertion that keeps the Timing Chain Tensioner compressed. The service starts by taking away the camshaft sprocket together with the crankshaft sprocket and timing chain assembly before removing the three-bolt timing chain tensioner. Place the timing chain tensioner before screwing in its bolts during installation. Set the key at 12 o'clock position while the number one piston remains at Top Dead Center (TDC). The tensioner pad retracting mechanism can be retracted through compression followed by the insertion of a retention pin as a necessary step. During installation position the camshaft sprocket timing mark at its bottom before adding the timing chain/belt with camshaft sprocket and crankshaft sprocket components that should line up their timing marks and keyways. To install the camshaft synchronizer drive gear place it correctly and bolt it before removing the retaining pin to complete the installation with the timing cover.
