How to properly bleed the front brake caliper on Ford Fusion?

The front brake caliper bleeding requires brake fluid that matches manufacturer requirements and should use new fluid only because using drained fluid causes contamination and damage to the system. Keeping the brake master cylinder properly filled remains vital so braking function stays operational while performing this process. Any incidents of brake fluid leakage should result in quick washing with water across painted or plastic surfaces. The starting point is to first remove the brake caliper bleeder screw cap followed by using a box-end wrench on the bleeder screw. A rubber drain hose should be attached to the bleeder screw with a free end submerged in a container containing clean specified brake fluid. An assistant needs to press the brake pedal at least two times before keeping steady pressure. To maintain bleeding control the assistant should hold pressure on the pedal while the technician loosens and tightens the bleeder screw to let fluid stream out. Complete this bleeder screw operation until you achieve fluid that is free of bubbles then follow by replacing the brake master cylinder reservoir fluid if necessary. Finish by closing the bleeder screw to the indicated torque and then removing the rubber hose before putting back the bleeder screw cap.

How to service and repair the front brake caliper on Ford Fusion?

Service and repair work on the front brake caliper should begin by positioning a hoisted vehicle in neutral. You should remove the brake caliper flow bolt then set the hose aside before discarding the two copper washers. Reinstall the flow bolt with 25 Nm torque value (18 ft. lbs.). The brake caliper guide pin bolts should be removed first but during replacement you must tighten them to 27 Nm (20 ft. lbs.). The brake caliper needs replacement when leaking or damaged caliper piston boots appear. The caliper guide pin boots need proper positioning on anchor plate edges to stop guide pin contamination because the boot lip must rest under the edge of the plate extension. It is essential to avoid turning the brake caliper hose when reinstalling it. End the brake system removal process while performing a bleeding procedure. Only approved DOT 3 motor vehicle brake fluid must be used to protect brake components from permanent damage yet brake fluid should be handled carefully because it affects painted surfaces and plastics thus causes immediate water cleanup of any spills. To access emergency medical information about Ford/Motorcraft products dial 1-800-959-3673 while consulting the MSDS when the document is available.

OEM Ford Fusion Brake Caliper

Caliper

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

10 Brake Calipers found

View related parts

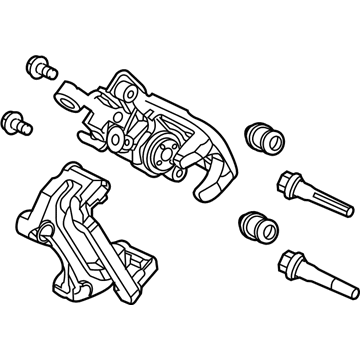

Ford Fusion Caliper, Rear Driver Side Part Number: 6E5Z-2553-C
$109.35 MSRP: $181.82
You Save: $72.47 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Housing; Disc Brake Caliper, Rear Left; Brake Caliper Repair Kit; Brake Caliper
- Manufacturer Note: Warranty Eligible
- Position: Rear Driver Side
- Replaces: 6E5Z-2553-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2012 Ford Fusion | Hybrid, S, SE, SEL, Sport | 4 Cyl 2.3 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 3.5 L GAS
View related parts
Ford Fusion Caliper, Rear Passenger Side Part Number: 6E5Z-2552-C
$109.35 MSRP: $181.82
You Save: $72.47 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Housing; Disc Brake Caliper, Rear Right; Brake Caliper Repair Kit; Brake Caliper
- Manufacturer Note: Warranty Eligible
- Position: Rear Passenger Side
- Replaces: 6E5Z-2552-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2012 Ford Fusion | Hybrid, S, SE, SEL, Sport | 4 Cyl 2.3 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 3.5 L GAS
View related parts
Ford Fusion Caliper Assembly, Front Driver Side Part Number: G3GZ-2B121-A
$107.54 MSRP: $169.09
You Save: $61.55 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Caliper Assembly - Brake - Less Pad; Disc Brake Caliper, Front Left; Brake Caliper Repair Kit; Caliper; Caliper Assembly - Brake - Less Pads; Brake Caliper
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017-2019 Ford Fusion | Platinum, S, SE, SEL, Sport, Titanium | 4 Cyl 1.5 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 2.7 L GAS
View related parts
Ford Fusion Caliper Assembly, Front Passenger Side Part Number: G3GZ-2B120-A
$105.36 MSRP: $165.64
You Save: $60.28 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Caliper Assembly - Brake - Less Pad; Disc Brake Caliper, Front Right; Brake Caliper Repair Kit; Caliper; Caliper Assembly - Brake - Less Pads; Brake Caliper
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017-2019 Ford Fusion | Platinum, S, SE, SEL, Sport, Titanium | 4 Cyl 1.5 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 2.7 L GAS
View related parts
Ford Fusion Caliper Assembly, Front Driver Side Part Number: DG9Z-2B121-A
$41.58 MSRP: $64.36
You Save: $22.78 (36%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Caliper Assembly - Brake - Less Pad; Disc Brake Caliper, Front Left; Brake Caliper Repair Kit; Caliper; Caliper Assembly - Brake - Less Pads; Brake Caliper
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2020 Ford Fusion | Energi Platinum, Energi SE, Energi Titanium, Platinum, Platinum Hybrid, S, S Hybrid, SE, SE Hybrid, SEL, SEL Hybrid, Sport, Titanium, Titanium Hybrid | 4 Cyl 1.5 L GAS, 4 Cyl 1.6 L GAS, 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV), 4 Cyl 2.5 L FLEX, 4 Cyl 2.5 L GAS, 6 Cyl 2.7 L GAS
View related parts
Ford Fusion Caliper Assembly, Front Passenger Side Part Number: DG9Z-2B120-A
$41.47 MSRP: $64.18
You Save: $22.71 (36%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Caliper Assembly - Brake - Less Pad; Disc Brake Caliper, Front Right; Brake Caliper Repair Kit; Caliper; Caliper Assembly - Brake - Less Pads; Brake Caliper
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2020 Ford Fusion | Energi Platinum, Energi SE, Energi Titanium, Platinum, Platinum Hybrid, S, S Hybrid, SE, SE Hybrid, SEL, SEL Hybrid, Sport, Titanium, Titanium Hybrid | 4 Cyl 1.5 L GAS, 4 Cyl 1.6 L GAS, 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV), 4 Cyl 2.5 L FLEX, 4 Cyl 2.5 L GAS, 6 Cyl 2.7 L GAS
View related parts
Ford Fusion Caliper, Rear Driver Side Part Number: DG9Z-2553-C
$105.91 MSRP: $172.55
You Save: $66.64 (39%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Housing; Disc Brake Caliper, Rear Left; Brake Caliper Repair Kit; Brake Caliper
- Manufacturer Note: Warranty Eligible
- Position: Rear Driver Side
- Replaces: BRCF-333, DG9Z-2553-B, DG9Z-2553-A, BRCF-245
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2020 Ford Fusion | Energi Platinum, Energi SE, Energi Titanium, Platinum, Platinum Hybrid, S, S Hybrid, SE, SE Hybrid, SEL, SEL Hybrid, Sport, Titanium, Titanium Hybrid | 4 Cyl 1.5 L GAS, 4 Cyl 1.6 L GAS, 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV), 4 Cyl 2.5 L FLEX, 4 Cyl 2.5 L GAS, 6 Cyl 2.7 L GAS
View related parts
Ford Fusion Caliper, Rear Passenger Side Part Number: DG9Z-2552-C
$105.03 MSRP: $171.09
You Save: $66.06 (39%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Housing; Disc Brake Caliper, Rear Right; Brake Caliper Repair Kit; Brake Caliper
- Manufacturer Note: Warranty Eligible
- Position: Rear Passenger Side
- Replaces: BRCF-332, BRCF-244, DG9Z-2552-B, DG9Z-2552-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2020 Ford Fusion | Energi Platinum, Energi SE, Energi Titanium, Platinum, Platinum Hybrid, S, S Hybrid, SE, SE Hybrid, SEL, SEL Hybrid, Sport, Titanium, Titanium Hybrid | 4 Cyl 1.5 L GAS, 4 Cyl 1.6 L GAS, 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV), 4 Cyl 2.5 L FLEX, 4 Cyl 2.5 L GAS, 6 Cyl 2.7 L GAS
View related parts
Ford Fusion Caliper Assembly, Front Driver Side Part Number: 6E5Z-2B121-C
Product Specifications
- Other Name: Caliper Assembly - Brake - Less Pad; Disc Brake Caliper, Front Left; Brake Caliper Repair Kit; Caliper; Caliper Assembly - Brake - Less Pads; Brake Caliper
- Manufacturer Note: Warranty Eligible
- Position: Front Driver Side
- Replaces: 6E5Z-2B121-B, BRCLF-23
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2012 Ford Fusion | Hybrid, S, SE, SEL, Sport | 4 Cyl 2.3 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 3.5 L GAS
View related parts
Ford Fusion Caliper Assembly, Front Passenger Side Part Number: 6E5Z-2B120-C
Product Specifications
- Other Name: Caliper Assembly - Brake - Less Pad; Disc Brake Caliper, Front Right; Brake Caliper Repair Kit; Caliper; Caliper Assembly - Brake - Less Pads; Brake Caliper
- Manufacturer Note: Warranty Eligible
- Position: Front Passenger Side
- Replaces: 6E5Z-2B120-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2012 Ford Fusion | Hybrid, S, SE, SEL, Sport | 4 Cyl 2.3 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 3.5 L GAS

Ford Fusion Brake Caliper

OEM Brake Caliper boasts unmatched quality. Each part goes through full quality checks. They adhere to Ford's official factory standards. These steps remove flaws and inconsistencies. So you can get Brake Caliper with long life and a perfect fit. Come to our website and find genuine Ford Fusion parts. We keep a wide inventory of OEM Fusion parts at the highly affordable prices. It's easy to search, compare, and pick what you need. You'll love the clear info and simple checkout. We offer top-rated customer service, and we reply fast. We also ship promptly to ensure your order arrives on time.

The Brake Caliper is the component of the Ford Fusion cars that takes hydraulic pressure which is supplied by the master cylinder and transforms it into mechanical force. This force is very relevant in applying pressure on the brake pads against the rotors for a slowing or a stoppage of the vehicle. Ford Fusion models utilize two primary types of Brake Calipers: It is divided into two parts which include, fixed and floating. Fixed calipers have pistons on both side of the rotor offering regular pressures while floating, callipers have pistons on one side and slide to apply pressure and therefore may develop some problems such as uneven wear of pad if not well checked. Since the first release in the market, there has been changes in the models of Ford Fusion Brake Calipers, there are the standard original equipment calipers and those with enhanced performance. There are performance calipers that provide not only the increased stopping power but also look better in corresponding car uses. It is also important that inspections and maintenance of the brake caliper are made periodically since any defects may result in such symptoms such as brake dragging, uneven wearing off or even poor Ford Fusion performance.

Ford Fusion Brake Caliper Parts and Q&A

Caliper Assembly, Front Passenger Side
6E5Z-2B120-C
Q: How to properly bleed the front brake caliper on Ford Fusion?
A:
The front brake caliper bleeding requires brake fluid that matches manufacturer requirements and should use new fluid only because using drained fluid causes contamination and damage to the system. Keeping the Brake Master Cylinder properly filled remains vital so braking function stays operational while performing this process. Any incidents of brake fluid leakage should result in quick washing with water across painted or plastic surfaces. The starting point is to first remove the brake caliper bleeder screw cap followed by using a box-end wrench on the bleeder screw. A rubber drain hose should be attached to the bleeder screw with a free end submerged in a container containing clean specified brake fluid. An assistant needs to press the brake pedal at least two times before keeping steady pressure. To maintain bleeding control the assistant should hold pressure on the pedal while the technician loosens and tightens the bleeder screw to let fluid stream out. Complete this bleeder screw operation until you achieve fluid that is free of bubbles then follow by replacing the brake master cylinder reservoir fluid if necessary. Finish by closing the bleeder screw to the indicated torque and then removing the rubber hose before putting back the bleeder screw cap.
Caliper Assembly, Front Driver Side
6E5Z-2B121-C
Q: How to service and repair the front brake caliper on Ford Fusion?
A:
Service and repair work on the front brake caliper should begin by positioning a hoisted vehicle in neutral. You should remove the brake caliper flow bolt then set the hose aside before discarding the two copper washers. Reinstall the flow bolt with 25 Nm torque value (18 ft. lbs.). The brake caliper guide pin bolts should be removed first but during replacement you must tighten them to 27 Nm (20 ft. lbs.). The brake caliper needs replacement when leaking or damaged caliper piston boots appear. The caliper guide pin boots need proper positioning on anchor plate edges to stop guide pin contamination because the boot lip must rest under the edge of the plate extension. It is essential to avoid turning the brake caliper hose when reinstalling it. End the brake system removal process while performing a bleeding procedure. Only approved DOT 3 motor vehicle brake fluid must be used to protect brake components from permanent damage yet brake fluid should be handled carefully because it affects painted surfaces and plastics thus causes immediate water cleanup of any spills. To access emergency medical information about Ford/Motorcraft products dial 1-800-959-3673 while consulting the MSDS when the document is available.
