Question 1

How to Service and Repair the Air Bag Control Module on Ford Mustang?

Accepted Answer

A prerequisite for Restraints Control Module (RCM) servicing or repair includes checking if the vehicle survived a crash and performing RCM and impact sensor mounting area inspections for damage followed by proper restoration. The RCM requires installation of its proper replacement to eliminate false diagnostic trouble codes from appearing yet the air bag warning light becomes visible when removing the RCM fuse while the ignition switch remains ON. This condition is expected to happen. The SRS system requires no faults and complete functionality before returning the vehicle to customers while repairs can only happen through new part installation. Start by disabling SRS functionality followed by the removal of shift lever bezels unless your model has them together with the two console floor panel screws for the floor console finish panel. To start apply the parking brake then remove the finish panel along with disconnecting the electrical connector from the powerpoint and audio input jack before removing the two center stack wings. The operator should first relocate their floor console mat aside before using two front floor console screws to remove the mat and floor console nuts which enable console movement from the instrument panel. Begin by removing six screws from the instrument panel center finish panel while disconnecting its electrical connectors through prying. To disconnect the large RCM electrical connector, pinch the thumb tab and rotate the connector position assurance lever backward before extracting the connector. Remove the small RCM electrical connector while disconnecting the attachment for the RCM and then proceed to take out the RCM-securing three nuts. To avoid incorrect operation always tighten the RCM and impact sensor fasteners up to 12 Nm (9 lb-ft). The small RCM electrical connector installation requires the large connector position assurance lever to be free of all contact before final connection. Use constant pressure instead of force when positioning the large RCM electrical wiring connector to protect it from damage. Seating should be achieved by operating the lever. The system will accept the large RCM electrical wiring connector when you ensure the thumb tab is secure. Reinstall the instrument panel center finish panel by using six screws while putting the floor console into position and securing it with two nuts and mat. After reattaching the floor console finish panel with its two screws users can operate the parking brake. The user must repower the SRS after installing the shift lever bezel (if equipped).

Question 2

What is the Importance of the Air Bag Control Module in the Supplemental Restraint System (SRS) and What Steps Should Be Taken if It Is Damaged on Ford Mustang?

Accepted Answer

Rockford Motor Company requires that the Restraints Control Module (RCM) stays correctly positioned because it ensures proper air bag supplemental restraint system (SRS) functioning. Vehicle owners should replace the RCM even if air bags were not deployed after destructive accidents to the center tunnel area. Additionally the repair must restore the mounting area back to its original state. The back up power supply requires depletion through disconnecting the battery ground cable followed by a minimum one-minute wait period and complete disconnection of any auxiliary batteries and power supplies to prevent accidental deployment and injuries. Electric parts will sustain damage because static electricity remains an issue for their operation. The process of repair requires installing new components but reinstalling the original parts may be needed before running the diagnostic check again for persistent issues. Start the removal procedure by disconnecting the battery ground cable first and then remove the right-hand RCM bracket retaining bolt before resetting the carpet at the right side of the Instrument Panel (I/P) center support bracket. The procedure requires removal of the RCM bracket retaining bolt and afterward the RCM together with its bracket. Begin by placing the carpet at the left edge of the I/P center support bracket and detach the RCM electrical connector locking clip. After disconnecting the electrical connector remove the two retaining bolts to let go of the RCM along with its bracket. After following the original removal procedures in reverse order check that RCM bracket retaining bolt torque values are correct to maintain system operational functionality. Air bag system proofing must happen after system installation. Before road use operators must remove the Restraint System Diagnostic Tool from the vehicle because it is exclusive for restraint system service and its presence represents both safety hazards and regulatory violations.

OEM Ford Mustang Air Bag Control Module

16 Air Bag Control Modules found

Ford Mustang Control Module Part Number: DR3Z-14B321-C

Ford Mustang Control Module Part Number: JR3Z-14B321-D

Ford Mustang Control Module Part Number: HR3Z-14B321-A

Ford Mustang Control Module Part Number: BR3Z-14B321-A

Ford Mustang Control Module Part Number: AR3Z-14B321-C

Ford Mustang Control Module Part Number: PR3Z-14B321-A

Ford Mustang Control Module Part Number: MR3Z-14B321-C

Ford Mustang Diagnostic Module Part Number: JR3Z-14B321-B

Ford Mustang Control Module Part Number: 8R3Z-14B321-C

Ford Mustang Control Module Part Number: YR3Z-14B321-AA

Ford Mustang Diagnostic Module Part Number: FODZ-14B056-A

Ford Mustang Control Module Part Number: F2AZ-14B056-A

Ford Mustang Control Module Part Number: AR3Z-14B321-D

Ford Mustang Control Module Part Number: 8R3Z-14B321-B

Ford Mustang Control Module Part Number: 8R3Z-14B321-A

Ford Mustang Control Module Part Number: 4R3Z-14B321-CA

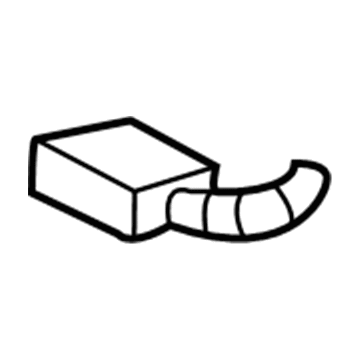

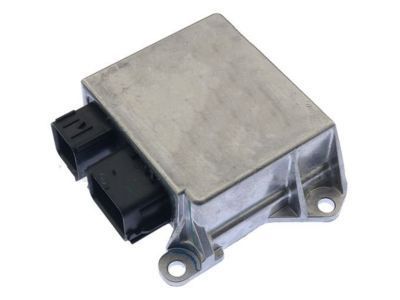

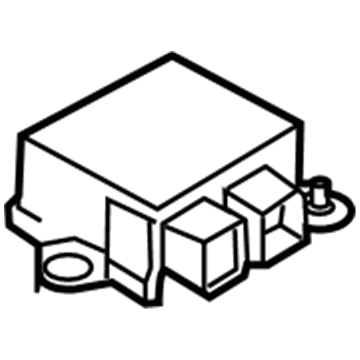

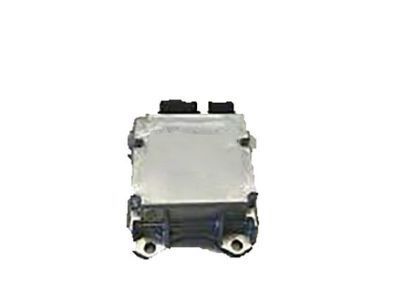

Ford Mustang Air Bag Control Module

Ford Mustang Air Bag Control Module Parts and Q&A
