How to Safely Service and Repair a Fuel Level Sensor on Lincoln Mark LT?

The first step for fuel level sensor maintenance requires removal of the fuel pump module under smoke-free conditions because of the explosion hazard posed by combustible vapor mixtures. Note down how the fuel level sensor wire routes itself because this information will help install it correctly. The service procedure starts with removing the heat shrink tube from the electrical connector and then detaching the connector. Next step is to separate the fuel level sensor wire from the fuel pump module wire harness. Pull out the screw then raise the fuel level sensor from its place. When installing the sensor position its wire in the middle of the fuel pump module. To install the fuel level sensor in gasoline vehicles both wires should pass to the rear of the sensor plate so the grounding eyelet stays on the sensor front side. Attach the sensor to the fuel pump module then apply the screw through the grounding eyelet before tightening the screw. Flexible fuel vehicles require both fuel level sensor wires to be routed behind the sensor and along the left side with the grounding eyelet placed on the front side. Secure the sensor onto the fuel pump module while using the screw to fasten it before placing the wire inside the module. The wire harness requires the heat shrink tube to slide over it before connecting the electrical connector through heat gun application instead of open flame usage. The fuel level sensor wire needs to wrap around the fuel pump module wire harness to avoid interfering with the fuel gauge sending unit float arm and the fuel pump module and fuel tank must be restored in their proper positions.

How to Safely Service the Fuel Level Sensor on Lincoln MKX?

Service of the fuel level sensor requires following basic safety precautions to protect against hazardous mixtures and to exclude smoking tobacco and open flames together with personal electronic devices. The service of the fuel level sensor starts with removing the fuel pump (FP) module while also cutting the power connector from the fuel level sensor. Start by depressing the lock tab and push the fuel level sensor towards the top until it exits. Start the installation by following the inverse steps used for removal to finalize the process.

How to Service and Repair a Fuel Level Sensor in a Fuel Pump Module on Lincoln Town Car?

The service of the fuel level sensor requires technicians to start with fuel tank removal. Disconnect the electrical connector for the pressure transducer which resides at the top rear side of the fuel tank and remove the two harness retainers from the tank. Handle the fuel pump with caution while cleaning around its mounting flange because any roughness may damage both the float arm and filter. Carefully remove the fuel pump by unfastening its six bolts and tighten the bolts to 10 Nm (89 lb-in) before installation. The old fuel pump mounting gasket deserves disposal before checking the contact areas between the fuel pump module flange and fuel tank seal. A new fuel pump module or fuel tank needs to be installed whenever the seal contact area shows bent or scratched or corroded condition. Recovery of the fuel pump installation requires performing procedures in the opposite order of removal.

OEM Lincoln Fuel Level Sensor

Gas Gauge Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

115 Fuel Level Sensors found

View related parts

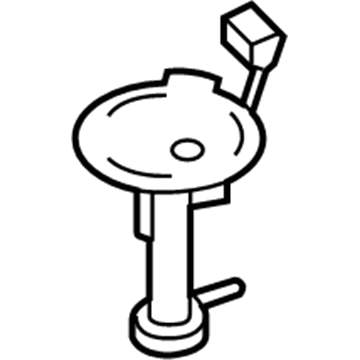

Lincoln Fuel Gauge Sending Unit
Part Number: AL1Z-9A299-A
$48.42 MSRP: $79.09
You Save: $30.67 (39%)
ADD TO CART
Product Specifications
- Other Name: Sender Assembly - Fuel Tank; Fuel Sender and Hanger; Fuel Pump Module; Fuel Level Sensor; Sending Unit.; Fuel Sender Unit; Sending Unit
Fits the following Lincoln Models:
- Navigator | 2010-2014 | L | 8 Cyl 5.4 L FLEX
View related parts

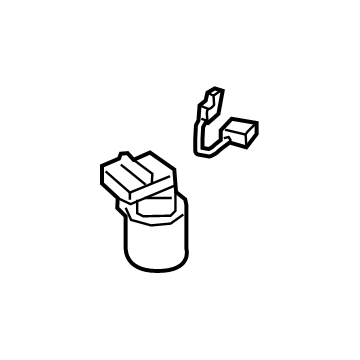

Lincoln Fuel Pump
Part Number: HL3Z-9350-B
$522.10 MSRP: $766.67
You Save: $244.57 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly - Fuel; Direct Injection High Pressure Fuel Pump; Gasoline Direct Injector Pump
- Replaces: HL3Z-9350-A
Fits the following Lincoln Models:
- Navigator | 2018-2021 | Base, Black Label, L Black Label, L Livery, L Reserve, L Select, Premiere, Reserve, Select | 6 Cyl 3.5 L GAS
View related parts
Lincoln Fuel Pump, Driver Side
Part Number: 8A4Z-9275-B
$205.44 MSRP: $349.09
You Save: $143.65 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sender Assembly - Fuel Tank; Fuel Sending Unit; Fuel Level Sensor; Hanger Assembly.; Fuel Pump Assembly; Fuel Sender Unit
- Position: Driver Side
Fits the following Lincoln Models:
- MKT | 2010-2012 | Base, EcoBoost | 6 Cyl 3.5 L GAS, 6 Cyl 3.7 L GAS
View related parts

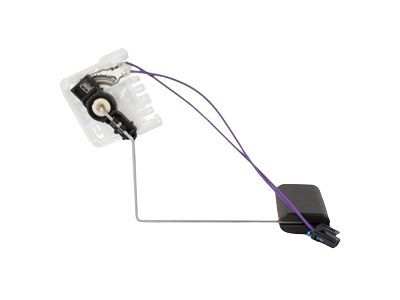

Lincoln Fuel Gauge Sending Unit
Part Number: FL1Z-9A299-C
$164.99 MSRP: $262.00
You Save: $97.01 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sender Assembly - Fuel Tank; Sending Unit; Fuel Pump Module; Level Sensor.; Sending Unit
- Replaces: FL1Z-9A299-A, PS-961
Fits the following Lincoln Models:
- Navigator | 2015-2017 | Base, Reserve, Select | 6 Cyl 3.5 L GAS
View related parts

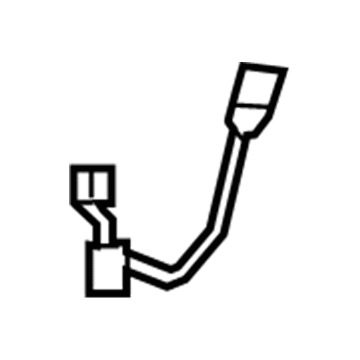

Lincoln Fuel Pump
Part Number: NL1Z-9H307-B
$424.49 MSRP: $623.33
You Save: $198.84 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sender And Pump Assembly; Electric Fuel Pump
- Replaced by: NL1Z-9H307-D
Fits the following Lincoln Models:
- Navigator | 2022-2024 | Base, Black Label, L Base, L Black Label, L Livery, L Reserve, Reserve | 6 Cyl 3.5 L GAS
View related parts

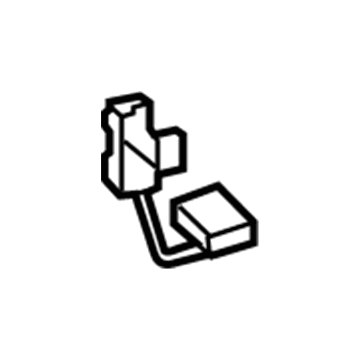

Lincoln Fuel Pump
Part Number: NL1Z-9H307-A
$108.55 MSRP: $158.00
You Save: $49.45 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sender And Pump Assembly; Electric Fuel Pump
- Replaced by: NL1Z-9H307-C
Fits the following Lincoln Models:
- Navigator | 2022-2024 | Base, Black Label, L Base, L Black Label, L Livery, L Reserve, Reserve | 6 Cyl 3.5 L GAS
View related parts

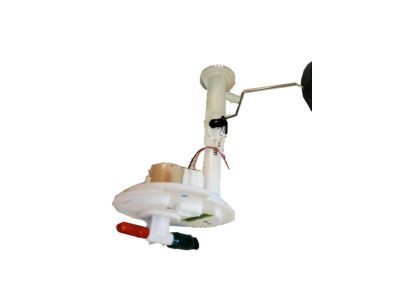

Lincoln Fuel Gauge Sending Unit
Part Number: NL1Z-9A299-A
$69.62 MSRP: $101.33
You Save: $31.71 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sender Assembly - Fuel Tank; Fuel Tank Sending Unit; Fuel Sender Unit
Fits the following Lincoln Models:
- Navigator | 2022-2024 | Base, Black Label, L Base, L Black Label, L Livery, L Reserve, Reserve | 6 Cyl 3.5 L GAS
View related parts

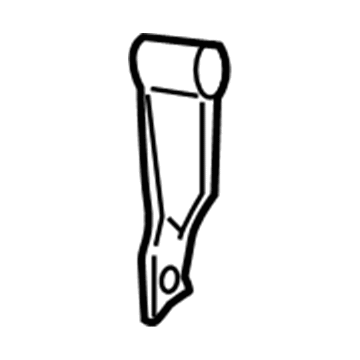

Lincoln Fuel Pump
Part Number: L1MZ-9H307-F
$298.51 MSRP: $478.18
You Save: $179.67 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sender And Pump Assembly; Electric Fuel Pump; Fuel Pump Assembly
- Replaced by: L1MZ-9H307-N
Fits the following Lincoln Models:
- Aviator | 2020-2023 | Base, Black Label, Livery, Reserve | 6 Cyl 3.0 L GAS
View related parts
Lincoln Fuel Gauge Sending Unit, Driver Side
Part Number: 8A5Z-9A299-B
$41.79 MSRP: $66.36
You Save: $24.57 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sender Assembly - Fuel Tank; Fuel Tank Sending Unit, Left; Fuel Level Sensor; Fuel Sending Unit; Fuel Sender Unit
- Manufacturer Note: Sender For 9275 Fuel Pump
- Position: Driver Side
Fits the following Lincoln Models:
- MKS | 2009-2012 | Base, EcoBoost | 6 Cyl 3.5 L GAS, 6 Cyl 3.7 L GAS
View related parts
Lincoln Fuel Gauge Sending Unit
Part Number: EJ7Z-9A299-A
$110.79 MSRP: $186.00
You Save: $75.21 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sender Assembly - Fuel Tank; Fuel Pump Module Assembly; Fuel Level Sensor; Fuel Sending Unit; Fuel Pump Module; Fuel Sender Unit
Fits the following Lincoln Models:
- MKC | 2015-2016 | Base, Black Label, Reserve, Select | 4 Cyl 2.3 L GAS
View related parts
Lincoln Sensor Kit
Part Number: 8A5Z-9A299-A
$54.03 MSRP: $90.55
You Save: $36.52 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Gauge Assembly - Fuel; Fuel Level Sensor
- Manufacturer Note: Service Kit
Fits the following Lincoln Models:
- MKS | 2009-2012 | Base | 6 Cyl 3.7 L GAS
View related parts
Lincoln Fuel Gauge Sending Unit
Part Number: DG1Z-9A299-C
$64.13 MSRP: $103.45
You Save: $39.32 (39%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sender Assembly - Fuel Tank; Fuel Tank Sending Unit; Fuel Level Sensor; Fuel Sending Unit; Level Sensor; Fuel Sender Unit
- Replaces: DG1Z-9A299-G
Fits the following Lincoln Models:
- MKS | 2013-2016 | Base, EcoBoost | 6 Cyl 3.5 L GAS, 6 Cyl 3.7 L GAS
View related parts
Lincoln Fuel Gauge Sending Unit
Part Number: DG1Z-9A299-B
$61.41 MSRP: $103.09
You Save: $41.68 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sender Assembly - Fuel Tank; Sending Unit, Left/Right; Fuel Pump Module; Level Sensor.; Fuel Sender Unit
- Manufacturer Note: Sender For 9H307 Fuel Pump
- Replaces: DG1Z-9A299-F
Fits the following Lincoln Models:
- MKS | 2013-2016 | Base, EcoBoost | 6 Cyl 3.5 L GAS, 6 Cyl 3.7 L GAS
View related parts
Lincoln Fuel Gauge Sending Unit
Part Number: DG9Z-9A299-M
$174.64 MSRP: $294.00
You Save: $119.36 (41%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sender Assembly - Fuel Tank; Fuel Tank Sending Unit; Fuel Level Sensor; Fuel Sending Unit; Sending Unit
- Replaces: DG9Z-9A299-F
Fits the following Lincoln Models:
- MKZ | 2017-2020 | Black Label Hybrid, Hybrid, Premiere Hybrid, Reserve Hybrid, Reserve I Hybrid, Reserve II Hybrid, Select Hybrid | 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV)
View related parts
Lincoln Fuel Pump
Part Number: EG9Z-9H307-D
$324.22 MSRP: $554.55
You Save: $230.33 (42%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sender And Pump Assembly; Electric Fuel Pump; Fuel Pump Module Assembly; Fuel Pump Assembly
- Replaces: PFS-1077, DG9Z-9H307-M, EG9Z-9H307-B, PFS-982
Fits the following Lincoln Models:
- MKZ | 2017-2020 | Black Label Hybrid, Hybrid, Premiere Hybrid, Reserve Hybrid, Reserve I Hybrid, Reserve II Hybrid, Select Hybrid | 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV)
View related parts
Lincoln Fuel Pump
Part Number: JL7Z-9H307-C
$477.42 MSRP: $792.73
You Save: $315.31 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sender And Pump Assembly
Fits the following Lincoln Models:
- Navigator | 2018-2021 | Base, Black Label, Premiere, Reserve, Select | 6 Cyl 3.5 L GAS
View related parts
Lincoln Fuel Pump
Part Number: JL7Z-9H307-D
$491.46 MSRP: $787.27
You Save: $295.81 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sender And Pump Assembly
Fits the following Lincoln Models:
- Navigator | 2018-2021 | L Black Label, L Reserve, L Select | 6 Cyl 3.5 L GAS
View related parts
Lincoln Fuel Gauge Sending Unit, Driver Side
Part Number: DA8Z-9A299-C
$61.99 MSRP: $102.00
You Save: $40.01 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sender Assembly - Fuel Tank; Left Fuel Sender and Hanger Assembly; Fuel Level Sensor.; Level Sensor; Sending Unit
- Manufacturer Note: Sender For 9275 Fuel Pump
- Position: Driver Side
Fits the following Lincoln Models:
- MKT | 2013-2019 | Base, EcoBoost, Livery, Premiere, Reserve | 6 Cyl 3.5 L GAS, 6 Cyl 3.7 L GAS
View related parts
Lincoln Fuel Pump
Part Number: GV6Z-9H307-D
$251.85 MSRP: $418.18
You Save: $166.33 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sender And Pump Assembly; Electric Fuel Pump; Fuel Pump Module Assembly; Fuel Pump Assembly
- Replaces: PFS-1109, GV6Z-9H307-B
Fits the following Lincoln Models:
- MKC | 2017-2019 | Base, Black Label, Premiere, Reserve, Select | 4 Cyl 2.0 L GAS
View related parts
Lincoln Fuel Gauge Sending Unit, Passenger Side
Part Number: DG1Z-9A299-D
$57.61 MSRP: $96.55
You Save: $38.94 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sender Assembly - Fuel Tank; Fuel Tank Sending Unit, Left, Right; Fuel Level Sensor; Fuel Sending Unit; Fuel Sender Unit
- Manufacturer Note: Sender For 9H307 Fuel Pump
- Position: Passenger Side
Fits the following Lincoln Models:
- MKS | 2013-2016 | Base | 6 Cyl 3.7 L GAS

| Page 1 of 6 |Next >

1-20 of 115 Results

Lincoln Fuel Level Sensor Parts Questions & Experts Answers

Fuel Gauge Sending Unit
8L3Z-9A213-B
Q: How to Safely Service and Repair a Fuel Level Sensor on Lincoln Mark LT?
A: The first step for fuel level sensor maintenance requires removal of the fuel pump module under smoke-free conditions because of the explosion hazard posed by combustible vapor mixtures. Note down how the fuel level sensor wire routes itself because this information will help install it correctly. The service procedure starts with removing the heat shrink tube from the electrical connector and then detaching the connector. Next step is to separate the fuel level sensor wire from the fuel pump module wire harness. Pull out the screw then raise the fuel level sensor from its place. When installing the sensor position its wire in the middle of the fuel pump module. To install the fuel level sensor in gasoline vehicles both wires should pass to the rear of the sensor plate so the grounding eyelet stays on the sensor front side. Attach the sensor to the fuel pump module then apply the screw through the grounding eyelet before tightening the screw. Flexible fuel vehicles require both fuel level sensor wires to be routed behind the sensor and along the left side with the grounding eyelet placed on the front side. Secure the sensor onto the fuel pump module while using the screw to fasten it before placing the wire inside the module. The wire harness requires the heat shrink tube to slide over it before connecting the electrical connector through heat gun application instead of open flame usage. The fuel level sensor wire needs to wrap around the fuel pump module wire harness to avoid interfering with the fuel gauge sending unit float arm and the fuel pump module and fuel tank must be restored in their proper positions.
Fuel Pump
7T4Z-9275-B
Q: How to Safely Service the Fuel Level Sensor on Lincoln MKX?
A: Service of the fuel level sensor requires following basic safety precautions to protect against hazardous mixtures and to exclude smoking tobacco and open flames together with personal electronic devices. The service of the fuel level sensor starts with removing the fuel pump (FP) module while also cutting the power connector from the fuel level sensor. Start by depressing the lock tab and push the fuel level sensor towards the top until it exits. Start the installation by following the inverse steps used for removal to finalize the process.
Fuel Gauge Sending Unit
6W1Z-9A299-A
Q: How to Service and Repair a Fuel Level Sensor in a Fuel Pump Module on Lincoln Town Car?
A: The service of the fuel level sensor requires technicians to start with fuel tank removal. Disconnect the electrical connector for the pressure transducer which resides at the top rear side of the fuel tank and remove the two harness retainers from the tank. Handle the fuel pump with caution while cleaning around its mounting flange because any roughness may damage both the float arm and filter. Carefully remove the fuel pump by unfastening its six bolts and tighten the bolts to 10 Nm (89 lb-in) before installation. The old fuel pump mounting gasket deserves disposal before checking the contact areas between the fuel pump module flange and fuel tank seal. A new fuel pump module or fuel tank needs to be installed whenever the seal contact area shows bent or scratched or corroded condition. Recovery of the fuel pump installation requires performing procedures in the opposite order of removal.
