How to remove and install the Transfer Case Seal in the Automatic transmission on Ford Bronco II?

In order to replace the driveshaft, the following procedures are as follows, - Open the bonnet and disconnect the negative terminal of the battery - Safely jack and support the vehicle. Align the end yoke of the driveshaft with the companion flange of the rear axle and then after the alignment has been set, you can then release the driveshaft. In the next step employ a seal remover to remove the oil seal from the extension housing. Before installing the replacement seal, always check the surface of the universal joint yoke for scores; if there are scores, change the yoke. Replace the seal with a seal installer and put long-life lubrication on the inside diameter of the rubber boot part. Ensure that the matchmarks coincide and refit the driveshaft, next lower the car and connect the negative terminal of the battery.

How to replace the Transfer Case Seal in the extension housing of a 2WD 2000-2011 Ford Ranger?

Raise the vehicle and support it securely on jackstands. Remove the driveshaft, noting that some transmission lubricant may drain out when the driveshaft slip joint is withdrawn from the extension housing. To remove the oil seal from the end of the extension housing, use a special tool available at most auto parts stores, or if that is not available and access allows, use a thin blade screwdriver or chisel to pry the oil seal out. Inspect the sealing surface on the driveshaft slip joint for any scoring or burrs that could damage the new oil seal; if the yoke is damaged, it should be replaced. Check the extension housing counterbore for burrs and remove them with emery cloth or medium grit wet-and-dry sandpaper, then clean any sanding residue with a cloth dipped in solvent. Apply silicone sealant to the inside diameter of the oil seal and grease to the end of the rubber boot portion. Using a seal driver, large socket, or section of pipe, install a new oil seal, ensuring it is completely seated in the counterbore. Reinstall the driveshaft, lower the vehicle, and check the transmission lubricant level, topping up if necessary.

OEM Ford Transfer Case Seal

Transfer Case Output Shaft Seal

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

57 Transfer Case Seals found

View related parts

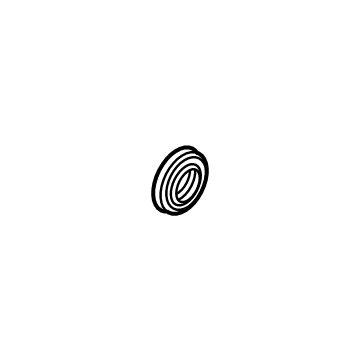

Ford Extension Housing Seal Part Number: 7C3Z-7052-A
$45.91 MSRP: $68.75
You Save: $22.84 (34%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Seal Assembly - Oil; Automatic Transmission Extension Housing Seal; Transmission Seal
- Replaces: 3C3Z-7052-BA
Fits the following Ford Models:
- E-150 | 2005-2007 | Base, Chateau, XL, XLT | 8 Cyl 4.6 L GAS, 8 Cyl 5.4 L GAS
- E-250 | 2005-2007 | Base | 8 Cyl 4.6 L GAS, 8 Cyl 5.4 L GAS
- E-350 Super Duty | 2015-2016, 2005-2007 | Base, Chateau, XL, XLT | 10 Cyl 6.8 L CNG, 10 Cyl 6.8 L GAS, 10 Cyl 6.8 L LPG, 8 Cyl 5.4 L CNG, 8 Cyl 5.4 L FLEX, 8 Cyl 5.4 L GAS, 8 Cyl 5.4 L LPG, 8 Cyl 6.0 L DIESEL
- Excursion | 2003-2004 | Eddie Bauer, Limited, XLS, XLT | 10 Cyl 6.8 L GAS, 8 Cyl 5.4 L GAS, 8 Cyl 7.3 L DIESEL
- F-250 Super Duty | 2005-2010 | Cabela's, FX4, Harley-Davidson Edition, King Ranch, Lariat, XL, XLT | 10 Cyl 6.8 L GAS, 8 Cyl 5.4 L GAS, 8 Cyl 6.0 L DIESEL, 8 Cyl 6.4 L DIESEL
- F-350 Super Duty | 2008-2010 | Cabela's, FX4, Harley-Davidson Edition, King Ranch, Lariat, XL, XLT | 10 Cyl 6.8 L GAS, 8 Cyl 5.4 L GAS, 8 Cyl 6.4 L DIESEL
View More
View related parts

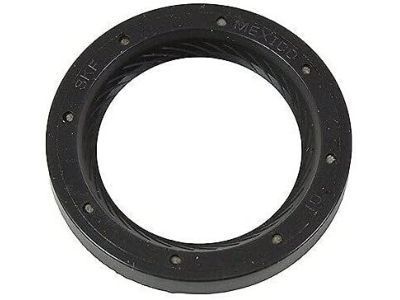

Ford Extension Housing Seal Part Number: 7R3Z-7052-A
$34.95 MSRP: $50.00
You Save: $15.05 (31%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal Assembly - Oil; Manual Transmission Extension Housing Seal; Manual Transmission Gasket Set; Transmission Seal
- Manufacturer Note: Rear Output
Fits the following Ford Models:
- Mustang | 2010-2014 | Shelby GT500 | 8 Cyl 5.4 L GAS, 8 Cyl 5.8 L GAS
View related parts

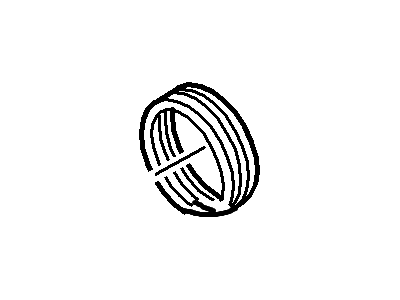

Ford Extension Housing Seal Part Number: 1R3Z-7052-AA
$18.32 MSRP: $26.67
You Save: $8.35 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal Assembly - Oil; Manual Transmission Extension Housing Seal; Gasket Set; Transmission Seal.
- Manufacturer Note: Seal-Input
Fits the following Ford Models:
- Mustang | 2003-2004 | SVT Cobra, SVT Cobra 10th Anniversary | 8 Cyl 4.6 L GAS
View related parts

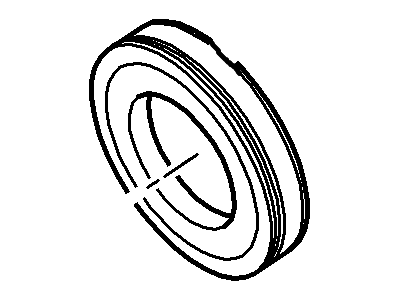

Ford Extension Housing Seal Part Number: BC3Z-7052-B
$43.96 MSRP: $63.98
You Save: $20.02 (32%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Kit - Seal; Automatic Transmission Extension Housing Seal; Transmission Seal
- Manufacturer Note: KIT, SE ASY-TRANS EXT OIL
- Replaces: BC3Z-7052-A
Fits the following Ford Models:
- E-350 Super Duty | 2021-2023, 2016-2019 | Base | 10 Cyl 6.8 L CNG, 10 Cyl 6.8 L GAS, 10 Cyl 6.8 L LPG, 8 Cyl 5.4 L CNG, 8 Cyl 5.4 L FLEX, 8 Cyl 5.4 L LPG, 8 Cyl 6.2 L FLEX, 8 Cyl 7.3 L GAS
- F-250 Super Duty | 2011-2022 | King Ranch, Lariat, Limited, Platinum, XL, XLT | 8 Cyl 6.2 L FLEX, 8 Cyl 6.7 L DIESEL, 8 Cyl 7.3 L GAS
- F-350 Super Duty | 2011-2022 | King Ranch, Lariat, Limited, Platinum, XL, XLT | 8 Cyl 6.2 L FLEX, 8 Cyl 6.7 L DIESEL, 8 Cyl 7.3 L GAS
View More
View related parts

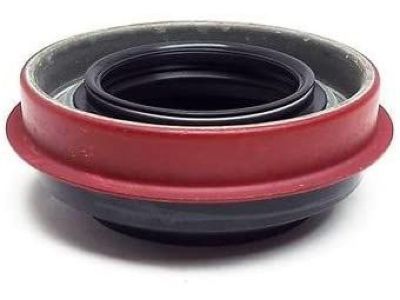

Ford Extension Housing Seal Part Number: FL3Z-7052-B
$21.18 MSRP: $30.83
You Save: $9.65 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal Assembly - Oil; Automatic Transmission Extension Housing Seal; Automatic Transmission Seal; Transmission Seal
Fits the following Ford Models:
- Expedition | 2015-2017 | EL King Ranch, EL Limited, EL Platinum, EL SSV, EL XL, EL XLT, King Ranch, Limited, Platinum, SSV, XL, XLT | 6 Cyl 3.5 L GAS
- F-150 | 2015-2020 | King Ranch, Lariat, Limited, Platinum, Police Responder, SSV, XL, XLT | 6 Cyl 2.7 L GAS, 6 Cyl 3.0 L DIESEL, 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS, 8 Cyl 5.0 L FLEX
- F-250 Super Duty | 2017-2022 | King Ranch, Lariat, Limited, Platinum, XL, XLT | 8 Cyl 6.2 L FLEX, 8 Cyl 6.7 L DIESEL, 8 Cyl 7.3 L GAS
- F-350 Super Duty | 2017-2022 | King Ranch, Lariat, Limited, Platinum, XL, XLT | 8 Cyl 6.2 L FLEX, 8 Cyl 6.7 L DIESEL, 8 Cyl 7.3 L GAS
View More
View related parts

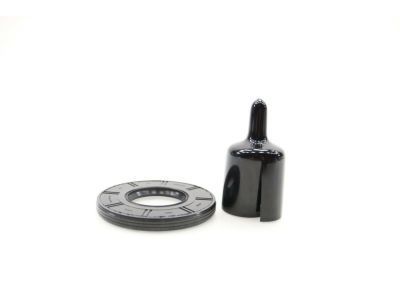

Ford Extension Housing Seal Part Number: 9L3Z-7052-C
$18.32 MSRP: $26.67
You Save: $8.35 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal Assembly - Oil; Automatic Transmission Extension Housing Seal; Oil Seal Set; Seal
Fits the following Ford Models:
- F-150 | 2012-2014 | FX4, Harley-Davidson Edition, King Ranch, Lariat, Limited, Platinum, STX, SVT Raptor, XL, XLT | 6 Cyl 3.5 L GAS, 6 Cyl 3.7 L CNG, 6 Cyl 3.7 L FLEX, 6 Cyl 3.7 L LPG, 8 Cyl 5.0 L FLEX, 8 Cyl 6.2 L GAS
View related parts

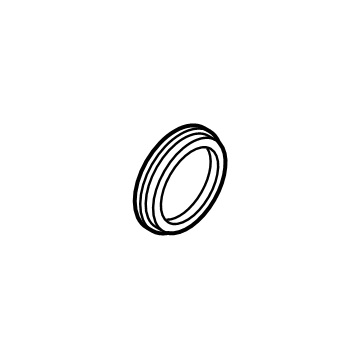

Ford Extension Housing Seal Part Number: 9L3Z-7052-B
$15.46 MSRP: $22.50
You Save: $7.04 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal Assembly - Oil; Automatic Transmission Extension Housing Seal; Oil Seal Set; Seal
Fits the following Ford Models:
- Expedition | 2009-2014 | Eddie Bauer, EL Eddie Bauer, EL King Ranch, EL Limited, EL XL, EL XLT, King Ranch, Limited, XL, XLT | 8 Cyl 5.4 L FLEX
- Explorer | 2009-2010 | Eddie Bauer, Limited, XLT | 6 Cyl 4.0 L GAS, 8 Cyl 4.6 L GAS
- Explorer Sport Trac | 2009-2010 | Limited, XLT | 8 Cyl 4.6 L GAS
- F-150 | 2009-2012 | FX2, FX4, Harley-Davidson Edition, King Ranch, Lariat, Lariat Limited, Platinum, STX, SVT Raptor, XL, XLT | 6 Cyl 3.5 L GAS, 6 Cyl 3.7 L FLEX, 8 Cyl 4.6 L GAS, 8 Cyl 5.0 L FLEX, 8 Cyl 5.4 L FLEX, 8 Cyl 6.2 L GAS
View More
View related parts
Ford Extension Housing Seal Part Number: F81Z-7052-AA
$18.32 MSRP: $26.67
You Save: $8.35 (32%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Seal Assembly - Oil; Automatic Transmission Extension Housing Seal; Automatic Transmission Seal; Transmission Seal
Fits the following Ford Models:
- Excursion | 2001-2005 | Eddie Bauer, Limited, XLS, XLT | 10 Cyl 6.8 L GAS, 8 Cyl 5.4 L GAS, 8 Cyl 7.3 L DIESEL
- F-250 | 1999 | Base, Lariat, XL, XLT | 8 Cyl 4.6 L GAS, 8 Cyl 5.4 L BI-FUEL, 8 Cyl 5.4 L CNG, 8 Cyl 5.4 L GAS
- F-250 Super Duty | 1999-2004 | Harley-Davidson Edition, King Ranch, Lariat, XL, XLT | 10 Cyl 6.8 L GAS, 8 Cyl 5.4 L GAS, 8 Cyl 6.0 L DIESEL, 8 Cyl 7.3 L DIESEL
- F-350 Super Duty | 1999-2004 | Harley-Davidson Edition, King Ranch, Lariat, XL, XLT | 10 Cyl 6.8 L GAS, 8 Cyl 5.4 L GAS, 8 Cyl 6.0 L DIESEL, 8 Cyl 7.3 L DIESEL
View More
View related parts
Ford Extension Housing Seal Part Number: 7W7Z-7052-A
$18.80 MSRP: $26.67
You Save: $7.87 (30%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Seal Assembly - Oil; Automatic Transmission Extension Housing Seal; Multi-Purpose Seal; Transmission Seal; Oil Seal
- Replaces: F7AZ-7052-A
Fits the following Ford Models:
- Crown Victoria | 1995-2011 | Base, LWB, LX, LX Sport, Police Interceptor, S, Special Edition | 8 Cyl 4.6 L CNG, 8 Cyl 4.6 L FLEX, 8 Cyl 4.6 L GAS
- F-150 | 1994-1996 | Eddie Bauer, Lightning, Special, XL, XLT | 6 Cyl 4.9 L BI-FUEL, 6 Cyl 4.9 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.8 L GAS
- F-250 | 1994-1996 | Eddie Bauer, Special, XL, XLT | 6 Cyl 4.9 L BI-FUEL, 6 Cyl 4.9 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.8 L GAS, 8 Cyl 7.3 L DIESEL, 8 Cyl 7.5 L GAS
- F-350 | 1994-1996 | Eddie Bauer, Special, XL, XLT | 6 Cyl 4.9 L GAS, 8 Cyl 5.8 L GAS, 8 Cyl 7.3 L DIESEL, 8 Cyl 7.5 L GAS
- Mustang | 1996-2003 | Base, GT, GT Bullitt, Mach 1, SVT Cobra, SVT Cobra 10th Anniversary | 6 Cyl 3.8 L GAS, 8 Cyl 4.6 L GAS
- Thunderbird | 1994-1997 | LX, Super Coupe | 6 Cyl 3.8 L GAS, 8 Cyl 4.6 L GAS
View More
View related parts
Ford Extension Housing Seal Part Number: 4L5Z-7052-AA
$15.46 MSRP: $22.50
You Save: $7.04 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal Assembly - Oil; Automatic Transmission Extension Housing Seal; Multi-Purpose Seal; Transmission Seal; Oil Seal
- Manufacturer Note: 4L5P-D*
- Replaces: F77Z-7052-AA
Fits the following Ford Models:
- Aerostar | 1986-1997 | Base, Eddie Bauer, XL, XL Plus, XL Sport, XLT, XLT Plus, XLT Sport | 4 Cyl 2.3 L GAS, 6 Cyl 2.8 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
- Bronco II | 1984-1990 | Base, Eddie Bauer, XL, XL Sport, XLS, XLT, XLT Plus | 4 Cyl 2.3 L DIESEL, 6 Cyl 2.8 L GAS, 6 Cyl 2.9 L GAS
- Explorer | 1991-2001 | Eddie Bauer, Expedition, Limited, Postal, Sport, XL, XL Fleet, XLS, XLT | 6 Cyl 4.0 L GAS
- Explorer Sport | 2002-2003 | Base, XLS, XLT | 6 Cyl 4.0 L GAS
- LTD | 1984-1986 | 8 Cyl 5.0 L GAS
- Mustang | 1984-1993 | GT, L, LX, SVT Cobra, SVT Cobra R | 4 Cyl 2.3 L GAS, 6 Cyl 3.8 L GAS, 8 Cyl 5.0 L GAS
- Ranger | 1984-2011 | Base, Custom, Edge, FX4, GT, S, S Plus, Splash, Sport, STX, Tremor, XL, XL Sport, XLS, XLT | 4 Cyl 2.0 L GAS, 4 Cyl 2.2 L DIESEL, 4 Cyl 2.3 L DIESEL, 4 Cyl 2.3 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 2.8 L GAS, 6 Cyl 2.9 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
- Thunderbird | 1984-1990 | Base, Elan, Fila, LX, Sport, Super Coupe, Turbo | 4 Cyl 2.3 L GAS, 6 Cyl 3.8 L GAS, 8 Cyl 5.0 L GAS
View More
View related parts
Ford Rear Seal Part Number: F6TZ-7052-A
$18.32 MSRP: $26.67
You Save: $8.35 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal Assembly - Oil; Automatic Transmission Extension Housing Seal; Automatic Transmission Seal; Transmission Seal; Extension Housing Seal
- Replaces: D5AZ-7052-A
Fits the following Ford Models:
- Bronco | 1984-1996 | Custom, Eddie Bauer, XL, XLT, XLT Lariat, XLT Nite, XLT Sport | 6 Cyl 4.9 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.8 L GAS
- E-150 | 2003-2007 | Base, Chateau, XL, XLT | 6 Cyl 4.2 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 5.4 L GAS
- E-150 Club Wagon | 2003-2005 | Chateau, XL, XLT | 6 Cyl 4.2 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 5.4 L GAS
- E-150 Econoline | 1992-2002, 1984-1990 | Base, Custom, XL | 6 Cyl 4.2 L GAS, 6 Cyl 4.9 L GAS, 6 Cyl 4.9 L LPG, 8 Cyl 4.6 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.4 L BI-FUEL, 8 Cyl 5.4 L GAS, 8 Cyl 5.8 L GAS
- E-150 Econoline Club Wagon | 1992-2002 | Chateau, Custom, XL, XLT | 6 Cyl 4.2 L GAS, 6 Cyl 4.9 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.4 L BI-FUEL, 8 Cyl 5.4 L GAS, 8 Cyl 5.8 L GAS
- E-250 | 2003-2007 | Base | 6 Cyl 4.2 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 5.4 L CNG, 8 Cyl 5.4 L GAS
- E-250 Econoline | 1992-2002, 1984-1990 | Base, Custom, XL | 6 Cyl 4.2 L GAS, 6 Cyl 4.9 L BI-FUEL, 6 Cyl 4.9 L GAS, 6 Cyl 4.9 L LPG, 8 Cyl 5.0 L GAS, 8 Cyl 5.4 L BI-FUEL, 8 Cyl 5.4 L CNG, 8 Cyl 5.4 L GAS, 8 Cyl 5.8 L GAS
- E-350 Club Wagon | 2003-2005 | Chateau, XL, XLT | 10 Cyl 6.8 L GAS, 8 Cyl 5.4 L CNG, 8 Cyl 5.4 L GAS, 8 Cyl 6.0 L DIESEL, 8 Cyl 7.3 L DIESEL
- E-350 Econoline | 1992-1998, 1984-1990 | Base, Custom, XL | 10 Cyl 6.8 L GAS, 6 Cyl 4.9 L GAS, 6 Cyl 4.9 L LPG, 8 Cyl 5.4 L BI-FUEL, 8 Cyl 5.4 L CNG, 8 Cyl 5.4 L GAS, 8 Cyl 5.8 L GAS, 8 Cyl 6.9 L DIESEL, 8 Cyl 7.3 L DIESEL, 8 Cyl 7.5 L GAS
- E-350 Econoline Club Wagon | 1992-2002 | Chateau, Chateau HD, Custom, Custom HD, XL, XL HD, XLT, XLT HD | 10 Cyl 6.8 L GAS, 6 Cyl 4.9 L BI-FUEL, 6 Cyl 4.9 L GAS, 8 Cyl 5.4 L BI-FUEL, 8 Cyl 5.4 L CNG, 8 Cyl 5.4 L GAS, 8 Cyl 5.8 L GAS, 8 Cyl 7.3 L DIESEL, 8 Cyl 7.5 L GAS
View More
View related parts
Ford Axle Seals, Rear Part Number: 4C3Z-1S177-D
$29.35 MSRP: $46.60
You Save: $17.25 (38%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Seal; Wheel Seal, Rear; Wheel Hub Repair Kit; Axle Seal; Inner Seal; Rear Hub Seal; Wheel Seal
- Position: Rear
- Replaces: 4C3Z-1S177-C, 4C3Z-1S177-B, BRS-191, BRS-192
Fits the following Ford Models:
- F-250 Super Duty | 2023-2024 | King Ranch, Lariat, Limited, Platinum, XL, XLT | 8 Cyl 6.7 L DIESEL, 8 Cyl 6.8 L FLEX, 8 Cyl 6.8 L GAS, 8 Cyl 7.3 L GAS
- F-350 Super Duty | 2023-2024 | King Ranch, Lariat, Limited, Platinum, XL, XLT | 8 Cyl 6.7 L DIESEL, 8 Cyl 6.8 L GAS, 8 Cyl 7.3 L GAS
- Transit-150 | 2015-2023 | Base, PTV, XL, XLT | 5 Cyl 3.2 L DIESEL, 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS, 6 Cyl 3.7 L CNG, 6 Cyl 3.7 L FLEX, 6 Cyl 3.7 L GAS, 6 Cyl 3.7 L LPG
- Transit-250 | 2015-2023 | Base, PTV | 5 Cyl 3.2 L DIESEL, 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS, 6 Cyl 3.7 L CNG, 6 Cyl 3.7 L FLEX, 6 Cyl 3.7 L GAS, 6 Cyl 3.7 L LPG
- Transit-350 | 2015-2023 | Base, PTV, XL, XLT | 5 Cyl 3.2 L DIESEL, 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS, 6 Cyl 3.7 L CNG, 6 Cyl 3.7 L FLEX, 6 Cyl 3.7 L GAS, 6 Cyl 3.7 L LPG
- Transit-350 HD | 2015-2023 | Base, PTV, XL, XLT | 5 Cyl 3.2 L DIESEL, 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS, 6 Cyl 3.7 L CNG, 6 Cyl 3.7 L FLEX, 6 Cyl 3.7 L GAS, 6 Cyl 3.7 L LPG
View More
View related parts
Ford Drive Unit Outer Seal Part Number: JM5Z-1S177-A
$15.00 MSRP: $23.82
You Save: $8.82 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal
Fits the following Ford Models:
- F-150 Lightning | 2022-2023 | Lariat, Platinum, Pro, Pro SSV, XLT | BATTERY EV (EV/BEV)
View related parts
Ford Extension Housing Seal Part Number: F4ZZ-7052-A
$18.32 MSRP: $26.67
You Save: $8.35 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal Assembly - Oil; Manual Transmission Extension Housing Seal; Gasket Set; Transmission Seal; Oil Seal Set; Seal
- Manufacturer Note: Extension hsg.
Fits the following Ford Models:
- Mustang | 1994-2003 | Base, GT, GTS, SVT Cobra | 6 Cyl 3.8 L GAS, 8 Cyl 5.0 L GAS
View related parts
Ford Extension Housing Seal Part Number: 3C3Z-7052-CA
$28.20 MSRP: $40.00
You Save: $11.80 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal Assembly - Oil; Automatic Transmission Extension Housing Seal; Automatic Transmission Seal; Transmission Seal
Fits the following Ford Models:
- E-350 Super Duty | 2008-2011 | Base, XL, XLT | 10 Cyl 6.8 L CNG, 10 Cyl 6.8 L GAS, 10 Cyl 6.8 L LPG, 8 Cyl 6.0 L DIESEL
- F-250 Super Duty | 2005-2010 | FX4, Harley-Davidson Edition, King Ranch, Lariat, XL, XLT | 10 Cyl 6.8 L GAS, 8 Cyl 5.4 L GAS, 8 Cyl 6.0 L DIESEL, 8 Cyl 6.4 L DIESEL
- F-350 Super Duty | 2005-2010 | Harley-Davidson Edition, King Ranch, Lariat, XL, XLT | 10 Cyl 6.8 L GAS, 8 Cyl 5.4 L GAS, 8 Cyl 6.0 L DIESEL, 8 Cyl 6.4 L DIESEL
View More
View related parts
Ford Input Shaft Seal Part Number: 6L2Z-7B215-AA
$18.80 MSRP: $26.67
You Save: $7.87 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal
- Manufacturer Note: Input shaft
Fits the following Ford Models:
- Bronco | 2021-2023 | Badlands, Base, Big Bend, Black Diamond, Everglades, First Edition, Heritage Edition, Heritage Limited Edition, Outer Banks, Raptor, Wildtrak | 4 Cyl 2.3 L GAS, 6 Cyl 2.7 L GAS, 6 Cyl 3.0 L GAS
View related parts
Ford Output Shaft Seal Part Number: JB3Z-7B215-C
$45.75 MSRP: $65.45
You Save: $19.70 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal; Automatic Transmission Output Shaft Seal; Transfer Case Output Shaft Seal; Axle Seal
- Manufacturer Note: Front Output
Fits the following Ford Models:
- Ranger | 2019-2023 | Lariat, XL, XLT | 4 Cyl 2.3 L GAS
View related parts
Ford Extension Housing Seal Part Number: E8TZ-7052-C
$59.54 MSRP: $86.67
You Save: $27.13 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal Assembly - Oil; Manual Transmission Extension Housing Seal; Gasket Set; Multi-Purpose Seal.
Fits the following Ford Models:
- Aerostar | 1988-1993 | Base, Eddie Bauer, XL, XL Plus, XL Sport, XLT, XLT Plus, XLT Sport | 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
- Bronco II | 1985-1990 | Base, Eddie Bauer, XL, XL Sport, XLS, XLT, XLT Plus | 4 Cyl 2.3 L DIESEL, 6 Cyl 2.8 L GAS, 6 Cyl 2.9 L GAS
- Explorer | 1991-2000 | Eddie Bauer, Expedition, Limited, Postal, Sport, XL, XL Fleet, XLS, XLT | 6 Cyl 4.0 L GAS, 8 Cyl 5.0 L GAS
- F-150 | 1997-2001 | Base, Harley-Davidson Edition, King Ranch, Lariat, Lightning, XL, XLT | 6 Cyl 4.2 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 5.4 L BI-FUEL, 8 Cyl 5.4 L CNG, 8 Cyl 5.4 L GAS
- F-250 | 1997-1999 | Base, Lariat, XL, XLT | 8 Cyl 4.6 L GAS, 8 Cyl 5.4 L BI-FUEL, 8 Cyl 5.4 L CNG, 8 Cyl 5.4 L GAS
- F-250 HD | 1997 | XL, XLT | 8 Cyl 5.8 L GAS, 8 Cyl 7.3 L DIESEL, 8 Cyl 7.5 L GAS
- F-250 Super Duty | 1999 | Lariat, XL, XLT | 10 Cyl 6.8 L GAS, 8 Cyl 5.4 L GAS, 8 Cyl 7.3 L DIESEL
- Ranger | 1985-2011 | Base, Custom, Edge, GT, S, S Plus, Splash, Sport, STX, Tremor, XL, XL Sport, XLS, XLT | 4 Cyl 2.0 L GAS, 4 Cyl 2.3 L DIESEL, 4 Cyl 2.3 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 2.8 L GAS, 6 Cyl 2.9 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
- Thunderbird | 1992-1995 | Base, LX, Super Coupe | 6 Cyl 3.8 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 5.0 L GAS
View More
View related parts
Ford Output Shaft Seal Part Number: JB3Z-7B215-A
$28.20 MSRP: $40.00
You Save: $11.80 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal; Input Shaft Seal
Fits the following Ford Models:
- Bronco | 2021-2023 | Badlands, Base, Big Bend, Black Diamond, Everglades, First Edition, Heritage Edition, Heritage Limited Edition, Outer Banks, Raptor, Wildtrak | 4 Cyl 2.3 L GAS, 6 Cyl 2.7 L GAS, 6 Cyl 3.0 L GAS
View related parts
Ford Output Shaft Seal Part Number: M1MZ-7B215-A
$11.75 MSRP: $16.67
You Save: $4.92 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal; Input Shaft Seal
- Replaces: FL3Z-7B215-A
Fits the following Ford Models:
- Expedition | 2018-2023 | King Ranch, Limited, Max King Ranch, Max Limited, Max Platinum, Max SSV, Max XL, Max XLT, Platinum, SSV, Timberline, XL, XL STX, XLT | 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS
- Explorer | 2020-2023 | Base, King Ranch, Limited, Limited Hybrid, Platinum, Platinum Hybrid, ST, ST-Line, Timberline, XLT | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV)
- F-150 | 2017-2023 | King Ranch, Lariat, Limited, Platinum, Police Responder, Raptor, Raptor R, SSV, Tremor, XL, XLT | 6 Cyl 2.7 L GAS, 6 Cyl 3.0 L DIESEL, 6 Cyl 3.3 L FLEX, 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS, 8 Cyl 5.0 L FLEX, 8 Cyl 5.2 L GAS
- Police Interceptor Utility | 2020-2023 | Base | 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV)
View More

| Page 1 of 3 |Next >

1-20 of 57 Results

Ford Transfer Case Seal

If you own Ford and want to keep it in top shape, choosing OEM Transfer Case Seal is a smart move. They are precisely engineered and follow strict factory standards. They are made in advanced facilities that use cutting edge technology. Each part goes through thorough testing to confirm strength and safety, so you can trust it. FordPartsDeal.com gives you genuine Ford Transfer Case Seal at some of the affordable online prices without cutting quality. Every OEM Ford part includes the manufacturer's warranty, easy returns, and super-fast delivery. So why wait? Shop now and get your vehicle back to peak condition.

Ford Transfer Case Seal prevents leaks of gear oil and maintains a stable and dry drive train. It has been all simple ideas at Ford since 1903: build faster, waste less, charge fair. In 1913, the conveyor belt that was moved demonstrated that mass production is not necessarily disrespectful to quality. EcoBoost engines can power more than their size as they are able to squeeze out more power with each drop of fuel. SYNC allows motorists to scream a song title or street name in lieu of touching screens. Co-Pilot360 hits the brakes or forces the wheel before trouble gets ugly. Ford demonstrates that an electric truck, the all-electric Lightning, can be silent and a truck that does not pollute the air with tailpipe smoke. Every new battery, turbo and sensor is geared towards the same purpose: safe, cheap and fun driving. History notwithstanding, Ford continues to tinker as long as drivers will continue to demand more. The Transfer Case Seal is installed at the intersection of the transfer case and the driveshaft, preventing the fluid from escaping when loaded. Failure of the Transfer Case Seal causes the oil to drip, gears to overheat and the four-wheel traction to disengage at the inappropriate time. The new Transfer Case Seal pushes tightly against metal, preventing the lubricant from remaining still and leaving the dirt out of the housing. Install the Transfer Case Seal with the bolts correctly screwed and the system will run a long time without any trouble. Pass by this wretched ring and even a tough Ford could make the way home with the squeaking of metal.

Ford Transfer Case Seal Parts and Q&A

Extension Housing Seal
4L5Z-7052-AA
Q: How to remove and install the Transfer Case Seal in the Automatic transmission on Ford Bronco II?
A:
In order to replace the driveshaft, the following procedures are as follows, - Open the bonnet and disconnect the negative terminal of the battery - Safely jack and support the vehicle. Align the end yoke of the driveshaft with the companion flange of the rear axle and then after the alignment has been set, you can then release the driveshaft. In the next step employ a seal remover to remove the oil seal from the extension housing. Before installing the replacement seal, always check the surface of the universal joint yoke for scores; if there are scores, change the yoke. Replace the seal with a seal installer and put long-life lubrication on the inside diameter of the rubber boot part. Ensure that the matchmarks coincide and refit the driveshaft, next lower the car and connect the negative terminal of the battery.
Extension Housing Seal
E8TZ-7052-C
Q: How to replace the Transfer Case Seal in the extension housing of a 2WD 2000-2011 Ford Ranger?
A:
Raise the vehicle and support it securely on jackstands. Remove the driveshaft, noting that some transmission lubricant may drain out when the driveshaft slip joint is withdrawn from the extension housing. To remove the oil seal from the end of the extension housing, use a special tool available at most auto parts stores, or if that is not available and access allows, use a thin blade screwdriver or chisel to pry the oil seal out. Inspect the sealing surface on the driveshaft slip joint for any scoring or burrs that could damage the new oil seal; if the yoke is damaged, it should be replaced. Check the extension housing counterbore for burrs and remove them with emery cloth or medium grit wet-and-dry sandpaper, then clean any sanding residue with a cloth dipped in solvent. Apply silicone sealant to the inside diameter of the oil seal and grease to the end of the rubber boot portion. Using a seal driver, large socket, or section of pipe, install a new oil seal, ensuring it is completely seated in the counterbore. Reinstall the driveshaft, lower the vehicle, and check the transmission lubricant level, topping up if necessary.
