How to service the Wiper Pivot and mounting arm on Lincoln MKZ?

The service process for wiper mounting arm and pivot shaft requires starting with removal of the upper cowl panel grille. Disconnect the electrical connector for the wiper motor as the second step. Unfasten the two bolts retaining the windshield wiper mounting arm before removing the assembly along with the pivot shaft. Installation demands tightening the bolts to 5 Nm (44 lb-in) then proceeding with the reverse order of removal.

How to service the Wiper Pivot and mounting arm assembly on Lincoln MKS?

Service of the wiper mounting arm and pivot shaft assembly starts by taking off the cowl panel grille. Professionalism demands that workers avoid separating the wiper motor linkage arm from the wiper motor assembly because detachment leads to incorrect wiper arm parking positions and subsequent damage. You should next turn and position the wiper mounting arm and wiper pivot shaft assembly according to indicated specifications before you remove the three securing bolts. The wiper mounting arm and pivot shaft assembly can be removed from the vehicle after disconnecting the electrical connector to unfasten the wire harness pin-type retainer. When installing either new wiper mounting arm and pivot shaft assembly or new wiper motor ensure that the wiper motor linkage arm and pivot shaft assembly matches the original positions. The new assembly should be positioned while reconnecting the electrical connector and attaching the wire harness pin-type retainer. Secure the three bolts after tightening them to 8 Nm (71 lb-in). After positioning the wiper motor at PARK cycle the final step is to install the cowl panel grille.

OEM Lincoln Wiper Pivot

Windshield Wiper Pivot

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

22 Wiper Pivots found

View related parts

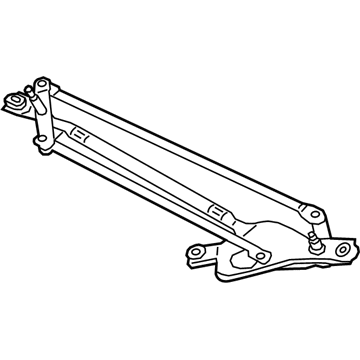

Lincoln Wiper Linkage Part Number: AE9Z-17566-A
$176.33 MSRP: $256.67
You Save: $80.34 (32%)
ADD TO CART
Product Specifications
- Other Name: Arm And Pivot Shaft Assembly; Front Transmission
Fits the following Lincoln Models:
- MKT | 2010-2019 | Base, EcoBoost, Livery, Premiere, Reserve | 6 Cyl 3.5 L GAS, 6 Cyl 3.7 L GAS
View related parts

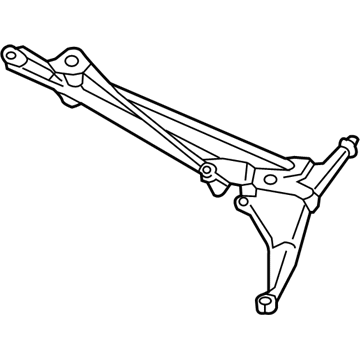

Lincoln Wiper Transmission Part Number: 6E5Z-17566-A
$80.98 MSRP: $112.02
You Save: $31.04 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Linkage Assembly - Wiper; Windshield Wiper Linkage; Wiper Linkage
Fits the following Lincoln Models:
- MKZ | 2007-2012 | Base, Hybrid | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
- Zephyr | 2006 | Base | 6 Cyl 3.0 L GAS
View related parts

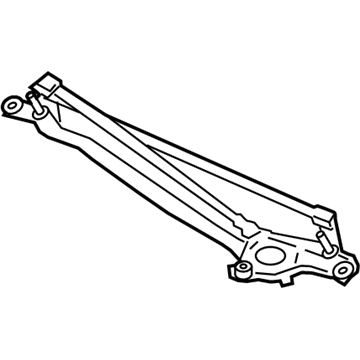

Lincoln Front Transmission Part Number: FL1Z-17566-A
$160.30 MSRP: $233.33
You Save: $73.03 (32%)
ADD TO CART
Product Specifications
- Other Name: Arm And Pivot Shaft Assembly; Windshield Wiper Linkage; Wiper Motor; Motor & Linkage; Linkage; Wiper Linkage
Fits the following Lincoln Models:
- Navigator | 2015-2017 | Base, L, L Reserve, L Select, Reserve, Select | 6 Cyl 3.5 L GAS
View related parts

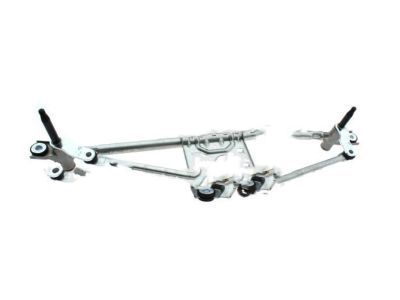

Lincoln Wiper Transmission Part Number: GD9Z-17566-A
$187.92 MSRP: $290.00
You Save: $102.08 (36%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm And Pivot Shaft Assembly; Wiper Linkage
Fits the following Lincoln Models:
- Continental | 2017-2020 | 80th Anniversary Coach Door Edition, Base, Black Label, Coach Door Edition, Livery, Premiere, Reserve, Select | 6 Cyl 2.7 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.7 L GAS
View related parts

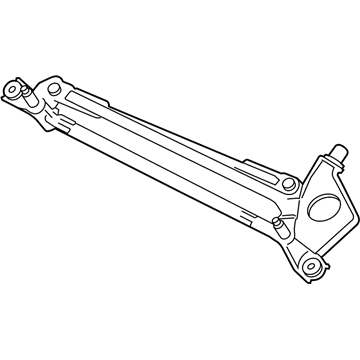

Lincoln Wiper Linkage Part Number: EJ7Z-17566-A
$196.94 MSRP: $286.67
You Save: $89.73 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm And Pivot Shaft Assembly; Front Transmission
Fits the following Lincoln Models:
- MKC | 2015-2019 | Base, Black Label, Premiere, Reserve, Select | 4 Cyl 2.0 L GAS, 4 Cyl 2.3 L GAS
View related parts

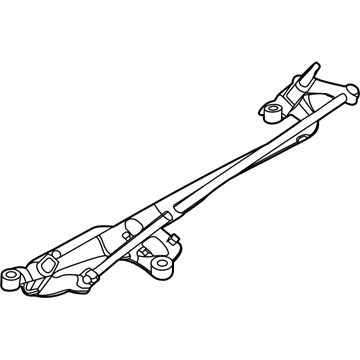

Lincoln Wiper Transmission Part Number: FA1Z-17566-A
$161.45 MSRP: $235.00
You Save: $73.55 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm And Pivot Shaft Assembly; Wiper Linkage; Front Transmission
Fits the following Lincoln Models:
- MKX | 2016-2018 | Black Label, Premiere, Reserve, Select | 6 Cyl 2.7 L GAS, 6 Cyl 3.7 L GAS
- Nautilus | 2019-2023 | Base, Black Label, Reserve, Select | 4 Cyl 2.0 L GAS, 6 Cyl 2.7 L GAS
View related parts
Lincoln Wiper Linkage Part Number: LC5Z-17566-A
$159.16 MSRP: $231.67
You Save: $72.51 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm And Pivot Shaft Assembly; Front Transmission
- Replaced by: LC5Z-17566-B
Fits the following Lincoln Models:
- Aviator | 2020-2023 | Base, Black Label, Black Label Grand Touring, Grand Touring, Livery, Reserve | 6 Cyl 3.0 L GAS, 6 Cyl 3.0 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Lincoln Wiper Transmission Part Number: DG1Z-17566-A
$138.55 MSRP: $201.67
You Save: $63.12 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm And Pivot Shaft Assembly; Windshield Wiper Linkage; Wiper Linkage; Linkage
Fits the following Lincoln Models:
- MKS | 2013-2016 | Base, EcoBoost | 6 Cyl 3.5 L GAS, 6 Cyl 3.7 L GAS
View related parts
Lincoln Wiper Linkage Part Number: LJ7Z-17566-B
$174.04 MSRP: $253.33
You Save: $79.29 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm And Pivot Shaft Assembly; Front Transmission
- Replaced by: LJ7Z-17566-C
Fits the following Lincoln Models:
- Corsair | 2020-2023 | Base, Grand Touring, Reserve | 4 Cyl 2.0 L GAS, 4 Cyl 2.3 L GAS, 4 Cyl 2.5 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Lincoln Wiper Transmission Part Number: JL3Z-17566-E
$105.68 MSRP: $153.83
You Save: $48.15 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm And Pivot Shaft Assembly; Wiper Linkage; Linkage
- Replaced by: JL3Z-17566-F
- Replaces: JL3Z-17566-C, JL3Z-17566-B, JL3Z-17566-D
Fits the following Lincoln Models:
- Navigator | 2018-2024 | Base, Black Label, L Base, L Black Label, L Livery, L Reserve, L Select, Premiere, Reserve, Select | 6 Cyl 3.5 L GAS
View related parts
Lincoln Wiper Transmission Part Number: DP5Z-17566-A
$171.75 MSRP: $250.00
You Save: $78.25 (32%)
ADD TO CART
Product Specifications
- Other Name: Arm And Pivot Shaft Assembly; Wiper Linkage
Fits the following Lincoln Models:
- MKZ | 2013-2020 | Base, Black Label, Black Label Hybrid, Hybrid, Premiere, Premiere Hybrid, Reserve, Reserve Hybrid, Reserve I, Reserve I Hybrid, Reserve II, Reserve II Hybrid, Select, Select Hybrid | 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.0 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.7 L GAS
View related parts
Lincoln Wiper Transmission Part Number: F8VZ-17566-AA
Product Specifications
- Other Name: Windscreen Wiper; Wiper Linkage
- Manufacturer Note: W/ motor, w/ wiper motor jumper harness
- Replaced by: 8W1Z-17566-A
Fits the following Lincoln Models:
- Town Car | 1998-2002 | Cartier, Cartier L, Executive, Executive L, Signature | 8 Cyl 4.6 L GAS
View related parts
Lincoln Wiper Transmission Part Number: JL3Z-17566-A
Product Specifications
- Other Name: Arm And Pivot Shaft Assembly; Windshield Wiper Linkage; Wiper Linkage; Linkage
- Replaces: FL3Z-17566-A
Fits the following Lincoln Models:
- Navigator | 2018-2023 | Base, Black Label, L Base, L Black Label, L Livery, L Reserve, L Select, Premiere, Reserve, Select | 6 Cyl 3.5 L GAS
View related parts
Lincoln Wiper Transmission Part Number: 3W1Z-17566-AA
Product Specifications
- Other Name: Windscreen Wiper; Wiper Linkage
- Manufacturer Note: W/motor, w/wiper motor jumper harness - includes trough
- Replaced by: 8W1Z-17508-A
Fits the following Lincoln Models:
- Town Car | 2003 | Cartier, Cartier L, Executive, Executive L, Executive Protection Series, Signature | 8 Cyl 4.6 L GAS
View related parts
Lincoln Wiper Motor Part Number: 4W4Z-17508-A
Product Specifications
- Other Name: Motor Assembly - Wiper; Wiper Linkage; Motor & Linkage
Fits the following Lincoln Models:
- LS | 2004-2005 | Appearance, Base, Luxury, Premium, Sport, Ultimate | 6 Cyl 3.0 L GAS, 8 Cyl 3.9 L GAS
View related parts
Lincoln Wiper Motor Part Number: 4W4Z-17508-B
Product Specifications
- Other Name: Motor Assembly - Wiper; Wiper Linkage; Wiper Transmission
Fits the following Lincoln Models:
- LS | 2003-2004 | Base, LSE | 6 Cyl 3.0 L GAS, 8 Cyl 3.9 L GAS
View related parts
Lincoln Wiper Transmission Part Number: F1DZ-17566-A
Product Specifications
- Other Name: Windscreen Wiper; Wiper Linkage; Wiper Pivot; Front Transmission; Pivot Assembly; Transmission
- Manufacturer Note: FROM 2/91
Fits the following Lincoln Models:
- Continental | 1988-1991 | Base, Executive, Signature | 6 Cyl 3.8 L GAS
View related parts
Lincoln Wiper Transmission Part Number: F8OZ-17566-AA
Product Specifications
- Other Name: Windscreen Wiper; Wiper Linkage
- Replaced by: 6F3Z-17508-AA
Fits the following Lincoln Models:
- Continental | 1998-2002 | Base | 8 Cyl 4.6 L GAS
View related parts
Lincoln Wiper Transmission Part Number: 8G1Z-17566-A
Product Specifications
- Other Name: Arm And Pivot Shaft Assembly; Windshield Wiper Linkage; Wiper Linkage; Linkage
Fits the following Lincoln Models:
- MKS | 2009-2012 | Base, EcoBoost | 6 Cyl 3.5 L GAS, 6 Cyl 3.7 L GAS
View related parts
Lincoln Wiper Transmission Part Number: 8W1Z-17566-A
Product Specifications
- Other Name: Arm And Pivot Shaft Assembly; Wiper Linkage
- Replaces: F8VZ-17566-AA, 4W1Z-17566-AA
Fits the following Lincoln Models:
- Town Car | 2004-2007 | Designer Series, Executive, Executive L, Protection Series, Signature, Signature L, Signature Limited, Ultimate, Ultimate L | 8 Cyl 4.6 L FLEX, 8 Cyl 4.6 L GAS

| Page 1 of 2 |Next >

1-20 of 22 Results

Lincoln Wiper Pivot

If you own Lincoln and want to keep it in top shape, choosing OEM Wiper Pivot is a smart move. They are precisely engineered and follow strict factory standards. They are made in advanced facilities that use cutting edge technology. Each part goes through thorough testing to confirm strength and safety, so you can trust it. FordPartsDeal.com gives you genuine Lincoln Wiper Pivot at some of the affordable online prices without cutting quality. Every OEM Lincoln part includes the manufacturer's warranty, easy returns, and super-fast delivery. So why wait? Shop now and get your vehicle back to peak condition.

Lincoln Wiper Pivot helps to maintain vision during the rain when the windshield is pounded and the weather is nasty. Lincoln seeks silent cabins by filling the walls with insulation layer after layer, adjusting the powertrains to a soothing silence, and closing in the door gaps to ensure a conversation is distortion-free as traffic noises are relegated into the background. Lincoln supports that serenity with Co-Pilot360, a package that provides lane keeping, blind spots, smart high beams, and parking support that takes immediate action when drivers lose control. Lincoln over-the-air updates are software; new aids to driving, newer graphics, and bug fixes are added overnight so when a person wakes up the car they are driving seems newer than the one they parked. Lincoln listens to the complaints of the owners and makes modifications to the seat foam, steering weight, and screen menus, which refines the process and is not a one-time task. The recent Wiper Pivot is based on a hardened steel spine cemented to precision bushings such that the arm will not flex during 80 mph and is able to sweep an extended arc without chatter. The Wiper Pivot can operate with tens of thousands of high-pressure wipe cycles which would seize lesser parts by means of load distribution through balanced twin bearings. Durability enhances the safety of the drivers. A closed collar prevents grit and road salt from penetrating the Wiper Pivot and preventing the wear that would put streaks on the vision in the sleet or slush. Bolt holes will align with factory marks, so the Wiper Pivot drops in using a hand tool and gives complete power to the wipe in less than an hour.

Lincoln Wiper Pivot Parts and Q&A

Wiper Transmission
6E5Z-17566-A
Q: How to service the Wiper Pivot and mounting arm on Lincoln MKZ?
A:
The service process for wiper mounting arm and pivot shaft requires starting with removal of the upper cowl panel grille. Disconnect the electrical connector for the wiper motor as the second step. Unfasten the two bolts retaining the windshield wiper mounting arm before removing the assembly along with the pivot shaft. Installation demands tightening the bolts to 5 Nm (44 lb-in) then proceeding with the reverse order of removal.
Wiper Transmission
8G1Z-17566-A
Q: How to service the Wiper Pivot and mounting arm assembly on Lincoln MKS?
A:
Service of the wiper mounting arm and pivot shaft assembly starts by taking off the cowl panel grille. Professionalism demands that workers avoid separating the wiper motor linkage arm from the wiper motor assembly because detachment leads to incorrect wiper arm parking positions and subsequent damage. You should next turn and position the wiper mounting arm and wiper pivot shaft assembly according to indicated specifications before you remove the three securing bolts. The wiper mounting arm and pivot shaft assembly can be removed from the vehicle after disconnecting the electrical connector to unfasten the wire harness pin-type retainer. When installing either new wiper mounting arm and pivot shaft assembly or new wiper motor ensure that the wiper motor linkage arm and pivot shaft assembly matches the original positions. The new assembly should be positioned while reconnecting the electrical connector and attaching the wire harness pin-type retainer. Secure the three bolts after tightening them to 8 Nm (71 lb-in). After positioning the wiper motor at PARK cycle the final step is to install the cowl panel grille.
