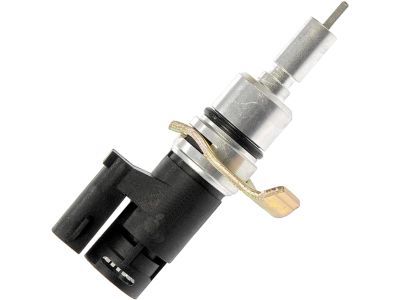

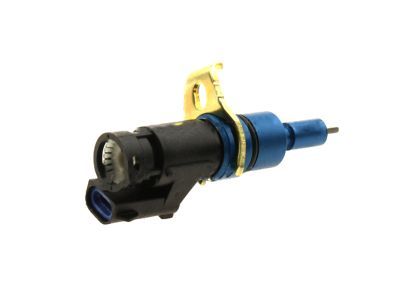

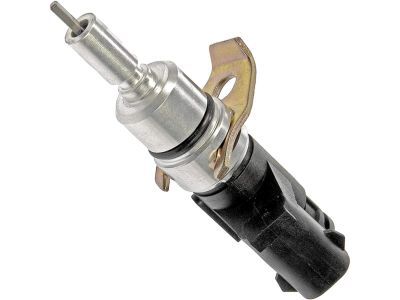

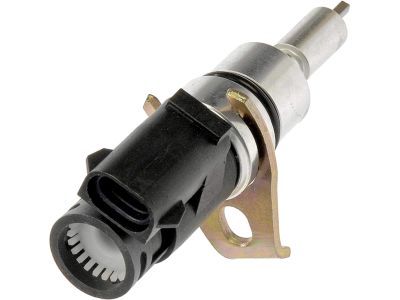

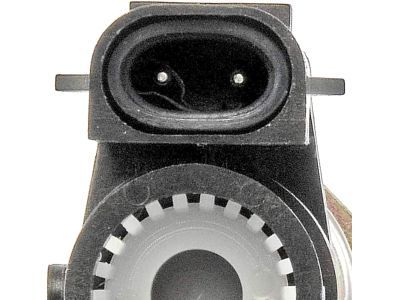

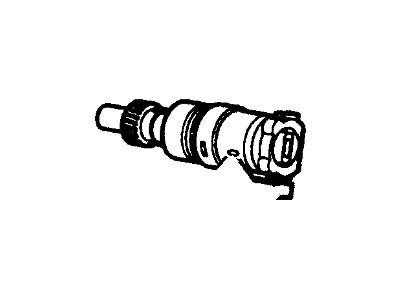

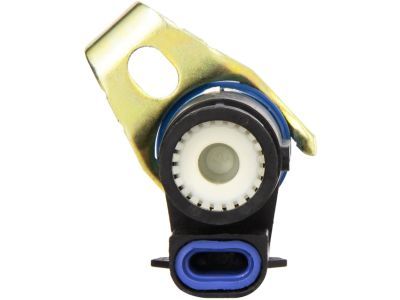

Ford E9LZ-9E731-A
Speed Sensor

A hoisted vehicle allows access to both the Turbine Shaft Speed (TSS) Sensor and Output Shaft Speed (OSS) Sensor through removal of rear transmission mount nuts. Set a high lift transmission jack under the transmission following correct placement to prevent damage from occurring to the TSS and OSS sensors. The mechanic should first detach the rear transmission mount before lifting the transmission to remove the bolts holding it to the rear crossmember support. The TSS and OSS sensors need to be accessible by lowering the transmission. You can remove the TSS sensor by first removing its attached bolt and next the sensor itself. When removing the OSS sensor follow the same procedure of sensor bolt removal before taking out the sensor itself. When installing the OSS sensor first apply lubrication then place it in position and fasten it with the bolt. First apply lubrication to the TSS sensor before installing it with its bolt. Keep the transmission back at a safe height because damaging the sensors will occur. The installation of the rear transmission mount begins with raising and bolting it before placing the transmission on the rear crossmember support. You should complete the job by reinstalling the rear transmission mount nuts and letting the vehicle descend to the ground.

Service of the Output Shaft Speed (OSS) Sensor must begin with placing the vehicle in NEUTRAL position and hoisting it up. After disconnecting the OSS sensor the work area surrounding it should remain empty to stop contamination from reaching the transmission components. First disconnect the bolt present on the OSS sensor before you remove the sensor from its place. A proper preparation step before installing the new OSS sensor includes applying lubrication to its O-ring. The sensor installation requires securing it with the bolt which needs to be tightened to 9 Nm (80 inch lbs.). After that reconnect the electrical connector for the OSS sensor.

Service of the Vehicle Speed Sensor (VSS) for 4R100 Transmission on 7.3L Diesel engines starts with vehicle elevation using supports. The service starts by removing power from the VSS electrical connector followed by removing the VSS bolt and removing the sensor. The first step includes taking out the retaining clip before 1) removing the VSS driven gear. To install the VSS start by putting the driven gear into its proper position while securing it using the retaining clip. First connect the VSS electrical connector and then position the VSS into place and secure it with the bolt before reconnecting the electrical connector. The vehicle service requires a final stage involving lowering it to finalize the procedure.

A hoist-raised vehicle should begin the TSS sensor and OSS sensor servicing process by removing the rear transmission mount nuts. When putting the high lift transmission jack in place under the transmission position it carefully because raising the back too high could damage the TSS and OSS sensors. Start the process by detaching the rear transmission mount and elevate the transmission using support from the high lift transmission jack while removing the rear crossmember support bolts. Lower the transmission until essential access to TSS and OSS sensor components becomes possible. The TSS sensor requires removal by first unscrewing the bolt before removing the sensor itself. Remove the bolt from the OSS sensor position until you can remove the sensor itself. Apply lubrication before inserting the OSS sensor along with using the bolt to secure it. Apply lubrication to the TSS sensor before installing it followed by using its installation bolt. Avoid increasing the transmission back height because sensor damage could occur. The rear transmission mount should be mounted by using a transmission-lifting process followed by bolt attachment and finally lowering the transmission onto the rear crossmember support. Complete installation of rear transmission mount nuts and carefully lower down the car.

You must raise the 5R55E vehicle before starting the Transmission Speed Sensor service. The service of the 5R55E requires disconnecting the output shaft speed (OSS) sensor electrical connector while removing the OSS sensor by uninstalling its OSS sensor screw followed by sensor extraction from the transmission. Ascertain whether the OSS sensor O-ring displays signs of damage before deciding to replace it with a new one. Petroleum jelly should be used to lubricate the new O-ring before putting the OSS sensor back into the transmission. The OSS sensor installation requires securing the sensor by fastening the screw and reconnecting the electrical connector. Finally, lower the vehicle.

Begin the repair and servicing work on the Output Shaft Speed (OSS) sensor after positioning the vehicle on a hoist with it in NEUTRAL gear. First disconnect the electrical connector at the OSS sensor before removing the OSS sensor bolt and extracting the sensor from its place. Reinstall the OSS sensor in the same manner you deducted it from the system.

The service procedure for the rear output shaft speed sensor requires users to turn off the air suspension switch found in the rear jack storage region so air springs avoid unexpected pressure or vacuum changes that might lead to vehicle movement while maintaining. Start by raising the vehicle and supporting it while following with connector detachment. First use an appropriate electrical connector pin remover to remove the rear output shaft speed sensor wires from the electrical shift motor connector by taking off its connector interlock and wires. First remove the sensor bolt before pulling out the sensor component. During installation the sensor must rest flat against the boss before following the reverse procedure to finalize the installation steps.

Disconnect the electrical connector from the OSS or TSS sensor.

Ensure the TSS sensor is lubricated and bolted in place.

Reinstall the wire harness and secure it with the two retaining clips at the rear of the crossmember.

Remove the two wire harness retainers and move the wire harness aside.

Secure the sensor by installing the bolt and then reconnect the electrical connector for the OSS sensor.

By installing it and securing it with the bolt.

Lubricate and install the OSS sensor, securing it with its bolt.

Reinstall the wire harness and secure it with the two retaining clips at the rear of the crossmember.

Ensure the vehicle is in NEUTRAL and positioned on a hoist.

Disconnect the electrical connector for the OSS or TSS sensor.

Remove the front output shaft speed sensor by first removing the bolt securing it.
