How to Service and Repair the Brake Backing Plate on Ford E-250 Econoline?

Service and repair of the backing plate requires you to start by taking off the rear brake shoes and linings then move on to the axle shaft or the axle shaft together with the rear hub if available. Using the cable retainer you should compress it to extract the parking brake rear cable and conduit out from the brake backing plate. Remove the rear wheel cylinder first by disconnecting the brake line fitting and removing its two bolts. Remove four nuts and bolts that connect the brake backing plate with the axle flange before carrying out this step. Follow the reverse order of removal steps when installing the brake components while performing a complete brake system bleeding operation.

OEM Ford E-250 Econoline Brake Backing Plate

Brake Dust Shield

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Brake Backing Plates found

View related parts

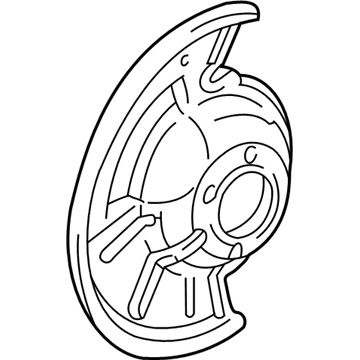

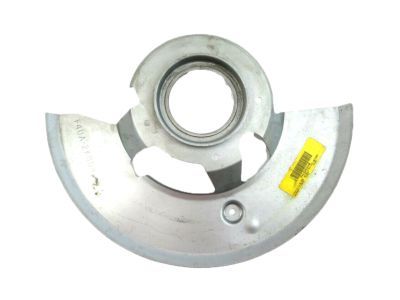

Ford E-250 Econoline Splash Shield, Front Passenger Side
Part Number: F4UZ-2K004-B
$38.04 MSRP: $52.63
You Save: $14.59 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shield - Splash; Brake Dust Shield, Front Right; Brake Dust Shield
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1992-1999 Ford E-250 Econoline | Base, XL | 6 Cyl 4.2 L GAS, 6 Cyl 4.9 L BI-FUEL, 6 Cyl 4.9 L GAS, 8 Cyl 5.4 L BI-FUEL, 8 Cyl 5.4 L CNG, 8 Cyl 5.4 L GAS, 8 Cyl 5.8 L GAS
View related parts
Ford E-250 Econoline Backing Plate, Rear
Part Number: YC2Z-2209-EA
Product Specifications
- Other Name: Brake Assembly - Rear; Brake Dust Shield, Rear; Brake Dust Shield
- Manufacturer Note: Brake asy. - includes adapter plate, mtg plate, park brake shoes, springs and hold down hardware - DRW (less cutaway)- 00/03
- Position: Rear
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1999-2002 Ford E-250 Econoline | Base, XL | 6 Cyl 4.2 L GAS, 8 Cyl 5.4 L BI-FUEL, 8 Cyl 5.4 L CNG, 8 Cyl 5.4 L GAS
View related parts

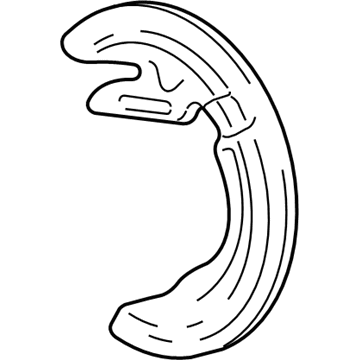

Ford E-250 Econoline Splash Shield, Front Driver Side
Part Number: F4UZ-2K005-B
Product Specifications
- Other Name: Shield - Splash; Brake Dust Shield, Front Left; Brake Dust Shield
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1992-1999 Ford E-250 Econoline | Base, XL | 6 Cyl 4.2 L GAS, 6 Cyl 4.9 L BI-FUEL, 6 Cyl 4.9 L GAS, 8 Cyl 5.4 L BI-FUEL, 8 Cyl 5.4 L CNG, 8 Cyl 5.4 L GAS, 8 Cyl 5.8 L GAS
View related parts

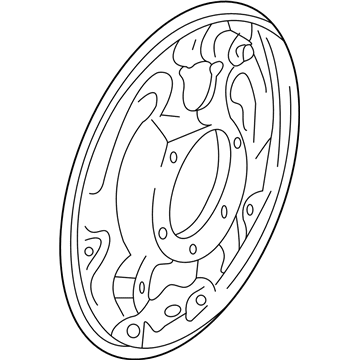

Ford E-250 Econoline Backing Plate, Rear Driver Side
Part Number: E4TZ-2212-B
Product Specifications
- Other Name: Plate Assembly - Brake Backing; Brake Backing Plate, Rear Left; Brake Dust Shield
- Position: Rear Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1984-2002 Ford E-250 Econoline | Base, Custom, XL | 6 Cyl 4.2 L GAS, 6 Cyl 4.9 L BI-FUEL, 6 Cyl 4.9 L GAS, 6 Cyl 4.9 L LPG, 8 Cyl 5.0 L GAS, 8 Cyl 5.4 L BI-FUEL, 8 Cyl 5.4 L CNG, 8 Cyl 5.4 L GAS, 8 Cyl 5.8 L GAS
View related parts
Ford E-250 Econoline Backing Plate, Rear Passenger Side
Part Number: E4TZ-2211-B
Product Specifications
- Other Name: Plate Assembly - Brake Backing; Brake Backing Plate, Rear Left, Rear Right; Brake Dust Shield
- Position: Rear Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1984-2002 Ford E-250 Econoline | Base, Custom, XL | 6 Cyl 4.2 L GAS, 6 Cyl 4.9 L BI-FUEL, 6 Cyl 4.9 L GAS, 6 Cyl 4.9 L LPG, 8 Cyl 5.0 L GAS, 8 Cyl 5.4 L BI-FUEL, 8 Cyl 5.4 L CNG, 8 Cyl 5.4 L GAS, 8 Cyl 5.8 L GAS

Ford E-250 Econoline Brake Backing Plate

Welcome to our website where you can discover high-quality, genuine Ford E-250 Econoline Brake Backing Plate. We offer an extensive inventory of OEM Ford E-250 Econoline Brake Backing Plate at affordable prices. We are committed to providing top-rated customer service along with prompt delivery.

Ford E-250 Econoline Brake Backing Plate Parts Questions & Experts Answers

Backing Plate, Rear
YC2Z-2209-EA
Q: How to Service and Repair the Brake Backing Plate on Ford E-250 Econoline?
A: Service and repair of the backing plate requires you to start by taking off the rear Brake Shoes and linings then move on to the Axle Shaft or the axle shaft together with the rear hub if available. Using the cable retainer you should compress it to extract the parking brake rear cable and conduit out from the brake backing plate. Remove the rear Wheel Cylinder first by disconnecting the brake line fitting and removing its two bolts. Remove four nuts and bolts that connect the brake backing plate with the axle flange before carrying out this step. Follow the reverse order of removal steps when installing the brake components while performing a complete brake system bleeding operation.
