How to service the Neutral Safety Switch on the 4R70E/4R75E on Mercury Grand Marquis?

You must disable the fire suppression system before working on the Transmission Position Switch/Sensor of 4R70E/4R75E to eliminate significant personal injury. When the vehicle is situated on a hoist in neutral position perform the cable and TR sensor connector removals. Begin by removing the bolts from the TR sensor before extracting the sensor from its place. Begin installation of the TR sensor by positioning it correctly then loosely install the bolts with the manual control lever set to neutral position. Insert the TR Sensor Alignment Gauge to properly position the slots of the TR sensor. The installation must proceed by applying torque to the screws at 9 Nm (80 lb-in) in a circular order to prevent damage. When placing the manual lever in (D) position proceed with connecting the selector lever cable before tightening it up to 30 Nm (22 lb-ft). Connect the TR sensor electrical wires then proceed by enabling fire suppression system operation following all required safety instructions to stop injuries.

How to Service and Repair the Neutral Safety Switch on Mercury Milan?

Start the repair and service of Transmission Range (TR) Sensor by first putting the vehicle in neutral position and then mounting it on a hoist. Remove the TR sensor electrical connector as well as the selector lever cable end. The manual control lever requires holding position when working with the manual control lever nut to protect the TR switch from possible damage caused by rotational torques. First disconnect the bolts which secure the TR sensor while also taking away the manual control lever and its nut. Install the TR sensor along with its bolts during this stage while maintaining a hold on the manual control lever yet avoid complete tightening of any bolts. Use the Transmission Range Sensor Alignment Tool for TR sensor alignment before bolting it to 10 Nm (89 lb-in). When applying torque to the manual control lever nut you must keep the manual control lever steady to stop neither the manual control lever shaft nor TR sensor from damage. Tighten this nut to 22 Nm (16 lb-ft). You should first check that the manual control lever sits at the "2" position then make sure the manual control lever points to the correct TR sensor D position. The last step requires the connection of the selector lever cable as well as the TR sensor electrical connector.

OEM Mercury Neutral Safety Switch

Transmission Neutral Safety Switch

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

16 Neutral Safety Switches found

View related parts

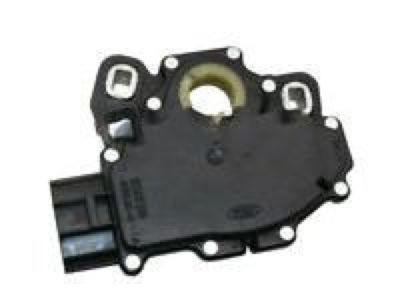

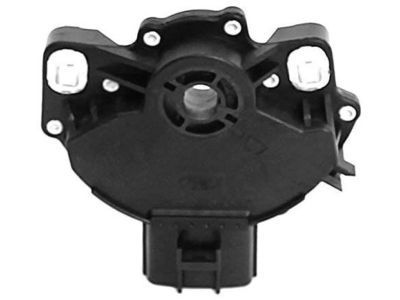

Mercury Neutral Safety Switch Part Number: F7LZ-7F293-AB
$56.57 MSRP: $91.27
You Save: $34.70 (39%)
ADD TO CART
Product Specifications
- Other Name: Sensor - Manual Lever Position; Transmission Range Sensor; Transmiss Range Sensor; Range Sensor; Back-Up & Neutral Safety Switch; Sensor - Manual Lever Position - Mlps
- Replaces: F7LZ-7F293-AA
Fits the following Mercury Models:
- Mountaineer | 1997-2001 | Base | 6 Cyl 4.0 L GAS, 8 Cyl 5.0 L GAS
View related parts

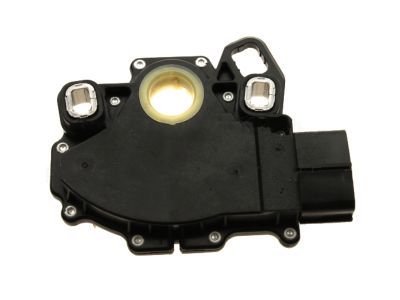

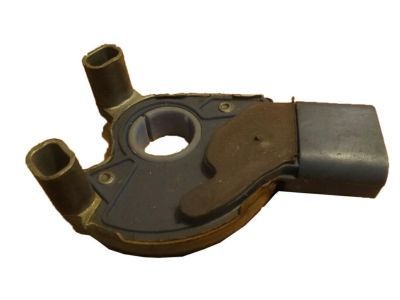

Mercury Neutral Safety Switch Part Number: F8DZ-7F293-AD
$73.14 MSRP: $118.00
You Save: $44.86 (39%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor - Manual Lever Position; Range Sensor; Sensor - Manual Lever Position - Mlps
- Replaces: F8DZ-7F293-AB, F8DZ-7F293-AC
Fits the following Mercury Models:
- Monterey | 2004-2007 | Base, Convenience, Luxury, Premier | 6 Cyl 4.2 L GAS
- Sable | 1998-2005 | GS, LS, LS Premium, Platinum Edition | 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS
View related parts

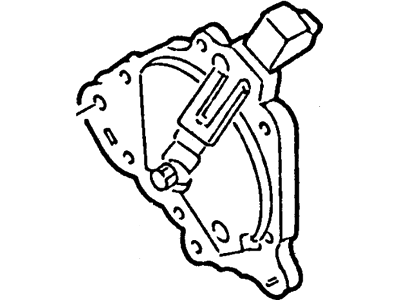

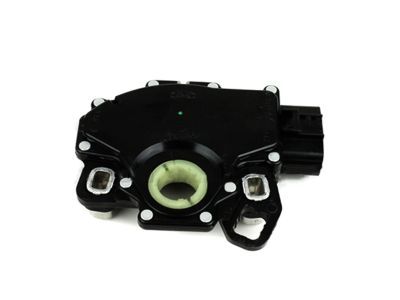

Mercury Neutral Safety Switch Part Number: 6L8Z-7F293-AA
$59.89 MSRP: $98.55
You Save: $38.66 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor - Manual Lever Position; Range Sensor; Sensor - Manual Lever Position - Mlps
- Replaces: YL8Z-7F293-AA
Fits the following Mercury Models:
- Cougar | 1999-2002 | Base, S, V6 | 4 Cyl 2.0 L GAS, 6 Cyl 2.5 L GAS
- Mariner | 2005-2008 | Base, Convenience, Hybrid, Luxury, Premier | 4 Cyl 2.3 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS
View related parts

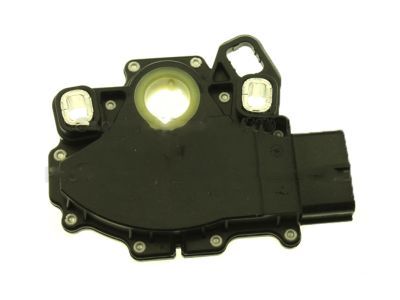

Mercury Range Sensor Part Number: 6E5Z-7F293-A
$80.36 MSRP: $134.91
You Save: $54.55 (41%)
ADD TO CART
Product Specifications
- Other Name: Sensor - Manual Lever Position; Sensor - Manual Lever Position - Mlps
Fits the following Mercury Models:
- Milan | 2006-2009 | Base, Premier | 4 Cyl 2.3 L GAS
View related parts

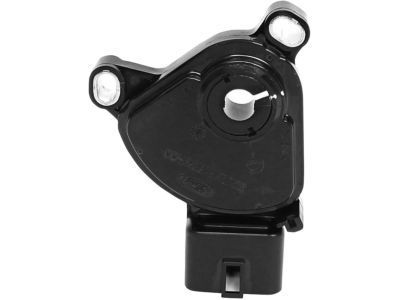

Mercury Range Sensor Part Number: 5L2Z-7F293-AA
$54.66 MSRP: $91.60
You Save: $36.94 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor - Manual Lever Position; Neutral Safety Switch; Sensor - Manual Lever Position - Mlps
- Replaces: 1L2Z-7F293-AA
Fits the following Mercury Models:
- Mountaineer | 2002-2005 | Base, Convenience, Luxury, Premier | 6 Cyl 4.0 L FLEX, 6 Cyl 4.0 L GAS, 8 Cyl 4.6 L GAS
View related parts

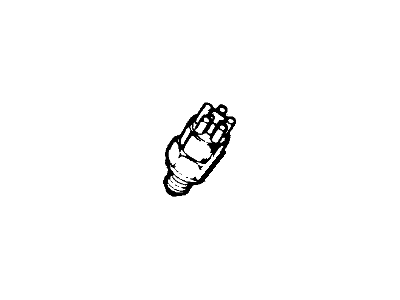

Mercury Range Sensor Part Number: F6CZ-7A247-AA
$91.88 MSRP: $125.03
You Save: $33.15 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly
- Manufacturer Note: #FBO2 21444-A, 2.0L
Fits the following Mercury Models:
- Tracer | 1991-1999 | Base, GS, LS, LTS, Trio | 4 Cyl 1.8 L GAS, 4 Cyl 1.9 L GAS, 4 Cyl 2.0 L GAS
View related parts

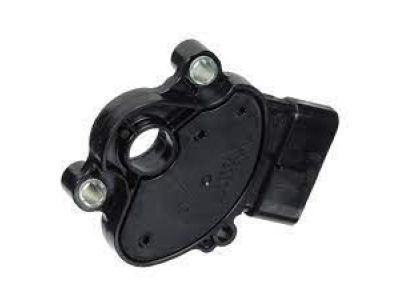

Mercury Neutral Safety Switch Part Number: YF5Z7A247AA
$14.23 MSRP: $19.69
You Save: $5.46 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch - Neutral Sensing
Fits the following Mercury Models:
- Villager | 1999-2002 | Base, Estate, Sport | 6 Cyl 3.3 L GAS
View related parts

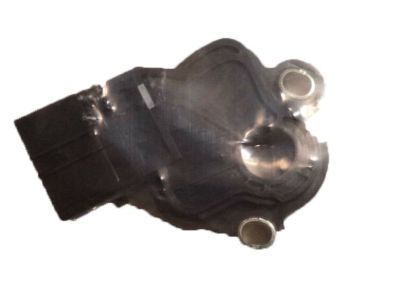

Mercury Neutral Safety Switch Part Number: F6XZ-7A247-AA
$22.20 MSRP: $30.71
You Save: $8.51 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch Assembly - Starter; Switch Assembly - Starter Inhibitor
- Manufacturer Note: 31918,80x02, BEFORE 5/96
- Replaces: F3XY-7A247-A
Fits the following Mercury Models:
- Villager | 1993-1996 | GS, LS, Nautica | 6 Cyl 3.0 L GAS
View related parts
Mercury Neutral Safety Switch Part Number: F5DZ-7F293-BA
Product Specifications
- Other Name: Sensor - Manual Lever Position; Range Sensor; Sensor - Manual Lever Position - Mlps
- Manufacturer Note: Analog type , 8 pin, AFTER 9/26/96
- Replaces: F5DZ-7F293-AA
Fits the following Mercury Models:
- Sable | 1992-1997 | G, GS, LS, LTS | 6 Cyl 3.0 L GAS, 6 Cyl 3.8 L GAS
View related parts
Mercury Neutral Safety Switch Part Number: D6RY-7A247-B
Product Specifications
- Other Name: Switch Assembly - Starter; Back Up Light Switch; Range Sensor; Back-Up Switch; Switch Assembly - Starter Inhibitor
Fits the following Mercury Models:
- Capri | 1984-1986 | 5.0, GS, RS, RS Turbo | 4 Cyl 2.3 L GAS, 6 Cyl 3.8 L GAS, 8 Cyl 5.0 L GAS
- Colony Park | 1987-1991 | GS, LS | 8 Cyl 5.0 L GAS
- Cougar | 1984-1991 | Base, LS, XR-7 | 4 Cyl 2.3 L GAS, 6 Cyl 3.8 L GAS, 8 Cyl 5.0 L GAS
- Grand Marquis | 1984-1991 | Base, Colony Park, GS, LS | 8 Cyl 5.0 L GAS, 8 Cyl 5.8 L GAS
View More
View related parts
Mercury Neutral Safety Switch Part Number: E1FZ-7A247-A
Product Specifications
- Other Name: Switch - Neutral Sensing
Fits the following Mercury Models:
- Sable | 1986-1991 | GS, LS | 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.8 L GAS
- Topaz | 1984-1994 | Base, GS, GS AWD, LS, LS AWD, LTS, LTS AWD, Sport, Sport AWD, XR5, XR5 AWD | 4 Cyl 2.0 L DIESEL, 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS
View related parts
Mercury Neutral Safety Switch Part Number: F8AZ-7F293-AA
$69.62 MSRP: $110.55
You Save: $40.93 (38%)
Product Specifications
- Other Name: Sensor - Manual Lever Position; Range Sensor; Sensor - Manual Lever Position - Mlps
- Manufacturer Note: Digital TRS, FROM 11/10/97
Fits the following Mercury Models:
- Grand Marquis | 1998-2011 | GS, GSL, Limited Edition, LS, LSE, Ultimate Edition | 8 Cyl 4.6 L FLEX, 8 Cyl 4.6 L GAS
- Marauder | 2003-2004 | Base | 8 Cyl 4.6 L GAS
View related parts
Mercury Neutral Safety Switch Part Number: FOVY-7A247-A
Product Specifications
- Other Name: Switch - Neutral Sensing; Back Up Light Switch; Range Sensor; Back-Up Switch
- Manufacturer Note: 4 PRONG CONN.
Fits the following Mercury Models:
- Cougar | 1992-1997 | LS, XR-7 | 6 Cyl 3.8 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 5.0 L GAS
- Grand Marquis | 1992-1997 | GS, LS | 8 Cyl 4.6 L GAS
View related parts
Mercury Neutral Safety Switch Part Number: F6XZ7A247BA
Product Specifications
- Other Name: Switch - Neutral Sensing
Fits the following Mercury Models:
- Villager | 1997-1998 | GS, LS, Nautica | 6 Cyl 3.0 L GAS
View related parts
Mercury Neutral Safety Switch Part Number: E8DZ-7A247-A
Product Specifications
- Other Name: Switch - Neutral Sensing
Fits the following Mercury Models:
- Sable | 1987-1991 | GS, LS | 6 Cyl 3.0 L GAS, 6 Cyl 3.8 L GAS
View related parts
Mercury Neutral Safety Switch Part Number: E2DZ-7A247-A
Product Specifications
- Other Name: Switch - Neutral Sensing; Back Up Light Switch; Back-Up Switch
- Manufacturer Note: TRANS:C5 *SW-1745, replaces E27P 7A247-AA
Fits the following Mercury Models:
- Capri | 1984-1986 | 5.0, GS, RS, RS Turbo | 4 Cyl 2.3 L GAS, 6 Cyl 3.8 L GAS, 8 Cyl 5.0 L GAS
- Cougar | 1984-1986 | Base, LS, XR-7 | 4 Cyl 2.3 L GAS, 6 Cyl 3.8 L GAS, 8 Cyl 5.0 L GAS

Mercury Neutral Safety Switch

If you own Mercury and want to keep it in top shape, choosing OEM Neutral Safety Switch is a smart move. They are precisely engineered and follow strict factory standards. They are made in advanced facilities that use cutting edge technology. Each part goes through thorough testing to confirm strength and safety, so you can trust it. FordPartsDeal.com gives you genuine Mercury Neutral Safety Switch at some of the affordable online prices without cutting quality. Every OEM Mercury part includes the manufacturer's warranty, easy returns, and super-fast delivery. So why wait? Shop now and get your vehicle back to peak condition.

Mercury Neutral Safety Switch Parts and Q&A

Neutral Safety Switch
F8AZ-7F293-AA
Q: How to service the Neutral Safety Switch on the 4R70E/4R75E on Mercury Grand Marquis?
A:
You must disable the fire suppression system before working on the Transmission Position Switch/Sensor of 4R70E/4R75E to eliminate significant personal injury. When the vehicle is situated on a hoist in neutral position perform the cable and TR sensor connector removals. Begin by removing the bolts from the TR sensor before extracting the sensor from its place. Begin installation of the TR sensor by positioning it correctly then loosely install the bolts with the manual control lever set to neutral position. Insert the TR Sensor Alignment Gauge to properly position the slots of the TR sensor. The installation must proceed by applying torque to the screws at 9 Nm (80 lb-in) in a circular order to prevent damage. When placing the manual lever in (D) position proceed with connecting the selector lever cable before tightening it up to 30 Nm (22 lb-ft). Connect the TR sensor electrical wires then proceed by enabling fire suppression system operation following all required safety instructions to stop injuries.
Range Sensor
6E5Z-7F293-A
Q: How to Service and Repair the Neutral Safety Switch on Mercury Milan?
A:
Start the repair and service of Transmission Range (TR) Sensor by first putting the vehicle in neutral position and then mounting it on a hoist. Remove the TR sensor electrical connector as well as the selector lever cable end. The manual control lever requires holding position when working with the manual control lever nut to protect the TR switch from possible damage caused by rotational torques. First disconnect the bolts which secure the TR sensor while also taking away the manual control lever and its nut. Install the TR sensor along with its bolts during this stage while maintaining a hold on the manual control lever yet avoid complete tightening of any bolts. Use the Transmission Range Sensor Alignment Tool for TR sensor alignment before bolting it to 10 Nm (89 lb-in). When applying torque to the manual control lever nut you must keep the manual control lever steady to stop neither the manual control lever shaft nor TR sensor from damage. Tighten this nut to 22 Nm (16 lb-ft). You should first check that the manual control lever sits at the "2" position then make sure the manual control lever points to the correct TR sensor D position. The last step requires the connection of the selector lever cable as well as the TR sensor electrical connector.
