Question 1

How to service and repair the battery cables on Ford Mustang?

Accepted Answer

A hoist-mounted vehicle in neutral should be the start position to service or repair the battery cables. Rinse off the battery and take out the terminal cover for the starter solenoid. The starter solenoid positive cable terminal requires removal by extracting its associated nut before setting it aside. Reinstall this terminal with a torque of 12 Nm (9 lb-ft). When reinstalling the solenoid wire terminal secure it by tightening it to 5 Nm (44 lb-in). Put the bolt aside to relocate the battery cable harness bracket before tightening it to 27 Nm (20 lb-ft) when restoring it. The battery cable harness locator should be removed from behind the LH cylinder head followed by bolt removal to position the battery ground cable engine terminal. Reinstall the bolt with a torque of 27 Nm (20 lb-ft). Remove the battery cable harness locator located behind the RH cylinder head and bulkhead before removing the bolt to position the body terminal of the battery ground cable aside and tightening it to 10 Nm (89 lb-in). After removing the battery cable harness locator from the RH strut tower users should open the BEC cover and disconnect the bolt before properly positioning the BEC terminal aside and tightening it to 20 Nm (15 lb-ft). Grasp the battery cable harness locator from the engine bracket and slide it to a safe spot before you remove the generator B+ boot and its nut and put the B+ terminal to the side. Secure the terminal with 8 Nm (71 lb-in) torque upon reinstating. The specialist disconnects the battery cable in-line connector while taking off the battery cables. The process ends by doing the reverse of the removal sequence.

Question 2

How to service and repair the battery cables on Ford Ranger?

Accepted Answer

The first step to service and repair battery cables demands placing the vehicle in neutral while it rests on a hoist prior to battery disconnection. The bolt requires removal to put aside the battery cable body ground terminal while you tighten it to 12 Nm (9 lb-ft) when reinstalling it. Disconnect both cable connectors at the radiator support along with the additional connector used by A/C if present. Unbolt the three battery cable locators that exist between the battery tray and fender and then detach the BJB cover while removing its two nuts before setting the BJB terminal aside for reinstallation with a torque of 12 Nm (9 lb-ft). Disconnect the fenderwell battery cable connector after removing the bolt which allows the battery cable fenderwell bracket to be moved aside and tightening it to 17 Nm (13 lb-ft). After removing the battery cable engine bracket bolt proceed to install it again with a torque value of 12 Nm (9 lb-ft). First remove the starter solenoid terminal cover before taking off the nut to set the battery cable starter solenoid terminal aside with a torque setting of 12 Nm (9 lb-ft). Start by removing the nut from the battery cable starter solenoid wire terminal and tighten it to 5 Nm then remove the nut from the battery cable engine ground terminal before tightening it to 27 Nm. First step is to disconnect the starter stud bolt battery cable locator followed by removing the oil pressure switch connector before extracting the battery cable locator from the bell housing bracket. Remove the two battery cable locators which are attached to the engine oil level dipstick tube bracket before any other operations. Separate and set aside the generator B+ protective cover while removing the nut from the battery cable generator B+ terminal before securely tightening the terminal to 8 Nm (71 lb-in). The service requires disconnecting both the generator electrical connector combined with the A/C compressor electrical connector prior to removing the battery cable. The service completion requires following the reverse steps of removal for installation.

OEM Ford Battery Cable

817 Battery Cables found

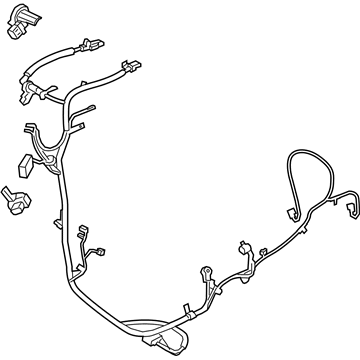

Ford Battery Cable Part Number: GB5Z-14300-A

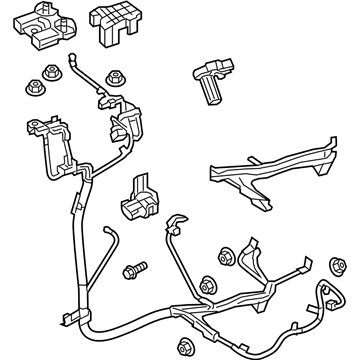

Ford Battery Cable Part Number: BL3Z-14300-C

Ford Battery Cable Part Number: FR3Z-14300-L

Ford Battery Cable Part Number: HG9Z-14300-AM

Ford Cable Assembly Part Number: AL5Z-14300-D

Ford Positive Cable Part Number: HB5Z-14300-F

Ford Battery Cable Part Number: KL3Z-14300-D

Ford Battery Cable Part Number: HB5Z-14300-E

Ford Battery Cable Part Number: GB5Z-14300-E

Ford Battery Cable Part Number: L1MZ-14300-BB

Ford Battery Cable Part Number: JC3Z-14300-A

Ford Charging Port, Driver Side Part Number: LX6Z-14A303-E

Ford Positive Cable Part Number: F1FZ-14300-D

Ford Battery Cable Part Number: JL3Z-14300-C

Ford Battery Cable Part Number: FL3Z-14300-A

Ford Positive Cable Part Number: GB5Z-14300-F

Ford Battery Cable Part Number: ER3Z-14300-B

Ford Positive Cable Part Number: 8L8Z-14300-AA

Ford Cable Assembly Part Number: AL5Z-14300-A

Ford Negative Cable Part Number: 8M6Z-14301-AA
