OEM Ford Variable Timing Sprocket
Timing Gear Sprocket- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
71 Variable Timing Sprockets found

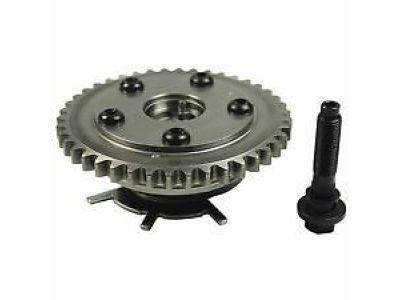

Ford Actuator Part Number: 6M8Z-6C525-D
$168.32 MSRP: $245.00You Save: $76.68 (32%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Cam
- Replaces: 6M8Z-6C525-A, 6M8Z-6C525-CA

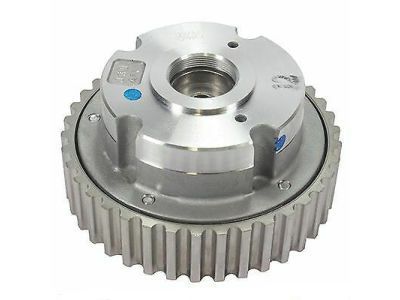

Ford Camshaft Position Sensor Part Number: 3R2Z-6A257-DA
$180.91 MSRP: $263.33You Save: $82.42 (32%)Product Specifications- Other Name: Phaser - Camshaft; VVT Sprocket; Cam Gear; Camshaft Sensor; Camshaft Gear; Actuator; Sensor - Camshaft Position
- Replaces: 3R2Z-6A257-AA

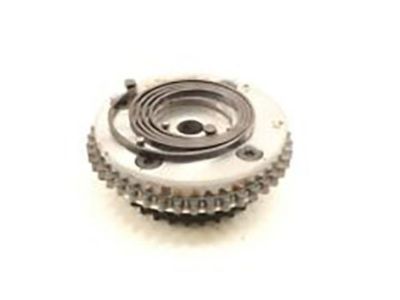

Ford Actuator, Passenger Side Part Number: CP9Z-6C525-D
$119.08 MSRP: $173.33You Save: $54.25 (32%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Cam
- Manufacturer Note: Exhaust
- Position: Passenger Side
- Replaces: CP9Z-6C525-B

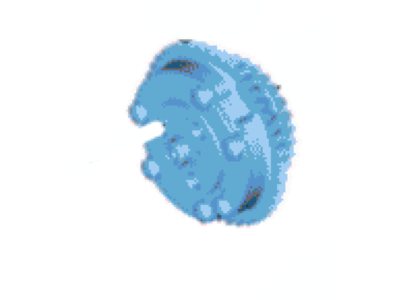

Ford Camshaft Gear Part Number: CJ5Z-6C525-B
$103.62 MSRP: $150.83You Save: $47.21 (32%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Cam; Variable Valve Timing Sprocket; Cam Gear; Actuator
- Manufacturer Note: Exhaust
- Replaces: CJ5Z-6C525-A

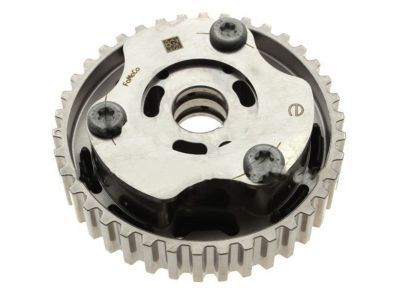

Ford Camshaft Gear Part Number: F8ZZ-6256-AA
$19.27 MSRP: $27.33You Save: $8.06 (30%)Product Specifications- Other Name: Sprocket - Camshaft; Engine Timing Camshaft Sprocket; Variable Valve Timing Sprocket; Cam Gear; Sprocket

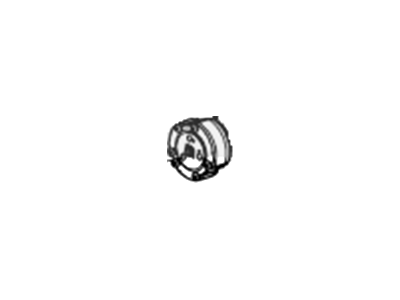

Ford Camshaft Position Sensor, Passenger Side Part Number: 8T4Z-6A257-B
$185.49 MSRP: $270.00You Save: $84.51 (32%)Ships in 1 Business DayProduct Specifications- Other Name: Sensor - Camshaft Position; Timing Sprocket; VVT Sprocket; Actuator
- Manufacturer Note: Intake
- Position: Passenger Side
- Replaces: 8T4Z-6A257-A
Ford Camshaft Gear Part Number: 1S7Z-6256-AA
$19.69 MSRP: $28.67You Save: $8.98 (32%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Sprocket - Camshaft; Engine Timing Gear; Variable Valve Timing Sprocket.; Timing Gear Set; Actuator; Sprocket
Ford Actuator, Passenger Side Part Number: BA5Z-6A257-E
$170.61 MSRP: $248.33You Save: $77.72 (32%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Sensor - Camshaft Position
- Manufacturer Note: Intake
- Position: Passenger Side
- Replaces: BA5Z-6A257-C
Ford Camshaft Gear Part Number: CJ5Z-6256-C
$72.71 MSRP: $105.83You Save: $33.12 (32%)Ships in 1 Business DayProduct Specifications- Other Name: Sprocket - Camshaft; Variable Valve Timing Sprocket; Cam Gear; Actuator
- Manufacturer Note: Intake
- Replaces: CJ5Z-6256-B, CJ5Z-6256-A
Ford Actuator Part Number: E3BZ-6C525-A
$117.94 MSRP: $171.67You Save: $53.73 (32%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Cam
- Manufacturer Note: Exhaust
Ford Camshaft Gear, Driver Side Part Number: 5C3Z-6256-AA
$37.10 MSRP: $54.00You Save: $16.90 (32%)Product Specifications- Other Name: Sprocket - Camshaft; Variable Valve Timing Sprocket; Cam Gear
- Manufacturer Note: SPROCKET, CAMSHAFT
- Position: Driver Side
Ford Actuator Part Number: AT4Z-6256-B
$167.17 MSRP: $243.33You Save: $76.16 (32%)Ships in 1 Business DayProduct Specifications- Other Name: Sprocket - Camshaft; VVT Sprocket
- Manufacturer Note: Intake
- Replaces: AT4Z-6256-A
Ford Actuator, Driver Side Part Number: BA5Z-6A257-D
$188.93 MSRP: $275.00You Save: $86.07 (32%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Sensor - Camshaft Position
- Manufacturer Note: Intake
- Position: Driver Side
Ford Actuator Part Number: DS7Z-6256-A
$97.10 MSRP: $141.33You Save: $44.23 (32%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Sprocket - Camshaft
- Manufacturer Note: Intake
- Replaces: 4M5Z-6256-A, BE8Z-6256-C
Ford Timing Gear Set Part Number: 6S4Z-6256-AA
$28.40 MSRP: $41.33You Save: $12.93 (32%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Sprocket - Camshaft; Variable Valve Timing Sprocket; Timing Gear
Ford Camshaft Gear, Passenger Side Part Number: F8AZ-6256-AA
$21.27 MSRP: $30.17You Save: $8.90 (30%)Ships in 1 Business DayProduct Specifications- Other Name: Sprocket - Camshaft; Engine Timing Camshaft Sprocket, Right; Variable Valve Timing Sprocket; Cam Gear; Sprocket
- Position: Passenger Side
- Replaces: F7LZ-6256-AA
Ford Actuator Part Number: FR3Z-6C525-B
$290.70 MSRP: $463.33You Save: $172.63 (38%)Product Specifications- Other Name: Cam
- Replaced by: FR3Z-6C525-C
Ford Actuator Part Number: BR3Z-6256-A
$220.19 MSRP: $323.33You Save: $103.14 (32%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Sprocket - Camshaft
- Manufacturer Note: Intake
Ford Actuator Part Number: JL3Z-6C525-A
$139.69 MSRP: $203.33You Save: $63.64 (32%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Cam
Ford Camshaft Gear Part Number: 2U3Z-6M264-AA
Product Specifications- Other Name: Sprocket; Variable Valve Timing Sprocket; Cam Gear; Intermediate Gear
- Manufacturer Note: Large Jackshaft Gear
- Replaces: 2L2Z-6M264-AA, F77Z-6M264-BA, F87Z-6M264-AA
| Page 1 of 4 |Next >
1-20 of 71 Results
Ford Variable Timing Sprocket
If you own Ford and want to keep it in top shape, choosing OEM Variable Timing Sprocket is a smart move. They are precisely engineered and follow strict factory standards. They are made in advanced facilities that use cutting edge technology. Each part goes through thorough testing to confirm strength and safety, so you can trust it. FordPartsDeal.com gives you genuine Ford Variable Timing Sprocket at some of the affordable online prices without cutting quality. Every OEM Ford part includes the manufacturer's warranty, easy returns, and super-fast delivery. So why wait? Shop now and get your vehicle back to peak condition.
Ford Variable Timing Sprocket changes cam timing dynamically and maximizes power at reduced fuel consumption. Ford was born in 1903 and transformed the manufacturing industry by dispatching vehicles along an assembly line that reduced cost and time. The relocation brought wheels under the reach of average employees, and Ford continued to maintain that in the form of inexpensive but powerful EcoBoost power. Voice-activated SYNC transforms playlists, calls, and maps into verbal commands to make Ford seem smart and not dainty. The Co-Pilot360 suite of driving features, such as automatic braking and lane keeping, demonstrates that Ford bakes safety into the drive. The corporation is currently launching battery trucks such as the F-150 Lightning, which provide torque minus spewing tailpipe smog. In both petrol and electric powertrains, the goal remains the same: provide the driver with more power per gallon or kilowatt. Variable Timing Sprocket optimizes the timing of the events of valve timing each full crank turn, whereby at low revs the engine can draw in air, whereas at high revs it can hold on to charge to create a broad flat torque range. Variable Timing Sprocket makes use of sliding slots and lobed keyways such that cams move a few degrees without disturbing ignition or injection mapping. Using variable timing trimming, the pumping loss Variable Timing Sprocket makes use of the variable timing to squeeze the maximum work out of every drop of fuel. Designed with an infinite variety of quick switching phases, Variable Timing Sprocket sheds the wear that keeps the start clean and smooth in years of hard service.
Ford Variable Timing Sprocket Parts and Q&A
- Q: How to remove and install Timing Chain and Variable Timing Sprocket in the 4.0L pushrod V6 engine on 2000-2011 Ford Ranger?A:This procedure involves the total pulling off of the engine from the vehicle in order to effect a proper resealing of the liming chain cover to the oil pan joint. To check camshaft endplay, the timing chain cover and rocker arm shafts should be removed and the camshaft should be pushed to the rear as far as it can be pushed. Fit a dial indicator touching the flat of the camshaft sprocket bolt with its pointer touching zero. Tighten the camshaft forward with a large screw driver or pry-bar between the camshaft sprocket and the block and read the dial indicator to compare with the end play; change the camshaft thrust plate if the reading is very large. For timing the chain and tensioner, remove the chain cover, superimpose crankshaft and camshaft timing marks, and then locate a top chain link; position a ruler above the chain. Having installed the wrench on the camshaft sprocket bolt turn it counter clockwise with a 15 ft lbs while ensuring the crank shaft does not turn thus noting where the mark falls on the ruler. Tighten to clockwise direction up to 15 ft-lbs and measure the movement that must not be more than 1/8-inch; if is more, the timing chain needs replacement. The tensioner should be checked for wear and damage, and if face wear is severe then it is replaced, then making certain that the tensioner is in the retracted position before ensuring that the tensioners bolts are tightened to the necessary torque. For chain and sprocket removal, the disconnected cable should be removed from the negative terminal of the battery, the cooling system and the engine oil should be drained, then the engine plus the oil pan has to be removed. Change the oil filter, the drivebelt, then pull off the timing chain cover. Rotate the crankshaft in order to have the timing marks upright, then take out the camshaft sprocket Torx bolt and the crankshaft sprocket key and the timing chain tensioner. The sprockets can be removed and the chain connected without unbolting the crankshaft or camshaft and if required, the Torx bolts of the chain guide have to be unscrewed. For assembling put the crankshaft and camshaft in position to ensure the sprocket timing marks are lined up in the correct manner then ensure the chain guide has been replaced if removed at all tighten the guide bolts. Position the sprockets so that the timing marks are adjacent, fit them on the crankshaft and the camshaft and put in the crankshaft key. Make sure that the sprocket timing marks are matching, the guide section of the chain is straight and no sagging. The camshaft sprocket should then be fitted and the camshaft sprocket bolt tightened to the recommended torque. Compresspressure the tensioner pad at the same time as using the end of the sharp-tipped probe to force the ratchet assembly downwards and towards compressing the tensioner until the latch, then hold the tensioner pad in the retracted position. Place the timing chain tensioner in position, as to exert force on the chain, and then torque the bolts to the required amount of pound Newtown. The rest of the work is done in the reverse sequence to the removal and the last thing is to start the engine and look for signs of oil or coolant leakage.
- Q: How to remove and install the timing chain and variable timing sprocket on the front of the 3.5L and 3.7L V6 engine in a Ford F-150?A:Disconnect the cable from the negative battery terminal, then remove the valve covers and the engine front cover. Turn the engine clockwise until the VCT units on each intake camshaft are positioned at 90 degrees in relation to the top surface of the cylinder heads. Remove the bolts securing the valve train oil tubes to each cylinder head, and take out three of the camshaft cap bolts to access the valvetrain oil tubes. Install the special camshaft locking tools, ensuring they hold the flats on each camshaft. If the timing marks on the timing chain are not visible, add a paint dot to align with the marks on the VCT units and the crankshaft timing sprocket. Remove the two bolts and the primary timing chain tensioner arm, then unbolt and take out the two tensioners. Remove the mounting bolts and both the lower-left and lower-right chain guides. Take out the bolts securing the VCT solenoids to the cylinder heads, noting that the intake solenoids are white and the exhaust solenoids are black, and keep them in clean plastic bags marked with their destination. Remove the primary timing chain, noting that the two camshafts on each cylinder head are driven by a smaller secondary timing chain. Depress and lock the secondary chain tensioner on each bank using the factory tool or a length of threaded rod and nuts. With the camshafts still locked at TDC, remove the mounting bolts from the VCT units and take off the sprockets and secondary timing chains. If the primary timing chain sprocket is to be replaced, remove the nine bolts securing the plate that mounts the gear to the front of the block. Clean the mounting surface and install the sprocket and plate with a new gasket if the primary chain gear and its plate were removed. Prepare the primary chain tensioners by pushing in the release button and compressing the plunger until a nail or large paper clip can be inserted to hold it. New secondary timing chain tensioners must be installed if the old ones were removed, and the tensioner is correctly installed when a "snap" sound is heard. Install the tensioner shoe and remove the plastic clip with pliers. Align the colored links with the marks on the VCT units and install the chain on the backside of the VCT units, ensuring the two VCT units align with the dowel pins on the front of the camshafts. Use new bolts to install the VCT units and tighten them to the specified torque. Once the secondary chains and VCT units are installed and aligned, install the primary timing chain, aligning the colored links with the marks on the sprockets. After all components are installed and aligned, pull the pins holding back the two primary chain tensioners. Reinstall the remaining parts in the reverse order of removal, then carefully rotate the crankshaft by hand through at least two full revolutions. Finally, install a new oil filter, add engine oil and coolant, run the engine, and check for leaks.
