How to Service and Repair the Transmission Pan, Gasket, and Filter on Mercury Grand Marquis?

Placing a vehicle on a hoist and setting it to neutral position marks the starting point for servicing the fluid pan along with its gasket and filter. Service providers should drain the transmission fluid through bolt loosening of the pan until no more fluid remains before removing the bolts completely. Remove transmission fluid pan with its gasket followed by pulling down evenly to detach the transmission fluid filter and seal. The service technician should clean the transmission fluid pan along with its gasket and magnet for inspection. First inspect the main control bore before moving ahead with filter installation since mild scrubbing with a screwdriver can remove existing seals properly but avoid damaging the bore area. The service requires replacement of both transmission filter and seal only in cases of contamination failure but permits filter reuse when excessive contamination does not exist. After installation of a new fluid filter and seal proceed with inserting the pan magnet into the transmission fluid pan. Users can keep using the transmission fluid pan gasket in case it remains functional but need to clean and examine it before implementation. Place the transmission fluid pan together with the gasket in the correct position before installing the transmission fluid pan bolts. You should pour 4.7 liters (5 quarts) of newly fought automatic transmission fluid into the system until it hits the recommended fluid mark.

How to service and repair the automatic transmission filter and transmission pan on Mercury Mountaineer?

Begin filtering and repairing the automatic transmission fluid filter by setting your vehicle to neutral and hoisting it before you place a drain pan under the transmission fluid pan. The first step requires removing the drain plug to drain the fluid. The transmission fluid pan gasket can be reused through cleaning to check for damage or replacement if found undamaged. The required next step involves removing 16 transmission fluid pan screws as well as the fluid pan along with its gasket. Remove the old transmission fluid filter and clean the transmission fluid pan together with its magnet for inspection. Place clean automatic transmission fluid on the seals of the new filter before installing it properly on the filter housing and tighten it to 10 Nm (89 inch lbs.). Place the transmission fluid pan magnet into the fluid pan then secure it with the gasket material. Fit the transmission fluid pan together with its gasket before beginning to tighten its screws in a crisscross pattern up to 11 Nm (8 ft. lbs.). The final step includes installing the fluid drain plug while tightening it to 26 Nm (19 ft. lbs.), then performing a partial transmission fluid addition.

OEM Mercury Transmission Pan

Trans Pan

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

13 Transmission Pans found

View related parts
Mercury Transmission Pan Part Number: F3XY-7A194-A
$55.20 MSRP: $76.37
You Save: $21.17 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assembly - Transmission Oil; Automatic Transmission Oil Pan
- Manufacturer Note: #31390-80X05
Fits the following Mercury Models:
- Villager | 1993-2002 | Base, Estate, GS, LS, Nautica, Sport | 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L GAS
View related parts
Mercury Oil Pan Part Number: F69Z-7A194-AA
$68.77 MSRP: $100.10
You Save: $31.33 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assembly - Transmission Oil; Transmission Oil Pan; Automatic Transmission Oil Pan; Transmission Pan
- Replaces: F5TZ-7A194-A
Fits the following Mercury Models:
- Mountaineer | 1998-2001 | Base | 6 Cyl 4.0 L GAS, 8 Cyl 5.0 L GAS
View related parts
Mercury Oil Pan Part Number: 6L3Z-7A194-A
$38.21 MSRP: $54.67
You Save: $16.46 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assembly - Transmission Oil; Transmission Oil Pan; Automatic Transmission Oil Pan; Transmission Pan
- Replaces: F6AZ-7A194-A
Fits the following Mercury Models:
- Grand Marquis | 1992-2011 | GS, GSL, Limited Edition, LS, LSE, Ultimate Edition | 8 Cyl 4.6 L FLEX, 8 Cyl 4.6 L GAS
- Marauder | 2003-2004 | Base | 8 Cyl 4.6 L GAS
- Mountaineer | 1997-2001 | Base | 6 Cyl 4.0 L GAS, 8 Cyl 5.0 L GAS
View More
View related parts
Mercury Transmission Pan Part Number: 5F9Z-7A194-B
$92.20 MSRP: $134.20
You Save: $42.00 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assembly - Transmission Oil; Transmission Oil Pan; Automatic Transmission Oil Pan
Fits the following Mercury Models:
- Montego | 2005-2007 | Luxury, Premier | 6 Cyl 3.0 L GAS
View related parts
Mercury Oil Pan Part Number: F69Z-7A194-BA
$69.15 MSRP: $100.65
You Save: $31.50 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assembly - Transmission Oil; Transmission Oil Pan; Automatic Transmission Oil Pan; Transmission Pan
Fits the following Mercury Models:
- Mountaineer | 1998-2001 | Base | 6 Cyl 4.0 L GAS, 8 Cyl 5.0 L GAS
View related parts
Mercury Transmission Pan Part Number: F6DZ-7A194-A
$80.72 MSRP: $111.67
You Save: $30.95 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assembly - Transmission Oil; Transmission Oil Pan; Automatic Transmission Oil Pan
- Manufacturer Note: Use with molded reusable gasket
Fits the following Mercury Models:
- Sable | 1996-2005 | G, GS, LS, LS Premium | 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS
View related parts
Mercury Oil Pan Part Number: 7L1Z-7A194-A
$56.30 MSRP: $81.95
You Save: $25.65 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assembly - Transmission; Transmission Oil Pan; Automatic Transmission Oil Pan; Transmission Pan; Pan Assembly - Transmission Oil
- Manufacturer Note: With Magnet
- Replaced by: 9L3Z-7A194-A
Fits the following Mercury Models:
- Mountaineer | 2006-2010 | Base, Convenience, Luxury, Premier | 6 Cyl 4.0 L GAS, 8 Cyl 4.6 L GAS
View related parts
Mercury Oil Pan Part Number: 6L2Z-7A194-CA
$56.30 MSRP: $81.95
You Save: $25.65 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assembly - Transmission; Transmission Oil Pan; Automatic Transmission Oil Pan; Transmission Pan; Pan Assembly - Transmission Oil
- Replaced by: 9L3Z-7A194-A
Fits the following Mercury Models:
- Mountaineer | 2006-2007 | Base, Convenience, Luxury, Premier | 6 Cyl 4.0 L GAS, 8 Cyl 4.6 L GAS
View related parts
Mercury Oil Pan Part Number: 1L2Z-7A194-CA
Product Specifications
- Other Name: Pan Assembly - Transmission Oil; Transmission Oil Pan; Automatic Transmission Oil Pan; Transmission Pan
Fits the following Mercury Models:
- Mountaineer | 2002-2010 | Base, Convenience, Luxury, Premier | 6 Cyl 4.0 L FLEX, 6 Cyl 4.0 L GAS, 8 Cyl 4.6 L GAS
View related parts
Mercury Transmission Pan Part Number: 4F1Z-7A194-AA
Product Specifications
- Other Name: Pan Assembly - Transmission Oil; Transmission Oil Pan; Automatic Transmission Oil Pan
- Replaces: YF1Z-7A194-AA
Fits the following Mercury Models:
- Monterey | 2005-2007 | Convenience, Luxury, Premier | 6 Cyl 4.2 L GAS
- Sable | 1996-2005 | G, GS, LS, LS Premium, Platinum Edition | 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS
View related parts

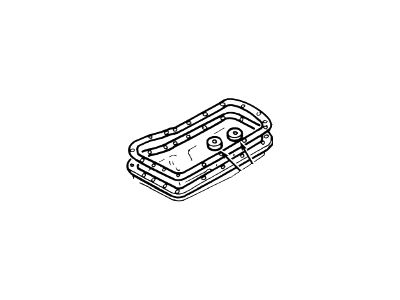

Mercury Transmission Pan Part Number: F1CZ-7A194-A
Product Specifications
- Other Name: Pan Assembly - Transmission Oil; Automatic Transmission Oil Pan
Fits the following Mercury Models:
- Tracer | 1997-1999 | GS, LS, Trio | 4 Cyl 2.0 L GAS
View related parts
Mercury Transmission Pan Part Number: 8E5Z-7A194-A
Product Specifications
- Other Name: Pan Assembly - Transmission Oil; Transmission Oil Pan; Automatic Transmission Oil Pan
- Manufacturer Note: Incl.Drain Plug & Gasket
- Replaces: 6E5Z-7A194-A
Fits the following Mercury Models:
- Milan | 2006-2009 | Base, Premier | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS
View related parts
Mercury Transmission Pan Part Number: 4F1Z-7A194-BA
Product Specifications
- Other Name: Pan Assembly - Transmission Oil; Transmission Oil Pan; Automatic Transmission Oil Pan
- Replaces: YF1Z-7A194-BA
Fits the following Mercury Models:
- Monterey | 2004 | Base, Premier | 6 Cyl 4.2 L GAS

Mercury Transmission Pan

If you own Mercury and want to keep it in top shape, choosing OEM Transmission Pan is a smart move. They are precisely engineered and follow strict factory standards. They are made in advanced facilities that use cutting edge technology. Each part goes through thorough testing to confirm strength and safety, so you can trust it. FordPartsDeal.com gives you genuine Mercury Transmission Pan at some of the affordable online prices without cutting quality. Every OEM Mercury part includes the manufacturer's warranty, easy returns, and super-fast delivery. So why wait? Shop now and get your vehicle back to peak condition.

Mercury Transmission Pan maintains the automatic gearboxes cool and greasy to ensure the shifts remain smooth. Mercury created its niche by combining an easy ride with sharp appearance that never seemed stodgy. Mercury accepted roomy cabins, tight steering and sound-dampening touches to help make long trips quieter. The legendary Cougar and the stately Grand Marquis were models of Mercury that showed that it was possible to have flash without emptying a wallet. That mid-range appeal of 1939 that Mercury maintained to the close of 2011 has gradually acquired power windows, polished suspensions and dials that a driver could read with the top of the eyes. The lineup was balanced in terms of comfort and value and offered drivers seats that embraced road warriors and errands. The skimming of potholes by suspensions was discovered by showroom visitors, but this is a trick that rival nameplates rarely excel in. A Transmission Pan is a solid pan installed under the transmission, which is a hard container where the fluid that is applied to give hydraulic pressure and remove heat is stored and circulated each gear shift. The Transmission Pan is stamped steel or molded plastic which is strong enough to shrug off the road grit and winter salt and tight enough to exclude leaks. Other constructions include the filter, which allows the Transmission Pan to trap debris before it can scar clutches or valves. Install a tired unit in its place and the Transmission Pan will return you with fresh shifts, cooler internals and a decades-long pulling driveshaft.

Mercury Transmission Pan Parts and Q&A

Oil Pan
6L3Z-7A194-A
Q: How to Service and Repair the Transmission Pan, Gasket, and Filter on Mercury Grand Marquis?
A:
Placing a vehicle on a hoist and setting it to neutral position marks the starting point for servicing the fluid pan along with its gasket and filter. Service providers should drain the transmission fluid through bolt loosening of the pan until no more fluid remains before removing the bolts completely. Remove transmission fluid pan with its gasket followed by pulling down evenly to detach the transmission fluid filter and seal. The service technician should clean the transmission fluid pan along with its gasket and magnet for inspection. First inspect the main control bore before moving ahead with filter installation since mild scrubbing with a screwdriver can remove existing seals properly but avoid damaging the bore area. The service requires replacement of both transmission filter and seal only in cases of contamination failure but permits filter reuse when excessive contamination does not exist. After installation of a new fluid filter and seal proceed with inserting the pan magnet into the transmission fluid pan. Users can keep using the transmission fluid pan gasket in case it remains functional but need to clean and examine it before implementation. Place the transmission fluid pan together with the gasket in the correct position before installing the transmission fluid pan bolts. You should pour 4.7 liters (5 quarts) of newly fought automatic transmission fluid into the system until it hits the recommended fluid mark.
Oil Pan
7L1Z-7A194-A
Q: How to service and repair the automatic transmission filter and transmission pan on Mercury Mountaineer?
A:
Begin filtering and repairing the automatic transmission fluid filter by setting your vehicle to neutral and hoisting it before you place a drain pan under the transmission fluid pan. The first step requires removing the drain plug to drain the fluid. The transmission fluid pan gasket can be reused through cleaning to check for damage or replacement if found undamaged. The required next step involves removing 16 transmission fluid pan screws as well as the fluid pan along with its gasket. Remove the old transmission fluid filter and clean the transmission fluid pan together with its magnet for inspection. Place clean automatic transmission fluid on the seals of the new filter before installing it properly on the filter housing and tighten it to 10 Nm (89 inch lbs.). Place the transmission fluid pan magnet into the fluid pan then secure it with the gasket material. Fit the transmission fluid pan together with its gasket before beginning to tighten its screws in a crisscross pattern up to 11 Nm (8 ft. lbs.). The final step includes installing the fluid drain plug while tightening it to 26 Nm (19 ft. lbs.), then performing a partial transmission fluid addition.
