How to Service and Repair the Rear Axle Shaft with a 7.5 Inch Ring Gear on Ford Ranger?

You must begin servicing and repairing the 7.5 Inch Ring Gear Rear Drive Axle by first lifting the vehicle and placing supports then taking out the wheel assembly. Place drainable lubricant into a clean storage container before you remove the differential housing cover by extracting all its 10 bolts. The next step involves brake drum removal followed by extracting the differential pinion shaft through discarding its lock bolt while carefully extracting the shaft. When removing U-washers and pushing axle shafts inboard protect the rubber O-rings from damage present in the axle shaft grooves. You should handle two axle shafts with care so their wheel bearing oil seals stay intact. During installation always clean and oil-free machines surfaces on the rear axle housing and differential housing cover while using new silicone sealant on protected rear axle interiors. The wheel bearing oil seal requires greasing on its outer lip before installing the two axle shafts together with their U-washers positioned on the button ends. You can install the differential pinion shaft by treating the new lock bolt threads with threadlock and sealer then securing it with the new bolt after precise alignment into the case lock bolt opening. To prevent the need for new sealant install the rear brake drums while applying a new continuous bead around the differential housing cover within 15 minutes of the sealant application. After securing the differential housing cover with its 10 bolts users should add 2.4 liters of 5 pints of lubricant to the rear axle housing before reinstalling the wheels and tires and lowering the vehicle.

How to remove and replace the front drive axle shafts on Ford Ranger?

Add or replace front axle shafts through the following sequence: the vehicle gets hoisted into neutral gear position then you must remove the front wheel along with the tire. Remove the hub nut and washer assembly because no reuse is possible while new installation needs a torque of 250 Nm (184 lb-ft). Support the brake caliper independently from the brake hose before disassembling the two bolts that secure the disc brake anchor plate on the knuckle. Set the caliper assembly to the side. The front wheel hub remover should be used alone to dislodge the outboard front wheel axle shaft from the wheel hub while skipping hammer usage for joint damage protection. Toe in the front suspension lower arm while you disconnect the upper ball joint from the front wheel knuckle using a 63 Nm (46 lb-ft) torque. Reinstall the joint by tightening it to this value. The tie-rod end remover should be used to differentiate the wheel spindle's outer tie-rod end during installation while tightening it to 80 Nm (59 lb-ft). The front wheel knuckle rotation allows access to the outboard front wheel axle shaft joint so you can compress it before extracting the wheel hub component. Use the axle shaft remover with slide hammer to split apart the inboard front wheel axle shaft joint from the front axle housing while protecting the axle seal from harm. Install the new retainer circlip inside the groove of the LH inboard CV joint housing stub shaft before installing the axle shaft assembly where the circlip must sit correctly in place. To install the components you should perform the removal steps in reverse order by not using power tools to tighten components and by keeping the hub nut and washer assembly out of reuse.

OEM Ford Ranger Axle Shaft

Car Axle Shaft

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

25 Axle Shafts found

View related parts
Ford Ranger Axle Assembly, Front Passenger Side Part Number: 6L5Z-3A428-AA
$165.75 MSRP: $272.73
You Save: $106.98 (40%)
ADD TO CART
Product Specifications
- Other Name: Shaft - Front Axle; CV Axle Assembly, Front Right; GSP CV Axle; Axle Shaft; CV Joint; Shaft & Joint; Outer Joint Assembly; CV Axle Assembly
- Position: Front Passenger Side
- Replaces: 2L2Z-3B436-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2011 Ford Ranger | Edge, FX4, Sport, STX, Tremor, XL, XLT | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
View related parts
Ford Ranger Axle Assembly, Front Driver Side Part Number: 6L5Z-3A427-AA
$167.96 MSRP: $276.36
You Save: $108.40 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft - Front Axle; CV Axle Assembly, Front Left; GSP CV Axle; Axle Shaft; CV Joint; Shaft & Joint; Outer Joint Assembly; CV Axle Assembly
- Position: Front Driver Side
- Replaces: 2L2Z-3B437-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2011 Ford Ranger | Edge, FX4, Sport, STX, Tremor, XL, XLT | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
View related parts
Ford Ranger Axle Shaft, Passenger Side Part Number: F87Z-4234-BA
$283.81 MSRP: $456.50
You Save: $172.69 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft; Axle Shafts
- Manufacturer Note: RH - 31 Spline, Use with axle #302G, 302L, V302B, V302D, V305K - 1999/
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2009 Ford Ranger | Edge, FX4, Sport, STX, Tremor, XL, XLT | 4 Cyl 2.3 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
View related parts
Ford Ranger Axle Assembly, Front Passenger Side Part Number: KB3Z-3A428-B
$349.58 MSRP: $560.00
You Save: $210.42 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft - Front Axle; CV Axle Assembly, Front Right; Axle Shaft
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2019-2023 Ford Ranger | Lariat, XL, XLT | 4 Cyl 2.3 L GAS
View related parts
Ford Ranger Axle Assembly, Front Driver Side Part Number: KB3Z-3A427-B
$367.74 MSRP: $589.09
You Save: $221.35 (38%)
ADD TO CART
Product Specifications
- Other Name: Shaft - Front Axle; CV Axle Assembly, Front Left; Axle Shaft
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2019-2023 Ford Ranger | Lariat, XL, XLT | 4 Cyl 2.3 L GAS
View related parts
Ford Ranger Axle Assembly, Front Passenger Side Part Number: KB3Z-3A428-E
$175.19 MSRP: $278.18
You Save: $102.99 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft - Front Axle; CV Axle Assembly, Front Right; CV Axle Assembly; GSP CV Axle; Axle Shaft
- Position: Front Passenger Side
- Replaces: KB3Z-3A428-D, TX-1271, KB3Z-3A428-A, KB3Z-3A428-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2019-2023 Ford Ranger | Lariat, XL, XLT | 4 Cyl 2.3 L GAS
View related parts
Ford Ranger Axle Shafts, Rear Passenger Side Part Number: KB3Z-4234-B
$508.14 MSRP: $746.17
You Save: $238.03 (32%)
ADD TO CART
Product Specifications
- Other Name: Shaft Assembly - Rear Axle; Drive Axle Shaft, Rear Right; Axle Assembly; Axle Shaft
- Position: Rear Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2019-2023 Ford Ranger | Lariat, XL, XLT | 4 Cyl 2.3 L GAS
View related parts

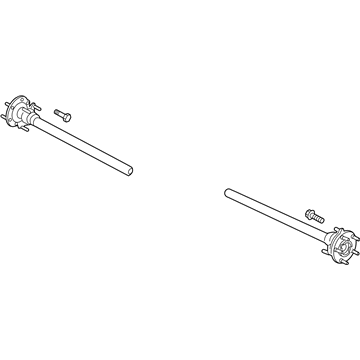

Ford Ranger Axle Shafts, Rear Part Number: KB3Z-4234-D
$261.05 MSRP: $383.33
You Save: $122.28 (32%)
ADD TO CART
Product Specifications
- Other Name: Shaft Assembly - Rear Axle; Axle Assembly
- Position: Rear
- Replaces: KB3Z-4234-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2019-2023 Ford Ranger | Lariat, XL, XLT | 4 Cyl 2.3 L GAS
View related parts

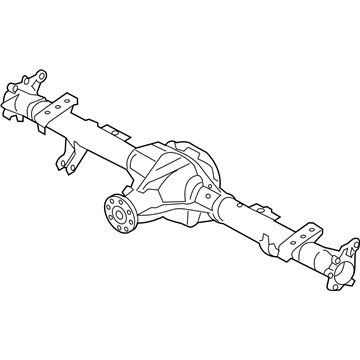

Ford Ranger Axle Housing, Rear Part Number: KB3Z-4010-B
$1129.84 MSRP: $1673.83
You Save: $543.99 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Housing - Rear Axle; Differential Housing, Rear; Axle
- Position: Rear
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2019-2023 Ford Ranger | Lariat, XL, XLT | 4 Cyl 2.3 L GAS
View related parts
Ford Ranger Axle Shaft, Rear Driver Side Part Number: F87Z-4234-BB
Product Specifications
- Other Name: Shaft; Drive Axle Shaft, Rear Left; Axle Shafts
- Manufacturer Note: LH - 31 Spline, Use with axle #302G, 302L, V302B, V302D, V305K - 1999/
- Position: Rear Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2009 Ford Ranger | Edge, FX4, Sport, STX, Tremor, XL, XLT | 4 Cyl 2.3 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
View related parts
Ford Ranger Axle Shaft, Rear Driver Side Part Number: AL5Z-4234-B
Product Specifications
- Other Name: Shaft Assembly - Rear Axle; Drive Axle Shaft, Rear Left; Axle Shafts
- Position: Rear Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2010-2011 Ford Ranger | Sport, XL, XLT | 4 Cyl 2.3 L GAS, 6 Cyl 4.0 L GAS
View related parts
Ford Ranger Axle Shaft, Passenger Side Part Number: F37Z-4234-A
Product Specifications
- Other Name: Shaft; Axle Shafts
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1993-1997 Ford Ranger | Splash, Sport, STX, XL, XL Sport, XLT | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
View related parts
Ford Ranger Axle Shaft, Rear Driver Side Part Number: F37Z-4234-B
Product Specifications
- Other Name: Shaft Assembly - Rear Axle; Axle Shafts
- Position: Rear Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1993-1997 Ford Ranger | Splash, Sport, STX, XL, XL Sport, XLT | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
View related parts
Ford Ranger Axle Shafts, Front Passenger Side Part Number: F3TZ3219B
Product Specifications
- Other Name: Shaft - Front Axle Passenger Side; Axle Shaft; Outer Axle Shaft
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1993-1994 Ford Ranger | Splash, Sport, STX, XL, XLT | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
View related parts
Ford Ranger Axle Shafts, Front Passenger Side Part Number: F57Z-3B436-BA
Product Specifications
- Other Name: Shaft - Front Axle; CV Axle Assembly, Front Right; GSP CV Axle; Axle Shaft; CV Joint; Axle Assembly; Shaft & Joint; Outer Joint Assembly; CV Axle Assembly
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000-2002 Ford Ranger | Edge, XL, XLT | 4 Cyl 2.3 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
View related parts
Ford Ranger Axle Shafts, Front Driver Side Part Number: F57Z-3B437-BA
Product Specifications
- Other Name: Shaft - Front Axle; CV Axle Assembly, Front Left; GSP CV Axle; Axle Shaft; CV Joint; Axle Assembly; Shaft & Joint; Outer Joint Assembly; CV Axle Assembly
- Manufacturer Note: LH, Threaded wheel end
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000-2002 Ford Ranger | Edge, XL, XLT | 4 Cyl 2.3 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
View related parts
Ford Ranger Inner Joint, Passenger Side Part Number: F5TZ-3B414-A
Product Specifications
- Other Name: Joint And Stub Shaft; CV Joint; Inner Joint Assembly; Joint And Stub Shaft Assembly
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998-2011 Ford Ranger | Edge, FX4, Splash, Sport, STX, Tremor, XL, XLT | 4 Cyl 2.3 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
View related parts
Ford Ranger Inner Joint, Driver Side Part Number: F5TZ-3B414-B
Product Specifications
- Other Name: Joint And Stub Shaft; CV Joint; Inner Joint Assembly; Joint And Stub Shaft Assembly
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998-2011 Ford Ranger | Edge, FX4, Splash, Sport, STX, Tremor, XL, XLT | 4 Cyl 2.3 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
View related parts
Ford Ranger Axle Shaft, Rear Passenger Side Part Number: F87Z-4234-AC
Product Specifications
- Other Name: Shaft Assembly - Rear Axle; Axle Shafts
- Position: Rear Passenger Side
- Replaces: F87Z-4234-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998-2009 Ford Ranger | Edge, FX4, Splash, Sport, STX, Tremor, XL, XLT | 4 Cyl 2.3 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
View related parts
Ford Ranger Axle Shaft, Rear Driver Side Part Number: F87Z-4234-AD
Product Specifications
- Other Name: Shaft Assembly - Rear Axle; Drive Axle Shaft, Rear Left; Axle Shafts
- Position: Rear Driver Side
- Replaces: F87Z-4234-AB
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998-2009 Ford Ranger | Edge, FX4, Splash, Sport, STX, Tremor, XL, XLT | 4 Cyl 2.3 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS

| Page 1 of 2 |Next >

1-20 of 25 Results

Ford Ranger Axle Shaft

OEM Axle Shaft boasts unmatched quality. Each part goes through full quality checks. They adhere to Ford's official factory standards. These steps remove flaws and inconsistencies. So you can get Axle Shaft with long life and a perfect fit. Come to our website and find genuine Ford Ranger parts. We keep a wide inventory of OEM Ranger parts at the highly affordable prices. It's easy to search, compare, and pick what you need. You'll love the clear info and simple checkout. We offer top-rated customer service, and we reply fast. We also ship promptly to ensure your order arrives on time.

The Axle Shaft is an important component of Ford Ranger vehicles which is responsible for the transmission of power from the differential to the drive wheels that allows for independent rotation of the wheels in order to enhance the capability of the vehicle to stick to the ground during cornering. The Ford Ranger models have both the solid axles and half shafts as a part of their driveshaft assembly based on the suspension system installed. The solid axles are mostly seen in the older models of vehicles and help in providing strength and also in the transfer of torque while half shafts are used in the vehicles which have independent suspension system and connects the transaxle to the wheel. Through the years, the Ford Ranger has used a number of Axle Shafts: live axles for weight and power transfer and split axles for better riding comfort. The distinguishing factor between these two types is in the design as well as in their functionality; the solid axles are more rigid thus suitable for use in vehicles that are to experience heavy usage while the halfshafts are flexible as well as able to offer a smoother ride. In conclusion, it can be said that the Axle Shaft plays a crucial role in providing better performance and handling of the Ford Ranger.

Ford Ranger Axle Shaft Parts and Q&A

Axle Shaft, Rear Driver Side
F87Z-4234-BB
Q: How to Service and Repair the Rear Axle Shaft with a 7.5 Inch Ring Gear on Ford Ranger?
A:
You must begin servicing and repairing the 7.5 Inch Ring Gear Rear Drive Axle by first lifting the vehicle and placing supports then taking out the wheel assembly. Place drainable lubricant into a clean storage container before you remove the differential housing cover by extracting all its 10 bolts. The next step involves Brake Drum removal followed by extracting the differential pinion shaft through discarding its lock bolt while carefully extracting the shaft. When removing U-washers and pushing axle shafts inboard protect the rubber O-rings from damage present in the axle shaft grooves. You should handle two axle shafts with care so their wheel bearing oil seals stay intact. During installation always clean and oil-free machines surfaces on the rear axle housing and differential housing cover while using new silicone sealant on protected rear axle interiors. The wheel bearing oil seal requires greasing on its outer lip before installing the two axle shafts together with their U-washers positioned on the button ends. You can install the differential pinion shaft by treating the new lock bolt threads with threadlock and sealer then securing it with the new bolt after precise alignment into the case lock bolt opening. To prevent the need for new sealant install the rear brake drums while applying a new continuous bead around the differential housing cover within 15 minutes of the sealant application. After securing the differential housing cover with its 10 bolts users should add 2.4 liters of 5 pints of lubricant to the rear axle housing before reinstalling the wheels and tires and lowering the vehicle.
Axle Assembly, Front Driver Side
6L5Z-3A427-AA
Q: How to remove and replace the front drive axle shafts on Ford Ranger?
A:
Add or replace front axle shafts through the following sequence: the vehicle gets hoisted into neutral gear position then you must remove the front wheel along with the tire. Remove the hub nut and washer assembly because no reuse is possible while new installation needs a torque of 250 Nm (184 lb-ft). Support the Brake Caliper independently from the brake hose before disassembling the two bolts that secure the disc brake anchor plate on the knuckle. Set the caliper assembly to the side. The front wheel hub remover should be used alone to dislodge the outboard front wheel axle shaft from the wheel hub while skipping hammer usage for joint damage protection. Toe in the front suspension lower arm while you disconnect the upper Ball Joint from the front wheel knuckle using a 63 Nm (46 lb-ft) torque. Reinstall the joint by tightening it to this value. The tie-rod end remover should be used to differentiate the wheel Spindle's outer tie-rod end during installation while tightening it to 80 Nm (59 lb-ft). The front wheel knuckle rotation allows access to the outboard front wheel axle shaft joint so you can compress it before extracting the wheel hub component. Use the axle shaft remover with slide hammer to split apart the inboard front wheel axle shaft joint from the front axle housing while protecting the axle seal from harm. Install the new retainer circlip inside the groove of the LH inboard CV joint housing stub shaft before installing the axle shaft assembly where the circlip must sit correctly in place. To install the components you should perform the removal steps in reverse order by not using power tools to tighten components and by keeping the hub nut and washer assembly out of reuse.
