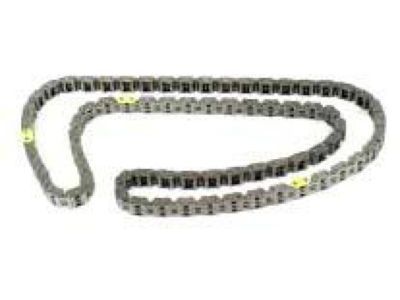

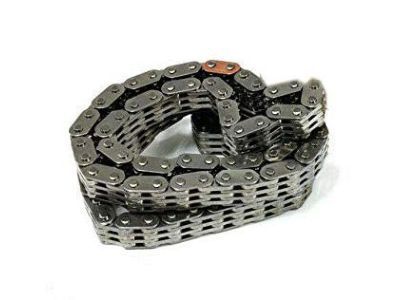

Ford Timing Chain
Part Number: 7R3Z-6268-AA
$106.05 MSRP: $154.37
You Save: $48.32 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Belt - Timing
- Manufacturer Note: Primary
Fits the following Ford Models:
- Mustang | 2007-2014 | Shelby GT500, Shelby GT500KR | 8 Cyl 5.4 L GAS, 8 Cyl 5.8 L GAS
View related parts

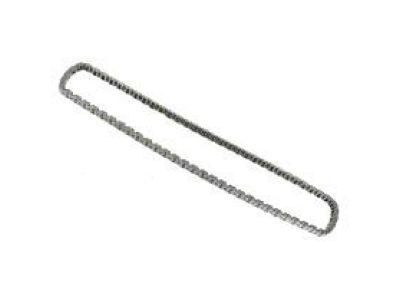

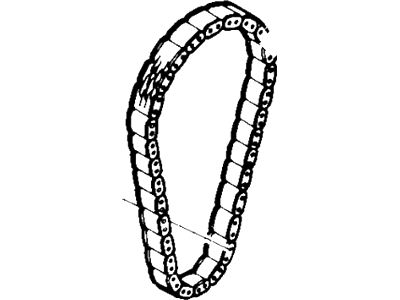

Ford Timing Chain, Driver Side
Part Number: 7U3Z-6A257-A
$108.85 MSRP: $134.63
You Save: $25.78 (20%)
ADD TO CART
Product Specifications
- Other Name: Cassette - Timing Chain; Engine Timing Chain, Left; Variable Valve Timing Sprocket; Cam Gear; Camshaft Gear; Camshaft Chain
- Position: Driver Side
Fits the following Ford Models:
- Explorer | 1997-2005 | Eddie Bauer, Limited, NBX, Postal, Sport, XL, XL Fleet, XLS, XLS Sport, XLT, XLT Sport | 6 Cyl 4.0 L FLEX, 6 Cyl 4.0 L GAS
- Explorer Sport Trac | 2007 | Limited, XLT | 6 Cyl 4.0 L GAS
- Mustang | 2005-2007 | Base | 6 Cyl 4.0 L GAS
- Ranger | 2004-2005 | Edge, FX4, Tremor, XL, XLT | 6 Cyl 4.0 L GAS
View More
View related parts

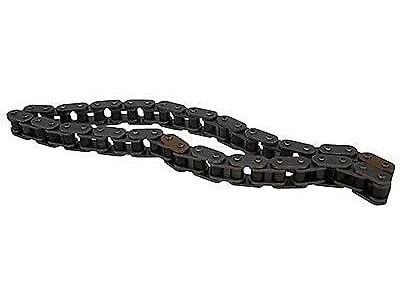

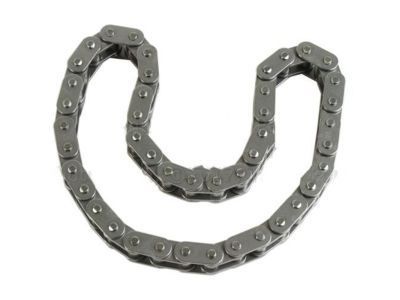

Ford Timing Chain
Part Number: 3L8Z-6268-AA
$58.06 MSRP: $84.52
You Save: $26.46 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Chain - Timing; Engine Timing Chain
Fits the following Ford Models:
- Escape | 2005-2008 | Hybrid, XLS, XLT | 4 Cyl 2.3 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.3 L GAS
- Focus | 2003-2007 | LX, SE, ST, ZTS, ZTW, ZX3, ZX4 ST, ZX5 | 4 Cyl 2.3 L GAS
- Fusion | 2006-2007 | S, SE, SEL | 4 Cyl 2.3 L GAS
View More
View related parts

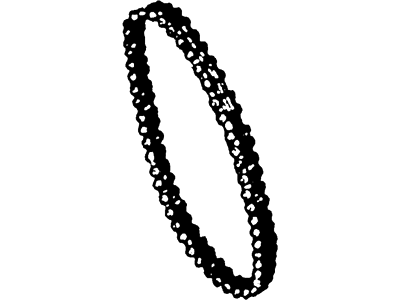

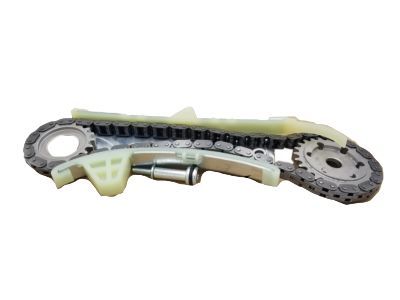

Ford Timing Chain
Part Number: F3LY-6268-B
$46.90 MSRP: $67.10
You Save: $20.20 (31%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Belt - Timing; Engine Timing Chain
Fits the following Ford Models:
- Crown Victoria | 2003-2004 | Base, LWB, LX, LX Sport, Police Interceptor, S | 8 Cyl 4.6 L CNG, 8 Cyl 4.6 L GAS
- Expedition | 2002 | Eddie Bauer, XLT | 8 Cyl 4.6 L GAS
- Mustang | 2003-2004, 2001, 1996-1999 | Mach 1, SVT Cobra, SVT Cobra 10th Anniversary | 8 Cyl 4.6 L GAS
View More
View related parts
Ford Timing Chain
Part Number: YF1Z-6268-AA
$60.83 MSRP: $88.55
You Save: $27.72 (32%)
ADD TO CART
Product Specifications
- Other Name: Chain - Timing; Engine Timing Cover
- Manufacturer Note: 24V
Fits the following Ford Models:
- Escape | 2001-2009 | Limited, XLS, XLT, XLT No Boundaries, XLT Sport | 6 Cyl 3.0 L GAS
- Five Hundred | 2005-2007 | Limited, SE, SEL | 6 Cyl 3.0 L GAS
- Freestyle | 2005-2007 | Limited, SE, SEL | 6 Cyl 3.0 L GAS
- Fusion | 2006-2009 | SE, SEL | 6 Cyl 3.0 L GAS
- Taurus | 2001-2005 | SE, SE Comfort, SEL, SES | 6 Cyl 3.0 L GAS
View More
View related parts

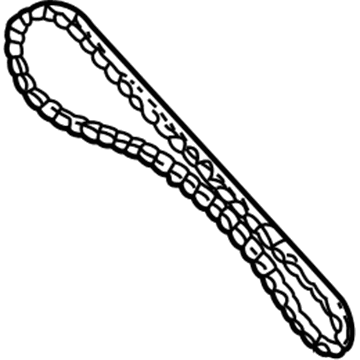

Ford Timing Chain
Part Number: AL3Z-6268-A
$36.23 MSRP: $51.83
You Save: $15.60 (31%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Belt - Timing; Engine Timing Chain
Fits the following Ford Models:
- E-350 Super Duty | 2017-2019 | Base | 8 Cyl 6.2 L FLEX
- F-150 | 2011-2014 | FX2, FX4, Harley-Davidson Edition, Lariat, Lariat Limited, Platinum, SVT Raptor, XLT | 8 Cyl 6.2 L GAS
- F-250 Super Duty | 2011-2022 | King Ranch, Lariat, Platinum, XL, XLT | 8 Cyl 6.2 L FLEX
- F-350 Super Duty | 2011-2022 | King Ranch, Lariat, Platinum, XL, XLT | 8 Cyl 6.2 L FLEX
View More
View related parts

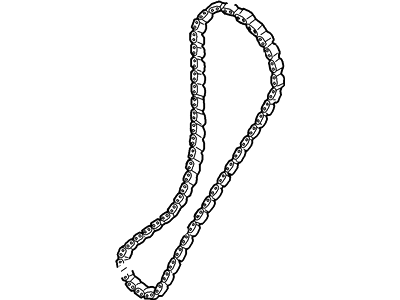

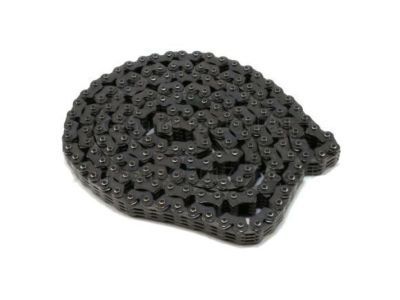

Ford Timing Chain
Part Number: JX6Z-6268-C
$75.57 MSRP: $110.00
You Save: $34.43 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Belt/Chain - Timing
Fits the following Ford Models:
- Bronco Sport | 2021-2023 | Base, Big Bend, Heritage Edition, Outer Banks | 3 Cyl 1.5 L GAS
- Escape | 2020-2023 | Active, Base, S, SE, SEL, ST-Line | 3 Cyl 1.5 L GAS
View related parts

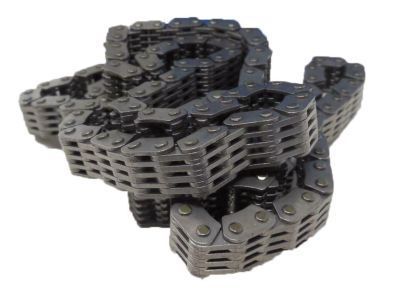

Ford Timing Chain
Part Number: ML3Z-6268-C
$61.09 MSRP: $88.92
You Save: $27.83 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Belt - Timing
Fits the following Ford Models:
- F-150 | 2021-2023 | King Ranch, Lariat, Platinum, SSV, Tremor, XL, XLT | 8 Cyl 5.0 L FLEX
View related parts
Ford Timing Chain
Part Number: 7R3Z-6268-BA
$49.34 MSRP: $70.58
You Save: $21.24 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Belt - Timing
- Manufacturer Note: Secondary
Fits the following Ford Models:
- Mustang | 2007-2014 | Shelby GT500, Shelby GT500KR | 8 Cyl 5.4 L GAS, 8 Cyl 5.8 L GAS
View related parts
Ford Timing Chain
Part Number: P2GZ-6268-A
$63.48 MSRP: $92.40
You Save: $28.92 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Belt/Chain - Timing
Fits the following Ford Models:
- Escape | 2023 | Platinum, ST-Line Elite, ST-Line Select | 4 Cyl 2.0 L GAS
View related parts
Ford Timing Chain
Part Number: LC3Z-6268-A
$38.06 MSRP: $54.45
You Save: $16.39 (31%)
ADD TO CART
Product Specifications
- Other Name: Belt/Chain - Timing
Fits the following Ford Models:
- E-350 Super Duty | 2021-2023 | Base | 8 Cyl 7.3 L GAS
- F-250 Super Duty | 2020-2023 | King Ranch, Lariat, Platinum, XL, XLT | 8 Cyl 6.8 L GAS, 8 Cyl 7.3 L GAS
- F-350 Super Duty | 2020-2023 | King Ranch, Lariat, Platinum, XL, XLT | 8 Cyl 6.8 L GAS, 8 Cyl 7.3 L GAS
View More
View related parts
Ford Timing Chain
Part Number: ML3Z-6268-A
$57.41 MSRP: $88.18
You Save: $30.77 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Belt/Chain - Timing
Fits the following Ford Models:
- F-150 | 2021-2023 | King Ranch, Lariat, Platinum, SSV, Tremor, XL, XLT | 8 Cyl 5.0 L FLEX
View related parts
Ford Timing Chain
Part Number: 2W9Z-6268-BA
Product Specifications
- Other Name: Belt - Timing
Fits the following Ford Models:
- Thunderbird | 2002-2005 | 50th Anniversary Edition, Base, James Bond Edition, Neiman Marcus, Pacific Coast Roadster | 8 Cyl 3.9 L GAS
View related parts
Ford Timing Chain
Part Number: 2W9Z-6268-AA
Product Specifications
- Other Name: Belt - Timing
Fits the following Ford Models:
- Thunderbird | 2002-2005 | 50th Anniversary Edition, Base, James Bond Edition, Neiman Marcus, Pacific Coast Roadster | 8 Cyl 3.9 L GAS
View related parts
Ford Timing Chain
Part Number: F3AZ-6268-A
Product Specifications
- Other Name: Belt - Timing
Fits the following Ford Models:
- Crown Victoria | 1992-1993 | Base, LX, Police Interceptor, S, Touring Sedan | 8 Cyl 4.6 L GAS
View related parts

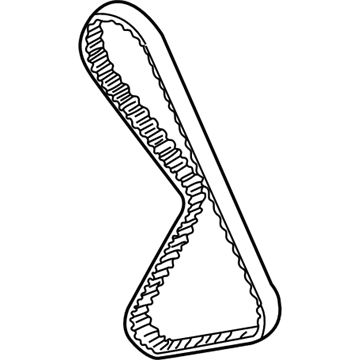

Ford Timing Belt
Part Number: F47Z-6268-B
Product Specifications
- Other Name: Belt - Timing; Engine Timing Belt; Timing Belt Kit
Fits the following Ford Models:
- Ranger | 1994 | Splash, STX, XL, XLT | 4 Cyl 2.3 L GAS
View related parts
Ford Timing Chain
Part Number: D4TZ-6268-A
Product Specifications
- Other Name: Belt - Timing
- Manufacturer Note: CHAIN (TIMING)
Fits the following Ford Models:
- E-250 Econoline Club Wagon | 1988-1991 | Custom, XL, XLT | 8 Cyl 7.5 L GAS
- E-350 Econoline | 1988-1996 | Base, Custom, XL | 8 Cyl 7.5 L GAS
- E-350 Econoline Club Wagon | 1988-1996 | Chateau, Chateau HD, Custom, Custom HD, XL, XL HD, XLT, XLT HD | 8 Cyl 7.5 L GAS
- F-250 | 1988-1996 | Custom, Eddie Bauer, Special, XL, XLT, XLT Lariat | 8 Cyl 7.5 L GAS
- F-250 HD | 1997 | XL, XLT | 8 Cyl 7.5 L GAS
- F-350 | 1988-1997 | Base, Custom, Eddie Bauer, Special, XL, XLT, XLT Lariat | 8 Cyl 7.5 L GAS
View More
View related parts
Ford Timing Chain
Part Number: C8SZ-6268-A
Product Specifications
- Other Name: Chain - Timing
- Manufacturer Note: 52 links
Fits the following Ford Models:
- E-250 Econoline Club Wagon | 1984-1987 | Base, Custom, XL, XLT | 8 Cyl 7.5 L GAS
- E-350 Econoline | 1984-1987 | Base, Custom, XL | 8 Cyl 7.5 L GAS
- E-350 Econoline Club Wagon | 1984-1987 | Base, Custom, XL, XLT | 8 Cyl 7.5 L GAS
- F-250 | 1984-1987 | Base, Custom, XL, XLT, XLT Lariat | 8 Cyl 7.5 L GAS
- F-350 | 1984-1987 | Base, Custom, XL, XLT, XLT Lariat | 8 Cyl 7.5 L GAS
View More
View related parts
Ford Timing Chain
Part Number: E7TZ-6268-A
Product Specifications
- Other Name: Belt - Timing
Fits the following Ford Models:
- Bronco | 1994-1996 | Eddie Bauer, XL, XLT, XLT Sport | 8 Cyl 5.0 L GAS, 8 Cyl 5.8 L GAS
- E-150 Econoline | 1994-1996 | Base, XL | 8 Cyl 5.0 L GAS, 8 Cyl 5.8 L GAS
- E-150 Econoline Club Wagon | 1994-1996 | Chateau, Custom, XLT | 8 Cyl 5.0 L GAS, 8 Cyl 5.8 L GAS
- E-250 Econoline | 1994-1996 | Base, XL | 8 Cyl 5.8 L GAS
- E-350 Econoline | 1994-1996 | Base, XL | 8 Cyl 5.8 L GAS
- E-350 Econoline Club Wagon | 1994-1996 | Chateau, Chateau HD, Custom, XL HD, XLT, XLT HD | 8 Cyl 5.8 L GAS
- F-150 | 1994-1996 | Eddie Bauer, Lightning, Special, XL, XLT | 8 Cyl 5.0 L GAS, 8 Cyl 5.8 L GAS
- F-250 | 1994-1996 | Eddie Bauer, Special, XL, XLT | 8 Cyl 5.0 L GAS, 8 Cyl 5.8 L GAS
- F-350 | 1994-1997 | Base, Eddie Bauer, Special, XL, XLT | 8 Cyl 5.8 L GAS
View More
View related parts
Ford Timing Belt
Part Number: F32Z6268A
Product Specifications
- Other Name: Timing Chain; Engine Timing Belt; Timing Belt Kit; Chain - Timing
Fits the following Ford Models:
- Probe | 1993-1997 | Base, GTS, SE | 4 Cyl 2.0 L GAS
