30 Cruise Control Servos found

View related parts

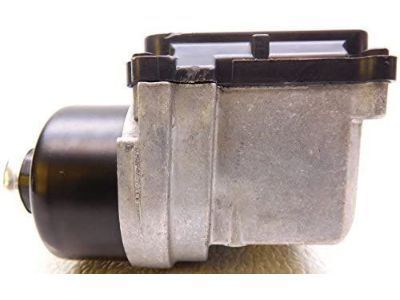

Ford Cruise Servo
Part Number: XL2Z-9C735-AA
$184.41 MSRP: $534.75
You Save: $350.34 (66%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Servo Assembly - Speed Control; Cruise Control Servo; Amplifier; Servo
- Replaces: F87Z-9C735-EA, F87Z-9C735-AB, F87Z-9C735-DC
Fits the following Ford Models:
- Explorer | 1998-2001 | Eddie Bauer, Limited, Postal, Sport, XL, XL Fleet, XLS, XLT | 6 Cyl 4.0 L GAS
- Explorer Sport | 2001 | Base | 6 Cyl 4.0 L GAS
- Explorer Sport Trac | 2001-2003 | Base, XL, XLS, XLT | 6 Cyl 4.0 L GAS
- Ranger | 1995-2000 | Splash, Sport, STX, XL, XL Sport, XLT | 4 Cyl 2.3 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
View More
View related parts
Ford Cruise Servo
Part Number: F87Z-9C735-HA
$260.01 MSRP: $381.80
You Save: $121.79 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Servo Assembly - Speed Control; Cruise Control Servo; Servo
- Manufacturer Note: Electronic servo
- Replaces: F79Z-9C735-BA
Fits the following Ford Models:
- Explorer | 1995-1997 | Eddie Bauer, Expedition, Limited, Sport, XL, XLT | 6 Cyl 4.0 L GAS
View related parts
Ford Cruise Servo
Part Number: F87Z-9C735-FA
$311.16 MSRP: $456.92
You Save: $145.76 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Servo Assembly - Speed Control; Cruise Control Servo; Amplifier; Servo
- Manufacturer Note: Electronic servo
- Replaces: F77Z-9C735-BA
Fits the following Ford Models:
- Explorer | 1996-1997 | Eddie Bauer, Limited, XLT | 8 Cyl 5.0 L GAS
View related parts
Ford Cruise Servo
Part Number: YL8Z-9C735-EA
$340.70 MSRP: $534.18
You Save: $193.48 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Servo Assembly - Speed Control; Cruise Control Servo; Servo
Fits the following Ford Models:
- Escape | 2001-2004 | Limited, XLS, XLT | 6 Cyl 3.0 L GAS
View related parts
Ford Cruise Servo
Part Number: YS4Z-9C735-BA
$340.73 MSRP: $534.23
You Save: $193.50 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Servo Assembly - Speed Control; Cruise Control Servo; Servo
- Manufacturer Note: DOHC
Fits the following Ford Models:
- Focus | 2000-2004 | SE, Sony Limited Edition, SVT, ZTS, ZTW, ZX3, ZX5 | 4 Cyl 2.0 L GAS
View related parts
Ford Servo Assembly
Part Number: XW4Z-9C735-AA
$130.30 MSRP: $180.25
You Save: $49.95 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Servo Assembly - Speed Control; Cruise Control Servo; Cruise Servo; Servo
Fits the following Ford Models:
- Expedition | 2003-2006 | Eddie Bauer, King Ranch, Limited, NBX, XLS, XLT, XLT Sport | 8 Cyl 4.6 L GAS, 8 Cyl 5.4 L GAS
- Explorer | 2002-2005 | Eddie Bauer, Limited, NBX, XLS, XLS Sport, XLT, XLT Sport | 6 Cyl 4.0 L FLEX, 6 Cyl 4.0 L GAS, 8 Cyl 4.6 L GAS
- Thunderbird | 2002-2005 | 50th Anniversary Edition, Base, James Bond Edition, Neiman Marcus, Pacific Coast Roadster | 8 Cyl 3.9 L GAS
View More
View related parts
Ford Cruise Servo
Part Number: 6L5Z-9C735-AA
Product Specifications
- Other Name: Servo Assembly - Speed Control; Cruise Control Servo; Servo
- Replaces: 1L5Z-9C735-AA
Fits the following Ford Models:
- Explorer | 2001 | Eddie Bauer, Limited, Postal, XL Fleet, XLS, XLT | 6 Cyl 4.0 L GAS
- Explorer Sport | 2001-2003 | Base, XLS, XLT | 6 Cyl 4.0 L GAS
- Explorer Sport Trac | 2001-2005 | Adrenalin, Base, XL, XLS, XLT | 6 Cyl 4.0 L FLEX, 6 Cyl 4.0 L GAS
- Ranger | 2001-2011 | Edge, FX4, Sport, STX, Tremor, XL, XLT | 4 Cyl 2.3 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
View More
View related parts
Ford Cruise Servo
Part Number: XR3Z-9C735-AA
Product Specifications
- Other Name: Servo Assembly - Speed Control; Cruise Control Servo; Servo
Fits the following Ford Models:
- Mustang | 1999-2004 | Base, GT, GT Bullitt, Mach 1, SVT Cobra, SVT Cobra 10th Anniversary | 6 Cyl 3.8 L GAS, 6 Cyl 3.9 L GAS, 8 Cyl 4.6 L GAS
View related parts
Ford Cruise Servo
Part Number: XW7Z-9C735-AA
Product Specifications
- Other Name: Servo Assembly - Speed Control; Cruise Control Servo; Servo
Fits the following Ford Models:
- Crown Victoria | 1995-2002 | Base, LWB, LX, Police Interceptor, S | 8 Cyl 4.6 L CNG, 8 Cyl 4.6 L GAS
- Thunderbird | 1994-1997 | LX
View related parts
Ford Cruise Servo
Part Number: YC2Z-9C735-AA
Product Specifications
- Other Name: Servo Assembly - Speed Control; Cruise Control Servo; Servo
- Manufacturer Note: Electronic servo
Fits the following Ford Models:
- E-150 | 2003-2004 | Base | 6 Cyl 4.2 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 5.4 L GAS
- E-150 Club Wagon | 2003-2004 | Chateau, XL, XLT | 6 Cyl 4.2 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 5.4 L GAS
- E-150 Econoline | 2000-2002 | Base, XL | 6 Cyl 4.2 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 5.4 L GAS
- E-150 Econoline Club Wagon | 2000-2002 | Chateau, Custom, XL, XLT | 6 Cyl 4.2 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 5.4 L GAS
- E-250 | 2003-2004 | Base | 6 Cyl 4.2 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 5.4 L CNG, 8 Cyl 5.4 L GAS
- E-250 Econoline | 2000-2002 | Base, XL | 6 Cyl 4.2 L GAS, 8 Cyl 5.4 L CNG, 8 Cyl 5.4 L GAS
- E-350 Club Wagon | 2003-2004 | Chateau, XL, XLT | 10 Cyl 6.8 L GAS, 8 Cyl 5.4 L CNG, 8 Cyl 5.4 L GAS, 8 Cyl 6.0 L DIESEL, 8 Cyl 7.3 L DIESEL
- E-350 Econoline Club Wagon | 2000-2002 | Chateau, Custom, XL, XLT | 10 Cyl 6.8 L GAS, 8 Cyl 5.4 L CNG, 8 Cyl 5.4 L GAS, 8 Cyl 7.3 L DIESEL
- E-350 Super Duty | 2000-2004 | Base, XL | 10 Cyl 6.8 L GAS, 8 Cyl 5.4 L CNG, 8 Cyl 5.4 L GAS, 8 Cyl 6.0 L DIESEL, 8 Cyl 7.3 L DIESEL
View More
View related parts
Ford Servo Assembly
Part Number: 1L3Z-9C735-AB
Product Specifications
- Other Name: Servo Assembly - Speed Control; Cruise Control Servo; Cruise Servo; Servo
- Manufacturer Note: Electronic servo
- Replaces: 1L3Z-9C735-AA
Fits the following Ford Models:
- Excursion | 2002-2005 | Eddie Bauer, Limited, XLS, XLT | 10 Cyl 6.8 L GAS, 8 Cyl 5.4 L GAS, 8 Cyl 6.0 L DIESEL, 8 Cyl 7.3 L DIESEL
- F-250 Super Duty | 2001-2006 | Harley-Davidson Edition, King Ranch, Lariat, XL, XLT | 10 Cyl 6.8 L GAS, 8 Cyl 5.4 L GAS, 8 Cyl 6.0 L DIESEL, 8 Cyl 7.3 L DIESEL
- F-350 Super Duty | 2001-2006 | Harley-Davidson Edition, King Ranch, Lariat, XL, XLT | 10 Cyl 6.8 L GAS, 8 Cyl 5.4 L GAS, 8 Cyl 6.0 L DIESEL, 8 Cyl 7.3 L DIESEL
View More
View related parts
Ford Cruise Servo
Part Number: 3S4Z-9C735-AB
Product Specifications
- Other Name: Servo Assembly - Speed Control; Cruise Control Servo
Fits the following Ford Models:
- Focus | 2004 | LX, SE, SVT, ZTS, ZTW, ZX3, ZX5 | 4 Cyl 2.0 L GAS
View related parts
Ford Cruise Servo
Part Number: 3W7Z-9C735-AA
Product Specifications
- Other Name: Servo Assembly - Speed Control; Cruise Control Servo; Servo
Fits the following Ford Models:
- Crown Victoria | 2003-2007 | Base, LWB, LX, LX Sport, Police Interceptor, S, Special Edition | 8 Cyl 4.6 L CNG, 8 Cyl 4.6 L FLEX, 8 Cyl 4.6 L GAS
View related parts
Ford Cruise Servo
Part Number: 4S4Z-9C735-AA
Product Specifications
- Other Name: Servo Assembly - Speed Control; Cruise Control Servo; Servo
Fits the following Ford Models:
- Focus | 2005-2007 | S, SE, SES, ST, ZX3, ZX4, ZX4 ST, ZX5, ZXW | 4 Cyl 2.0 L GAS, 4 Cyl 2.3 L GAS
View related parts
Ford Cruise Servo
Part Number: E6AZ-9C735-A
Product Specifications
- Other Name: Servo Assembly - Speed Control; Cruise Control Servo; Servo
Fits the following Ford Models:
- Aerostar | 1986-1988 | Base, Eddie Bauer, XL, XLT | 4 Cyl 2.3 L GAS, 6 Cyl 2.8 L GAS, 6 Cyl 3.0 L GAS
- Bronco | 1984-1989 | Custom, Eddie Bauer, XLT | 6 Cyl 4.9 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.8 L GAS
- Bronco II | 1984-1988 | Base, Eddie Bauer, XL, XL Sport, XLS, XLT | 4 Cyl 2.3 L DIESEL, 6 Cyl 2.8 L GAS, 6 Cyl 2.9 L GAS
- E-150 Econoline | 1984-1988 | Base, Custom, XL | 6 Cyl 4.9 L GAS, 6 Cyl 4.9 L LPG, 8 Cyl 5.0 L GAS, 8 Cyl 5.8 L GAS
- E-250 Econoline | 1984-1988 | Base, Custom, XL | 6 Cyl 4.9 L GAS, 6 Cyl 4.9 L LPG, 8 Cyl 5.0 L GAS, 8 Cyl 5.8 L GAS
- E-350 Econoline | 1984-1988 | Base, Custom, XL | 6 Cyl 4.9 L GAS, 6 Cyl 4.9 L LPG, 8 Cyl 5.8 L GAS, 8 Cyl 6.9 L DIESEL, 8 Cyl 7.3 L DIESEL, 8 Cyl 7.5 L GAS
- EXP | 1986-1988 | Base, Luxury, Sport | 4 Cyl 1.9 L GAS
- Escort | 1992-1996, 1986-1989 | Base, GL, GT, L, LX, LX Sport, LX-E, Pony, Sport | 4 Cyl 1.8 L GAS, 4 Cyl 1.9 L GAS, 4 Cyl 2.0 L DIESEL
- Explorer | 1991-1992 | Eddie Bauer, Sport, XL, XLT | 6 Cyl 4.0 L GAS
- F-150 | 1992, 1984-1989 | Base, Custom, XL, XLT, XLT Lariat | 6 Cyl 4.9 L GAS, 6 Cyl 4.9 L LPG, 8 Cyl 5.0 L GAS, 8 Cyl 5.8 L GAS, 8 Cyl 6.9 L DIESEL
View More
View related parts
Ford Cruise Servo
Part Number: F8UZ-9C735-AA
Product Specifications
- Other Name: Servo Assembly - Speed Control; Cruise Control Servo; Servo
- Manufacturer Note: Electronic servo
Fits the following Ford Models:
- Bronco | 1992-1996 | Custom, Eddie Bauer, XL, XLT, XLT Lariat, XLT Nite, XLT Sport | 6 Cyl 4.9 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.8 L GAS
- E-150 Econoline | 1992-1999 | Base, XL | 6 Cyl 4.2 L GAS, 6 Cyl 4.9 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.4 L BI-FUEL, 8 Cyl 5.4 L GAS, 8 Cyl 5.8 L GAS
- E-150 Econoline Club Wagon | 1992-1999 | Chateau, Custom, XLT | 6 Cyl 4.2 L GAS, 6 Cyl 4.9 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.4 L BI-FUEL, 8 Cyl 5.4 L GAS, 8 Cyl 5.8 L GAS
- E-250 Econoline | 1992-1999 | Base, XL | 6 Cyl 4.2 L GAS, 6 Cyl 4.9 L BI-FUEL, 6 Cyl 4.9 L GAS, 8 Cyl 5.4 L BI-FUEL, 8 Cyl 5.4 L CNG, 8 Cyl 5.4 L GAS, 8 Cyl 5.8 L GAS
- E-350 Econoline | 1992-1998 | Base, XL | 10 Cyl 6.8 L GAS, 6 Cyl 4.9 L GAS, 8 Cyl 5.4 L BI-FUEL, 8 Cyl 5.4 L CNG, 8 Cyl 5.4 L GAS, 8 Cyl 5.8 L GAS, 8 Cyl 7.3 L DIESEL, 8 Cyl 7.5 L GAS
- E-350 Econoline Club Wagon | 1992-1999 | Chateau, Chateau HD, Custom, Custom HD, XL HD, XLT, XLT HD | 10 Cyl 6.8 L GAS, 6 Cyl 4.9 L BI-FUEL, 6 Cyl 4.9 L GAS, 8 Cyl 5.4 L BI-FUEL, 8 Cyl 5.4 L CNG, 8 Cyl 5.4 L GAS, 8 Cyl 5.8 L GAS, 8 Cyl 7.3 L DIESEL, 8 Cyl 7.5 L GAS
- E-350 Super Duty | 1999 | Base, XL | 10 Cyl 6.8 L GAS, 8 Cyl 5.4 L BI-FUEL, 8 Cyl 5.4 L CNG, 8 Cyl 5.4 L GAS, 8 Cyl 7.3 L DIESEL
- F-150 | 1992-1996 | Custom, Eddie Bauer, Lightning, Special, XL, XLT, XLT Lariat | 6 Cyl 4.9 L BI-FUEL, 6 Cyl 4.9 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.8 L GAS
- F-250 | 1992-1998 | Base, Custom, Eddie Bauer, Lariat, Special, XL, XLT, XLT Lariat | 6 Cyl 4.9 L BI-FUEL, 6 Cyl 4.9 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.4 L BI-FUEL, 8 Cyl 5.4 L CNG, 8 Cyl 5.4 L GAS, 8 Cyl 5.8 L GAS, 8 Cyl 7.3 L DIESEL, 8 Cyl 7.5 L GAS
- F-250 HD | 1997 | XL, XLT | 8 Cyl 5.8 L GAS, 8 Cyl 7.3 L DIESEL, 8 Cyl 7.5 L GAS
View More
View related parts
Ford Servo Assembly
Part Number: XC3Z-9C735-CA
Product Specifications
- Other Name: Servo Assembly - Speed Control; Cruise Control Servo; Cruise Servo; Servo
- Replaces: F81Z-9C735-AA
Fits the following Ford Models:
- Excursion | 2000-2001 | Limited, XLT | 10 Cyl 6.8 L GAS, 8 Cyl 5.4 L GAS, 8 Cyl 7.3 L DIESEL
- F-250 | 1999 | Base, Lariat, XL, XLT | 8 Cyl 4.6 L GAS, 8 Cyl 5.4 L BI-FUEL, 8 Cyl 5.4 L CNG, 8 Cyl 5.4 L GAS
- F-250 Super Duty | 1999-2001 | Lariat, XL, XLT | 10 Cyl 6.8 L GAS, 8 Cyl 5.4 L GAS, 8 Cyl 7.3 L DIESEL
- F-350 Super Duty | 1999-2001 | Lariat, XL, XLT | 10 Cyl 6.8 L GAS, 8 Cyl 5.4 L GAS, 8 Cyl 7.3 L DIESEL
View More
View related parts
Ford Cruise Servo
Part Number: XS4Z-9C735-AA
Product Specifications
- Other Name: Servo Assembly - Speed Control; Cruise Control Servo; Servo
- Manufacturer Note: Electronic servo , 2dr,coupe,DOHC
Fits the following Ford Models:
- E-150 Econoline | 1992-1996 | Base, XL | 6 Cyl 4.9 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.8 L GAS
- E-150 Econoline Club Wagon | 1992-1996 | Chateau, Custom, XLT | 6 Cyl 4.9 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.8 L GAS
- E-250 Econoline | 1992-1996 | Base, XL | 6 Cyl 4.9 L BI-FUEL, 6 Cyl 4.9 L GAS, 8 Cyl 5.8 L GAS
- E-350 Econoline | 1992-1998 | Base, XL | 6 Cyl 4.9 L GAS, 8 Cyl 5.8 L GAS, 8 Cyl 7.3 L DIESEL, 8 Cyl 7.5 L GAS
- E-350 Econoline Club Wagon | 1992-1999 | Chateau, Chateau HD, Custom, Custom HD, XL HD, XLT, XLT HD | 6 Cyl 4.9 L BI-FUEL, 6 Cyl 4.9 L GAS, 8 Cyl 5.8 L GAS, 8 Cyl 7.3 L DIESEL, 8 Cyl 7.5 L GAS
- E-350 Super Duty | 1999 | Base, XL
- Escort | 1997-2003 | Base, LX, SE, Sport, ZX2, ZX2 Cool Coupe, ZX2 Hot Coupe, ZX2 S/R | 4 Cyl 2.0 L GAS
- Probe | 1994-1997 | Base, GT, GTS, SE | 4 Cyl 2.0 L GAS, 6 Cyl 2.5 L GAS
View More
View related parts
Ford Cruise Servo
Part Number: XS8Z-9C735-AA
Product Specifications
- Other Name: Servo Assembly - Speed Control; Cruise Control Servo; Servo
- Manufacturer Note: Electronic servo
Fits the following Ford Models:
- Contour | 1995-2000 | Base, GL, GL Sport, LX, LX Sport, SE, Sport, SVT | 4 Cyl 2.0 L BI-FUEL, 4 Cyl 2.0 L GAS, 6 Cyl 2.5 L GAS
View related parts
Ford Cruise Servo
Part Number: YL8Z-9C735-FA
Product Specifications
- Other Name: Servo Assembly - Speed Control; Cruise Control Servo; Servo
Fits the following Ford Models:
- Escape | 2001-2004 | Limited, XLS, XLT | 4 Cyl 2.0 L GAS

| Page 1 of 2 |Next >

1-20 of 30 Results
